Specifications
MountingThrough Hole
Power Supply TypeSwitching
Power Factor CorrectedNo PFC
Input Voltage Range (VAC)90 - 130
Minimum Input Line Frequency Range (Hz)47
Maximum Input Line Frequency Range (Hz)440
Main Output Voltage (VDC)5
Auxiliary Output Voltage (±VDC)12
Main Output Max Load Current (A)1.4
Auxiliary Max Load Current per Output (A)0.125
Max Main Output Power (W)7
Max Auxiliary Output Power per Output (W)1.5
Main Output Voltage Load Regulation 25-100% Load (±%)0.5
Auxiliary Output Voltage Load Regulation 25-100% Load (±%)5
Efficiency at Full Load Typical (%)77
Main Output Voltage Ripple at Full Load 1 MHz BW (mVp-p)50
Auxiliary Output Voltage Ripple at Full Load 1 MHz BW (mVp-p)50
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)3.2 x 2.1 x 0.5
Weight (grams)145
Case6-Sided Epoxy Insulated Metal
PottingVacuum Impregnated Epoxy
Isolation Voltage - Input/Output (VRMS)1200
Operating Frequency (kHz)25 to 35
Short Circuit ProtectionContinuous
Description

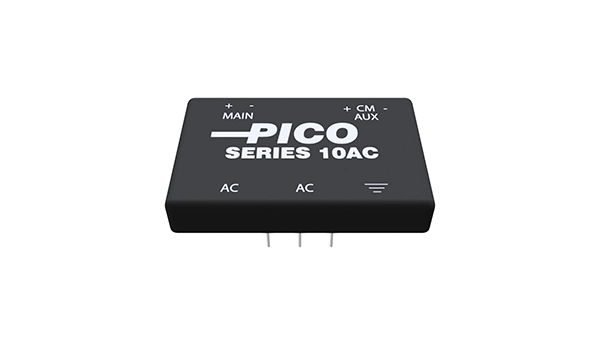

The 10AC series is a switching AC-DC power supply available in a low profile 0.500″ height and in single, dual and triple outputs. They offer excellent line and load regulation and is continuously protected against short circuits. The highly reliable module is capable of up to 10W power in a wide ambient temperature range -25ºC to +70ºC. These modules are the perfect design choice for your most stringent industrial applications.
The case has a low profile height, 0.500″, and threaded inserts to mount securely for high vibration and shock applications.
