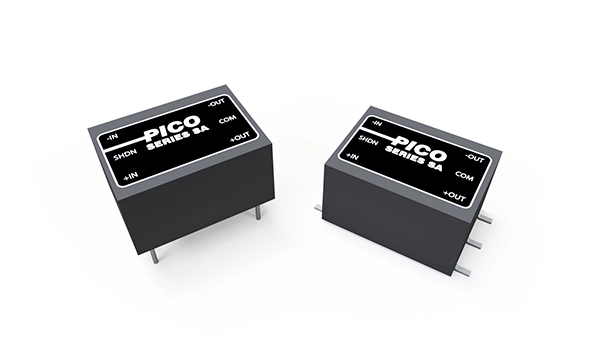

Series SA & SA-SM render 1

Series SA & SA-SM

3W Isolated Proportional Programmable High Voltage DC-DC Converter

The SA & SA-SM series modules are isolated DC-DC converters with high efficiency, excellent load regulation, ultra-miniature case and low output ripple. It can operate in a wide temperature range without derating or heatsink. Protections include input overvoltage, and over temperature.

Through hole and surface mount packages are available. Every single output has a center tap for a dual output configuration. Due to a resonant design, it exhibits a very low load effect.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • 3W output power
  • At least ±10% input voltage range
  • Output voltage is directly proportional to input voltage
  • No minimum load
  • Protected against input overvoltage, output short-circuit and over temperature
  • Shutdown feature
  • Single or dual output configuration

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Available RoHS Compliant module
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Mounting

Nominal Input Voltage (VDC)

Single Output Voltage (VDC)

Part Number SeriesMounting# of OutputsOutput TypeNominal Input Voltage (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Downloads
5SA900SMSA-SMSurface MountSingleProportional59003
DatasheetMechanical DrawingLand Pattern3D Model
5SA900SAThrough HoleSingleProportional59003
DatasheetMechanical Drawing3D Model
5SA800SMSA-SMSurface MountSingleProportional58003
DatasheetMechanical DrawingLand Pattern3D Model
5SA800SAThrough HoleSingleProportional58003
DatasheetMechanical Drawing3D Model
5SA700SMSA-SMSurface MountSingleProportional57003
DatasheetMechanical DrawingLand Pattern3D Model
5SA700SAThrough HoleSingleProportional57003
DatasheetMechanical Drawing3D Model
5SA600SMSA-SMSurface MountSingleProportional56003
DatasheetMechanical DrawingLand Pattern3D Model
5SA600SAThrough HoleSingleProportional56003
DatasheetMechanical Drawing3D Model
5SA500SMSA-SMSurface MountSingleProportional55003
DatasheetMechanical DrawingLand Pattern3D Model
5SA500SAThrough HoleSingleProportional55003
DatasheetMechanical Drawing3D Model
5SA450SMSA-SMSurface MountSingleProportional54503
DatasheetMechanical DrawingLand Pattern3D Model
5SA450SAThrough HoleSingleProportional54503
DatasheetMechanical Drawing3D Model
5SA400SMSA-SMSurface MountSingleProportional54003
DatasheetMechanical DrawingLand Pattern3D Model
5SA400SAThrough HoleSingleProportional54003
DatasheetMechanical Drawing3D Model
5SA350SMSA-SMSurface MountSingleProportional53503
DatasheetMechanical DrawingLand Pattern3D Model
5SA350SAThrough HoleSingleProportional53503
DatasheetMechanical Drawing3D Model
5SA300SMSA-SMSurface MountSingleProportional53003
DatasheetMechanical DrawingLand Pattern3D Model
5SA300SAThrough HoleSingleProportional53003
DatasheetMechanical Drawing3D Model
5SA250SMSA-SMSurface MountSingleProportional52503
DatasheetMechanical DrawingLand Pattern3D Model
5SA250SAThrough HoleSingleProportional52503
DatasheetMechanical Drawing3D Model
5SA200SMSA-SMSurface MountSingleProportional52003
DatasheetMechanical DrawingLand Pattern3D Model
5SA200SAThrough HoleSingleProportional52003
DatasheetMechanical Drawing3D Model
5SA150SMSA-SMSurface MountSingleProportional51503
DatasheetMechanical DrawingLand Pattern3D Model
5SA150SAThrough HoleSingleProportional51503
DatasheetMechanical Drawing3D Model
5SA100SMSA-SMSurface MountSingleProportional51003
DatasheetMechanical DrawingLand Pattern3D Model
5SA1000SMSA-SMSurface MountSingleProportional510003
DatasheetMechanical DrawingLand Pattern3D Model
5SA1000SAThrough HoleSingleProportional510003
DatasheetMechanical Drawing3D Model
5SA100SAThrough HoleSingleProportional51003
DatasheetMechanical Drawing3D Model
28SA900SMSA-SMSurface MountSingleProportional289003
DatasheetMechanical DrawingLand Pattern3D Model
28SA900SAThrough HoleSingleProportional289003
DatasheetMechanical Drawing3D Model
28SA800SMSA-SMSurface MountSingleProportional288003
DatasheetMechanical DrawingLand Pattern3D Model
28SA800SAThrough HoleSingleProportional288003
DatasheetMechanical Drawing3D Model
28SA700SMSA-SMSurface MountSingleProportional287003
DatasheetMechanical DrawingLand Pattern3D Model
28SA700SAThrough HoleSingleProportional287003
DatasheetMechanical Drawing3D Model
28SA600SMSA-SMSurface MountSingleProportional286003
DatasheetMechanical DrawingLand Pattern3D Model
28SA600SAThrough HoleSingleProportional286003
DatasheetMechanical Drawing3D Model
28SA500SMSA-SMSurface MountSingleProportional285003
DatasheetMechanical DrawingLand Pattern3D Model
28SA500SAThrough HoleSingleProportional285003
DatasheetMechanical Drawing3D Model
28SA450SMSA-SMSurface MountSingleProportional284503
DatasheetMechanical DrawingLand Pattern3D Model
28SA450SAThrough HoleSingleProportional284503
DatasheetMechanical Drawing3D Model
28SA400SMSA-SMSurface MountSingleProportional284003
DatasheetMechanical DrawingLand Pattern3D Model
28SA400SAThrough HoleSingleProportional284003
DatasheetMechanical Drawing3D Model
28SA350SMSA-SMSurface MountSingleProportional283503
DatasheetMechanical DrawingLand Pattern3D Model
28SA350SAThrough HoleSingleProportional283503
DatasheetMechanical Drawing3D Model
28SA300SMSA-SMSurface MountSingleProportional283003
DatasheetMechanical DrawingLand Pattern3D Model
28SA300SAThrough HoleSingleProportional283003
DatasheetMechanical Drawing3D Model
28SA250SMSA-SMSurface MountSingleProportional282503
DatasheetMechanical DrawingLand Pattern3D Model
28SA250SAThrough HoleSingleProportional282503
DatasheetMechanical Drawing3D Model
28SA200SMSA-SMSurface MountSingleProportional282003
DatasheetMechanical DrawingLand Pattern3D Model
28SA200SAThrough HoleSingleProportional282003
DatasheetMechanical Drawing3D Model
28SA150SMSA-SMSurface MountSingleProportional281503
DatasheetMechanical DrawingLand Pattern3D Model
28SA150SAThrough HoleSingleProportional281503
DatasheetMechanical Drawing3D Model
28SA100SMSA-SMSurface MountSingleProportional281003
DatasheetMechanical DrawingLand Pattern3D Model
28SA1000SMSA-SMSurface MountSingleProportional2810003
DatasheetMechanical DrawingLand Pattern3D Model
28SA1000SAThrough HoleSingleProportional2810003
DatasheetMechanical Drawing3D Model
28SA100SAThrough HoleSingleProportional281003
DatasheetMechanical Drawing3D Model
24SA900SMSA-SMSurface MountSingleProportional249003
DatasheetMechanical DrawingLand Pattern3D Model
24SA900SAThrough HoleSingleProportional249003
DatasheetMechanical Drawing3D Model
24SA800SMSA-SMSurface MountSingleProportional248003
DatasheetMechanical DrawingLand Pattern3D Model
24SA800SAThrough HoleSingleProportional248003
DatasheetMechanical Drawing3D Model
24SA700SMSA-SMSurface MountSingleProportional247003
DatasheetMechanical DrawingLand Pattern3D Model
24SA700SAThrough HoleSingleProportional247003
DatasheetMechanical Drawing3D Model
24SA600SMSA-SMSurface MountSingleProportional246003
DatasheetMechanical DrawingLand Pattern3D Model
24SA600SAThrough HoleSingleProportional246003
DatasheetMechanical Drawing3D Model
24SA500SMSA-SMSurface MountSingleProportional245003
DatasheetMechanical DrawingLand Pattern3D Model
24SA500SAThrough HoleSingleProportional245003
DatasheetMechanical Drawing3D Model
24SA450SMSA-SMSurface MountSingleProportional244503
DatasheetMechanical DrawingLand Pattern3D Model
24SA450SAThrough HoleSingleProportional244503
DatasheetMechanical Drawing3D Model
24SA400SMSA-SMSurface MountSingleProportional244003
DatasheetMechanical DrawingLand Pattern3D Model
24SA400SAThrough HoleSingleProportional244003
DatasheetMechanical Drawing3D Model
24SA350SMSA-SMSurface MountSingleProportional243503
DatasheetMechanical DrawingLand Pattern3D Model
24SA350SAThrough HoleSingleProportional243503
DatasheetMechanical Drawing3D Model
24SA300SMSA-SMSurface MountSingleProportional243003
DatasheetMechanical DrawingLand Pattern3D Model
24SA300SAThrough HoleSingleProportional243003
DatasheetMechanical Drawing3D Model
24SA250SMSA-SMSurface MountSingleProportional242503
DatasheetMechanical DrawingLand Pattern3D Model
24SA250SAThrough HoleSingleProportional242503
DatasheetMechanical Drawing3D Model
24SA200SMSA-SMSurface MountSingleProportional242003
DatasheetMechanical DrawingLand Pattern3D Model
24SA200SAThrough HoleSingleProportional242003
DatasheetMechanical Drawing3D Model
24SA150SMSA-SMSurface MountSingleProportional241503
DatasheetMechanical DrawingLand Pattern3D Model
24SA150SAThrough HoleSingleProportional241503
DatasheetMechanical Drawing3D Model
24SA100SMSA-SMSurface MountSingleProportional241003
DatasheetMechanical DrawingLand Pattern3D Model
24SA1000SMSA-SMSurface MountSingleProportional2410003
DatasheetMechanical DrawingLand Pattern3D Model
24SA1000SAThrough HoleSingleProportional2410003
DatasheetMechanical Drawing3D Model
24SA100SAThrough HoleSingleProportional241003
DatasheetMechanical Drawing3D Model
12SA900SMSA-SMSurface MountSingleProportional129003
DatasheetMechanical DrawingLand Pattern3D Model
12SA900SAThrough HoleSingleProportional129003
DatasheetMechanical Drawing3D Model
12SA800SMSA-SMSurface MountSingleProportional128003
DatasheetMechanical DrawingLand Pattern3D Model
12SA800SAThrough HoleSingleProportional128003
DatasheetMechanical Drawing3D Model
12SA700SMSA-SMSurface MountSingleProportional127003
DatasheetMechanical DrawingLand Pattern3D Model
12SA700SAThrough HoleSingleProportional127003
DatasheetMechanical Drawing3D Model
12SA600SMSA-SMSurface MountSingleProportional126003
DatasheetMechanical DrawingLand Pattern3D Model
12SA600SAThrough HoleSingleProportional126003
DatasheetMechanical Drawing3D Model
12SA500SMSA-SMSurface MountSingleProportional125003
DatasheetMechanical DrawingLand Pattern3D Model
12SA500SAThrough HoleSingleProportional125003
DatasheetMechanical Drawing3D Model
12SA450SMSA-SMSurface MountSingleProportional124503
DatasheetMechanical DrawingLand Pattern3D Model
12SA450SAThrough HoleSingleProportional124503
DatasheetMechanical Drawing3D Model
12SA400SMSA-SMSurface MountSingleProportional124003
DatasheetMechanical DrawingLand Pattern3D Model
12SA400SAThrough HoleSingleProportional124003
DatasheetMechanical Drawing3D Model
12SA350SMSA-SMSurface MountSingleProportional123503
DatasheetMechanical DrawingLand Pattern3D Model
12SA350SAThrough HoleSingleProportional123503
DatasheetMechanical Drawing3D Model
12SA300SMSA-SMSurface MountSingleProportional123003
DatasheetMechanical DrawingLand Pattern3D Model
12SA300SAThrough HoleSingleProportional123003
DatasheetMechanical Drawing3D Model
12SA250SMSA-SMSurface MountSingleProportional122503
DatasheetMechanical DrawingLand Pattern3D Model
12SA250SAThrough HoleSingleProportional122503
DatasheetMechanical Drawing3D Model
12SA200SMSA-SMSurface MountSingleProportional122003
DatasheetMechanical DrawingLand Pattern3D Model
12SA200SAThrough HoleSingleProportional122003
DatasheetMechanical Drawing3D Model
12SA150SMSA-SMSurface MountSingleProportional121503
DatasheetMechanical DrawingLand Pattern3D Model
12SA150SAThrough HoleSingleProportional121503
DatasheetMechanical Drawing3D Model
12SA100SMSA-SMSurface MountSingleProportional121003
DatasheetMechanical DrawingLand Pattern3D Model
12SA1000SMSA-SMSurface MountSingleProportional1210003
DatasheetMechanical DrawingLand Pattern3D Model
12SA1000SAThrough HoleSingleProportional1210003
DatasheetMechanical Drawing3D Model
12SA100SAThrough HoleSingleProportional121003
DatasheetMechanical Drawing3D Model
