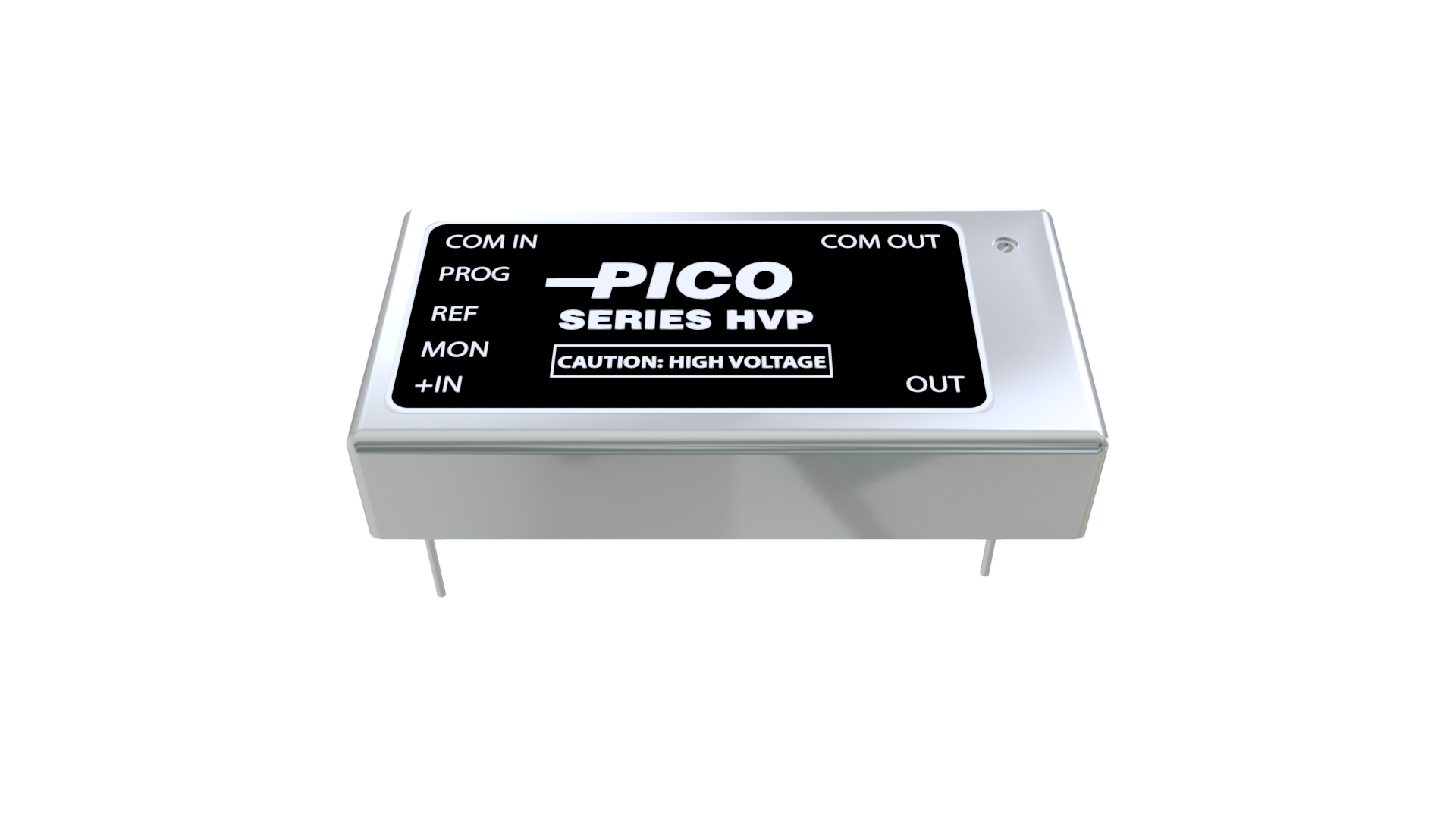

Series HVP

5W Non-Isolated Regulated Programmable High Voltage DC-DC Converter

The HVP series of fully regulated modules are 0% to 100% output voltage programmable by internal reference or external voltage plus additional 10% fine-tune calibration. These modules have a voltage monitor and shutdown features. Protections include input overvoltage, output short-circuit, output overload, and over temperature. Precise line & load regulation with low ripple down to 0.007% peak to peak.

The 2.55″ x 1.3″ x 0.5″ low profile 6-sided shielded metal case size will mitigate EMI noise and inteference.

Download Datasheet

Features

0-100% programmable output feature
11-16 VDC input voltage range
5W output power
100 to 6kV nominal output voltage models
Compact 2.55” x 1.3” x 0.5” 6-sided metal case
Protected against input overvoltage, output short-circuit, output overload and over temperature
3 voltage programming methods
Down to 0.007% peak to peak ripple
<0.01% load regulation
Shutdown feature
Output voltage monitor feature
10% fine-tune calibration adjustment screw

Options

Expanded operating temp: -55°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Part Number	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Input Voltage Range (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Downloads
HVP6P	Through Hole	Single	Regulated Programmable	12	11 – 16	6000	5	Datasheet Mechanical Drawing 3D Model
HVP6N	Through Hole	Single	Regulated Programmable	12	11 – 16	-6000	5	Datasheet Mechanical Drawing 3D Model
HVP5P	Through Hole	Single	Regulated Programmable	12	11 – 16	5000	5	Datasheet Mechanical Drawing 3D Model
HVP5N	Through Hole	Single	Regulated Programmable	12	11 – 16	-5000	5	Datasheet Mechanical Drawing 3D Model
HVP4P	Through Hole	Single	Regulated Programmable	12	11 – 16	4000	5	Datasheet Mechanical Drawing 3D Model
HVP4N	Through Hole	Single	Regulated Programmable	12	11 – 16	-4000	5	Datasheet Mechanical Drawing 3D Model
HVP3P	Through Hole	Single	Regulated Programmable	12	11 – 16	3000	5	Datasheet Mechanical Drawing 3D Model
HVP3N	Through Hole	Single	Regulated Programmable	12	11 – 16	-3000	5	Datasheet Mechanical Drawing 3D Model
HVP2P	Through Hole	Single	Regulated Programmable	12	11 – 16	2000	5	Datasheet Mechanical Drawing 3D Model
HVP2N	Through Hole	Single	Regulated Programmable	12	11 – 16	-2000	5	Datasheet Mechanical Drawing 3D Model
HVP1P	Through Hole	Single	Regulated Programmable	12	11 – 16	1000	5	Datasheet Mechanical Drawing 3D Model
HVP1N	Through Hole	Single	Regulated Programmable	12	11 – 16	-1000	5	Datasheet Mechanical Drawing 3D Model
HVP0.5P	Through Hole	Single	Regulated Programmable	12	11 – 16	500	5	Datasheet Mechanical Drawing 3D Model
HVP0.5N	Through Hole	Single	Regulated Programmable	12	11 – 16	-500	5	Datasheet Mechanical Drawing 3D Model
HVP0.25P	Through Hole	Single	Regulated Programmable	12	11 – 16	250	5	Datasheet Mechanical Drawing 3D Model
HVP0.25N	Through Hole	Single	Regulated Programmable	12	11 – 16	-250	5	Datasheet Mechanical Drawing 3D Model
HVP0.1P	Through Hole	Single	Regulated Programmable	12	11 – 16	100	5	Datasheet Mechanical Drawing 3D Model
HVP0.1N	Through Hole	Single	Regulated Programmable	12	11 – 16	-100	5	Datasheet Mechanical Drawing 3D Model
