Low Profile Audio Transformers

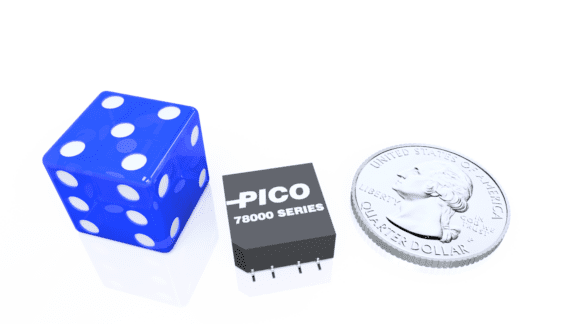

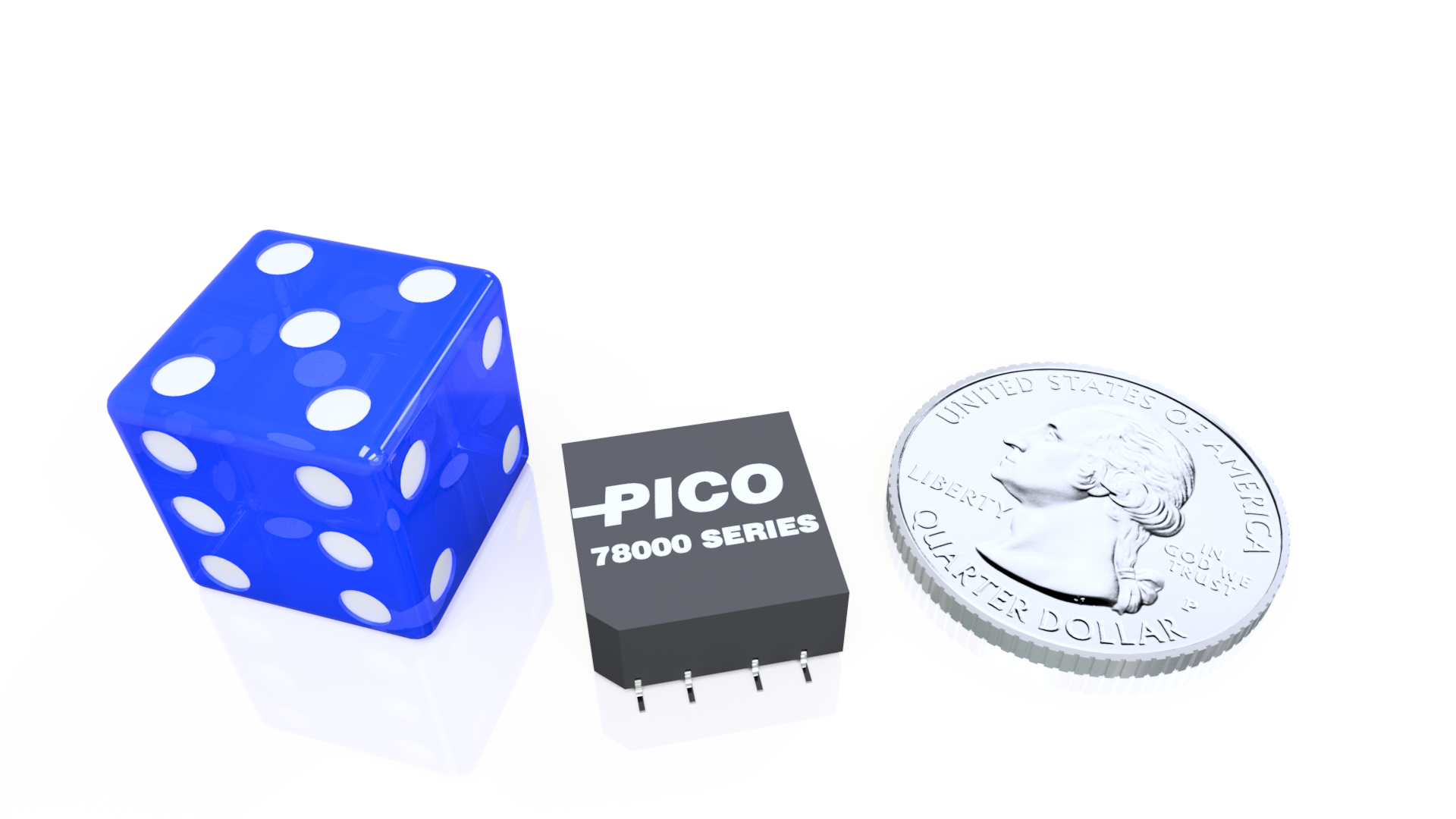

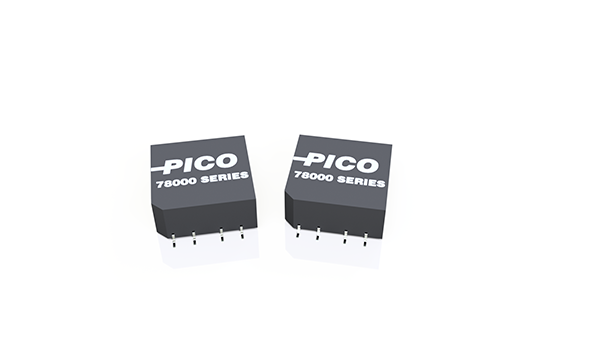

The 78000 series are ultra-miniature transformers in an encapsulated package with design layout as surface mount gull-wing leads. In comparison to Pico’s typical audio transformers, these are compact for PCB space, where height is an issue and electrical specifications do not need to be compromised. These low profile audio transformers can operate over a wide temperature range of -55°C to +130°C and allows wide frequency bandwith. Our proprietary materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance. Pico audio transformers provide galvanic isolation, signal gain/loss, match impedances between two interfaces, can be used as a reference and to provide feedback signal.
For more information on our qualified military products, or QPL audio transformers, please visit our separate page for MIL-spec partsOpens a new window.
Primary Impedance (Ω)
Secondary Impedance (Ω)
| Part Number | Series | Mounting | Frequency Range (±3 dB) | ≥ 1kHz Maximum Power (W) | ≥ 300Hz Power (W) | Primary Impedance (Ω) | Secondary Impedance (Ω) | Turns Ratio (Prim/Sec) — Series Connection | Turns Ratio (Prim/Sec) — Parallel Connection | Primary Unbalanced DC Current (mA) | Primary DC Resistance (Ω) | Secondary DC Resistance (Ω) — Series | Secondary DC Resistance (Ω) — Parallel | Size (L x W x H) inches | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 78505 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 10,000 | 1:1 | – | 1 | 833 | 1166.6 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78500 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 10,000 | 1:1 | 2:1 | 1 | 833 | 1166.6 | 291.6 | 0.55″ x 0.55″ x 0.24″ | |
| 78495 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 7500 | 1.15:1 | 2.3:1 | 1 | 833 | 875 | 218.75 | 0.55″ x 0.55″ x 0.24″ | |
| 78490 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 1 | 833 | 583.3 | 145.83 | 0.55″ x 0.55″ x 0.24″ | |
| 78485 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 1 | 833 | 233.33 | 58.33 | 0.55″ x 0.55″ x 0.24″ | |
| 78480 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 1 | 833 | 175 | 43.75 | 0.55″ x 0.55″ x 0.24″ | |
| 78475 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 1200 | 2.89:1 | 5.77:1 | 1 | 833 | 140 | 35 | 0.55″ x 0.55″ x 0.24″ | |
| 78470 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 1 | 833 | 116.6 | 29.16 | 0.55″ x 0.55″ x 0.24″ | |
| 78465 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 600 | 4.08:1 | 8.16:1 | 1 | 833 | 70 | 17.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78460 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 500 | 4.47:1 | 8.94:1 | 1 | 833 | 58.3 | 14.58 | 0.55″ x 0.55″ x 0.24″ | |
| 78455 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 200 | 7.07:1 | 14.14:1 | 1 | 833 | 23.3 | 5.83 | 0.55″ x 0.55″ x 0.24″ | |
| 78450 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 100 | 10:1 | 20:1 | 1 | 833 | 11.66 | 2.91 | 0.55″ x 0.55″ x 0.24″ | |
| 78445 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 16 | 25:1 | 50:1 | 1 | 833 | 1.86 | 0.46 | 0.55″ x 0.55″ x 0.24″ | |
| 78440 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10,000 | 12.8 | 28:1 | 56:1 | 1 | 833 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78435 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 9000 | 9000 | 1:1 | – | 1 | 750 | 1.05 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78430 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 8000 | 1200 | 2.58:1 | – | 1.1 | 666.6 | 140 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78425 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 8000 | 1000 | 2.83:1 | 5.66:1 | 1.1 | 666.6 | 116.6 | 29.16 | 0.55″ x 0.55″ x 0.24″ | |
| 78420 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 8000 | 12.8 | 25:1 | 50:1 | 1.1 | 666.6 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78415 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 7500 | 7500 | 1:1 | – | 1.1 | 625 | 875 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78410 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 7500 | 2500 | 1.73:1 | 3.46:1 | 1.2 | 625 | 291.6 | 72.9 | 0.55″ x 0.55″ x 0.24″ | |
| 78405 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 7500 | 600 | 3.54:1 | 7.07:1 | 1.2 | 625 | 70 | 17.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78400 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 7500 | 100 | 8.66:1 | 17.3:1 | 1.2 | 625 | 11.66 | 2.91 | 0.55″ x 0.55″ x 0.24″ | |
| 78395 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 7500 | 50 | 12.2:1 | 24.5:1 | 1.2 | 625 | 5.83 | 1.45 | 0.55″ x 0.55″ x 0.24″ | |
| 78390 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 5000 | 5000 | 1:1 | 2:1 | 1.2 | 416.6 | 583.3 | 145.8 | 0.55″ x 0.55″ x 0.24″ | |
| 78385 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 5000 | 500 | 3.16:1 | 6.32:1 | 1.4 | 416.6 | 58.3 | 14.58 | 0.55″ x 0.55″ x 0.24″ | |
| 78380 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 4000 | 8000 | 1:1.41 | – | 1.4 | 333.3 | 933.3 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78375 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 4000 | 1000 | 2:1 | 4:1 | 1.6 | 333.3 | 116.6 | 29.16 | 0.55″ x 0.55″ x 0.24″ | |
| 78370 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 4000 | 600 | 2.58:1 | 5.16:1 | 1.6 | 333.3 | 70 | 17.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78365 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 4000 | 16 | 15.8:1 | 31.6:1 | 1.6 | 333.3 | 1.86 | 0.46 | 0.55″ x 0.55″ x 0.24″ | |
| 78360 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 3600 | 3600 | 1:1 | 2:1 | 1.6 | 300 | 420 | 105 | 0.55″ x 0.55″ x 0.24″ | |
| 78355 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 3000 | 3000 | 1:1 | – | 1.7 | 250 | 350 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78350 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 3000 | 3000 | 1:1 | 2:1 | 1.8 | 250 | 350 | 87.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78345 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 2000 | 2500 | 1:1 | 2:1 | 1.8 | 166.6 | 291.6 | 72.4 | 0.55″ x 0.55″ x 0.24″ | |
| 78340 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 2000 | 8000 | 1:2 | 1:1 | 2 | 166.6 | 933.3 | 233.3 | 0.55″ x 0.55″ x 0.24″ | |
| 78335 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 2000 | 2000 | 1:1 | – | 2.2 | 166.6 | 233.3 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78330 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 2000 | 2000 | 1:1 | 2:1 | 2.2 | 166.6 | 233.3 | 58.33 | 0.55″ x 0.55″ x 0.24″ | |
| 78325 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 2000 | 8 | 15.8:1 | 31.6:1 | 2.2 | 166.6 | 0.93 | 0.23 | 0.55″ x 0.55″ x 0.24″ | |
| 78320 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1600 | 12.8 | 11.2:1 | 22.4:1 | 2.5 | 133.3 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78315 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1500 | 1500 | 1:1 | – | 2.6 | 125 | 175 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78310 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1500 | 600 | 1.58:1 | – | 2.6 | 125 | 70 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78305 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1500 | 500 | 1.73:1 | 3.46:1 | 2.6 | 125 | 58.3 | 14.58 | 0.55″ x 0.55″ x 0.24″ | |
| 78300 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1500 | 12 | 11.2:1 | 22.4:1 | 2.6 | 125 | 1.4 | 0.35 | 0.55″ x 0.55″ x 0.24″ | |
| 78295 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1200 | 1200 | 1:1 | – | 2.9 | 100 | 140 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78290 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1200 | 1200 | 1:1 | 2:1 | 2.9 | 100 | 140 | 35 | 0.55″ x 0.55″ x 0.24″ | |
| 78285 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1200 | 500 | 1.55:1 | 3.1:1 | 2.9 | 100 | 58.3 | 14.58 | 0.55″ x 0.55″ x 0.24″ | |
| 78280 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 2.9 | 100 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78275 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 3.1 | 88.3 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78270 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1000 | 1000 | 1:1 | 2:1 | 3.2 | 83.3 | 116.6 | 29.15 | 0.55″ x 0.55″ x 0.24″ | |
| 78265 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1000 | 50 | 4.47:1 | 8.94:1 | 3.2 | 83.3 | 5.83 | 1.45 | 0.55″ x 0.55″ x 0.24″ | |
| 78260 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 1000 | 12 | 9.13:1 | 18.3:1 | 3.2 | 83.3 | 1.4 | 0.35 | 0.55″ x 0.55″ x 0.24″ | |
| 78255 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 900 | 600 | 1.22:1 | 2.45:1 | 3.3 | 75 | 70 | 17.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78250 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 800 | 800 | 1:1 | 2:1 | 3.5 | 66.6 | 93.3 | 23.3 | 0.55″ x 0.55″ x 0.24″ | |
| 78245 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 800 | 48 | 4.08:1 | 8.16:1 | 3.5 | 66.6 | 5.6 | 1.4 | 0.55″ x 0.55″ x 0.24″ | |
| 78240 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 800 | 12.8 | 7.9:1 | 15.8:1 | 3.5 | 66.6 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78235 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 700 | 100 | 2.65:1 | 5.29:1 | 3.8 | 58.3 | 11.6 | 2.91 | 0.55″ x 0.55″ x 0.24″ | |
| 78230 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 640 | 12.8 | 7.07:1 | 14.4:1 | 3.9 | 53.3 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78225 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 600 | 1200 | 1:1.41 | 1.41:1 | 4.1 | 50 | 140 | 35 | 0.55″ x 0.55″ x 0.24″ | |
| 78220 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 600 | 600 | 1:1 | – | 4.1 | 50 | 70 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78215 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 600 | 600 | 1:1 | 2:1 | 4.1 | 50 | 70 | 17.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78210 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 600 | 200 | 1.73:1 | 3.46:1 | 4.1 | 50 | 23.3 | 5.83 | 0.55″ x 0.55″ x 0.24″ | |
| 78205 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 600 | 48 | 3.54:1 | 7.07:1 | 4.1 | 50 | 5.6 | 1.4 | 0.55″ x 0.55″ x 0.24″ | |
| 78200 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 600 | 30 | 4.47:1 | 8.94:1 | 4.1 | 50 | 3.5 | 0.875 | 0.55″ x 0.55″ x 0.24″ | |
| 78195 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 600 | 12.8 | 6.85:1 | 13.7:1 | 4.1 | 50 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78190 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 500 | 600 | 1:1.1 | 1.83:1 | 4.5 | 41.6 | 70 | 17.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78185 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 500 | 500 | 1:1 | – | 4.5 | 41.6 | 58.3 | – | 0.55″ x 0.55″ x 0.24″ | |
| 78180 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 500 | 500 | 1:1 | 2:1 | 4.5 | 41.6 | 58.3 | 14.58 | 0.55″ x 0.55″ x 0.24″ | |
| 78175 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 500 | 150 | 1.83:1 | 3.65:1 | 4.5 | 41.6 | 17.5 | 4.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78170 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 500 | 50 | 3.16:1 | 6.32:1 | 4.5 | 41.6 | 5.83 | 1.45 | 0.55″ x 0.55″ x 0.24″ | |
| 78165 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 500 | 16 | 5.6:1 | 11.2:1 | 4.5 | 41.6 | 1.86 | 0.46 | 0.55″ x 0.55″ x 0.24″ | |
| 78160 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 500 | 12.8 | 6.25:1 | 12.5:1 | 4.5 | 41.6 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78155 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 400 | 4000 | 1:3.16 | 1:1.58 | 5 | 33.3 | 466.6 | 116.6 | 0.55″ x 0.55″ x 0.24″ | |
| 78150 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 400 | 2000 | 1:2.24 | 1:1.12 | 5 | 33.3 | 233.3 | 58.3 | 0.55″ x 0.55″ x 0.24″ | |
| 78145 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 400 | 1000 | 1:1.58 | 1.26:1 | 5 | 33.3 | 116.6 | 29.16 | 0.55″ x 0.55″ x 0.24″ | |
| 78140 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 400 | 400 | 1:1 | 2:1 | 5 | 33.3 | 46.6 | 11.66 | 0.55″ x 0.55″ x 0.24″ | |
| 78135 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 400 | 200 | 1.41:1 | 2.83:1 | 5 | 33.3 | 23.3 | 5.83 | 0.55″ x 0.55″ x 0.24″ | |
| 78130 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 400 | 120 | 1.83:1 | 3.65:1 | 5 | 33.3 | 14 | 3.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78125 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 400 | 40 | 3.16:1 | 6.32:1 | 5 | 33.3 | 4.66 | 1.16 | 0.55″ x 0.55″ x 0.24″ | |
| 78120 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 320 | 12.8 | 5:1 | 10:1 | 5.6 | 26.6 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78115 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 300 | 600 | 1:1.41 | 1.41:1 | 5.8 | 25 | 70 | 17.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78110 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 300 | 300 | 1:1 | 2:1 | 5.8 | 25 | 35 | 8.75 | 0.55″ x 0.55″ x 0.24″ | |
| 78105 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 300 | 150 | 1.41:1 | 2.83:1 | 5.8 | 25 | 17.5 | 4.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78100 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 300 | 50 | 2.45:1 | 4.9:1 | 5.8 | 25 | 5.8 | 1.45 | 0.55″ x 0.55″ x 0.24″ | |
| 78095 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 300 | 12 | 5:1 | 10:1 | 5.8 | 25 | 1.4 | 0.35 | 0.55″ x 0.55″ x 0.24″ | |
| 78090 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 200 | 200 | 1:1 | 2:1 | 7 | 16.6 | 23.3 | 5.83 | 0.55″ x 0.55″ x 0.24″ | |
| 78085 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 150 | 600 | 1:2 | 1:1 | 8.2 | 12.5 | 70 | 17.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78080 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 150 | 150 | 1:1 | 2:1 | 8.2 | 12.5 | 17.5 | 4.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78075 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 150 | 100 | 1.22:1 | 2.45:1 | 8.2 | 12.5 | 11.6 | 2.91 | 0.55″ x 0.55″ x 0.24″ | |
| 78070 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 150 | 50 | 1.73:1 | 3.46:1 | 8.2 | 12.5 | 5.8 | 1.45 | 0.55″ x 0.55″ x 0.24″ | |
| 78065 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 150 | 12 | 3.54:1 | 7.08:1 | 8.2 | 12.5 | 1.4 | 0.35 | 0.55″ x 0.55″ x 0.24″ | |
| 78060 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 120 | 120 | 1:1 | 2:1 | 9.1 | 10 | 14 | 3.5 | 0.55″ x 0.55″ x 0.24″ | |
| 78055 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 120 | 60 | 1.41:1 | 2.83:1 | 9.1 | 10 | 7 | 1.75 | 0.55″ x 0.55″ x 0.24″ | |
| 78050 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 120 | 12.8 | 3.06:1 | 6.12:1 | 9.1 | 10 | 1.49 | 0.37 | 0.55″ x 0.55″ x 0.24″ | |
| 78045 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 100 | 100 | 1:1 | 2:1 | 10 | 8.33 | 11.6 | 2.91 | 0.55″ x 0.55″ x 0.24″ | |
| 78040 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 100 | 40 | 1.58:1 | 3.16:1 | 10 | 8.33 | 4.66 | 1.16 | 0.55″ x 0.55″ x 0.24″ | |
| 78035 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 80 | 32 | 1.58:1 | 3.16:1 | 11.1 | 6.66 | 3.73 | 0.93 | 0.55″ x 0.55″ x 0.24″ | |
| 78030 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 50 | 50 | 1:1 | 2:1 | 14.1 | 4.16 | 5.8 | 1.45 | 0.55″ x 0.55″ x 0.24″ | |
| 78025 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 48 | 16 | 1.73:1 | 3.46:1 | 14.4 | 4 | 1.86 | 0.46 | 0.55″ x 0.55″ x 0.24″ | |
| 78020 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 40 | 40 | 1:1 | 2:1 | 15.8 | 3.33 | 4.66 | 1.16 | 0.55″ x 0.55″ x 0.24″ | |
| 78015 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 32 | 32 | 1:1 | 2:1 | 17.6 | 2.66 | 3.73 | 0.93 | 0.55″ x 0.55″ x 0.24″ | |
| 78010 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 20 | 20 | 1:1 | 2:1 | 22.3 | 1.66 | 2.33 | 0.58 | 0.55″ x 0.55″ x 0.24″ | |
| 78005 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 20 | 8 | 1.58:1 | 3.16:1 | 22.3 | 1.66 | 0.93 | 0.23 | 0.55″ x 0.55″ x 0.24″ | |
| 78003 | 78000 | Square SMT – Gull Lead | 300 Hz to 200 kHz | 0.4 | 0.05 | 10 | 10 | 1:1 | 2:1 | 31.6 | 0.83 | 1.16 | 0.29 | 0.55″ x 0.55″ x 0.24″ |
