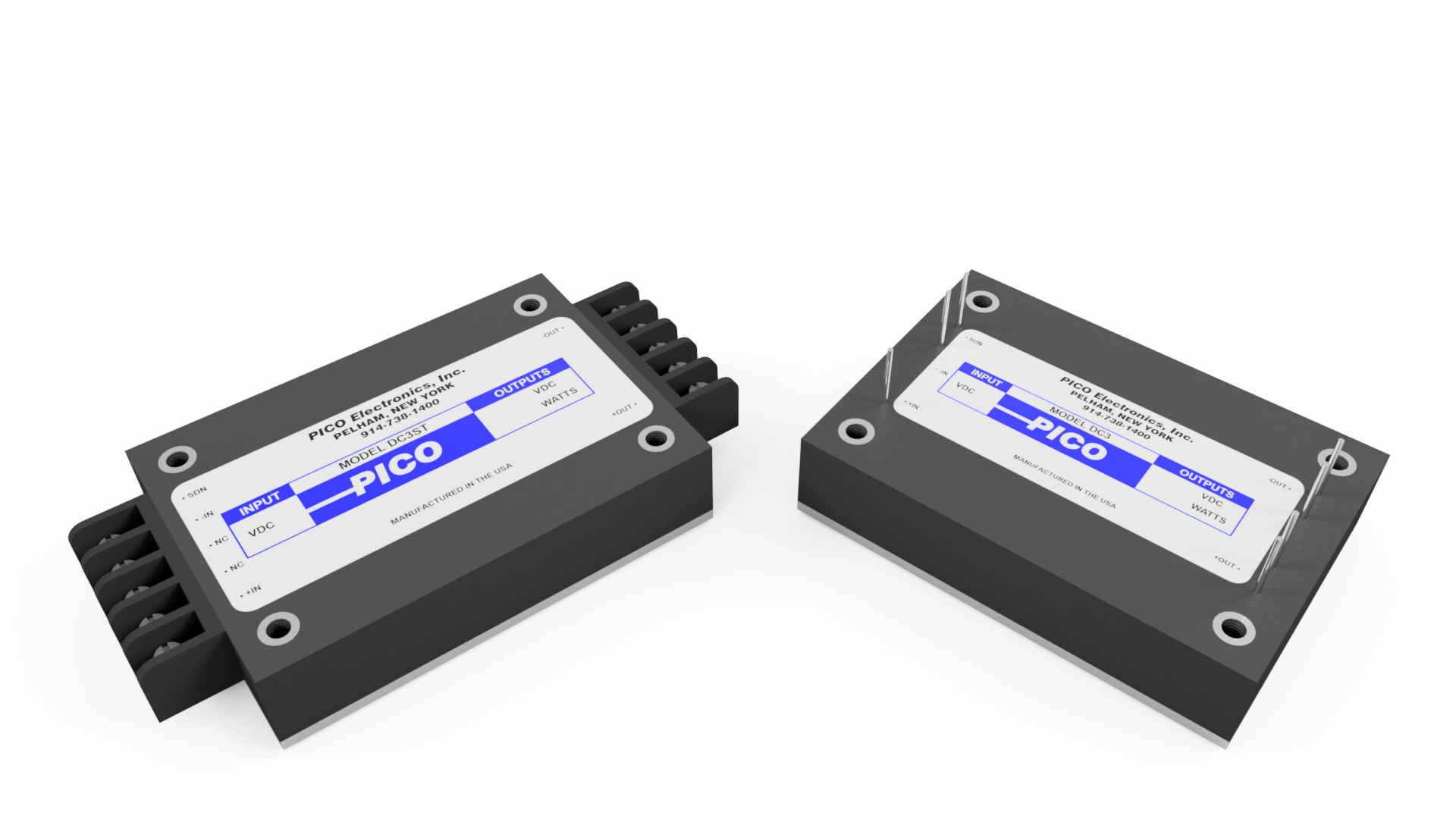

The DC3 & DC3-T series are isolated DC-DC converters with a wide 3:1 input voltage range of 300V to 900V and output power up to 50W. These modules have shutdown feature and continuous short-circuit protection.
The compact size has threaded inserts to mount securely for high vibration and shock applications. Conduction cooling is available through the baseplate or compatible heat sink.
Mounting
# of Outputs
Single Output Voltage (VDC)
Single Max Output Power (W)
Dual Output Voltage (VDC)
Dual Max Output Power (W)
| Part Number | Series | Mounting | # of Outputs | Temperature Range | Input Voltage Range (VDC) | Single Output Voltage (VDC) | Single Max Output Power (W) | Dual Output Voltage (VDC) | Dual Max Output Power (W) | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|
| DC3-5ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 5 | 40 | – | – | |
| DC3-5S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 5 | 40 | – | – | |
| DC3-5DT | DC3-T | Terminal Strip | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±5 | ±20 | |
| DC3-5D | DC3 | Through Hole | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±5 | ±20 | |
| DC3-5.2ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 5.2 | 40 | – | – | |
| DC3-5.2S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 5.2 | 40 | – | – | |
| DC3-48ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 48 | 50 | – | – | |
| DC3-48S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 48 | 50 | – | – | |
| DC3-300ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 300 | 50 | – | – | |
| DC3-300S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 300 | 50 | – | – | |
| DC3-3.3ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 3.3 | 30 | – | – | |
| DC3-3.3S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 3.3 | 30 | – | – | |
| DC3-28ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 28 | 50 | – | – | |
| DC3-28S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 28 | 50 | – | – | |
| DC3-28DT | DC3-T | Terminal Strip | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±28 | ±25 | |
| DC3-28D | DC3 | Through Hole | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±28 | ±25 | |
| DC3-275ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 275 | 50 | – | – | |
| DC3-275S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 275 | 50 | – | – | |
| DC3-250ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 250 | 50 | – | – | |
| DC3-250S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 250 | 50 | – | – | |
| DC3-24ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 24 | 50 | – | – | |
| DC3-24S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 24 | 50 | – | – | |
| DC3-24DT | DC3-T | Terminal Strip | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±24 | ±25 | |
| DC3-24D | DC3 | Through Hole | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±24 | ±25 | |
| DC3-225ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 225 | 50 | – | – | |
| DC3-225S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 225 | 50 | – | – | |
| DC3-200ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 200 | 50 | – | – | |
| DC3-200S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 200 | 50 | – | – | |
| DC3-175ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 175 | 50 | – | – | |
| DC3-175S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 175 | 50 | – | – | |
| DC3-15ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 15 | 50 | – | – | |
| DC3-15S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 15 | 50 | – | – | |
| DC3-15DT | DC3-T | Terminal Strip | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±15 | ±25 | |
| DC3-15D | DC3 | Through Hole | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±15 | ±25 | |
| DC3-150ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 150 | 50 | – | – | |
| DC3-150S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 150 | 50 | – | – | |
| DC3-12ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 12 | 50 | – | – | |
| DC3-12S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 12 | 50 | – | – | |
| DC3-12DT | DC3-T | Terminal Strip | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±12 | ±25 | |
| DC3-12D | DC3 | Through Hole | Dual | 0°C to +85°C Baseplate | 300 – 900 | – | – | ±12 | ±25 | |
| DC3-125ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 125 | 50 | – | – | |
| DC3-125S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 125 | 50 | – | – | |
| DC3-100ST | DC3-T | Terminal Strip | Single | 0°C to +85°C Baseplate | 300 – 900 | 100 | 50 | – | – | |
| DC3-100S | DC3 | Through Hole | Single | 0°C to +85°C Baseplate | 300 – 900 | 100 | 50 | – | – |
