Series P

100W Isolated Regulated High Power DC-DC Converter

The P series are isolated DC-DC converters with a wide selection of input voltage ranges from 18V to 380V in a low profile full brick size – 4.6″ x 2.4″ x 0.5″ (≤100V output) or 4.6″ x 2.5″ x 0.5″ (≥125V output). These modules have trim capability and shutdown features. Protections include input overvoltage, output short-circuit, output overvoltage and over temperature.

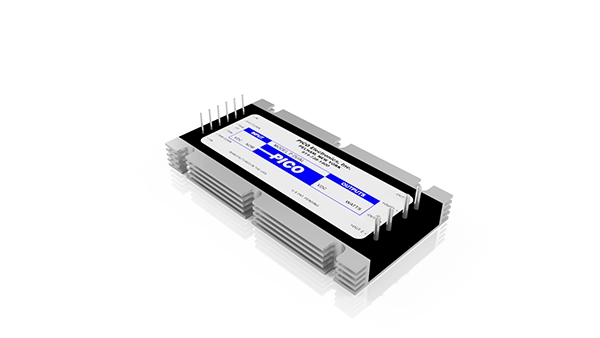

The unique case has integrated side heat sink for better thermal dissipation but is capable of conduction cooling through the baseplate or additional top mounted heat sink.

Download Datasheet

Features

18V to 380V input range models
3.3V to 350V output models
Up to 150W output
Input/output isolation
Integrated side heat sink
Parallel operation option
Single and dual isolated outputs
Up to +85°C baseplate operating temperature
Trim capability
Remote shutdown feature
Fixed operating frequency
No external components required

Options

Expanded operating temp: -55°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
Parallel Operation

Part Number	Mounting	# of Outputs	Temperature Range	Nominal Input Voltage (VDC)	Input Voltage Range (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Dual Output Voltage (VDC)	Dual Max Output Power (W)	Downloads
PD9S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	9	100	–	–	Datasheet Mechanical Drawing 3D Model
PD9D	Through Hole	Dual	0°C to +85°C Baseplate	300	200 – 380	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
PD5S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	5	75	–	–	Datasheet Mechanical Drawing 3D Model
PD5D	Through Hole	Dual	0°C to +85°C Baseplate	300	200 – 380	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
PD5.2S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
PD48S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	48	100	–	–	Datasheet Mechanical Drawing 3D Model
PD48D	Through Hole	Dual	0°C to +85°C Baseplate	300	200 – 380	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
PD350S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	350	100	–	–	Datasheet Mechanical Drawing 3D Model
PD325S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	325	100	–	–	Datasheet Mechanical Drawing 3D Model
PD300S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	300	100	–	–	Datasheet Mechanical Drawing 3D Model
PD3.3S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
PD28S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	28	100	–	–	Datasheet Mechanical Drawing 3D Model
PD28D	Through Hole	Dual	0°C to +85°C Baseplate	300	200 – 380	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
PD275S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	275	100	–	–	Datasheet Mechanical Drawing 3D Model
PD250S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	250	125	–	–	Datasheet Mechanical Drawing 3D Model
PD24S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	24	100	–	–	Datasheet Mechanical Drawing 3D Model
PD24D	Through Hole	Dual	0°C to +85°C Baseplate	300	200 – 380	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
PD225S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	225	125	–	–	Datasheet Mechanical Drawing 3D Model
PD200S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	200	150	–	–	Datasheet Mechanical Drawing 3D Model
PD175S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	175	150	–	–	Datasheet Mechanical Drawing 3D Model
PD15S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	15	100	–	–	Datasheet Mechanical Drawing 3D Model
PD15D	Through Hole	Dual	0°C to +85°C Baseplate	300	200 – 380	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
PD150S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	150	150	–	–	Datasheet Mechanical Drawing 3D Model
PD12S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	12	100	–	–	Datasheet Mechanical Drawing 3D Model
PD12D	Through Hole	Dual	0°C to +85°C Baseplate	300	200 – 380	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
PD125S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	125	150	–	–	Datasheet Mechanical Drawing 3D Model
PD100S	Through Hole	Single	0°C to +85°C Baseplate	300	200 – 380	100	100	–	–	Datasheet Mechanical Drawing 3D Model
PC9S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	9	100	–	–	Datasheet Mechanical Drawing 3D Model
PC9D	Through Hole	Dual	0°C to +85°C Baseplate	150	100 – 180	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
PC5S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	5	75	–	–	Datasheet Mechanical Drawing 3D Model
PC5D	Through Hole	Dual	0°C to +85°C Baseplate	150	100 – 180	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
PC5.2S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
PC48S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	48	100	–	–	Datasheet Mechanical Drawing 3D Model
PC48D	Through Hole	Dual	0°C to +85°C Baseplate	150	100 – 180	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
PC300S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	300	100	–	–	Datasheet Mechanical Drawing 3D Model
PC3.3S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
PC28S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	28	100	–	–	Datasheet Mechanical Drawing 3D Model
PC28D	Through Hole	Dual	0°C to +85°C Baseplate	150	100 – 180	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
PC275S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	275	100	–	–	Datasheet Mechanical Drawing 3D Model
PC250S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	250	125	–	–	Datasheet Mechanical Drawing 3D Model
PC24S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	24	100	–	–	Datasheet Mechanical Drawing 3D Model
PC24D	Through Hole	Dual	0°C to +85°C Baseplate	150	100 – 180	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
PC225S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	225	125	–	–	Datasheet Mechanical Drawing 3D Model
PC200S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	200	150	–	–	Datasheet Mechanical Drawing 3D Model
PC175S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	175	150	–	–	Datasheet Mechanical Drawing 3D Model
PC15S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	15	100	–	–	Datasheet Mechanical Drawing 3D Model
PC15D	Through Hole	Dual	0°C to +85°C Baseplate	150	100 – 180	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
PC150S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	150	150	–	–	Datasheet Mechanical Drawing 3D Model
PC12S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	12	100	–	–	Datasheet Mechanical Drawing 3D Model
PC12D	Through Hole	Dual	0°C to +85°C Baseplate	150	100 – 180	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
PC125S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	125	150	–	–	Datasheet Mechanical Drawing 3D Model
PC100S	Through Hole	Single	0°C to +85°C Baseplate	150	100 – 180	100	100	–	–	Datasheet Mechanical Drawing 3D Model
PB9S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	9	100	–	–	Datasheet Mechanical Drawing 3D Model
PB9D	Through Hole	Dual	0°C to +85°C Baseplate	48	36 – 72	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
PB5S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	5	75	–	–	Datasheet Mechanical Drawing 3D Model
PB5D	Through Hole	Dual	0°C to +85°C Baseplate	48	36 – 72	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
PB5.2S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
PB48S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	48	100	–	–	Datasheet Mechanical Drawing 3D Model
PB48D	Through Hole	Dual	0°C to +85°C Baseplate	48	36 – 72	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
PB300S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	300	100	–	–	Datasheet Mechanical Drawing 3D Model
PB3.3S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
PB28S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	28	100	–	–	Datasheet Mechanical Drawing 3D Model
PB28D	Through Hole	Dual	0°C to +85°C Baseplate	48	36 – 72	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
PB275S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	275	100	–	–	Datasheet Mechanical Drawing 3D Model
PB250S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	250	125	–	–	Datasheet Mechanical Drawing 3D Model
PB24S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	24	100	–	–	Datasheet Mechanical Drawing 3D Model
PB24D	Through Hole	Dual	0°C to +85°C Baseplate	48	36 – 72	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
PB225S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	225	125	–	–	Datasheet Mechanical Drawing 3D Model
PB200S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	200	150	–	–	Datasheet Mechanical Drawing 3D Model
PB175S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	175	150	–	–	Datasheet Mechanical Drawing 3D Model
PB15S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	15	100	–	–	Datasheet Mechanical Drawing 3D Model
PB15D	Through Hole	Dual	0°C to +85°C Baseplate	48	36 – 72	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
PB150S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	150	150	–	–	Datasheet Mechanical Drawing 3D Model
PB12S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	12	100	–	–	Datasheet Mechanical Drawing 3D Model
PB12D	Through Hole	Dual	0°C to +85°C Baseplate	48	36 – 72	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
PB125S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	125	150	–	–	Datasheet Mechanical Drawing 3D Model
PB100S	Through Hole	Single	0°C to +85°C Baseplate	48	36 – 72	100	100	–	–	Datasheet Mechanical Drawing 3D Model
PA9S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	9	100	–	–	Datasheet Mechanical Drawing 3D Model
PA9D	Through Hole	Dual	0°C to +85°C Baseplate	28	18 – 36	–	–	9/9	50/50	Datasheet Mechanical Drawing 3D Model
PA5S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	5	75	–	–	Datasheet Mechanical Drawing 3D Model
PA5D	Through Hole	Dual	0°C to +85°C Baseplate	28	18 – 36	–	–	5/5	37.5/37.5	Datasheet Mechanical Drawing 3D Model
PA5.2S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	5.2	75	–	–	Datasheet Mechanical Drawing 3D Model
PA48S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	48	100	–	–	Datasheet Mechanical Drawing 3D Model
PA48D	Through Hole	Dual	0°C to +85°C Baseplate	28	18 – 36	–	–	48/48	50/50	Datasheet Mechanical Drawing 3D Model
PA3.3S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	3.3	50	–	–	Datasheet Mechanical Drawing 3D Model
PA28S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	28	100	–	–	Datasheet Mechanical Drawing 3D Model
PA28D	Through Hole	Dual	0°C to +85°C Baseplate	28	18 – 36	–	–	28/28	50/50	Datasheet Mechanical Drawing 3D Model
PA250S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	250	100	–	–	Datasheet Mechanical Drawing 3D Model
PA24S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	24	100	–	–	Datasheet Mechanical Drawing 3D Model
PA24D	Through Hole	Dual	0°C to +85°C Baseplate	28	18 – 36	–	–	24/24	50/50	Datasheet Mechanical Drawing 3D Model
PA225S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	225	100	–	–	Datasheet Mechanical Drawing 3D Model
PA200S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	200	100	–	–	Datasheet Mechanical Drawing 3D Model
PA175S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	175	100	–	–	Datasheet Mechanical Drawing 3D Model
PA15S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	15	100	–	–	Datasheet Mechanical Drawing 3D Model
PA15D	Through Hole	Dual	0°C to +85°C Baseplate	28	18 – 36	–	–	15/15	50/50	Datasheet Mechanical Drawing 3D Model
PA150S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	150	100	–	–	Datasheet Mechanical Drawing 3D Model
PA12S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	12	100	–	–	Datasheet Mechanical Drawing 3D Model
PA12D	Through Hole	Dual	0°C to +85°C Baseplate	28	18 – 36	–	–	12/12	50/50	Datasheet Mechanical Drawing 3D Model
PA125S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	125	100	–	–	Datasheet Mechanical Drawing 3D Model
PA100S	Through Hole	Single	0°C to +85°C Baseplate	28	18 – 36	100	100	–	–	Datasheet Mechanical Drawing 3D Model
