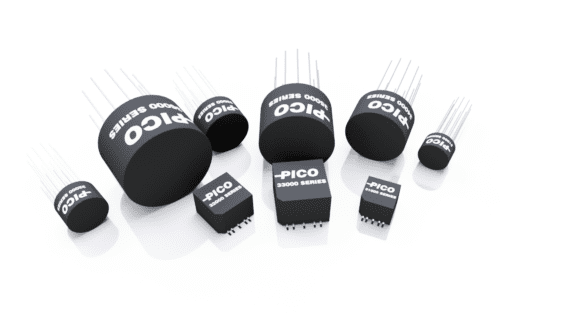

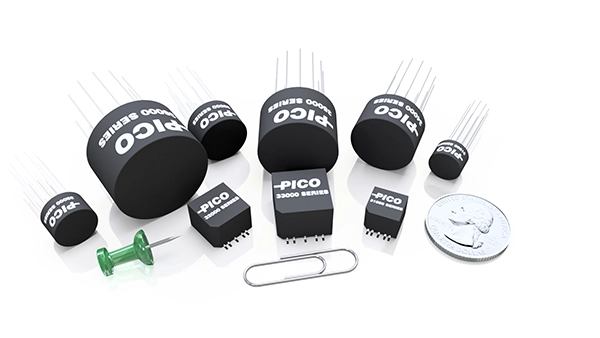

DC-DC Converter Transformers

Pico DC-DC converter transformers are ultra-miniature in size as the energy driver to the switch-mode power supplies. They are power efficient in reducing core losses and able to be used in a wide variety of energy conversion applications. These are designed to maximum performance at low switching operating frequency and minimal losses. The electrical rectification process of these components are designed for bridge, dual-bridge, and full wave circuit configurations. Though, they are certainly not limited to these topologies.

Mounting

Input Voltage (VDC)

Output Voltage – Full-Wave (VDC)

Output Voltage – Bridge (VDC)

Max. Output Power (W)

Part Number SeriesMountingInput DC Voltage (V)Output DC Voltage – Bridge (V)Output Voltage – Full-Wave (VDC)Output DC Voltage – Dual Bridge (V)Max. Output Power (W) @ -55°C to +105°CMax. Output Power (W) @ -55°C to +70°CSelf-Saturating Frequency – Typ. (kHz)Square Wave Driven Frequency – Typ. (Hz)Dielectric Withstanding Voltage (Vrms)Size (L x W x H) inchesSize (D x H) inchesDownloads
3679036000Through Hole4810050± 50254030K to 60K3001.13″ x 0.75″
3677036000Through Hole485628± 28254030K to 60K3001.13″ x 0.75″
3675036000Through Hole484824± 24254030K to 60K2001.13″ x 0.75″
3673036000Through Hole245628± 28254030K to 60K3001.13″ x 0.75″
3671036000Through Hole244824± 24254030K to 60K2001.13″ x 0.75″
3527035000Through Hole485628± 28172530K to 60K3000.95″ x 0.65″
3525035000Through Hole484824± 24172530K to 60K2000.95″ x 0.65″
3523035000Through Hole482412± 12172530K to 60K2000.95″ x 0.65″
3521035000Through Hole244824± 24172530K to 60K2000.95″ x 0.65″
3519035000Through Hole242814± 14172530K to 60K2000.95″ x 0.65″
3517035000Through Hole242412± 12172530K to 60K2000.95″ x 0.65″
3515035000Through Hole124824± 24172530K to 60K2000.95″ x 0.65″
3513035000Through Hole122814± 14172530K to 60K2000.95″ x 0.65″
3511035000Through Hole122412± 12172530K to 60K2000.95″ x 0.65″
3471334000Through Hole48300150± 1507.51030K to 60K9000.80″ x 0.50″
3471034000Through Hole48200100± 1007.51030K to 60K6000.80″ x 0.50″
3470734000Through Hole4815075± 757.51030K to 60K5000.80″ x 0.50″
3470434000Through Hole4810050± 507.51030K to 60K3000.80″ x 0.50″
3470134000Through Hole485628± 2810141530K to 50K3000.80″ x 0.50″
3468134000Through Hole484824± 2410141530K to 50K2000.80″ x 0.50″
3466134000Through Hole482412± 1210141530K to 50K2000.80″ x 0.50″
3465334000Through Hole24300150± 1507.51030K to 60K9000.80″ x 0.50″
3465034000Through Hole24200100± 1007.51030K to 60K6000.80″ x 0.50″
3464734000Through Hole2415075± 757.51030K to 60K5000.80″ x 0.50″
3464434000Through Hole2410050± 507.51030K to 60K3000.80″ x 0.50″
3464134000Through Hole244824± 2410141530K to 50K2000.80″ x 0.50″
3462134000Through Hole242814± 1410141530K to 50K2000.80″ x 0.50″
3461334000Through Hole12300150± 1507.51030K to 60K9000.80″ x 0.50″
3461034000Through Hole12200100± 1007.51030K to 60K6000.80″ x 0.50″
3460734000Through Hole1215075± 757.51030K to 60K5000.80″ x 0.50″
3460434000Through Hole1210050± 507.51030K to 60K3000.80″ x 0.50″
3460134000Through Hole124824± 2410141530K to 50K2000.80″ x 0.50″
3458134000Through Hole122814± 1410141530K to 50K2000.80″ x 0.50″
3456134000Through Hole122412± 1210141530K to 50K2000.80″ x 0.50″
3454134000Through Hole54824± 2410141020K to 40K2000.80″ x 0.50″
3452134000Through Hole52814± 1410141020K to 40K2000.80″ x 0.50″
3450134000Through Hole5105± 510141020K to 40K2000.80″ x 0.50″
3382933000Surface Mount48300150± 15051030K to 60K9000.62″ x 0.62″ x 0.46″
3382633000Surface Mount48200100± 10051030K to 60K6000.62″ x 0.62″ x 0.46″
3382333000Surface Mount4815075± 7557.52040K to 60K5000.62″ x 0.62″ x 0.46″
3380333000Surface Mount4810050± 5057.52040K to 60K3000.62″ x 0.62″ x 0.46″
3378333000Surface Mount484824± 2457.52040K to 60K2000.62″ x 0.62″ x 0.46″
3376333000Surface Mount482412± 1257.51530K to 60K2000.62″ x 0.62″ x 0.46″
3375233000Surface Mount24300150± 15051030K to 60K9000.62″ x 0.62″ x 0.46″
3374933000Surface Mount24200100± 10051030K to 60K6000.62″ x 0.62″ x 0.46″
3374633000Surface Mount2415075± 7551030K to 60K5000.62″ x 0.62″ x 0.46″
3374333000Surface Mount2410050± 5057.52040K to 60K3000.62″ x 0.62″ x 0.46″
3372333000Surface Mount244824± 2457.52040K to 60K2000.62″ x 0.62″ x 0.46″
3370333000Surface Mount242814± 1457.51530K to 60K2000.62″ x 0.62″ x 0.46″
3368333000Surface Mount24105± 557.51530K to 60K2000.62″ x 0.62″ x 0.46″
3367233000Surface Mount12300150± 15051030K to 60K9000.62″ x 0.62″ x 0.46″
3366933000Surface Mount12200100± 10051030K to 60K6000.62″ x 0.62″ x 0.46″
3366633000Surface Mount1215075± 7551030K to 60K5000.62″ x 0.62″ x 0.46″
3366333000Surface Mount1210050± 5057.52040K to 60K3000.62″ x 0.62″ x 0.46″
3364333000Surface Mount124824± 2457.52040K to 60K2000.62″ x 0.62″ x 0.46″
3362333000Surface Mount122814± 1457.51530K to 60K2000.62″ x 0.62″ x 0.46″
3360333000Surface Mount12126± 657.51530K to 60K2000.62″ x 0.62″ x 0.46″
3359233000Surface Mount5300150± 15051030K to 60K9000.62″ x 0.62″ x 0.46″
3358933000Surface Mount5200100± 10051030K to 60K6000.62″ x 0.62″ x 0.46″
3358633000Surface Mount515075± 7551030K to 60K5000.62″ x 0.62″ x 0.46″
3358333000Surface Mount510050± 5057.51020K to 50K3000.62″ x 0.62″ x 0.46″
3356333000Surface Mount54824± 2457.51020K to 50K2000.62″ x 0.62″ x 0.46″
3354333000Surface Mount52814± 1457.51020K to 50K2000.62″ x 0.62″ x 0.46″
3352333000Surface Mount5126± 657.51020K to 50K2000.62″ x 0.62″ x 0.46″
3350333000Surface Mount5105± 557.51020K to 50K2000.62″ x 0.62″ x 0.46″
3343033000Through Hole48300150± 15051030K to 60K9000.63″ x 0.42″
3342733000Through Hole48200100± 10051030K to 60K6000.63″ x 0.42″
3342433000Through Hole4815075± 7557.52040K to 60K5000.63″ x 0.42″
3340433000Through Hole4810050± 5057.52040K to 60K3000.63″ x 0.42″
3338433000Through Hole484824± 2457.52040K to 60K2000.63″ x 0.42″
3336433000Through Hole482412± 1257.51530K to 60K2000.63″ x 0.42″
3335333000Through Hole24300150± 15051030K to 60K9000.63″ x 0.42″
3335033000Through Hole24200100± 10051030K to 60K6000.63″ x 0.42″
3334733000Through Hole2415075± 7551030K to 60K5000.63″ x 0.42″
3334433000Through Hole2410050± 5057.52040K to 60K3000.63″ x 0.42″
3332433000Through Hole244824± 2457.52040K to 60K2000.63″ x 0.42″
3330433000Through Hole242814± 1457.51530K to 60K2000.63″ x 0.42″
3328433000Through Hole24105± 557.51530K to 60K2000.63″ x 0.42″
3327333000Through Hole12300150± 15051030K to 60K9000.63″ x 0.42″
3327033000Through Hole12200100± 10051030K to 60K6000.63″ x 0.42″
3326733000Through Hole1215075± 7551030K to 60K5000.63″ x 0.42″
3326433000Through Hole1210050± 5057.52040K to 60K3000.63″ x 0.42″
3324433000Through Hole124824± 2457.52040K to 60K2000.63″ x 0.42″
3322433000Through Hole122814± 1457.51530K to 60K2000.63″ x 0.42″
3320433000Through Hole12126± 657.51530K to 60K2000.63″ x 0.42″
3319333000Through Hole5300150± 15051030K to 60K9000.63″ x 0.42″
3319033000Through Hole5200100± 10051030K to 60K6000.63″ x 0.42″
3318733000Through Hole515075± 7551030K to 60K5000.63″ x 0.42″
3318433000Through Hole510050± 5057.51020K to 50K3000.63″ x 0.42″
3316433000Through Hole54824± 2457.51020K to 50K2000.63″ x 0.42″
3314433000Through Hole52814± 1457.51020K to 50K2000.63″ x 0.42″
3312433000Through Hole5126± 657.51020K to 50K2000.63″ x 0.42″
3310433000Through Hole5105± 557.51020K to 50K2000.63″ x 0.42″
3285132000Surface Mount48300150± 15034.51030K to 60K9000.50″ x 0.50″ x 0.37″
3284832000Surface Mount48200100± 10034.51030K to 60K6000.50″ x 0.50″ x 0.37″
3284532000Surface Mount4815075± 7534.52040K to 60K5000.50″ x 0.50″ x 0.37″
3282532000Surface Mount4810050± 5034.52040K to 60K3000.50″ x 0.50″ x 0.37″
3280532000Surface Mount484824± 2434.52040K to 60K2000.50″ x 0.50″ x 0.37″
3278532000Surface Mount482412± 1234.51530K to 60K2000.50″ x 0.50″ x 0.37″
3277432000Surface Mount24300150± 15031030K to 60K9000.50″ x 0.50″ x 0.37″
3277132000Surface Mount24200100± 10031030K to 60K6000.50″ x 0.50″ x 0.37″
3276832000Surface Mount2415075± 7531030K to 60K5000.50″ x 0.50″ x 0.37″
3276532000Surface Mount2410050± 5034.52040K to 60K3000.50″ x 0.50″ x 0.37″
3274532000Surface Mount244824± 2434.52040K to 60K2000.50″ x 0.50″ x 0.37″
3272532000Surface Mount242814± 1434.51530K to 60K2000.50″ x 0.50″ x 0.37″
3270532000Surface Mount24105± 534.51530K to 60K2000.50″ x 0.50″ x 0.37″
3269432000Surface Mount12300150± 15031030K to 60K9000.50″ x 0.50″ x 0.37″
3269132000Surface Mount12200100± 10031030K to 60K6000.50″ x 0.50″ x 0.37″
3268832000Surface Mount1215075± 7531030K to 60K5000.50″ x 0.50″ x 0.37″
3268532000Surface Mount1210050± 5034.52040K to 60K3000.50″ x 0.50″ x 0.37″
3266532000Surface Mount124824± 2434.52040K to 60K2000.50″ x 0.50″ x 0.37″
3264532000Surface Mount122814± 1434.51530K to 60K2000.50″ x 0.50″ x 0.37″
3262532000Surface Mount122412± 1234.51530K to 60K2000.50″ x 0.50″ x 0.37″
3260532000Surface Mount12126± 634.51530K to 60K2000.50″ x 0.50″ x 0.37″
3259432000Surface Mount5300150± 15031030K to 60K9000.50″ x 0.50″ x 0.37″
3259132000Surface Mount5200100± 10031030K to 60K6000.50″ x 0.50″ x 0.37″
3258832000Surface Mount515075± 7531030K to 60K5000.50″ x 0.50″ x 0.37″
3258532000Surface Mount510050± 5034.52040K to 60K3000.50″ x 0.50″ x 0.37″
3256532000Surface Mount54824± 2434.52040K to 60K2000.50″ x 0.50″ x 0.37″
3254532000Surface Mount52814± 1434.51530K to 60K2000.50″ x 0.50″ x 0.37″
3252532000Surface Mount5126± 634.51530K to 60K2000.50″ x 0.50″ x 0.37″
3250532000Surface Mount5105± 534.51530K to 60K2000.50″ x 0.50″ x 0.37″
3245232000Through Hole48300150± 15034.51030K to 60K9000.50″ x 0.34″
3244932000Through Hole48200100± 10034.51030K to 60K6000.50″ x 0.34″
3244632000Through Hole4815075± 7534.52040K to 60K5000.50″ x 0.34″
3242632000Through Hole4810050± 5034.52040K to 60K3000.50″ x 0.34″
3240632000Through Hole484824± 2434.52040K to 60K2000.50″ x 0.34″
3238632000Through Hole482412± 1234.51530K to 60K2000.50″ x 0.34″
3237532000Through Hole24300150± 15031030K to 60K9000.50″ x 0.34″
3237232000Through Hole24200100± 10031030K to 60K6000.50″ x 0.34″
3236932000Through Hole2415075± 7531030K to 60K5000.50″ x 0.34″
3236632000Through Hole2410050± 5034.52040K to 60K3000.50″ x 0.34″
3234632000Through Hole244824± 2434.52040K to 60K2000.50″ x 0.34″
3232632000Through Hole242814± 1434.51530K to 60K2000.50″ x 0.34″
3230632000Through Hole24105± 534.51530K to 60K2000.50″ x 0.34″
3229532000Through Hole12300150± 15031030K to 60K9000.50″ x 0.34″
3229232000Through Hole12200100± 10031030K to 60K6000.50″ x 0.34″
3228932000Through Hole1215075± 7531030K to 60K5000.50″ x 0.34″
3228632000Through Hole1210050± 5034.52040K to 60K3000.50″ x 0.34″
3226632000Through Hole124824± 2434.52040K to 60K2000.50″ x 0.34″
3224632000Through Hole122814± 1434.51530K to 60K2000.50″ x 0.34″
3222632000Through Hole122412± 1234.51530K to 60K2000.50″ x 0.34″
3220632000Through Hole12126± 634.51530K to 60K2000.50″ x 0.34″
3219532000Through Hole5300150± 15031030K to 60K9000.50″ x 0.34″
3219232000Through Hole5200100± 10031030K to 60K6000.50″ x 0.34″
3218932000Through Hole515075± 7531030K to 60K5000.50″ x 0.34″
3218632000Through Hole510050± 5034.52040K to 60K3000.50″ x 0.34″
3216632000Through Hole54824± 2434.52040K to 60K2000.50″ x 0.34″
3214632000Through Hole52814± 1434.51530K to 60K2000.50″ x 0.34″
3212632000Through Hole5126± 634.51530K to 60K2000.50″ x 0.34″
3210632000Through Hole5105± 534.51530K to 60K2000.50″ x 0.34″
3176031000Surface Mount4815075± 751.532040K to 60K5000.40″ x 0.40″ x 0.31″
3174031000Surface Mount4810050± 501.532040K to 60K3000.40″ x 0.40″ x 0.31″
3172031000Surface Mount484824± 241.532040Kto 60K2000.40″ x 0.40″ x 0.31″
3170031000Surface Mount482412± 121.531530K to 60K2000.40″ x 0.40″ x 0.31″
3168031000Surface Mount2410050± 501.532040K to 60K3000.40″ x 0.40″ x 0.31″
3166031000Surface Mount244824± 241.532040K to 60K2000.40″ x 0.40″ x 0.31″
3164031000Surface Mount242814± 141.531530K to 60K2000.40″ x 0.40″ x 0.31″
3162031000Surface Mount24105± 51.531530K to 60K2000.40″ x 0.40″ x 0.31″
3160031000Surface Mount1210050± 501.532040K to 60K3000.40″ x 0.40″ x 0.31″
3158031000Surface Mount124824± 241.532040K to 60K2000.40″ x 0.40″ x 0.31″
3156031000Surface Mount122814± 141.531530K to 60K2000.40″ x 0.40″ x 0.31″
3154031000Surface Mount122412± 121.531530K to 60K2000.40″ x 0.40″ x 0.31″
3152031000Surface Mount12126± 61.531530K to 60K2000.40″ x 0.40″ x 0.31″
3150031000Surface Mount510050± 501.532040K to 60K3000.40″ x 0.40″ x 0.31″
3148031000Surface Mount54824± 241.532040K to 60K2000.40″ x 0.40″ x 0.31″
3146031000Surface Mount52814± 141.531530K to 60K2000.40″ x 0.40″ x 0.31″
3144031000Surface Mount5126± 61.531530K to 60K2000.40″ x 0.40″ x 0.31″
3142031000Surface Mount5105± 51.531530K to 60K2000.40″ x 0.40″ x 0.31″
3136131000Through Hole4815075± 751.532040K to 60K5000.41″ x 0.28″
3134131000Through Hole4810050± 501.532040K to 60K3000.41″ x 0.28″
3132131000Through Hole484824± 241.532040K to 60K2000.41″ x 0.28″
3130131000Through Hole482412± 121.531530K to 60K2000.41″ x 0.28″
3128131000Through Hole2410050± 501.532040K to 60K3000.41″ x 0.28″
3126131000Through Hole244824± 241.532040K to 60K2000.41″ x 0.28″
3124131000Through Hole242814± 141.531530K to 60K2000.41″ x 0.28″
3122131000Through Hole24105± 51.531530K to 60K2000.41″ x 0.28″
3120131000Through Hole1210050± 501.532040K to 60K3000.41″ x 0.28″
3118131000Through Hole124824± 241.532040K to 60K2000.41″ x 0.28″
3116131000Through Hole122814± 141.531530K to 60K2000.41″ x 0.28″
3114131000Through Hole122412± 121.531530K to 60K2000.41″ x 0.28″
3112131000Through Hole12126± 61.531530K to 60K2000.41″ x 0.28″
3110131000Through Hole510050± 501.532040K to 60K3000.41″ x 0.28″
3108131000Through Hole54824± 241.532040K to 60K2000.41″ x 0.28″
3106131000Through Hole52814± 141.531530K to 60K2000.41″ x 0.28″
3104131000Through Hole5126± 61.531530K to 60K2000.41″ x 0.28″
3102131000Through Hole5105± 51.531530K to 60K2000.41″ x 0.28″
