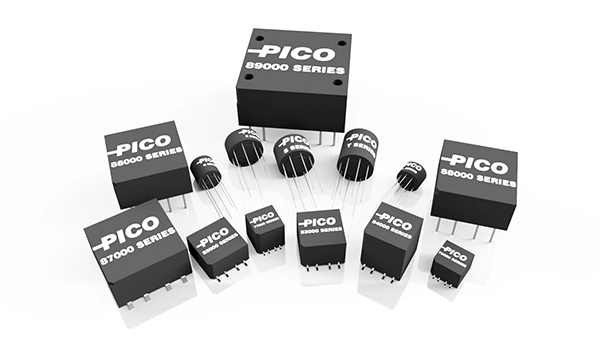

Power Transformers
Pico 400Hz power transformers are used in various energy conversion power supplies. They are crucial to aerospace and military industry for aircraft systems as the lightweight solution to the traditional 50/60Hz heavy electronics. The application is not limited to flight systems, but also in stationary controls, airport equipment, and vehicle mobility systems. This miniature class of 400Hz power transformers has an operating temperature range from -55°C to +130°C, with 90°C maximum ambient temperature. These sizes are undeniably smaller than most industry standard power transformers. Designed for compact spaces, environmentally durable and operationally reliable.
Mounting
Input Voltage (Vrms)
Output Voltage (Vrms)
Maximum Power (VA)
| Part Number | Series | Mounting | Input Voltage (Vrms) | Output Voltage — Series Connection (Vrms) | Maximum Power (VA) | Size (L x W x H) inches | Size (D x H) inches | Downloads |
|---|---|---|---|---|---|---|---|---|
| T-22975 | T | Through Hole | 26 | 310 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22970 | T | Through Hole | 26 | 275 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22965 | T | Through Hole | 26 | 250 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22960 | T | Through Hole | 26 | 220 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22955 | T | Through Hole | 26 | 200 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22950 | T | Through Hole | 26 | 175 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22945 | T | Through Hole | 26 | 157 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22940 | T | Through Hole | 26 | 138 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22935 | T | Through Hole | 26 | 123 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22930 | T | Through Hole | 26 | 115 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22925 | T | Through Hole | 26 | 100 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22920 | T | Through Hole | 26 | 88 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22915 | T | Through Hole | 26 | 80 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22910 | T | Through Hole | 26 | 68 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22905 | T | Through Hole | 26 | 63 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22900 | T | Through Hole | 26 | 56 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22895 | T | Through Hole | 26 | 48 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22890 | T | Through Hole | 26 | 43 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22885 | T | Through Hole | 26 | 39 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22880 | T | Through Hole | 26 | 36 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22875 | T | Through Hole | 26 | 31 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22870 | T | Through Hole | 26 | 28 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22865 | T | Through Hole | 26 | 24 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22860 | T | Through Hole | 26 | 22 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22855 | T | Through Hole | 26 | 20 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22850 | T | Through Hole | 26 | 18 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22845 | T | Through Hole | 26 | 16 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22840 | T | Through Hole | 26 | 14 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22835 | T | Through Hole | 26 | 12.8 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22830 | T | Through Hole | 26 | 10 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22825 | T | Through Hole | 26 | 8 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22820 | T | Through Hole | 26 | 6.3 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22815 | T | Through Hole | 26 | 5 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22810 | T | Through Hole | 115 | 310 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22805 | T | Through Hole | 115 | 275 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22800 | T | Through Hole | 115 | 250 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22795 | T | Through Hole | 115 | 220 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22790 | T | Through Hole | 115 | 200 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22785 | T | Through Hole | 115 | 175 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22780 | T | Through Hole | 115 | 157 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22775 | T | Through Hole | 115 | 138 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22770 | T | Through Hole | 115 | 123 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22765 | T | Through Hole | 115 | 115 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22760 | T | Through Hole | 115 | 100 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22755 | T | Through Hole | 115 | 88 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22750 | T | Through Hole | 115 | 80 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22745 | T | Through Hole | 115 | 68 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22740 | T | Through Hole | 115 | 63 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22735 | T | Through Hole | 115 | 56 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22730 | T | Through Hole | 115 | 48 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22725 | T | Through Hole | 115 | 43 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22720 | T | Through Hole | 115 | 39 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22715 | T | Through Hole | 115 | 36 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22710 | T | Through Hole | 115 | 31 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22705 | T | Through Hole | 115 | 28 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22700 | T | Through Hole | 115 | 24 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22695 | T | Through Hole | 115 | 22 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22690 | T | Through Hole | 115 | 20 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22685 | T | Through Hole | 115 | 18 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22680 | T | Through Hole | 115 | 16 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22675 | T | Through Hole | 115 | 14 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22670 | T | Through Hole | 115 | 12.8 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22665 | T | Through Hole | 115 | 10.0 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22660 | T | Through Hole | 115 | 8.0 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22655 | T | Through Hole | 115 | 6.3 | 2.4 | – | 0.75″ x 0.82″ | |
| T-22650 | T | Through Hole | 115 | 5 | 2.4 | – | 0.75″ x 0.82″ | |
| S-21975 | S | Through Hole | 26 | 310 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21970 | S | Through Hole | 26 | 275 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21965 | S | Through Hole | 26 | 250 | 1.7 | – | 0.75″ x 0.52″ | |
| S-21960 | S | Through Hole | 26 | 220 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21955 | S | Through Hole | 26 | 200 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21950 | S | Through Hole | 26 | 175 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21945 | S | Through Hole | 26 | 157 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21940 | S | Through Hole | 26 | 138 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21935 | S | Through Hole | 26 | 123 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21930 | S | Through Hole | 26 | 115 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21925 | S | Through Hole | 26 | 100 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21920 | S | Through Hole | 26 | 88 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21915 | S | Through Hole | 26 | 80 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21910 | S | Through Hole | 26 | 68 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21905 | S | Through Hole | 26 | 63 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21900 | S | Through Hole | 26 | 56 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21895 | S | Through Hole | 26 | 48 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21890 | S | Through Hole | 26 | 43 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21885 | S | Through Hole | 26 | 39 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21880 | S | Through Hole | 26 | 36 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21875 | S | Through Hole | 26 | 31 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21870 | S | Through Hole | 26 | 28 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21865 | S | Through Hole | 26 | 24 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21860 | S | Through Hole | 26 | 22 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21855 | S | Through Hole | 26 | 20 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21850 | S | Through Hole | 26 | 18 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21845 | S | Through Hole | 26 | 16 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21840 | S | Through Hole | 26 | 14 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21835 | S | Through Hole | 26 | 12.8 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21830 | S | Through Hole | 26 | 10 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21825 | S | Through Hole | 26 | 8 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21820 | S | Through Hole | 26 | 6.3 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21815 | S | Through Hole | 26 | 5 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21810 | S | Through Hole | 115 | 310 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21805 | S | Through Hole | 115 | 275 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21800 | S | Through Hole | 115 | 250 | 1.7 | – | 0.75″ x 0.52″ | |
| S-21795 | S | Through Hole | 115 | 220 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21790 | S | Through Hole | 115 | 200 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21785 | S | Through Hole | 115 | 175 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21780 | S | Through Hole | 115 | 157 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21775 | S | Through Hole | 115 | 138 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21770 | S | Through Hole | 115 | 123 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21765 | S | Through Hole | 115 | 115 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21760 | S | Through Hole | 115 | 100 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21755 | S | Through Hole | 115 | 88 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21750 | S | Through Hole | 115 | 80 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21745 | S | Through Hole | 115 | 68 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21740 | S | Through Hole | 115 | 63 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21735 | S | Through Hole | 115 | 56 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21730 | S | Through Hole | 115 | 48 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21725 | S | Through Hole | 115 | 43 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21720 | S | Through Hole | 115 | 39 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21715 | S | Through Hole | 115 | 36 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21710 | S | Through Hole | 115 | 31 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21705 | S | Through Hole | 115 | 28 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21700 | S | Through Hole | 115 | 24 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21695 | S | Through Hole | 115 | 22 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21690 | S | Through Hole | 115 | 20 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21685 | S | Through Hole | 115 | 18 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21680 | S | Through Hole | 115 | 16 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21675 | S | Through Hole | 115 | 14 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21670 | S | Through Hole | 115 | 12.8 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21665 | S | Through Hole | 115 | 10.0 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21660 | S | Through Hole | 115 | 8.0 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21655 | S | Through Hole | 115 | 6.3 | 1.67 | – | 0.75″ x 0.52″ | |
| S-21650 | S | Through Hole | 115 | 5 | 1.67 | – | 0.75″ x 0.52″ | |
| R-20955 | R | Through Hole | 26 | 200 | 1 | – | 0.75″ x 0.38″ | |
| R-20950 | R | Through Hole | 26 | 175 | 1 | – | 0.75″ x 0.38″ | |
| R-20945 | R | Through Hole | 26 | 157 | 1 | – | 0.75″ x 0.38″ | |
| R-20940 | R | Through Hole | 26 | 138 | 1 | – | 0.75″ x 0.38″ | |
| R-20935 | R | Through Hole | 26 | 123 | 1 | – | 0.75″ x 0.38″ | |
| R-20930 | R | Through Hole | 26 | 115 | 1 | – | 0.75″ x 0.38″ | |
| R-20925 | R | Through Hole | 26 | 100 | 1 | – | 0.75″ x 0.38″ | |
| R-20920 | R | Through Hole | 26 | 88 | 1 | – | 0.75″ x 0.38″ | |
| R-20915 | R | Through Hole | 26 | 80 | 1 | – | 0.75″ x 0.38″ | |
| R-20910 | R | Through Hole | 26 | 68 | 1 | – | 0.75″ x 0.38″ | |
| R-20905 | R | Through Hole | 26 | 63 | 1 | – | 0.75″ x 0.38″ | |
| R-20900 | R | Through Hole | 26 | 56 | 1 | – | 0.75″ x 0.38″ | |
| R-20895 | R | Through Hole | 26 | 48 | 1 | – | 0.75″ x 0.38″ | |
| R-20890 | R | Through Hole | 26 | 43 | 1 | – | 0.75″ x 0.38″ | |
| R-20885 | R | Through Hole | 26 | 39 | 1 | – | 0.75″ x 0.38″ | |
| R-20880 | R | Through Hole | 26 | 36 | 1 | – | 0.75″ x 0.38″ | |
| R-20875 | R | Through Hole | 26 | 31 | 1 | – | 0.75″ x 0.38″ | |
| R-20870 | R | Through Hole | 26 | 28 | 1 | – | 0.75″ x 0.38″ | |
| R-20865 | R | Through Hole | 26 | 24 | 1 | – | 0.75″ x 0.38″ | |
| R-20860 | R | Through Hole | 26 | 22 | 1 | – | 0.75″ x 0.38″ | |
| R-20855 | R | Through Hole | 26 | 20 | 1 | – | 0.75″ x 0.38″ | |
| R-20850 | R | Through Hole | 26 | 18 | 1 | – | 0.75″ x 0.38″ | |
| R-20845 | R | Through Hole | 26 | 16 | 1 | – | 0.75″ x 0.38″ | |
| R-20840 | R | Through Hole | 26 | 14 | 1 | – | 0.75″ x 0.38″ | |
| R-20835 | R | Through Hole | 26 | 12.8 | 1 | – | 0.75″ x 0.38″ | |
| R-20830 | R | Through Hole | 26 | 10 | 1 | – | 0.75″ x 0.38″ | |
| R-20825 | R | Through Hole | 26 | 8 | 1 | – | 0.75″ x 0.38″ | |
| R-20820 | R | Through Hole | 26 | 6.3 | 1 | – | 0.75″ x 0.38″ | |
| R-20815 | R | Through Hole | 26 | 5 | 1 | – | 0.75″ x 0.38″ | |
| R-20790 | R | Through Hole | 115 | 200 | 1 | – | 0.75″ x 0.38″ | |
| R-20785 | R | Through Hole | 115 | 175 | 1 | – | 0.75″ x 0.38″ | |
| R-20780 | R | Through Hole | 115 | 157 | 1 | – | 0.75″ x 0.38″ | |
| R-20775 | R | Through Hole | 115 | 138 | 1 | – | 0.75″ x 0.38″ | |
| R-20770 | R | Through Hole | 115 | 123 | 1 | – | 0.75″ x 0.38″ | |
| R-20765 | R | Through Hole | 115 | 115 | 1 | – | 0.75″ x 0.38″ | |
| R-20760 | R | Through Hole | 115 | 100 | 1 | – | 0.75″ x 0.38″ | |
| R-20755 | R | Through Hole | 115 | 88 | 1 | – | 0.75″ x 0.38″ | |
| R-20750 | R | Through Hole | 115 | 80 | 1 | – | 0.75″ x 0.38″ | |
| R-20745 | R | Through Hole | 115 | 68 | 1 | – | 0.75″ x 0.38″ | |
| R-20740 | R | Through Hole | 115 | 63 | 1 | – | 0.75″ x 0.38″ | |
| R-20735 | R | Through Hole | 115 | 56 | 1 | – | 0.75″ x 0.38″ | |
| R-20730 | R | Through Hole | 115 | 48 | 1 | – | 0.75″ x 0.38″ | |
| R-20725 | R | Through Hole | 115 | 43 | 1 | – | 0.75″ x 0.38″ | |
| R-20720 | R | Through Hole | 115 | 39 | 1 | – | 0.75″ x 0.38″ | |
| R-20715 | R | Through Hole | 115 | 36 | 1 | – | 0.75″ x 0.38″ | |
| R-20710 | R | Through Hole | 115 | 31 | 1 | – | 0.75″ x 0.38″ | |
| R-20705 | R | Through Hole | 115 | 28 | 1 | – | 0.75″ x 0.38″ | |
| R-20700 | R | Through Hole | 115 | 24 | 1 | – | 0.75″ x 0.38″ | |
| R-20695 | R | Through Hole | 115 | 22 | 1 | – | 0.75″ x 0.38″ | |
| R-20690 | R | Through Hole | 115 | 20 | 1 | – | 0.75″ x 0.38″ | |
| R-20685 | R | Through Hole | 115 | 18 | 1 | – | 0.75″ x 0.38″ | |
| R-20680 | R | Through Hole | 115 | 16 | 1 | – | 0.75″ x 0.38″ | |
| R-20675 | R | Through Hole | 115 | 14 | 1 | – | 0.75″ x 0.38″ | |
| R-20670 | R | Through Hole | 115 | 12.8 | 1 | – | 0.75″ x 0.38″ | |
| R-20665 | R | Through Hole | 115 | 10.0 | 1 | – | 0.75″ x 0.38″ | |
| R-20660 | R | Through Hole | 115 | 8.0 | 1 | – | 0.75″ x 0.38″ | |
| R-20655 | R | Through Hole | 115 | 6.3 | 1 | – | 0.75″ x 0.38″ | |
| R-20650 | R | Through Hole | 115 | 5 | 1 | – | 0.75″ x 0.38″ | |
| N-6979 | N | Through Hole | 26 | 115 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6978 | N | Through Hole | 26 | 100 | 0.85 | – | 0.51″ x 0.50″ | |
| N-6977 | N | Through Hole | 26 | 88 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6976 | N | Through Hole | 26 | 80 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6974 | N | Through Hole | 26 | 68 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6973 | N | Through Hole | 26 | 63 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6972 | N | Through Hole | 26 | 56 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6971 | N | Through Hole | 26 | 48 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6969 | N | Through Hole | 26 | 43 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6968 | N | Through Hole | 26 | 39 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6967 | N | Through Hole | 26 | 36 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6966 | N | Through Hole | 26 | 31 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6964 | N | Through Hole | 26 | 28 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6963 | N | Through Hole | 26 | 24 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6962 | N | Through Hole | 26 | 22 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6961 | N | Through Hole | 26 | 20 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6959 | N | Through Hole | 26 | 18 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6958 | N | Through Hole | 26 | 16 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6957 | N | Through Hole | 26 | 14 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6956 | N | Through Hole | 26 | 12.8 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6954 | N | Through Hole | 26 | 10 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6953 | N | Through Hole | 26 | 8 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6952 | N | Through Hole | 26 | 6.3 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6951 | N | Through Hole | 26 | 5 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6948 | N | Through Hole | 115 | 5 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6947 | N | Through Hole | 115 | 6.3 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6946 | N | Through Hole | 115 | 8.0 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6945 | N | Through Hole | 115 | 10.0 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6940 | N | Through Hole | 115 | 12.8 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6937 | N | Through Hole | 115 | 14 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6935 | N | Through Hole | 115 | 16 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6934 | N | Through Hole | 115 | 18 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6933 | N | Through Hole | 115 | 20 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6932 | N | Through Hole | 115 | 22 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6930 | N | Through Hole | 115 | 24 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6929 | N | Through Hole | 115 | 28 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6927 | N | Through Hole | 115 | 31 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6925 | N | Through Hole | 115 | 36 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6924 | N | Through Hole | 115 | 39 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6923 | N | Through Hole | 115 | 43 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6922 | N | Through Hole | 115 | 48 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6920 | N | Through Hole | 115 | 56 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6917 | N | Through Hole | 115 | 63 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6915 | N | Through Hole | 115 | 68 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6910 | N | Through Hole | 115 | 80 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6905 | N | Through Hole | 115 | 88 | 0.74 | – | 0.51″ x 0.50″ | |
| N-6902 | N | Through Hole | 115 | 100 | 0.85 | – | 0.51″ x 0.50″ | |
| N-6900 | N | Through Hole | 115 | 115 | 0.74 | – | 0.51″ x 0.50″ | |
| L-8979 | L | Through Hole | 26 | 115 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8978 | L | Through Hole | 26 | 100 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8977 | L | Through Hole | 26 | 88 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8976 | L | Through Hole | 26 | 80 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8974 | L | Through Hole | 26 | 68 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8973 | L | Through Hole | 26 | 63 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8972 | L | Through Hole | 26 | 56 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8971 | L | Through Hole | 26 | 48 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8969 | L | Through Hole | 26 | 43 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8968 | L | Through Hole | 26 | 39 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8967 | L | Through Hole | 26 | 36 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8966 | L | Through Hole | 26 | 31 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8964 | L | Through Hole | 26 | 28 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8963 | L | Through Hole | 26 | 24 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8962 | L | Through Hole | 26 | 22 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8961 | L | Through Hole | 26 | 20 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8959 | L | Through Hole | 26 | 18 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8958 | L | Through Hole | 26 | 16 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8957 | L | Through Hole | 26 | 14 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8956 | L | Through Hole | 26 | 12.8 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8954 | L | Through Hole | 26 | 10 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8953 | L | Through Hole | 26 | 8 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8952 | L | Through Hole | 26 | 6.3 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8951 | L | Through Hole | 26 | 5 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8948 | L | Through Hole | 115 | 5 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8947 | L | Through Hole | 115 | 6.3 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8946 | L | Through Hole | 115 | 8.0 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8945 | L | Through Hole | 115 | 10.0 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8940 | L | Through Hole | 115 | 12.8 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8937 | L | Through Hole | 115 | 14 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8935 | L | Through Hole | 115 | 16 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8934 | L | Through Hole | 115 | 18 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8933 | L | Through Hole | 115 | 20 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8932 | L | Through Hole | 115 | 22 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8930 | L | Through Hole | 115 | 24 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8929 | L | Through Hole | 115 | 28 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8927 | L | Through Hole | 115 | 31 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8925 | L | Through Hole | 115 | 36 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8924 | L | Through Hole | 115 | 39 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8923 | L | Through Hole | 115 | 43 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8922 | L | Through Hole | 115 | 48 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8920 | L | Through Hole | 115 | 56 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8917 | L | Through Hole | 115 | 63 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8915 | L | Through Hole | 115 | 68 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8910 | L | Through Hole | 115 | 80 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8905 | L | Through Hole | 115 | 88 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8902 | L | Through Hole | 115 | 100 | 0.37 | – | 0.51″ x 0.35″ | |
| L-8900 | L | Through Hole | 115 | 115 | 0.37 | – | 0.51″ x 0.35″ | |
| 89785 | 89700 | Through Hole | 115 | 115 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89780 | 89700 | Through Hole | 115 | 110 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89775 | 89700 | Through Hole | 115 | 100 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89770 | 89700 | Through Hole | 115 | 75 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89765 | 89700 | Through Hole | 115 | 48 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89760 | 89700 | Through Hole | 115 | 36 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89755 | 89700 | Through Hole | 115 | 28 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89750 | 89700 | Through Hole | 115 | 24 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89745 | 89700 | Through Hole | 115 | 22 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89740 | 89700 | Through Hole | 115 | 15 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89735 | 89700 | Through Hole | 115 | 14 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89730 | 89700 | Through Hole | 115 | 12 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89725 | 89700 | Through Hole | 115 | 9 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89720 | 89700 | Through Hole | 115 | 6 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89715 | 89700 | Through Hole | 115 | 5 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89585 | 89500 | Through Hole | 115 | 115 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89580 | 89500 | Through Hole | 115 | 110 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89575 | 89500 | Through Hole | 115 | 100 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89570 | 89500 | Through Hole | 115 | 75 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89565 | 89500 | Through Hole | 115 | 48 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89560 | 89500 | Through Hole | 115 | 36 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89555 | 89500 | Through Hole | 115 | 28 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89550 | 89500 | Through Hole | 115 | 24 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89545 | 89500 | Through Hole | 115 | 22 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89540 | 89500 | Through Hole | 115 | 15 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89535 | 89500 | Through Hole | 115 | 14 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89530 | 89500 | Through Hole | 115 | 12 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89525 | 89500 | Through Hole | 115 | 9 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89520 | 89500 | Through Hole | 115 | 6 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89515 | 89500 | Through Hole | 115 | 5 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89285 | 89200 | Through Hole | 26 | 115 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89280 | 89200 | Through Hole | 26 | 110 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89275 | 89200 | Through Hole | 26 | 100 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89270 | 89200 | Through Hole | 26 | 75 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89265 | 89200 | Through Hole | 26 | 48 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89260 | 89200 | Through Hole | 26 | 36 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89255 | 89200 | Through Hole | 26 | 28 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89250 | 89200 | Through Hole | 26 | 24 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89245 | 89200 | Through Hole | 26 | 22 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89240 | 89200 | Through Hole | 26 | 15 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89235 | 89200 | Through Hole | 26 | 14 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89230 | 89200 | Through Hole | 26 | 12 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89225 | 89200 | Through Hole | 26 | 9 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89220 | 89200 | Through Hole | 26 | 6 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89215 | 89200 | Through Hole | 26 | 5 | 150 | 3.00″ x 3.00″ x 1.30″ | – | |
| 89085 | 89000 | Through Hole | 26 | 115 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89080 | 89000 | Through Hole | 26 | 110 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89075 | 89000 | Through Hole | 26 | 100 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89070 | 89000 | Through Hole | 26 | 75 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89065 | 89000 | Through Hole | 26 | 48 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89060 | 89000 | Through Hole | 26 | 36 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89055 | 89000 | Through Hole | 26 | 28 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89050 | 89000 | Through Hole | 26 | 24 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89045 | 89000 | Through Hole | 26 | 22 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89040 | 89000 | Through Hole | 26 | 15 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89035 | 89000 | Through Hole | 26 | 14 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89030 | 89000 | Through Hole | 26 | 12 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89025 | 89000 | Through Hole | 26 | 9 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89020 | 89000 | Through Hole | 26 | 6 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 89015 | 89000 | Through Hole | 26 | 5 | 75 | 2.28″ x 2.28″ x 1.00″ | – | |
| 88985 | 88900 | Through Hole | 115 | 115 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88980 | 88900 | Through Hole | 115 | 110 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88975 | 88900 | Through Hole | 115 | 100 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88970 | 88900 | Through Hole | 115 | 75 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88965 | 88900 | Through Hole | 115 | 48 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88960 | 88900 | Through Hole | 115 | 36 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88955 | 88900 | Through Hole | 115 | 28 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88950 | 88900 | Through Hole | 115 | 24 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88945 | 88900 | Through Hole | 115 | 22 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88940 | 88900 | Through Hole | 115 | 15 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88935 | 88900 | Through Hole | 115 | 14 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88930 | 88900 | Through Hole | 115 | 12 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88925 | 88900 | Through Hole | 115 | 9 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88920 | 88900 | Through Hole | 115 | 6 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88915 | 88900 | Through Hole | 115 | 5 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88885 | 88800 | Through Hole | 115 | 115 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88880 | 88800 | Through Hole | 115 | 110 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88875 | 88800 | Through Hole | 115 | 100 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88870 | 88800 | Through Hole | 115 | 75 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88865 | 88800 | Through Hole | 115 | 48 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88860 | 88800 | Through Hole | 115 | 36 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88855 | 88800 | Through Hole | 115 | 28 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88850 | 88800 | Through Hole | 115 | 24 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88845 | 88800 | Through Hole | 115 | 22 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88840 | 88800 | Through Hole | 115 | 15 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88835 | 88800 | Through Hole | 115 | 14 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88830 | 88800 | Through Hole | 115 | 12 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88825 | 88800 | Through Hole | 115 | 9 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88820 | 88800 | Through Hole | 115 | 6 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88815 | 88800 | Through Hole | 115 | 5 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88785 | 88700 | Through Hole | 115 | 115 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88780 | 88700 | Through Hole | 115 | 110 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88775 | 88700 | Through Hole | 115 | 100 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88770 | 88700 | Through Hole | 115 | 75 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88765 | 88700 | Through Hole | 115 | 48 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88760 | 88700 | Through Hole | 115 | 36 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88755 | 88700 | Through Hole | 115 | 28 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88750 | 88700 | Through Hole | 115 | 24 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88745 | 88700 | Through Hole | 115 | 22 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88740 | 88700 | Through Hole | 115 | 15 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88735 | 88700 | Through Hole | 115 | 14 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88730 | 88700 | Through Hole | 115 | 12 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88725 | 88700 | Through Hole | 115 | 9 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88720 | 88700 | Through Hole | 115 | 6 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88715 | 88700 | Through Hole | 115 | 5 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88685 | 88600 | Through Hole | 115 | 115 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88680 | 88600 | Through Hole | 115 | 110 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88675 | 88600 | Through Hole | 115 | 100 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88670 | 88600 | Through Hole | 115 | 75 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88665 | 88600 | Through Hole | 115 | 48 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88660 | 88600 | Through Hole | 115 | 36 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88655 | 88600 | Through Hole | 115 | 28 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88650 | 88600 | Through Hole | 115 | 24 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88645 | 88600 | Through Hole | 115 | 22 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88640 | 88600 | Through Hole | 115 | 15 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88635 | 88600 | Through Hole | 115 | 14 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88630 | 88600 | Through Hole | 115 | 12 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88625 | 88600 | Through Hole | 115 | 9 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88620 | 88600 | Through Hole | 115 | 6 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88615 | 88600 | Through Hole | 115 | 5 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88585 | 88500 | Through Hole | 115 | 115 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88580 | 88500 | Through Hole | 115 | 110 | 16 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88575 | 88500 | Through Hole | 115 | 100 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88570 | 88500 | Through Hole | 115 | 75 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88565 | 88500 | Through Hole | 115 | 48 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88560 | 88500 | Through Hole | 115 | 36 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88555 | 88500 | Through Hole | 115 | 28 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88550 | 88500 | Through Hole | 115 | 24 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88545 | 88500 | Through Hole | 115 | 22 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88540 | 88500 | Through Hole | 115 | 15 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88535 | 88500 | Through Hole | 115 | 14 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88530 | 88500 | Through Hole | 115 | 12 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88525 | 88500 | Through Hole | 115 | 9 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88520 | 88500 | Through Hole | 115 | 6 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88515 | 88500 | Through Hole | 115 | 5 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88485 | 88400 | Through Hole | 26 | 115 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88480 | 88400 | Through Hole | 26 | 110 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88475 | 88400 | Through Hole | 26 | 100 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88470 | 88400 | Through Hole | 26 | 75 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88465 | 88400 | Through Hole | 26 | 48 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88460 | 88400 | Through Hole | 26 | 36 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88455 | 88400 | Through Hole | 26 | 28 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88450 | 88400 | Through Hole | 26 | 24 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88445 | 88400 | Through Hole | 26 | 22 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88440 | 88400 | Through Hole | 26 | 15 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88435 | 88400 | Through Hole | 26 | 14 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88430 | 88400 | Through Hole | 26 | 12 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88425 | 88400 | Through Hole | 26 | 9 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88420 | 88400 | Through Hole | 26 | 6 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88415 | 88400 | Through Hole | 26 | 5 | 50 | 2.00″ x 2.00″ x 1.03″ | – | |
| 88385 | 88300 | Through Hole | 26 | 115 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88380 | 88300 | Through Hole | 26 | 110 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88375 | 88300 | Through Hole | 26 | 100 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88370 | 88300 | Through Hole | 26 | 75 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88365 | 88300 | Through Hole | 26 | 48 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88360 | 88300 | Through Hole | 26 | 36 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88355 | 88300 | Through Hole | 26 | 28 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88350 | 88300 | Through Hole | 26 | 24 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88345 | 88300 | Through Hole | 26 | 22 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88340 | 88300 | Through Hole | 26 | 15 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88335 | 88300 | Through Hole | 26 | 14 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88330 | 88300 | Through Hole | 26 | 12 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88325 | 88300 | Through Hole | 26 | 9 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88320 | 88300 | Through Hole | 26 | 6 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88315 | 88300 | Through Hole | 26 | 5 | 35 | 1.75″ x 1.75″ x 0.93″ | – | |
| 88285 | 88200 | Through Hole | 26 | 115 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88280 | 88200 | Through Hole | 26 | 110 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88275 | 88200 | Through Hole | 26 | 100 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88270 | 88200 | Through Hole | 26 | 75 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88265 | 88200 | Through Hole | 26 | 48 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88260 | 88200 | Through Hole | 26 | 36 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88255 | 88200 | Through Hole | 26 | 28 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88250 | 88200 | Through Hole | 26 | 24 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88245 | 88200 | Through Hole | 26 | 22 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88240 | 88200 | Through Hole | 26 | 15 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88235 | 88200 | Through Hole | 26 | 14 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88230 | 88200 | Through Hole | 26 | 12 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88225 | 88200 | Through Hole | 26 | 9 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88220 | 88200 | Through Hole | 26 | 6 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88215 | 88200 | Through Hole | 26 | 5 | 25 | 1.63″ x 1.63″ x 0.83″ | – | |
| 88185 | 88100 | Through Hole | 26 | 115 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88180 | 88100 | Through Hole | 26 | 110 | 125 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88175 | 88100 | Through Hole | 26 | 100 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88170 | 88100 | Through Hole | 26 | 75 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88165 | 88100 | Through Hole | 26 | 48 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88160 | 88100 | Through Hole | 26 | 36 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88155 | 88100 | Through Hole | 26 | 28 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88150 | 88100 | Through Hole | 26 | 24 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88145 | 88100 | Through Hole | 26 | 22 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88140 | 88100 | Through Hole | 26 | 15 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88135 | 88100 | Through Hole | 26 | 14 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88130 | 88100 | Through Hole | 26 | 12 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88125 | 88100 | Through Hole | 26 | 9 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88120 | 88100 | Through Hole | 26 | 6 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88115 | 88100 | Through Hole | 26 | 5 | 15 | 1.50″ x 1.50″ x 0.83″ | – | |
| 88085 | 88000 | Through Hole | 26 | 115 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88080 | 88000 | Through Hole | 26 | 110 | 16 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88075 | 88000 | Through Hole | 26 | 100 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88070 | 88000 | Through Hole | 26 | 75 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88065 | 88000 | Through Hole | 26 | 48 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88060 | 88000 | Through Hole | 26 | 36 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88055 | 88000 | Through Hole | 26 | 28 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88050 | 88000 | Through Hole | 26 | 24 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88045 | 88000 | Through Hole | 26 | 22 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88040 | 88000 | Through Hole | 26 | 15 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88035 | 88000 | Through Hole | 26 | 14 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88030 | 88000 | Through Hole | 26 | 12 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88025 | 88000 | Through Hole | 26 | 9 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88020 | 88000 | Through Hole | 26 | 6 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 88015 | 88000 | Through Hole | 26 | 5 | 5 | 1.38″ x 1.38″ x 0.70″ | – | |
| 87985 | 87900 | Surface Mount | 115 | 115 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87980 | 87900 | Surface Mount | 115 | 110 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87975 | 87900 | Surface Mount | 115 | 100 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87970 | 87900 | Surface Mount | 115 | 75 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87965 | 87900 | Surface Mount | 115 | 48 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87960 | 87900 | Surface Mount | 115 | 36 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87955 | 87900 | Surface Mount | 115 | 28 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87950 | 87900 | Surface Mount | 115 | 24 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87945 | 87900 | Surface Mount | 115 | 22 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87940 | 87900 | Surface Mount | 115 | 15 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87935 | 87900 | Surface Mount | 115 | 14 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87930 | 87900 | Surface Mount | 115 | 12 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87925 | 87900 | Surface Mount | 115 | 9 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87920 | 87900 | Surface Mount | 115 | 6 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87915 | 87900 | Surface Mount | 115 | 5 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87885 | 87800 | Surface Mount | 115 | 115 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87880 | 87800 | Surface Mount | 115 | 110 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87875 | 87800 | Surface Mount | 115 | 100 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87870 | 87800 | Surface Mount | 115 | 75 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87865 | 87800 | Surface Mount | 115 | 48 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87860 | 87800 | Surface Mount | 115 | 36 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87855 | 87800 | Surface Mount | 115 | 28 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87850 | 87800 | Surface Mount | 115 | 24 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87845 | 87800 | Surface Mount | 115 | 22 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87840 | 87800 | Surface Mount | 115 | 15 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87835 | 87800 | Surface Mount | 115 | 14 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87830 | 87800 | Surface Mount | 115 | 12 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87825 | 87800 | Surface Mount | 115 | 9 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87820 | 87800 | Surface Mount | 115 | 6 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87815 | 87800 | Surface Mount | 115 | 5 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87785 | 87700 | Surface Mount | 115 | 115 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87780 | 87700 | Surface Mount | 115 | 110 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87775 | 87700 | Surface Mount | 115 | 100 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87770 | 87700 | Surface Mount | 115 | 75 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87765 | 87700 | Surface Mount | 115 | 48 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87760 | 87700 | Surface Mount | 115 | 36 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87755 | 87700 | Surface Mount | 115 | 28 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87750 | 87700 | Surface Mount | 115 | 24 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87745 | 87700 | Surface Mount | 115 | 22 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87740 | 87700 | Surface Mount | 115 | 15 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87735 | 87700 | Surface Mount | 115 | 14 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87730 | 87700 | Surface Mount | 115 | 12 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87725 | 87700 | Surface Mount | 115 | 9 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87720 | 87700 | Surface Mount | 115 | 6 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87715 | 87700 | Surface Mount | 115 | 5 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87685 | 87600 | Surface Mount | 115 | 115 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87680 | 87600 | Surface Mount | 115 | 110 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87675 | 87600 | Surface Mount | 115 | 100 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87670 | 87600 | Surface Mount | 115 | 75 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87665 | 87600 | Surface Mount | 115 | 48 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87660 | 87600 | Surface Mount | 115 | 36 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87655 | 87600 | Surface Mount | 115 | 28 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87650 | 87600 | Surface Mount | 115 | 24 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87645 | 87600 | Surface Mount | 115 | 22 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87640 | 87600 | Surface Mount | 115 | 15 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87635 | 87600 | Surface Mount | 115 | 14 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87630 | 87600 | Surface Mount | 115 | 12 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87625 | 87600 | Surface Mount | 115 | 9 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87620 | 87600 | Surface Mount | 115 | 6 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87615 | 87600 | Surface Mount | 115 | 5 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87585 | 87500 | Surface Mount | 115 | 115 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87580 | 87500 | Surface Mount | 115 | 110 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87575 | 87500 | Surface Mount | 115 | 100 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87570 | 87500 | Surface Mount | 115 | 75 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87565 | 87500 | Surface Mount | 115 | 48 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87560 | 87500 | Surface Mount | 115 | 36 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87555 | 87500 | Surface Mount | 115 | 28 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87550 | 87500 | Surface Mount | 115 | 24 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87545 | 87500 | Surface Mount | 115 | 22 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87540 | 87500 | Surface Mount | 115 | 15 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87535 | 87500 | Surface Mount | 115 | 14 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87530 | 87500 | Surface Mount | 115 | 12 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87525 | 87500 | Surface Mount | 115 | 9 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87520 | 87500 | Surface Mount | 115 | 6 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87515 | 87500 | Surface Mount | 115 | 5 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87485 | 87400 | Surface Mount | 26 | 115 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87480 | 87400 | Surface Mount | 26 | 110 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87475 | 87400 | Surface Mount | 26 | 100 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87470 | 87400 | Surface Mount | 26 | 75 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87465 | 87400 | Surface Mount | 26 | 48 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87460 | 87400 | Surface Mount | 26 | 36 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87455 | 87400 | Surface Mount | 26 | 28 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87450 | 87400 | Surface Mount | 26 | 24 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87445 | 87400 | Surface Mount | 26 | 22 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87440 | 87400 | Surface Mount | 26 | 15 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87435 | 87400 | Surface Mount | 26 | 14 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87430 | 87400 | Surface Mount | 26 | 12 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87425 | 87400 | Surface Mount | 26 | 9 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87420 | 87400 | Surface Mount | 26 | 6 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87415 | 87400 | Surface Mount | 26 | 5 | 50 | 2.00″ x 2.00″ x 1.05″ | – | |
| 87385 | 87300 | Surface Mount | 26 | 115 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87380 | 87300 | Surface Mount | 26 | 110 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87375 | 87300 | Surface Mount | 26 | 100 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87370 | 87300 | Surface Mount | 26 | 75 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87365 | 87300 | Surface Mount | 26 | 48 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87360 | 87300 | Surface Mount | 26 | 36 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87355 | 87300 | Surface Mount | 26 | 28 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87350 | 87300 | Surface Mount | 26 | 24 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87345 | 87300 | Surface Mount | 26 | 22 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87340 | 87300 | Surface Mount | 26 | 15 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87335 | 87300 | Surface Mount | 26 | 14 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87330 | 87300 | Surface Mount | 26 | 12 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87325 | 87300 | Surface Mount | 26 | 9 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87320 | 87300 | Surface Mount | 26 | 6 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87315 | 87300 | Surface Mount | 26 | 5 | 35 | 1.75″ x 1.75″ x 0.95″ | – | |
| 87285 | 87200 | Surface Mount | 26 | 115 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87280 | 87200 | Surface Mount | 26 | 110 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87275 | 87200 | Surface Mount | 26 | 100 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87270 | 87200 | Surface Mount | 26 | 75 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87265 | 87200 | Surface Mount | 26 | 48 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87260 | 87200 | Surface Mount | 26 | 36 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87255 | 87200 | Surface Mount | 26 | 28 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87250 | 87200 | Surface Mount | 26 | 24 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87245 | 87200 | Surface Mount | 26 | 22 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87240 | 87200 | Surface Mount | 26 | 15 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87235 | 87200 | Surface Mount | 26 | 14 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87230 | 87200 | Surface Mount | 26 | 12 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87225 | 87200 | Surface Mount | 26 | 9 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87220 | 87200 | Surface Mount | 26 | 6 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87215 | 87200 | Surface Mount | 26 | 5 | 25 | 1.63″ x 1.63″ x 0.85″ | – | |
| 87185 | 87100 | Surface Mount | 26 | 115 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87180 | 87100 | Surface Mount | 26 | 110 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87175 | 87100 | Surface Mount | 26 | 100 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87170 | 87100 | Surface Mount | 26 | 75 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87165 | 87100 | Surface Mount | 26 | 48 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87160 | 87100 | Surface Mount | 26 | 36 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87155 | 87100 | Surface Mount | 26 | 28 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87150 | 87100 | Surface Mount | 26 | 24 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87145 | 87100 | Surface Mount | 26 | 22 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87140 | 87100 | Surface Mount | 26 | 15 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87135 | 87100 | Surface Mount | 26 | 14 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87130 | 87100 | Surface Mount | 26 | 12 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87125 | 87100 | Surface Mount | 26 | 9 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87120 | 87100 | Surface Mount | 26 | 6 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87115 | 87100 | Surface Mount | 26 | 5 | 15 | 1.50″ x 1.50″ x 0.85″ | – | |
| 87085 | 87000 | Surface Mount | 26 | 115 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87080 | 87000 | Surface Mount | 26 | 110 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87075 | 87000 | Surface Mount | 26 | 100 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87070 | 87000 | Surface Mount | 26 | 75 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87065 | 87000 | Surface Mount | 26 | 48 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87060 | 87000 | Surface Mount | 26 | 36 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87055 | 87000 | Surface Mount | 26 | 28 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87050 | 87000 | Surface Mount | 26 | 24 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87045 | 87000 | Surface Mount | 26 | 22 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87040 | 87000 | Surface Mount | 26 | 15 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87035 | 87000 | Surface Mount | 26 | 14 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87030 | 87000 | Surface Mount | 26 | 12 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87025 | 87000 | Surface Mount | 26 | 9 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87020 | 87000 | Surface Mount | 26 | 6 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 87015 | 87000 | Surface Mount | 26 | 5 | 5 | 1.38″ x 1.38″ x 0.73″ | – | |
| 84975 | 84000 | Surface Mount | 26 | 310 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84970 | 84000 | Surface Mount | 26 | 275 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84965 | 84000 | Surface Mount | 26 | 250 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84960 | 84000 | Surface Mount | 26 | 220 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84955 | 84000 | Surface Mount | 26 | 200 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84950 | 84000 | Surface Mount | 26 | 175 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84945 | 84000 | Surface Mount | 26 | 157 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84940 | 84000 | Surface Mount | 26 | 138 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84935 | 84000 | Surface Mount | 26 | 123 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84930 | 84000 | Surface Mount | 26 | 115 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84925 | 84000 | Surface Mount | 26 | 100 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84920 | 84000 | Surface Mount | 26 | 88 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84915 | 84000 | Surface Mount | 26 | 80 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84910 | 84000 | Surface Mount | 26 | 68 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84905 | 84000 | Surface Mount | 26 | 63 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84900 | 84000 | Surface Mount | 26 | 56 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84895 | 84000 | Surface Mount | 26 | 48 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84890 | 84000 | Surface Mount | 26 | 43 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84885 | 84000 | Surface Mount | 26 | 39 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84880 | 84000 | Surface Mount | 26 | 36 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84875 | 84000 | Surface Mount | 26 | 31 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84870 | 84000 | Surface Mount | 26 | 28 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84865 | 84000 | Surface Mount | 26 | 24 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84860 | 84000 | Surface Mount | 26 | 22 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84855 | 84000 | Surface Mount | 26 | 20 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84850 | 84000 | Surface Mount | 26 | 18 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84845 | 84000 | Surface Mount | 26 | 16 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84840 | 84000 | Surface Mount | 26 | 14 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84835 | 84000 | Surface Mount | 26 | 12.8 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84830 | 84000 | Surface Mount | 26 | 10 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84825 | 84000 | Surface Mount | 26 | 8 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84820 | 84000 | Surface Mount | 26 | 6.3 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84815 | 84000 | Surface Mount | 26 | 5 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84810 | 84000 | Surface Mount | 115 | 310 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84805 | 84000 | Surface Mount | 115 | 275 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84800 | 84000 | Surface Mount | 115 | 250 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84795 | 84000 | Surface Mount | 115 | 220 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84790 | 84000 | Surface Mount | 115 | 200 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84785 | 84000 | Surface Mount | 115 | 175 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84780 | 84000 | Surface Mount | 115 | 157 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84775 | 84000 | Surface Mount | 115 | 138 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84770 | 84000 | Surface Mount | 115 | 123 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84765 | 84000 | Surface Mount | 115 | 115 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84760 | 84000 | Surface Mount | 115 | 100 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84755 | 84000 | Surface Mount | 115 | 88 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84750 | 84000 | Surface Mount | 115 | 80 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84745 | 84000 | Surface Mount | 115 | 68 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84740 | 84000 | Surface Mount | 115 | 63 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84735 | 84000 | Surface Mount | 115 | 56 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84730 | 84000 | Surface Mount | 115 | 48 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84725 | 84000 | Surface Mount | 115 | 43 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84720 | 84000 | Surface Mount | 115 | 39 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84715 | 84000 | Surface Mount | 115 | 36 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84710 | 84000 | Surface Mount | 115 | 31 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84705 | 84000 | Surface Mount | 115 | 28 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84700 | 84000 | Surface Mount | 115 | 24 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84695 | 84000 | Surface Mount | 115 | 22 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84690 | 84000 | Surface Mount | 115 | 20 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84685 | 84000 | Surface Mount | 115 | 18 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84680 | 84000 | Surface Mount | 115 | 16 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84675 | 84000 | Surface Mount | 115 | 14 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84670 | 84000 | Surface Mount | 115 | 12.8 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84665 | 84000 | Surface Mount | 115 | 10 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84660 | 84000 | Surface Mount | 115 | 8 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84655 | 84000 | Surface Mount | 115 | 6.3 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84650 | 84000 | Surface Mount | 115 | 5 | 2.4 | 0.80″ x 0.80″ x 0.92″ | – | |
| 83975 | 83000 | Surface Mount | 26 | 310 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83970 | 83000 | Surface Mount | 26 | 275 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83965 | 83000 | Surface Mount | 26 | 250 | 1.7 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83960 | 83000 | Surface Mount | 26 | 220 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83955 | 83000 | Surface Mount | 26 | 200 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83950 | 83000 | Surface Mount | 26 | 175 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83945 | 83000 | Surface Mount | 26 | 157 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83940 | 83000 | Surface Mount | 26 | 138 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83935 | 83000 | Surface Mount | 26 | 123 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83930 | 83000 | Surface Mount | 26 | 115 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83925 | 83000 | Surface Mount | 26 | 100 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83920 | 83000 | Surface Mount | 26 | 88 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83915 | 83000 | Surface Mount | 26 | 80 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83910 | 83000 | Surface Mount | 26 | 68 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83905 | 83000 | Surface Mount | 26 | 63 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83900 | 83000 | Surface Mount | 26 | 56 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83895 | 83000 | Surface Mount | 26 | 48 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83890 | 83000 | Surface Mount | 26 | 43 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83885 | 83000 | Surface Mount | 26 | 39 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83880 | 83000 | Surface Mount | 26 | 36 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83875 | 83000 | Surface Mount | 26 | 31 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83870 | 83000 | Surface Mount | 26 | 28 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83865 | 83000 | Surface Mount | 26 | 24 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83860 | 83000 | Surface Mount | 26 | 22 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83855 | 83000 | Surface Mount | 26 | 20 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83850 | 83000 | Surface Mount | 26 | 18 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83845 | 83000 | Surface Mount | 26 | 16 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83840 | 83000 | Surface Mount | 26 | 14 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83835 | 83000 | Surface Mount | 26 | 12.8 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83830 | 83000 | Surface Mount | 26 | 10 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83825 | 83000 | Surface Mount | 26 | 8 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83820 | 83000 | Surface Mount | 26 | 6.3 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83815 | 83000 | Surface Mount | 26 | 5 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83810 | 83000 | Surface Mount | 115 | 310 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83805 | 83000 | Surface Mount | 115 | 275 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83800 | 83000 | Surface Mount | 115 | 250 | 1.7 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83795 | 83000 | Surface Mount | 115 | 220 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83790 | 83000 | Surface Mount | 115 | 200 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83785 | 83000 | Surface Mount | 115 | 175 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83780 | 83000 | Surface Mount | 115 | 157 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83775 | 83000 | Surface Mount | 115 | 138 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83770 | 83000 | Surface Mount | 115 | 123 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83765 | 83000 | Surface Mount | 115 | 115 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83760 | 83000 | Surface Mount | 115 | 100 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83755 | 83000 | Surface Mount | 115 | 88 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83750 | 83000 | Surface Mount | 115 | 80 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83745 | 83000 | Surface Mount | 115 | 68 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83740 | 83000 | Surface Mount | 115 | 63 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83735 | 83000 | Surface Mount | 115 | 56 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83730 | 83000 | Surface Mount | 115 | 48 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83725 | 83000 | Surface Mount | 115 | 43 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83720 | 83000 | Surface Mount | 115 | 39 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83715 | 83000 | Surface Mount | 115 | 36 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83710 | 83000 | Surface Mount | 115 | 31 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83705 | 83000 | Surface Mount | 115 | 28 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83700 | 83000 | Surface Mount | 115 | 24 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83695 | 83000 | Surface Mount | 115 | 22 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83690 | 83000 | Surface Mount | 115 | 20 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83685 | 83000 | Surface Mount | 115 | 18 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83680 | 83000 | Surface Mount | 115 | 16 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83675 | 83000 | Surface Mount | 115 | 14 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83670 | 83000 | Surface Mount | 115 | 12.8 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83665 | 83000 | Surface Mount | 115 | 10 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83660 | 83000 | Surface Mount | 115 | 8 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83655 | 83000 | Surface Mount | 115 | 6.3 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83650 | 83000 | Surface Mount | 115 | 5 | 1.67 | 0.80″ x 0.80″ x 0.61″ | – | |
| 82955 | 82000 | Surface Mount | 26 | 200 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82950 | 82000 | Surface Mount | 26 | 175 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82945 | 82000 | Surface Mount | 26 | 157 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82940 | 82000 | Surface Mount | 26 | 138 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82935 | 82000 | Surface Mount | 26 | 123 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82930 | 82000 | Surface Mount | 26 | 115 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82925 | 82000 | Surface Mount | 26 | 100 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82920 | 82000 | Surface Mount | 26 | 88 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82915 | 82000 | Surface Mount | 26 | 80 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82910 | 82000 | Surface Mount | 26 | 68 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82905 | 82000 | Surface Mount | 26 | 63 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82900 | 82000 | Surface Mount | 26 | 56 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82895 | 82000 | Surface Mount | 26 | 48 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82890 | 82000 | Surface Mount | 26 | 43 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82885 | 82000 | Surface Mount | 26 | 39 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82880 | 82000 | Surface Mount | 26 | 36 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82875 | 82000 | Surface Mount | 26 | 31 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82870 | 82000 | Surface Mount | 26 | 28 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82865 | 82000 | Surface Mount | 26 | 24 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82860 | 82000 | Surface Mount | 26 | 22 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82855 | 82000 | Surface Mount | 26 | 20 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82850 | 82000 | Surface Mount | 26 | 18 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82845 | 82000 | Surface Mount | 26 | 16 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82840 | 82000 | Surface Mount | 26 | 14 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82835 | 82000 | Surface Mount | 26 | 12.8 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82830 | 82000 | Surface Mount | 26 | 10 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82825 | 82000 | Surface Mount | 26 | 8 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82820 | 82000 | Surface Mount | 26 | 6.3 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82815 | 82000 | Surface Mount | 26 | 5 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82790 | 82000 | Surface Mount | 115 | 200 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82785 | 82000 | Surface Mount | 115 | 175 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82780 | 82000 | Surface Mount | 115 | 157 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82775 | 82000 | Surface Mount | 115 | 138 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82770 | 82000 | Surface Mount | 115 | 123 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82765 | 82000 | Surface Mount | 115 | 115 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82760 | 82000 | Surface Mount | 115 | 100 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82755 | 82000 | Surface Mount | 115 | 88 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82750 | 82000 | Surface Mount | 115 | 80 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82745 | 82000 | Surface Mount | 115 | 68 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82740 | 82000 | Surface Mount | 115 | 63 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82735 | 82000 | Surface Mount | 115 | 56 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82730 | 82000 | Surface Mount | 115 | 48 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82725 | 82000 | Surface Mount | 115 | 43 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82720 | 82000 | Surface Mount | 115 | 39 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82715 | 82000 | Surface Mount | 115 | 36 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82710 | 82000 | Surface Mount | 115 | 31 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82705 | 82000 | Surface Mount | 115 | 28 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82700 | 82000 | Surface Mount | 115 | 24 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82695 | 82000 | Surface Mount | 115 | 22 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82690 | 82000 | Surface Mount | 115 | 20 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82685 | 82000 | Surface Mount | 115 | 18 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82680 | 82000 | Surface Mount | 115 | 16 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82675 | 82000 | Surface Mount | 115 | 14 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82670 | 82000 | Surface Mount | 115 | 12.8 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82665 | 82000 | Surface Mount | 115 | 10 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82660 | 82000 | Surface Mount | 115 | 8 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82655 | 82000 | Surface Mount | 115 | 6.3 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82650 | 82000 | Surface Mount | 115 | 5 | 1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 77928 | 77000 | Surface Mount | 26 | 115 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77927 | 77000 | Surface Mount | 26 | 100 | 0.85 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77926 | 77000 | Surface Mount | 26 | 88 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77925 | 77000 | Surface Mount | 26 | 80 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77923 | 77000 | Surface Mount | 26 | 68 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77922 | 77000 | Surface Mount | 26 | 63 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77921 | 77000 | Surface Mount | 26 | 56 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77920 | 77000 | Surface Mount | 26 | 48 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77919 | 77000 | Surface Mount | 26 | 43 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77918 | 77000 | Surface Mount | 26 | 39 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77917 | 77000 | Surface Mount | 26 | 36 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77916 | 77000 | Surface Mount | 26 | 31 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77914 | 77000 | Surface Mount | 26 | 28 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77913 | 77000 | Surface Mount | 26 | 24 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77912 | 77000 | Surface Mount | 26 | 22 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77911 | 77000 | Surface Mount | 26 | 20 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77909 | 77000 | Surface Mount | 26 | 18 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77908 | 77000 | Surface Mount | 26 | 16 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77907 | 77000 | Surface Mount | 26 | 14 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77906 | 77000 | Surface Mount | 26 | 12.8 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77905 | 77000 | Surface Mount | 26 | 10 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77904 | 77000 | Surface Mount | 26 | 8 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77903 | 77000 | Surface Mount | 26 | 6.3 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77902 | 77000 | Surface Mount | 26 | 5 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77900 | 77000 | Surface Mount | 115 | 5 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77899 | 77000 | Surface Mount | 115 | 6.3 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77898 | 77000 | Surface Mount | 115 | 8 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77897 | 77000 | Surface Mount | 115 | 10 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77892 | 77000 | Surface Mount | 115 | 12.8 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77889 | 77000 | Surface Mount | 115 | 14 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77887 | 77000 | Surface Mount | 115 | 16 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77886 | 77000 | Surface Mount | 115 | 18 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77885 | 77000 | Surface Mount | 115 | 20 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77884 | 77000 | Surface Mount | 115 | 22 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77882 | 77000 | Surface Mount | 115 | 24 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77881 | 77000 | Surface Mount | 115 | 28 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77879 | 77000 | Surface Mount | 115 | 31 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77877 | 77000 | Surface Mount | 115 | 36 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77876 | 77000 | Surface Mount | 115 | 39 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77875 | 77000 | Surface Mount | 115 | 43 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77874 | 77000 | Surface Mount | 115 | 48 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77872 | 77000 | Surface Mount | 115 | 56 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77869 | 77000 | Surface Mount | 115 | 63 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77867 | 77000 | Surface Mount | 115 | 68 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77862 | 77000 | Surface Mount | 115 | 80 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77857 | 77000 | Surface Mount | 115 | 88 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77854 | 77000 | Surface Mount | 115 | 100 | 0.85 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77852 | 77000 | Surface Mount | 115 | 115 | 0.74 | 0.55″ x 0.55″ x 0.57″ | – | |
| 76928 | 76000 | Surface Mount | 26 | 115 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76927 | 76000 | Surface Mount | 26 | 100 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76926 | 76000 | Surface Mount | 26 | 88 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76925 | 76000 | Surface Mount | 26 | 80 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76923 | 76000 | Surface Mount | 26 | 68 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76922 | 76000 | Surface Mount | 26 | 63 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76921 | 76000 | Surface Mount | 26 | 56 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76920 | 76000 | Surface Mount | 26 | 48 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76919 | 76000 | Surface Mount | 26 | 43 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76918 | 76000 | Surface Mount | 26 | 39 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76917 | 76000 | Surface Mount | 26 | 36 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76916 | 76000 | Surface Mount | 26 | 31 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76914 | 76000 | Surface Mount | 26 | 28 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76913 | 76000 | Surface Mount | 26 | 24 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76912 | 76000 | Surface Mount | 26 | 22 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76911 | 76000 | Surface Mount | 26 | 20 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76909 | 76000 | Surface Mount | 26 | 18 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76908 | 76000 | Surface Mount | 26 | 16 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76907 | 76000 | Surface Mount | 26 | 14 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76906 | 76000 | Surface Mount | 26 | 12.8 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76905 | 76000 | Surface Mount | 26 | 10 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76904 | 76000 | Surface Mount | 26 | 8 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76903 | 76000 | Surface Mount | 26 | 6.3 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76902 | 76000 | Surface Mount | 26 | 5 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76900 | 76000 | Surface Mount | 115 | 5 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76899 | 76000 | Surface Mount | 115 | 6.3 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76898 | 76000 | Surface Mount | 115 | 8 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76897 | 76000 | Surface Mount | 115 | 10 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76892 | 76000 | Surface Mount | 115 | 12.8 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76889 | 76000 | Surface Mount | 115 | 14 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76887 | 76000 | Surface Mount | 115 | 16 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76886 | 76000 | Surface Mount | 115 | 18 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76885 | 76000 | Surface Mount | 115 | 20 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76884 | 76000 | Surface Mount | 115 | 22 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76882 | 76000 | Surface Mount | 115 | 24 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76881 | 76000 | Surface Mount | 115 | 28 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76879 | 76000 | Surface Mount | 115 | 31 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76877 | 76000 | Surface Mount | 115 | 36 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76876 | 76000 | Surface Mount | 115 | 39 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76875 | 76000 | Surface Mount | 115 | 43 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76874 | 76000 | Surface Mount | 115 | 48 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76872 | 76000 | Surface Mount | 115 | 56 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76869 | 76000 | Surface Mount | 115 | 63 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76867 | 76000 | Surface Mount | 115 | 68 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76862 | 76000 | Surface Mount | 115 | 80 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76857 | 76000 | Surface Mount | 115 | 88 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76854 | 76000 | Surface Mount | 115 | 100 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76852 | 76000 | Surface Mount | 115 | 115 | 0.37 | 0.55″ x 0.55″ x 0.42″ | – |
