Series VV (100-10kV)

10W Isolated/Non-isolated Proportional High Voltage DC-DC Converter

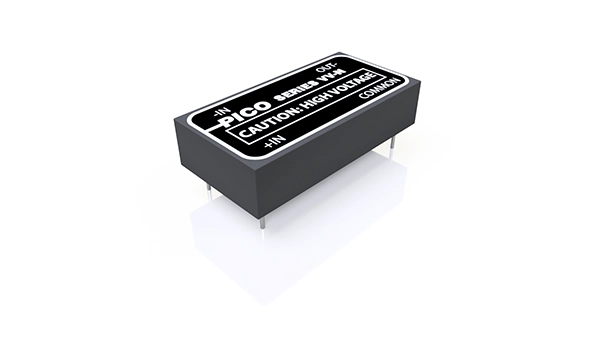

The VV series are unregulated DC-DC converters in a low 0.500″ profile package footprint with up to 10,000V single output models. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Features

Up to 10W output power
Output voltage is proportional to input voltage
Up to 10,000V output models
Wide input voltage range
Through hole mounting
Transformer Isolated modules
No heat sink or derating required

Options

Expanded operating temp: -55°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Part Number	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Downloads
9VV9-P	Through Hole	Single	Proportional	9	+9000	6	Datasheet Mechanical Drawing 3D Model
9VV9-N	Through Hole	Single	Proportional	9	-9000	6	Datasheet Mechanical Drawing 3D Model
9VV9	Through Hole	Single	Proportional	9	9000	6	Datasheet Mechanical Drawing 3D Model
9VV8-P	Through Hole	Single	Proportional	9	+8000	6	Datasheet Mechanical Drawing 3D Model
9VV8-N	Through Hole	Single	Proportional	9	-8000	6	Datasheet Mechanical Drawing 3D Model
9VV8	Through Hole	Single	Proportional	9	8000	6	Datasheet Mechanical Drawing 3D Model
9VV7-P	Through Hole	Single	Proportional	9	+7000	6	Datasheet Mechanical Drawing 3D Model
9VV7-N	Through Hole	Single	Proportional	9	-7000	6	Datasheet Mechanical Drawing 3D Model
9VV7	Through Hole	Single	Proportional	9	7000	6	Datasheet Mechanical Drawing 3D Model
9VV6-P	Through Hole	Single	Proportional	9	+6000	6	Datasheet Mechanical Drawing 3D Model
9VV6-N	Through Hole	Single	Proportional	9	-6000	6	Datasheet Mechanical Drawing 3D Model
9VV6	Through Hole	Single	Proportional	9	6000	6	Datasheet Mechanical Drawing 3D Model
9VV5	Through Hole	Single	Proportional	9	5000	6	Datasheet Mechanical Drawing 3D Model
9VV4	Through Hole	Single	Proportional	9	4000	7	Datasheet Mechanical Drawing 3D Model
9VV3	Through Hole	Single	Proportional	9	3000	7	Datasheet Mechanical Drawing 3D Model
9VV2	Through Hole	Single	Proportional	9	2000	7	Datasheet Mechanical Drawing 3D Model
9VV10-P	Through Hole	Single	Proportional	9	+10000	6	Datasheet Mechanical Drawing 3D Model
9VV10-N	Through Hole	Single	Proportional	9	-10000	6	Datasheet Mechanical Drawing 3D Model
9VV10	Through Hole	Single	Proportional	9	10000	6	Datasheet Mechanical Drawing 3D Model
9VV1	Through Hole	Single	Proportional	9	1000	7	Datasheet Mechanical Drawing 3D Model
9VV0.9	Through Hole	Single	Proportional	9	900	7	Datasheet Mechanical Drawing 3D Model
9VV0.8	Through Hole	Single	Proportional	9	800	7	Datasheet Mechanical Drawing 3D Model
9VV0.7	Through Hole	Single	Proportional	9	700	7	Datasheet Mechanical Drawing 3D Model
9VV0.6	Through Hole	Single	Proportional	9	600	7	Datasheet Mechanical Drawing 3D Model
9VV0.5	Through Hole	Single	Proportional	9	500	7	Datasheet Mechanical Drawing 3D Model
9VV0.4	Through Hole	Single	Proportional	9	400	7	Datasheet Mechanical Drawing 3D Model
9VV0.3	Through Hole	Single	Proportional	9	300	7	Datasheet Mechanical Drawing 3D Model
9VV0.2	Through Hole	Single	Proportional	9	200	7	Datasheet Mechanical Drawing 3D Model
9VV0.1	Through Hole	Single	Proportional	9	100	7	Datasheet Mechanical Drawing 3D Model
5VV9-P	Through Hole	Single	Proportional	5	+9000	5	Datasheet Mechanical Drawing 3D Model
5VV9-N	Through Hole	Single	Proportional	5	-9000	5	Datasheet Mechanical Drawing 3D Model
5VV9	Through Hole	Single	Proportional	5	9000	5	Datasheet Mechanical Drawing 3D Model
5VV8-P	Through Hole	Single	Proportional	5	+8000	5	Datasheet Mechanical Drawing 3D Model
5VV8-N	Through Hole	Single	Proportional	5	-8000	5	Datasheet Mechanical Drawing 3D Model
5VV8	Through Hole	Single	Proportional	5	8000	5	Datasheet Mechanical Drawing 3D Model
5VV7-P	Through Hole	Single	Proportional	5	+7000	5	Datasheet Mechanical Drawing 3D Model
5VV7-N	Through Hole	Single	Proportional	5	-7000	5	Datasheet Mechanical Drawing 3D Model
5VV7	Through Hole	Single	Proportional	5	7000	5	Datasheet Mechanical Drawing 3D Model
5VV6-P	Through Hole	Single	Proportional	5	+6000	5	Datasheet Mechanical Drawing 3D Model
5VV6-N	Through Hole	Single	Proportional	5	-6000	5	Datasheet Mechanical Drawing 3D Model
5VV6	Through Hole	Single	Proportional	5	6000	5	Datasheet Mechanical Drawing 3D Model
5VV5	Through Hole	Single	Proportional	5	5000	5.5	Datasheet Mechanical Drawing 3D Model
5VV4	Through Hole	Single	Proportional	5	4000	5.5	Datasheet Mechanical Drawing 3D Model
5VV3	Through Hole	Single	Proportional	5	3000	6	Datasheet Mechanical Drawing 3D Model
5VV2	Through Hole	Single	Proportional	5	2000	6	Datasheet Mechanical Drawing 3D Model
5VV10-P	Through Hole	Single	Proportional	5	+10000	5	Datasheet Mechanical Drawing 3D Model
5VV10-N	Through Hole	Single	Proportional	5	-10000	5	Datasheet Mechanical Drawing 3D Model
5VV10	Through Hole	Single	Proportional	5	10000	5	Datasheet Mechanical Drawing 3D Model
5VV1	Through Hole	Single	Proportional	5	1000	6	Datasheet Mechanical Drawing 3D Model
5VV0.9	Through Hole	Single	Proportional	5	900	6	Datasheet Mechanical Drawing 3D Model
5VV0.8	Through Hole	Single	Proportional	5	800	6	Datasheet Mechanical Drawing 3D Model
5VV0.7	Through Hole	Single	Proportional	5	700	6	Datasheet Mechanical Drawing 3D Model
5VV0.6	Through Hole	Single	Proportional	5	600	6	Datasheet Mechanical Drawing 3D Model
5VV0.5	Through Hole	Single	Proportional	5	500	6	Datasheet Mechanical Drawing 3D Model
5VV0.4	Through Hole	Single	Proportional	5	400	6	Datasheet Mechanical Drawing 3D Model
5VV0.3	Through Hole	Single	Proportional	5	300	6	Datasheet Mechanical Drawing 3D Model
5VV0.2	Through Hole	Single	Proportional	5	200	6	Datasheet Mechanical Drawing 3D Model
5VV0.1	Through Hole	Single	Proportional	5	100	6	Datasheet Mechanical Drawing 3D Model
48VV9-P	Through Hole	Single	Proportional	48	+9000	6	Datasheet Mechanical Drawing 3D Model
48VV9-N	Through Hole	Single	Proportional	48	-9000	6	Datasheet Mechanical Drawing 3D Model
48VV9	Through Hole	Single	Proportional	48	9000	6	Datasheet Mechanical Drawing 3D Model
48VV8-P	Through Hole	Single	Proportional	48	+8000	6	Datasheet Mechanical Drawing 3D Model
48VV8-N	Through Hole	Single	Proportional	48	-8000	6	Datasheet Mechanical Drawing 3D Model
48VV8	Through Hole	Single	Proportional	48	8000	6	Datasheet Mechanical Drawing 3D Model
48VV7-P	Through Hole	Single	Proportional	48	+7000	6	Datasheet Mechanical Drawing 3D Model
48VV7-N	Through Hole	Single	Proportional	48	-7000	6	Datasheet Mechanical Drawing 3D Model
48VV7	Through Hole	Single	Proportional	48	7000	6	Datasheet Mechanical Drawing 3D Model
48VV6-P	Through Hole	Single	Proportional	48	+6000	6	Datasheet Mechanical Drawing 3D Model
48VV6-N	Through Hole	Single	Proportional	48	-6000	6	Datasheet Mechanical Drawing 3D Model
48VV6	Through Hole	Single	Proportional	48	6000	6	Datasheet Mechanical Drawing 3D Model
48VV5	Through Hole	Single	Proportional	48	5000	6	Datasheet Mechanical Drawing 3D Model
48VV4	Through Hole	Single	Proportional	48	4000	8	Datasheet Mechanical Drawing 3D Model
48VV3	Through Hole	Single	Proportional	48	3000	8	Datasheet Mechanical Drawing 3D Model
48VV2	Through Hole	Single	Proportional	48	2000	8	Datasheet Mechanical Drawing 3D Model
48VV10-P	Through Hole	Single	Proportional	48	+10000	6	Datasheet Mechanical Drawing 3D Model
48VV10-N	Through Hole	Single	Proportional	48	-10000	6	Datasheet Mechanical Drawing 3D Model
48VV10	Through Hole	Single	Proportional	48	10000	6	Datasheet Mechanical Drawing 3D Model
48VV1	Through Hole	Single	Proportional	48	1000	8	Datasheet Mechanical Drawing 3D Model
48VV0.9	Through Hole	Single	Proportional	48	900	8	Datasheet Mechanical Drawing 3D Model
48VV0.8	Through Hole	Single	Proportional	48	800	8	Datasheet Mechanical Drawing 3D Model
48VV0.7	Through Hole	Single	Proportional	48	700	8	Datasheet Mechanical Drawing 3D Model
48VV0.6	Through Hole	Single	Proportional	48	600	8	Datasheet Mechanical Drawing 3D Model
48VV0.5	Through Hole	Single	Proportional	48	500	8	Datasheet Mechanical Drawing 3D Model
48VV0.4	Through Hole	Single	Proportional	48	400	8	Datasheet Mechanical Drawing 3D Model
48VV0.3	Through Hole	Single	Proportional	48	300	8	Datasheet Mechanical Drawing 3D Model
48VV0.2	Through Hole	Single	Proportional	48	200	8	Datasheet Mechanical Drawing 3D Model
48VV0.1	Through Hole	Single	Proportional	48	100	8	Datasheet Mechanical Drawing 3D Model
28VV9-P	Through Hole	Single	Proportional	28	+9000	6	Datasheet Mechanical Drawing 3D Model
28VV9-N	Through Hole	Single	Proportional	28	-9000	6	Datasheet Mechanical Drawing 3D Model
28VV9	Through Hole	Single	Proportional	28	9000	6	Datasheet Mechanical Drawing 3D Model
28VV8-P	Through Hole	Single	Proportional	28	+8000	6	Datasheet Mechanical Drawing 3D Model
28VV8-N	Through Hole	Single	Proportional	28	-8000	6	Datasheet Mechanical Drawing 3D Model
28VV8	Through Hole	Single	Proportional	28	8000	6	Datasheet Mechanical Drawing 3D Model
28VV7-P	Through Hole	Single	Proportional	28	+7000	6	Datasheet Mechanical Drawing 3D Model
28VV7-N	Through Hole	Single	Proportional	28	-7000	6	Datasheet Mechanical Drawing 3D Model
28VV7	Through Hole	Single	Proportional	28	7000	6	Datasheet Mechanical Drawing 3D Model
28VV6-P	Through Hole	Single	Proportional	28	+6000	6	Datasheet Mechanical Drawing 3D Model
28VV6-N	Through Hole	Single	Proportional	28	-6000	6	Datasheet Mechanical Drawing 3D Model
28VV6	Through Hole	Single	Proportional	28	6000	6	Datasheet Mechanical Drawing 3D Model
28VV5	Through Hole	Single	Proportional	28	5000	6	Datasheet Mechanical Drawing 3D Model
28VV4	Through Hole	Single	Proportional	28	4000	8	Datasheet Mechanical Drawing 3D Model
28VV3	Through Hole	Single	Proportional	28	3000	10	Datasheet Mechanical Drawing 3D Model
28VV2	Through Hole	Single	Proportional	28	2000	10	Datasheet Mechanical Drawing 3D Model
28VV10-P	Through Hole	Single	Proportional	28	+10000	6	Datasheet Mechanical Drawing 3D Model
28VV10-N	Through Hole	Single	Proportional	28	-10000	6	Datasheet Mechanical Drawing 3D Model
28VV10	Through Hole	Single	Proportional	28	10000	6	Datasheet Mechanical Drawing 3D Model
28VV1	Through Hole	Single	Proportional	28	1000	10	Datasheet Mechanical Drawing 3D Model
28VV0.9	Through Hole	Single	Proportional	28	900	10	Datasheet Mechanical Drawing 3D Model
28VV0.8	Through Hole	Single	Proportional	28	800	10	Datasheet Mechanical Drawing 3D Model
28VV0.7	Through Hole	Single	Proportional	28	700	10	Datasheet Mechanical Drawing 3D Model
28VV0.6	Through Hole	Single	Proportional	28	600	10	Datasheet Mechanical Drawing 3D Model
28VV0.5	Through Hole	Single	Proportional	28	500	10	Datasheet Mechanical Drawing 3D Model
28VV0.4	Through Hole	Single	Proportional	28	400	10	Datasheet Mechanical Drawing 3D Model
28VV0.3	Through Hole	Single	Proportional	28	300	10	Datasheet Mechanical Drawing 3D Model
28VV0.2	Through Hole	Single	Proportional	28	200	10	Datasheet Mechanical Drawing 3D Model
28VV0.1	Through Hole	Single	Proportional	28	100	10	Datasheet Mechanical Drawing 3D Model
24VV9-P	Through Hole	Single	Proportional	24	+9000	6	Datasheet Mechanical Drawing 3D Model
24VV9-N	Through Hole	Single	Proportional	24	-9000	6	Datasheet Mechanical Drawing 3D Model
24VV9	Through Hole	Single	Proportional	24	9000	6	Datasheet Mechanical Drawing 3D Model
24VV8-P	Through Hole	Single	Proportional	24	+8000	6	Datasheet Mechanical Drawing 3D Model
24VV8-N	Through Hole	Single	Proportional	24	-8000	6	Datasheet Mechanical Drawing 3D Model
24VV8	Through Hole	Single	Proportional	24	8000	6	Datasheet Mechanical Drawing 3D Model
24VV7-P	Through Hole	Single	Proportional	24	+7000	6	Datasheet Mechanical Drawing 3D Model
24VV7-N	Through Hole	Single	Proportional	24	-7000	6	Datasheet Mechanical Drawing 3D Model
24VV7	Through Hole	Single	Proportional	24	7000	6	Datasheet Mechanical Drawing 3D Model
24VV6-P	Through Hole	Single	Proportional	24	+6000	6	Datasheet Mechanical Drawing 3D Model
24VV6-N	Through Hole	Single	Proportional	24	-6000	6	Datasheet Mechanical Drawing 3D Model
24VV6	Through Hole	Single	Proportional	24	6000	6	Datasheet Mechanical Drawing 3D Model
24VV5	Through Hole	Single	Proportional	24	5000	6	Datasheet Mechanical Drawing 3D Model
24VV4	Through Hole	Single	Proportional	24	4000	8	Datasheet Mechanical Drawing 3D Model
24VV3	Through Hole	Single	Proportional	24	3000	9	Datasheet Mechanical Drawing 3D Model
24VV2	Through Hole	Single	Proportional	24	2000	9	Datasheet Mechanical Drawing 3D Model
24VV10-P	Through Hole	Single	Proportional	24	+10000	6	Datasheet Mechanical Drawing 3D Model
24VV10-N	Through Hole	Single	Proportional	24	-10000	6	Datasheet Mechanical Drawing 3D Model
24VV10	Through Hole	Single	Proportional	24	10000	6	Datasheet Mechanical Drawing 3D Model
24VV1	Through Hole	Single	Proportional	24	1000	9	Datasheet Mechanical Drawing 3D Model
24VV0.9	Through Hole	Single	Proportional	24	900	9	Datasheet Mechanical Drawing 3D Model
24VV0.8	Through Hole	Single	Proportional	24	800	9	Datasheet Mechanical Drawing 3D Model
24VV0.7	Through Hole	Single	Proportional	24	700	9	Datasheet Mechanical Drawing 3D Model
24VV0.6	Through Hole	Single	Proportional	24	600	9	Datasheet Mechanical Drawing 3D Model
24VV0.5	Through Hole	Single	Proportional	24	500	9	Datasheet Mechanical Drawing 3D Model
24VV0.4	Through Hole	Single	Proportional	24	400	9	Datasheet Mechanical Drawing 3D Model
24VV0.3	Through Hole	Single	Proportional	24	300	9	Datasheet Mechanical Drawing 3D Model
24VV0.2	Through Hole	Single	Proportional	24	200	9	Datasheet Mechanical Drawing 3D Model
24VV0.1	Through Hole	Single	Proportional	24	100	9	Datasheet Mechanical Drawing 3D Model
15VV9-P	Through Hole	Single	Proportional	15	+9000	6	Datasheet Mechanical Drawing 3D Model
15VV9-N	Through Hole	Single	Proportional	15	-9000	6	Datasheet Mechanical Drawing 3D Model
15VV9	Through Hole	Single	Proportional	15	9000	6	Datasheet Mechanical Drawing 3D Model
15VV8-P	Through Hole	Single	Proportional	15	+8000	6	Datasheet Mechanical Drawing 3D Model
15VV8-N	Through Hole	Single	Proportional	15	-8000	6	Datasheet Mechanical Drawing 3D Model
15VV8	Through Hole	Single	Proportional	15	8000	6	Datasheet Mechanical Drawing 3D Model
15VV7-P	Through Hole	Single	Proportional	15	+7000	6	Datasheet Mechanical Drawing 3D Model
15VV7-N	Through Hole	Single	Proportional	15	-7000	6	Datasheet Mechanical Drawing 3D Model
15VV7	Through Hole	Single	Proportional	15	7000	6	Datasheet Mechanical Drawing 3D Model
15VV6-P	Through Hole	Single	Proportional	15	+6000	6	Datasheet Mechanical Drawing 3D Model
15VV6-N	Through Hole	Single	Proportional	15	-6000	6	Datasheet Mechanical Drawing 3D Model
15VV6	Through Hole	Single	Proportional	15	6000	6	Datasheet Mechanical Drawing 3D Model
15VV5	Through Hole	Single	Proportional	15	5000	6	Datasheet Mechanical Drawing 3D Model
15VV4	Through Hole	Single	Proportional	15	4000	7	Datasheet Mechanical Drawing 3D Model
15VV3	Through Hole	Single	Proportional	15	3000	8	Datasheet Mechanical Drawing 3D Model
15VV2	Through Hole	Single	Proportional	15	2000	8.5	Datasheet Mechanical Drawing 3D Model
15VV10-P	Through Hole	Single	Proportional	15	+10000	6	Datasheet Mechanical Drawing 3D Model
15VV10-N	Through Hole	Single	Proportional	15	-10000	6	Datasheet Mechanical Drawing 3D Model
15VV10	Through Hole	Single	Proportional	15	10000	6	Datasheet Mechanical Drawing 3D Model
15VV1	Through Hole	Single	Proportional	15	1000	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.9	Through Hole	Single	Proportional	15	900	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.8	Through Hole	Single	Proportional	15	800	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.7	Through Hole	Single	Proportional	15	700	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.6	Through Hole	Single	Proportional	15	600	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.5	Through Hole	Single	Proportional	15	500	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.4	Through Hole	Single	Proportional	15	400	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.3	Through Hole	Single	Proportional	15	300	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.2	Through Hole	Single	Proportional	15	200	8.5	Datasheet Mechanical Drawing 3D Model
15VV0.1	Through Hole	Single	Proportional	15	100	8.5	Datasheet Mechanical Drawing 3D Model
12VV9-P	Through Hole	Single	Proportional	12	+9000	6	Datasheet Mechanical Drawing 3D Model
12VV9-N	Through Hole	Single	Proportional	12	-9000	6	Datasheet Mechanical Drawing 3D Model
12VV9	Through Hole	Single	Proportional	12	9000	6	Datasheet Mechanical Drawing 3D Model
12VV8-P	Through Hole	Single	Proportional	12	+8000	6	Datasheet Mechanical Drawing 3D Model
12VV8-N	Through Hole	Single	Proportional	12	-8000	6	Datasheet Mechanical Drawing 3D Model
12VV8	Through Hole	Single	Proportional	12	8000	6	Datasheet Mechanical Drawing 3D Model
12VV7-P	Through Hole	Single	Proportional	12	+7000	6	Datasheet Mechanical Drawing 3D Model
12VV7-N	Through Hole	Single	Proportional	12	-7000	6	Datasheet Mechanical Drawing 3D Model
12VV7	Through Hole	Single	Proportional	12	7000	6	Datasheet Mechanical Drawing 3D Model
12VV6-P	Through Hole	Single	Proportional	12	+6000	6	Datasheet Mechanical Drawing 3D Model
12VV6-N	Through Hole	Single	Proportional	12	-6000	6	Datasheet Mechanical Drawing 3D Model
12VV6	Through Hole	Single	Proportional	12	6000	6	Datasheet Mechanical Drawing 3D Model
12VV5	Through Hole	Single	Proportional	12	5000	6	Datasheet Mechanical Drawing 3D Model
12VV4	Through Hole	Single	Proportional	12	4000	7	Datasheet Mechanical Drawing 3D Model
12VV3	Through Hole	Single	Proportional	12	3000	8	Datasheet Mechanical Drawing 3D Model
12VV2	Through Hole	Single	Proportional	12	2000	8	Datasheet Mechanical Drawing 3D Model
12VV10-P	Through Hole	Single	Proportional	12	+10000	6	Datasheet Mechanical Drawing 3D Model
12VV10-N	Through Hole	Single	Proportional	12	-10000	6	Datasheet Mechanical Drawing 3D Model
12VV10	Through Hole	Single	Proportional	12	10000	6	Datasheet Mechanical Drawing 3D Model
12VV1	Through Hole	Single	Proportional	12	1000	8	Datasheet Mechanical Drawing 3D Model
12VV0.9	Through Hole	Single	Proportional	12	900	8	Datasheet Mechanical Drawing 3D Model
12VV0.8	Through Hole	Single	Proportional	12	800	8	Datasheet Mechanical Drawing 3D Model
12VV0.7	Through Hole	Single	Proportional	12	700	8	Datasheet Mechanical Drawing 3D Model
12VV0.6	Through Hole	Single	Proportional	12	600	8	Datasheet Mechanical Drawing 3D Model
12VV0.5	Through Hole	Single	Proportional	12	500	8	Datasheet Mechanical Drawing 3D Model
12VV0.4	Through Hole	Single	Proportional	12	400	8	Datasheet Mechanical Drawing 3D Model
12VV0.3	Through Hole	Single	Proportional	12	300	8	Datasheet Mechanical Drawing 3D Model
12VV0.2	Through Hole	Single	Proportional	12	200	8	Datasheet Mechanical Drawing 3D Model
12VV0.1	Through Hole	Single	Proportional	12	100	8	Datasheet Mechanical Drawing 3D Model

Series VV (100-10kV)

10W Isolated/Non-isolated Proportional High Voltage DC-DC Converter

Custom Solutions

Features

Options
