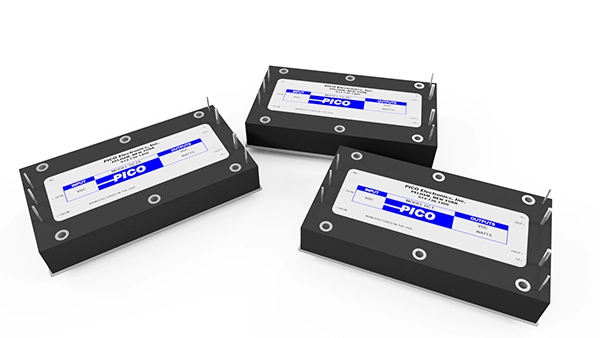

Series DC1, DC2A & DC2B

300W Isolated Regulated High Power DC-DC Converter

The DC1, DC2A & DC2B series are isolated DC-DC converters with a wide selection of input voltage ranges from 120V to 1200V and output power up to 300W. These modules have sense feature to accurately regulate the voltage at a remote load. Input is protected against reverse polarity.

The full brick case size has threaded inserts to mount securely for high vibration and shock applications. Conduction cooling is available through the baseplate or compatible heat sink.

Download Datasheet

Features

120V to 1200V input range models
5V to 300V output models
Up to 300W output
Input/output isolation
Parallel operation option
Remote Sense feature
Input reverse polarity protection
Fixed operating frequency
No external components required

Options

Expanded operating temp: -40°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Part Number	Series	Mounting	# of Outputs	Temperature Range	Nominal Input Voltage (VDC)	Input Voltage Range (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Downloads
DC2B-9S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	9	250	Datasheet Mechanical Drawing 3D Model
DC2B-5S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	5	150	Datasheet Mechanical Drawing 3D Model
DC2B-48S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	48	300	Datasheet Mechanical Drawing 3D Model
DC2B-300S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	300	250	Datasheet Mechanical Drawing 3D Model
DC2B-28S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	28	300	Datasheet Mechanical Drawing 3D Model
DC2B-275S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	275	250	Datasheet Mechanical Drawing 3D Model
DC2B-250S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	250	250	Datasheet Mechanical Drawing 3D Model
DC2B-24S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	24	300	Datasheet Mechanical Drawing 3D Model
DC2B-225S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	225	250	Datasheet Mechanical Drawing 3D Model
DC2B-200S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	200	250	Datasheet Mechanical Drawing 3D Model
DC2B-175S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	175	250	Datasheet Mechanical Drawing 3D Model
DC2B-15S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	15	300	Datasheet Mechanical Drawing 3D Model
DC2B-150S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	150	250	Datasheet Mechanical Drawing 3D Model
DC2B-12S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	12	300	Datasheet Mechanical Drawing 3D Model
DC2B-125S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	125	250	Datasheet Mechanical Drawing 3D Model
DC2B-100S	DC2B	Through Hole	Single	0°C to +85°C Baseplate	900	700 – 1200	100	250	Datasheet Mechanical Drawing 3D Model
DC2A-9S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	9	250	Datasheet Mechanical Drawing 3D Model
DC2A-5S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	5	150	Datasheet Mechanical Drawing 3D Model
DC2A-48S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	48	300	Datasheet Mechanical Drawing 3D Model
DC2A-300S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	300	250	Datasheet Mechanical Drawing 3D Model
DC2A-28S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	28	300	Datasheet Mechanical Drawing 3D Model
DC2A-275S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	275	250	Datasheet Mechanical Drawing 3D Model
DC2A-250S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	250	250	Datasheet Mechanical Drawing 3D Model
DC2A-24S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	24	300	Datasheet Mechanical Drawing 3D Model
DC2A-225S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	225	250	Datasheet Mechanical Drawing 3D Model
DC2A-200S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	200	250	Datasheet Mechanical Drawing 3D Model
DC2A-175S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	175	250	Datasheet Mechanical Drawing 3D Model
DC2A-15S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	15	300	Datasheet Mechanical Drawing 3D Model
DC2A-150S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	150	250	Datasheet Mechanical Drawing 3D Model
DC2A-12S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	12	300	Datasheet Mechanical Drawing 3D Model
DC2A-125S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	125	250	Datasheet Mechanical Drawing 3D Model
DC2A-100S	DC2A	Through Hole	Single	0°C to +85°C Baseplate	500	350 – 700	100	250	Datasheet Mechanical Drawing 3D Model
DC1-9S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	9	250	Datasheet Mechanical Drawing 3D Model
DC1-5S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	5	150	Datasheet Mechanical Drawing 3D Model
DC1-48S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	48	300	Datasheet Mechanical Drawing 3D Model
DC1-300S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	300	250	Datasheet Mechanical Drawing 3D Model
DC1-28S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	28	300	Datasheet Mechanical Drawing 3D Model
DC1-275S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	275	250	Datasheet Mechanical Drawing 3D Model
DC1-250S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	250	250	Datasheet Mechanical Drawing 3D Model
DC1-24S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	24	300	Datasheet Mechanical Drawing 3D Model
DC1-225S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	225	250	Datasheet Mechanical Drawing 3D Model
DC1-200S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	200	250	Datasheet Mechanical Drawing 3D Model
DC1-175S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	175	250	Datasheet Mechanical Drawing 3D Model
DC1-15S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	15	300	Datasheet Mechanical Drawing 3D Model
DC1-150S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	150	250	Datasheet Mechanical Drawing 3D Model
DC1-12S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	12	300	Datasheet Mechanical Drawing 3D Model
DC1-125S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	125	250	Datasheet Mechanical Drawing 3D Model
DC1-100S	DC1	Through Hole	Single	0°C to +85°C Baseplate	200	120 – 370	100	250	Datasheet Mechanical Drawing 3D Model
