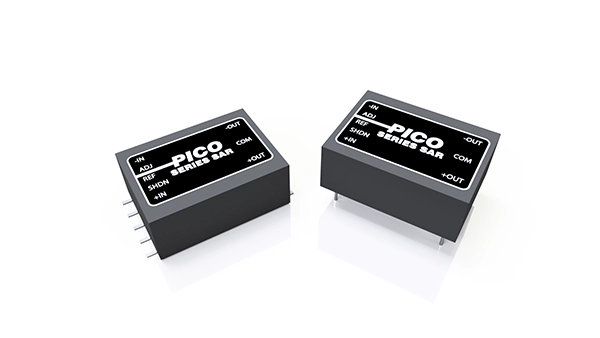

Series SAR & SAR-SM render 1

Series SAR & SAR-SM

3W Isolated Adjustable High Voltage DC-DC Converter

The SAR series modules are isolated/regulated DC-DC converters with 0% to 100% output voltage programmable by internal reference or external voltage. These modules have an internal reference voltage and shutdown. Protections include input over/undervoltage, over temperature and over programming.

Through hole and surface mount packages are available. Every single output has a center tap for a dual output configuration. Due to a resonant design, it exhibits a very low load effect.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • 0-100% programmable output feature
  • Up to 3W output power
  • 2:1 wide input voltage range with 0.5% line regulation
  • Protected against input over/undervoltage, over temperature and over programming
  • Internal reference voltage feature
  • Shutdown feature
  • Single or dual output configuration

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Available RoHS Compliant module
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Mounting

Input Voltage Range (VDC)

Single Output Voltage (VDC)

Dual Output Voltage (VDC)

Part Number SeriesMounting# of OutputsOutput TypeNominal Input Voltage (VDC)Input Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
5SAR500SMSAR-SMSurface MountSingleRegulated Programmable7.55 – 105003±250±1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SAR500SARThrough HoleSingleRegulated Programmable7.55 – 105003±250±1.5
DatasheetMechanical Drawing3D Model
5SAR250SMSAR-SMSurface MountSingleRegulated Programmable7.55 – 102503±125±1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SAR250SARThrough HoleSingleRegulated Programmable7.55 – 102503±125±1.5
DatasheetMechanical Drawing3D Model
5SAR1500SMSAR-SMSurface MountSingleRegulated Programmable7.55 – 1015003±750±1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SAR1500SARThrough HoleSingleRegulated Programmable7.55 – 1015003±750±1.5
DatasheetMechanical Drawing3D Model
5SAR100SMSAR-SMSurface MountSingleRegulated Programmable7.55 – 101003±50±1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SAR1000SMSAR-SMSurface MountSingleRegulated Programmable7.55 – 1010003±500±1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SAR1000SARThrough HoleSingleRegulated Programmable7.55 – 1010003±500±1.5
DatasheetMechanical Drawing3D Model
5SAR100SARThrough HoleSingleRegulated Programmable7.55 – 101003±50±1.5
DatasheetMechanical Drawing3D Model
24SAR500SMSAR-SMSurface MountSingleRegulated Programmable2418 – 365003±250±1.5
DatasheetMechanical DrawingLand Pattern3D Model
24SAR500SARThrough HoleSingleRegulated Programmable2418 – 365003±250±1.5
DatasheetMechanical Drawing3D Model
24SAR250SMSAR-SMSurface MountSingleRegulated Programmable2418 – 362503±125±1.5
DatasheetMechanical DrawingLand Pattern3D Model
24SAR250SARThrough HoleSingleRegulated Programmable2418 – 362503±125±1.5
DatasheetMechanical Drawing3D Model
24SAR1500SMSAR-SMSurface MountSingleRegulated Programmable2418 – 3615003±750±1.5
DatasheetMechanical DrawingLand Pattern3D Model
24SAR1500SARThrough HoleSingleRegulated Programmable2418 – 3615003±750±1.5
DatasheetMechanical Drawing3D Model
24SAR100SMSAR-SMSurface MountSingleRegulated Programmable2418 – 361003±50±1.5
DatasheetMechanical DrawingLand Pattern3D Model
24SAR1000SMSAR-SMSurface MountSingleRegulated Programmable2418 – 3610003±500±1.5
DatasheetMechanical DrawingLand Pattern3D Model
24SAR1000SARThrough HoleSingleRegulated Programmable2418 – 3610003±500±1.5
DatasheetMechanical Drawing3D Model
24SAR100SARThrough HoleSingleRegulated Programmable2418 – 361003±50±1.5
DatasheetMechanical Drawing3D Model
12SAR500SMSAR-SMSurface MountSingleRegulated Programmable127.5 – 155003±250±1.5
DatasheetMechanical DrawingLand Pattern3D Model
12SAR500SARThrough HoleSingleRegulated Programmable127.5 – 155003±250±1.5
DatasheetMechanical Drawing3D Model
12SAR250SMSAR-SMSurface MountSingleRegulated Programmable127.5 – 152503±125±1.5
DatasheetMechanical DrawingLand Pattern3D Model
12SAR250SARThrough HoleSingleRegulated Programmable127.5 – 152503±125±1.5
DatasheetMechanical Drawing3D Model
12SAR1500SMSAR-SMSurface MountSingleRegulated Programmable127.5 – 1515003±750±1.5
DatasheetMechanical DrawingLand Pattern3D Model
12SAR1500SARThrough HoleSingleRegulated Programmable127.5 – 1515003±750±1.5
DatasheetMechanical Drawing3D Model
12SAR100SMSAR-SMSurface MountSingleRegulated Programmable127.5 – 151003±50±1.5
DatasheetMechanical DrawingLand Pattern3D Model
12SAR1000SMSAR-SMSurface MountSingleRegulated Programmable127.5 – 1510003±500±1.5
DatasheetMechanical DrawingLand Pattern3D Model
12SAR1000SARThrough HoleSingleRegulated Programmable127.5 – 1510003±500±1.5
DatasheetMechanical Drawing3D Model
12SAR100SARThrough HoleSingleRegulated Programmable127.5 – 151003±50±1.5
DatasheetMechanical Drawing3D Model
