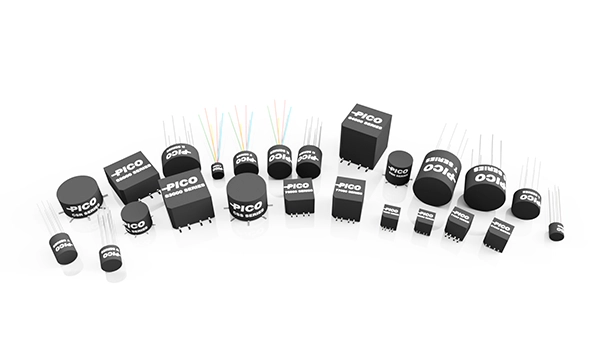

Audio Transformers
Pico audio transformers provide galvanic isolation, signal gain/loss, match impedances between two interfaces, can be used as a reference and to provide feedback signal. These are manufactured to MIL-PRF-27 Grade 5 Class S. The ultra-miniature sizes were designed for compact applications, while maintaining environmental durability for their electrical characteristics. All catalog transformers are manufactured to meet MIL-STD-202, Method 107, thermal shock from -55°C to +130°C with capability up to 300 thermal cycles. Standard parts and custom designs are available. Our proprietary materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance. Pico Electronics, Inc. is an approved QPL source.
For more information on our qualified military products, or QPL audio transformers, please visit our separate page for MIL-spec partsOpens a new window.
Mounting
Frequency Range (±3 dB)
Maximum Power (W)
Primary Impedance (Ω)
Secondary Impedance (Ω)
| Part Number | Series | Mounting | Frequency Range (±3 dB) | Maximum Power (W) | Primary Impedance (Ω) | Secondary Impedance (Ω) | Turns Ratio (Prim/Sec) Series Connection | Turns Ratio (Prim/Sec) Parallel Connection | Size (L x W x H) inches | Size (D x H) inches | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Y-27705 | Y | Through Hole | 300 Hz to 100 KHz | 0.025 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.46″ | |
| Y-27700 | Y | Through Hole | 300 Hz to 100 KHz | 0.025 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.35″ x 0.46″ | |
| Y-27695 | Y | Through Hole | 300 Hz to 100 KHz | 0.025 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.35″ x 0.46″ | |
| Y-27690 | Y | Through Hole | 300 Hz to 100 KHz | 0.025 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.35″ x 0.46″ | |
| Y-27685 | Y | Through Hole | 300 Hz to 100 KHz | 0.026 | 95,000 | 15,000 | 2.52:1 | 5.03:1 | – | 0.35″ x 0.46″ | |
| Y-27680 | Y | Through Hole | 300 Hz to 100 KHz | 0.028 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.35″ x 0.46″ | |
| Y-27675 | Y | Through Hole | 300 Hz to 100 KHz | 0.03 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.35″ x 0.46″ | |
| Y-27670 | Y | Through Hole | 300 Hz to 100 KHz | 0.04 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.35″ x 0.46″ | |
| Y-27665 | Y | Through Hole | 300 Hz to 100 KHz | 0.04 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.35″ x 0.46″ | |
| Y-27660 | Y | Through Hole | 300 Hz to 100 KHz | 0.05 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.35″ x 0.46″ | |
| Y-27655 | Y | Through Hole | 300 Hz to 100 KHz | 0.05 | 50,000 | 500 | 10:1 | 20:1 | – | 0.35″ x 0.46″ | |
| Y-27650 | Y | Through Hole | 300 Hz to 100 KHz | 0.05 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.35″ x 0.46″ | |
| Y-27645 | Y | Through Hole | 300 Hz to 100 KHz | 0.06 | 40,000 | 40,000 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27640 | Y | Through Hole | 300 Hz to 100 KHz | 0.06 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.46″ | |
| Y-27635 | Y | Through Hole | 300 Hz to 100 KHz | 0.06 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.46″ | |
| Y-27630 | Y | Through Hole | 300 Hz to 100 KHz | 0.06 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.46″ | |
| Y-27625 | Y | Through Hole | 300 Hz to 100 KHz | 0.06 | 40,000 | 400 | 10:1 | 20:1 | – | 0.35″ x 0.46″ | |
| Y-27620 | Y | Through Hole | 300 Hz to 100 KHz | 0.08 | 30,000 | 30,000 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27615 | Y | Through Hole | 300 Hz to 100 KHz | 0.08 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.46″ | |
| Y-27610 | Y | Through Hole | 300 Hz to 100 KHz | 0.08 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.35″ x 0.46″ | |
| Y-27605 | Y | Through Hole | 300 Hz to 100 KHz | 0.08 | 30,000 | 200 | 12.25:1 | 24.5:1 | – | 0.35″ x 0.46″ | |
| Y-27600 | Y | Through Hole | 300 Hz to 100 KHz | 0.08 | 30,000 | 500 | 7.75:1 | 15.5:1 | – | 0.35″ x 0.46″ | |
| Y-27595 | Y | Through Hole | 300 Hz to 100 KHz | 0.08 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.35″ x 0.46″ | |
| Y-27590 | Y | Through Hole | 300 Hz to 100 KHz | 0.08 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.35″ x 0.46″ | |
| Y-27585 | Y | Through Hole | 300 Hz to 100 KHz | 0.1 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.35″ x 0.46″ | |
| Y-27580 | Y | Through Hole | 300 Hz to 100 KHz | 0.1 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.35″ x 0.46″ | |
| Y-27575 | Y | Through Hole | 300 Hz to 100 KHz | 0.125 | 20,000 | 20,000 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27570 | Y | Through Hole | 300 Hz to 100 KHz | 0.125 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.46″ | |
| Y-27565 | Y | Through Hole | 300 Hz to 100 KHz | 0.125 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.35″ x 0.46″ | |
| Y-27560 | Y | Through Hole | 300 Hz to 100 KHz | 0.125 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.46″ | |
| Y-27555 | Y | Through Hole | 300 Hz to 100 KHz | 0.125 | 20,000 | 800 | 5:1 | 10:1 | – | 0.35″ x 0.46″ | |
| Y-27550 | Y | Through Hole | 300 Hz to 100 KHz | 0.125 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.35″ x 0.46″ | |
| Y-27545 | Y | Through Hole | 300 Hz to 100 KHz | 0.125 | 20,000 | 500 | 6.33:1 | 12.65:1 | – | 0.35″ x 0.46″ | |
| Y-27540 | Y | Through Hole | 300 Hz to 100 KHz | 0.15 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.35″ x 0.46″ | |
| Y-27535 | Y | Through Hole | 300 Hz to 100 KHz | 0.16 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27530 | Y | Through Hole | 300 Hz to 100 KHz | 0.16 | 15,000 | 15,000 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27525 | Y | Through Hole | 300 Hz to 100 KHz | 0.16 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.35″ x 0.46″ | |
| Y-27520 | Y | Through Hole | 300 Hz to 100 KHz | 0.16 | 15,000 | 600 | 5:1 | 10:1 | – | 0.35″ x 0.46″ | |
| Y-27515 | Y | Through Hole | 300 Hz to 100 KHz | 0.16 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.35″ x 0.46″ | |
| Y-27510 | Y | Through Hole | 300 Hz to 100 KHz | 0.16 | 15,000 | 400 | 6.12:1 | 12.24:1 | – | 0.35″ x 0.46″ | |
| Y-27505 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 10,000 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27500 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27495 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 7500 | 1.15:1 | 2.3:1 | – | 0.35″ x 0.46″ | |
| Y-27490 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.46″ | |
| Y-27485 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.35″ x 0.46″ | |
| Y-27480 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.35″ x 0.46″ | |
| Y-27475 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.35″ x 0.46″ | |
| Y-27470 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.46″ | |
| Y-27465 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.35″ x 0.46″ | |
| Y-27460 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.46″ | |
| Y-27455 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.35″ x 0.46″ | |
| Y-27450 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 100 | 10:1 | 20:1 | – | 0.35″ x 0.46″ | |
| Y-27445 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 16 | 25:1 | 50:1 | – | 0.35″ x 0.46″ | |
| Y-27440 | Y | Through Hole | 300 Hz to 100 KHz | 0.25 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.35″ x 0.46″ | |
| Y-27435 | Y | Through Hole | 300 Hz to 100 KHz | 0.27 | 9000 | 9000 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27430 | Y | Through Hole | 300 Hz to 100 KHz | 0.3 | 8000 | 1200 | 2.58:1 | – | – | 0.35″ x 0.46″ | |
| Y-27425 | Y | Through Hole | 300 Hz to 100 KHz | 0.3 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.35″ x 0.46″ | |
| Y-27420 | Y | Through Hole | 300 Hz to 100 KHz | 0.3 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.35″ x 0.46″ | |
| Y-27415 | Y | Through Hole | 300 Hz to 100 KHz | 0.33 | 7500 | 7500 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27410 | Y | Through Hole | 300 Hz to 100 KHz | 0.33 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.46″ | |
| Y-27405 | Y | Through Hole | 300 Hz to 100 KHz | 0.33 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.35″ x 0.46″ | |
| Y-27400 | Y | Through Hole | 300 Hz to 100 KHz | 0.33 | 7500 | 100 | 8.66:1 | 17.3:1 | – | 0.35″ x 0.46″ | |
| Y-27395 | Y | Through Hole | 300 Hz to 100 KHz | 0.33 | 7500 | 50 | 12.2:1 | 24.5:1 | – | 0.35″ x 0.46″ | |
| Y-27390 | Y | Through Hole | 300 Hz to 100 KHz | 0.5 | 5000 | 5000 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27385 | Y | Through Hole | 300 Hz to 100 KHz | 0.5 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.46″ | |
| Y-27380 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 4000 | 8000 | 1:1.41 | – | – | 0.35″ x 0.46″ | |
| Y-27375 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 4000 | 1000 | 2:1 | 4:1 | – | 0.35″ x 0.46″ | |
| Y-27370 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.35″ x 0.46″ | |
| Y-27365 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.35″ x 0.46″ | |
| Y-27360 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 3600 | 3600 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27355 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 3000 | 3000 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27350 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 3000 | 3000 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27345 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 2500 | 2500 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27340 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 2000 | 8000 | 1:2 | 1:1 | – | 0.35″ x 0.46″ | |
| Y-27335 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 2000 | 2000 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27330 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 2000 | 2000 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27325 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.35″ x 0.46″ | |
| Y-27320 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1600 | 12.8 | 11.2:1 | 22.4:1 | – | 0.35″ x 0.46″ | |
| Y-27315 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1500 | 1500 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27310 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1500 | 600 | 1.58:1 | – | – | 0.35″ x 0.46″ | |
| Y-27305 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.46″ | |
| Y-27300 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1500 | 12 | 11.2:1 | 22.4:1 | – | 0.35″ x 0.46″ | |
| Y-27295 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1200 | 1200 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27290 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1200 | 1200 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27285 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.35″ x 0.46″ | |
| Y-27280 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.35″ x 0.46″ | |
| Y-27275 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.35″ x 0.46″ | |
| Y-27270 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1000 | 1000 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27265 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.46″ | |
| Y-27260 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 1000 | 12 | 9.13:1 | 18.3:1 | – | 0.35″ x 0.46″ | |
| Y-27255 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 900 | 600 | 1.22:1 | 2.45:1 | – | 0.35″ x 0.46″ | |
| Y-27250 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 800 | 800 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27245 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.35″ x 0.46″ | |
| Y-27240 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 800 | 12.8 | 7.9:1 | 15.8:1 | – | 0.35″ x 0.46″ | |
| Y-27235 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.35″ x 0.46″ | |
| Y-27230 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.35″ x 0.46″ | |
| Y-27225 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.35″ x 0.46″ | |
| Y-27220 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 600 | 600 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27215 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 600 | 600 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27210 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.46″ | |
| Y-27205 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.35″ x 0.46″ | |
| Y-27200 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.46″ | |
| Y-27195 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.35″ x 0.46″ | |
| Y-27190 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.35″ x 0.46″ | |
| Y-27185 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 500 | 500 | 1:1 | – | – | 0.35″ x 0.46″ | |
| Y-27180 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 500 | 500 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27175 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.35″ x 0.46″ | |
| Y-27170 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.46″ | |
| Y-27165 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.35″ x 0.46″ | |
| Y-27160 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.35″ x 0.46″ | |
| Y-27155 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.35″ x 0.46″ | |
| Y-27150 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.35″ x 0.46″ | |
| Y-27145 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.35″ x 0.46″ | |
| Y-27140 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 400 | 400 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27135 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.46″ | |
| Y-27130 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.35″ x 0.46″ | |
| Y-27125 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.46″ | |
| Y-27120 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 320 | 12.8 | 5:1 | 10:1 | – | 0.35″ x 0.46″ | |
| Y-27115 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.35″ x 0.46″ | |
| Y-27110 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 300 | 300 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27105 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.46″ | |
| Y-27100 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.35″ x 0.46″ | |
| Y-27095 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 300 | 12 | 5:1 | 10:1 | – | 0.35″ x 0.46″ | |
| Y-27090 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 200 | 200 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27085 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 150 | 600 | 1:2 | 1:1 | – | 0.35″ x 0.46″ | |
| Y-27080 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 150 | 150 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27075 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 150 | 100 | 1.22:1 | 2.45:1 | – | 0.35″ x 0.46″ | |
| Y-27070 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.46″ | |
| Y-27065 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.35″ x 0.46″ | |
| Y-27060 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 120 | 120 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27055 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.46″ | |
| Y-27050 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.35″ x 0.46″ | |
| Y-27045 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 100 | 100 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27040 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.35″ x 0.46″ | |
| Y-27035 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.35″ x 0.46″ | |
| Y-27030 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 50 | 50 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27025 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.46″ | |
| Y-27020 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 40 | 40 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27015 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 32 | 32 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27010 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 20 | 20 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| Y-27005 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.35″ x 0.46″ | |
| Y-27003 | Y | Through Hole | 300 Hz to 100 KHz | 0.6 | 10 | 10 | 1:1 | 2:1 | – | 0.35″ x 0.46″ | |
| W-26625 | W | Through Hole | 400 Hz to 100 KHz | 0.062 | 40,000 | 400 | 10:1 | 20:1 | – | 0.35″ x 0.32″ | |
| W-26620 | W | Through Hole | 400 Hz to 100 KHz | 0.083 | 30,000 | 30,000 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26615 | W | Through Hole | 400 Hz to 100 KHz | 0.083 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.32″ | |
| W-26610 | W | Through Hole | 400 Hz to 100 KHz | 0.083 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.35″ x 0.32″ | |
| W-26605 | W | Through Hole | 400 Hz to 100 KHz | 0.083 | 30,000 | 200 | 12.25:1 | 24.5:1 | – | 0.35″ x 0.32″ | |
| W-26600 | W | Through Hole | 400 Hz to 100 KHz | 0.083 | 30,000 | 500 | 7.75:1 | 15.5:1 | – | 0.35″ x 0.32″ | |
| W-26595 | W | Through Hole | 400 Hz to 100 KHz | 0.083 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.35″ x 0.32″ | |
| W-26590 | W | Through Hole | 400 Hz to 100 KHz | 0.083 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.35″ x 0.32″ | |
| W-26585 | W | Through Hole | 400 Hz to 100 KHz | 0.1 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.35″ x 0.32″ | |
| W-26580 | W | Through Hole | 400 Hz to 100 KHz | 0.1 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.35″ x 0.32″ | |
| W-26575 | W | Through Hole | 400 Hz to 100 KHz | 0.125 | 20,000 | 20,000 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26570 | W | Through Hole | 400 Hz to 100 KHz | 0.125 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.32″ | |
| W-26565 | W | Through Hole | 400 Hz to 100 KHz | 0.125 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.35″ x 0.32″ | |
| W-26560 | W | Through Hole | 400 Hz to 100 KHz | 0.125 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.32″ | |
| W-26555 | W | Through Hole | 400 Hz to 100 KHz | 0.125 | 20,000 | 800 | 5:1 | 10:1 | – | 0.35″ x 0.32″ | |
| W-26550 | W | Through Hole | 400 Hz to 100 KHz | 0.125 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.35″ x 0.32″ | |
| W-26545 | W | Through Hole | 400 Hz to 100 KHz | 0.125 | 20,000 | 500 | 6.33:1 | 12.65:1 | – | 0.35″ x 0.32″ | |
| W-26540 | W | Through Hole | 400 Hz to 100 KHz | 0.15 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.35″ x 0.32″ | |
| W-26535 | W | Through Hole | 400 Hz to 100 KHz | 0.16 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26530 | W | Through Hole | 400 Hz to 100 KHz | 0.16 | 15,000 | 15,000 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26525 | W | Through Hole | 400 Hz to 100 KHz | 0.16 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.35″ x 0.32″ | |
| W-26520 | W | Through Hole | 400 Hz to 100 KHz | 0.16 | 15,000 | 600 | 5:1 | 10:1 | – | 0.35″ x 0.32″ | |
| W-26515 | W | Through Hole | 400 Hz to 100 KHz | 0.16 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.35″ x 0.32″ | |
| W-26510 | W | Through Hole | 400 Hz to 100 KHz | 0.16 | 15,000 | 400 | 6.12:1 | 12.24:1 | – | 0.35″ x 0.32″ | |
| W-26505 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 10,000 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26500 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26495 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 7500 | 1.15:1 | 2.3:1 | – | 0.35″ x 0.32″ | |
| W-26490 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.32″ | |
| W-26485 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.35″ x 0.32″ | |
| W-26480 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.35″ x 0.32″ | |
| W-26475 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.35″ x 0.32″ | |
| W-26470 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.32″ | |
| W-26465 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.35″ x 0.32″ | |
| W-26460 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.32″ | |
| W-26455 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.35″ x 0.32″ | |
| W-26450 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 100 | 10:1 | 20:1 | – | 0.35″ x 0.32″ | |
| W-26445 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 16 | 25:1 | 50:1 | – | 0.35″ x 0.32″ | |
| W-26440 | W | Through Hole | 400 Hz to 100 KHz | 0.25 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.35″ x 0.32″ | |
| W-26435 | W | Through Hole | 400 Hz to 100 KHz | 0.27 | 9000 | 9000 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26430 | W | Through Hole | 400 Hz to 100 KHz | 0.3 | 8000 | 1200 | 2.58:1 | – | – | 0.35″ x 0.32″ | |
| W-26425 | W | Through Hole | 400 Hz to 100 KHz | 0.3 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.35″ x 0.32″ | |
| W-26420 | W | Through Hole | 400 Hz to 100 KHz | 0.3 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.35″ x 0.32″ | |
| W-26415 | W | Through Hole | 400 Hz to 100 KHz | 0.33 | 7500 | 7500 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26410 | W | Through Hole | 400 Hz to 100 KHz | 0.33 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.32″ | |
| W-26405 | W | Through Hole | 400 Hz to 100 KHz | 0.33 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.35″ x 0.32″ | |
| W-26400 | W | Through Hole | 400 Hz to 100 KHz | 0.33 | 7500 | 100 | 8.66:1 | 17.3:1 | – | 0.35″ x 0.32″ | |
| W-26395 | W | Through Hole | 400 Hz to 100 KHz | 0.33 | 7500 | 50 | 12.2:1 | 24.5:1 | – | 0.35″ x 0.32″ | |
| W-26390 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 5000 | 5000 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26385 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.32″ | |
| W-26380 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 4000 | 8000 | 1:1.41 | – | – | 0.35″ x 0.32″ | |
| W-26375 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 4000 | 1000 | 2:1 | 4:1 | – | 0.35″ x 0.32″ | |
| W-26370 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.35″ x 0.32″ | |
| W-26365 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.35″ x 0.32″ | |
| W-26360 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 3600 | 3600 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26355 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 3000 | 3000 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26350 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 3000 | 3000 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26345 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 2500 | 2500 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26340 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 2000 | 8000 | 1:2 | 1:1 | – | 0.35″ x 0.32″ | |
| W-26335 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 2000 | 2000 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26330 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 2000 | 2000 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26325 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.35″ x 0.32″ | |
| W-26320 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1600 | 12.8 | 11.2:1 | 22.4:1 | – | 0.35″ x 0.32″ | |
| W-26315 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1500 | 1500 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26310 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1500 | 600 | 1.58:1 | – | – | 0.35″ x 0.32″ | |
| W-26305 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.32″ | |
| W-26300 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1500 | 12 | 11.2:1 | 22.4:1 | – | 0.35″ x 0.32″ | |
| W-26295 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1200 | 1200 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26290 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1200 | 1200 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26285 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.35″ x 0.32″ | |
| W-26280 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.35″ x 0.32″ | |
| W-26275 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.35″ x 0.32″ | |
| W-26270 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1000 | 1000 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26265 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.32″ | |
| W-26260 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 1000 | 12 | 9.13:1 | 18.3:1 | – | 0.35″ x 0.32″ | |
| W-26255 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 900 | 600 | 1.22:1 | 2.45:1 | – | 0.35″ x 0.32″ | |
| W-26250 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 800 | 800 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26245 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.35″ x 0.32″ | |
| W-26240 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 800 | 12.8 | 7.9:1 | 15.8:1 | – | 0.35″ x 0.32″ | |
| W-26235 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.35″ x 0.32″ | |
| W-26230 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.35″ x 0.32″ | |
| W-26225 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.35″ x 0.32″ | |
| W-26220 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 600 | 600 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26215 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 600 | 600 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26210 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.32″ | |
| W-26205 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.35″ x 0.32″ | |
| W-26200 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.35″ x 0.32″ | |
| W-26195 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.35″ x 0.32″ | |
| W-26190 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.35″ x 0.32″ | |
| W-26185 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 500 | 500 | 1:1 | – | – | 0.35″ x 0.32″ | |
| W-26180 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 500 | 500 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26175 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.35″ x 0.32″ | |
| W-26170 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.32″ | |
| W-26165 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.35″ x 0.32″ | |
| W-26160 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.35″ x 0.32″ | |
| W-26155 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.35″ x 0.32″ | |
| W-26150 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.35″ x 0.32″ | |
| W-26145 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.35″ x 0.32″ | |
| W-26140 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 400 | 400 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26135 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.32″ | |
| W-26130 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.35″ x 0.32″ | |
| W-26125 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.35″ x 0.32″ | |
| W-26120 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 320 | 12.8 | 5:1 | 10:1 | – | 0.35″ x 0.32″ | |
| W-26115 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.35″ x 0.32″ | |
| W-26110 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 300 | 300 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26105 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.32″ | |
| W-26100 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.35″ x 0.32″ | |
| W-26095 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 300 | 12 | 5:1 | 10:1 | – | 0.35″ x 0.32″ | |
| W-26090 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 200 | 200 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26085 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 150 | 600 | 1:2 | 1:1 | – | 0.35″ x 0.32″ | |
| W-26080 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 150 | 150 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26075 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 150 | 100 | 1.22:1 | 2.45:1 | – | 0.35″ x 0.32″ | |
| W-26070 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.32″ | |
| W-26065 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.35″ x 0.32″ | |
| W-26060 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 120 | 120 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26055 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.35″ x 0.32″ | |
| W-26050 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.35″ x 0.32″ | |
| W-26045 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 100 | 100 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26040 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.35″ x 0.32″ | |
| W-26035 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.35″ x 0.32″ | |
| W-26030 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 50 | 50 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26025 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.35″ x 0.32″ | |
| W-26020 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 40 | 40 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26015 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 32 | 32 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26010 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 20 | 20 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| W-26005 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.35″ x 0.32″ | |
| W-26003 | W | Through Hole | 400 Hz to 100 KHz | 0.4 | 10 | 10 | 1:1 | 2:1 | – | 0.35″ x 0.32″ | |
| T-22587 | T | Through Hole | 20 Hz to 25 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.75″ x 0.82″ | |
| T-22585 | T | Through Hole | 20 Hz to 25 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.75″ x 0.82″ | |
| T-22580 | T | Through Hole | 20 Hz to 25 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.75″ x 0.82″ | |
| T-22579 | T | Through Hole | 20 Hz to 25 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22578 | T | Through Hole | 20 Hz to 25 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.82″ | |
| T-22577 | T | Through Hole | 20 Hz to 25 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.75″ x 0.82″ | |
| T-22575 | T | Through Hole | 20 Hz to 25 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.82″ | |
| T-22570 | T | Through Hole | 20 Hz to 25 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22565 | T | Through Hole | 20 Hz to 25 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.82″ | |
| T-22560 | T | Through Hole | 20 Hz to 25 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.82″ | |
| T-22555 | T | Through Hole | 20 Hz to 25 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.82″ | |
| T-22550 | T | Through Hole | 20 Hz to 25 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.75″ x 0.82″ | |
| T-22545 | T | Through Hole | 20 Hz to 25 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22540 | T | Through Hole | 20 Hz to 25 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.82″ | |
| T-22535 | T | Through Hole | 20 Hz to 25 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.82″ | |
| T-22534 | T | Through Hole | 20 Hz to 25 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | – | 0.75″ x 0.82″ | |
| T-22532 | T | Through Hole | 20 Hz to 25 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | – | 0.75″ x 0.82″ | |
| T-22530 | T | Through Hole | 20 Hz to 25 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.75″ x 0.82″ | |
| T-22525 | T | Through Hole | 20 Hz to 25 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.75″ x 0.82″ | |
| T-22520 | T | Through Hole | 20 Hz to 25 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.75″ x 0.82″ | |
| T-22515 | T | Through Hole | 20 Hz to 25 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.82″ | |
| T-22510 | T | Through Hole | 20 Hz to 25 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22505 | T | Through Hole | 20 Hz to 25 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.82″ | |
| T-22500 | T | Through Hole | 20 Hz to 25 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.75″ x 0.82″ | |
| T-22495 | T | Through Hole | 20 Hz to 25 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.82″ | |
| T-22490 | T | Through Hole | 20 Hz to 25 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.75″ x 0.82″ | |
| T-22485 | T | Through Hole | 20 Hz to 25 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.75″ x 0.82″ | |
| T-22480 | T | Through Hole | 20 Hz to 25 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.6:1 | – | 0.75″ x 0.82″ | |
| T-22475 | T | Through Hole | 20 Hz to 25 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.75″ x 0.82″ | |
| T-22470 | T | Through Hole | 20 Hz to 25 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22465 | T | Through Hole | 20 Hz to 25 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22460 | T | Through Hole | 20 Hz to 25 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.75″ x 0.82″ | |
| T-22455 | T | Through Hole | 20 Hz to 25 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | – | 0.75″ x 0.82″ | |
| T-22452 | T | Through Hole | 20 Hz to 25 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.75″ x 0.82″ | |
| T-22450 | T | Through Hole | 20 Hz to 25 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | – | 0.75″ x 0.82″ | |
| T-22445 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 10,000 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22440 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22435 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | – | 0.75″ x 0.82″ | |
| T-22430 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.82″ | |
| T-22425 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.75″ x 0.82″ | |
| T-22420 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.82″ | |
| T-22415 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.75″ x 0.82″ | |
| T-22410 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.82″ | |
| T-22405 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.82″ | |
| T-22400 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.82″ | |
| T-22395 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.82″ | |
| T-22390 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | – | 0.75″ x 0.82″ | |
| T-22385 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | – | 0.75″ x 0.82″ | |
| T-22380 | T | Through Hole | 20 Hz to 25 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.75″ x 0.82″ | |
| T-22375 | T | Through Hole | 20 Hz to 25 KHz | 1.1 | 9000 | 9000 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22370 | T | Through Hole | 20 Hz to 25 KHz | 1.2 | 8000 | 1200 | 2.58:1 | – | – | 0.75″ x 0.82″ | |
| T-22365 | T | Through Hole | 20 Hz to 25 KHz | 1.2 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.75″ x 0.82″ | |
| T-22360 | T | Through Hole | 20 Hz to 25 KHz | 1.2 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.75″ x 0.82″ | |
| T-22355 | T | Through Hole | 20 Hz to 25 KHz | 1.3 | 7500 | 7500 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22350 | T | Through Hole | 20 Hz to 25 KHz | 1.3 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.82″ | |
| T-22345 | T | Through Hole | 20 Hz to 25 KHz | 1.3 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.82″ | |
| T-22340 | T | Through Hole | 20 Hz to 25 KHz | 1.3 | 7500 | 100 | 8.66:1 | 17.32:1 | – | 0.75″ x 0.82″ | |
| T-22335 | T | Through Hole | 20 Hz to 25 KHz | 1.3 | 7500 | 50 | 12.25:1 | 24.5:1 | – | 0.75″ x 0.82″ | |
| T-22330 | T | Through Hole | 20 Hz to 25 KHz | 2 | 5000 | 5000 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22325 | T | Through Hole | 20 Hz to 25 KHz | 2 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.82″ | |
| T-22320 | T | Through Hole | 20 Hz to 25 KHz | 2.5 | 4000 | 8000 | 1:1.41 | – | – | 0.75″ x 0.82″ | |
| T-22315 | T | Through Hole | 20 Hz to 25 KHz | 2.5 | 4000 | 1000 | 2:1 | 4:1 | – | 0.75″ x 0.82″ | |
| T-22314 | T | Through Hole | 20 Hz to 25 KHz | 2.5 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.82″ | |
| T-22312 | T | Through Hole | 20 Hz to 25 KHz | 2.5 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.82″ | |
| T-22310 | T | Through Hole | 20 Hz to 25 KHz | 2.7 | 3600 | 3600 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22305 | T | Through Hole | 20 Hz to 25 KHz | 3 | 3000 | 3000 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22300 | T | Through Hole | 20 Hz to 25 KHz | 3 | 3000 | 3000 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22297 | T | Through Hole | 20 Hz to 25 KHz | 3 | 2500 | 2500 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22295 | T | Through Hole | 20 Hz to 25 KHz | 3 | 2000 | 8000 | 1:2 | 1:1 | – | 0.75″ x 0.82″ | |
| T-22290 | T | Through Hole | 20 Hz to 25 KHz | 3 | 2000 | 2000 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22285 | T | Through Hole | 20 Hz to 25 KHz | 3 | 2000 | 2000 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22283 | T | Through Hole | 20 Hz to 25 KHz | 3 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.82″ | |
| T-22280 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1600 | 12.8 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.82″ | |
| T-22275 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1500 | 1500 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22270 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1500 | 600 | 1.58:1 | – | – | 0.75″ x 0.82″ | |
| T-22265 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.82″ | |
| T-22260 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1500 | 12 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.82″ | |
| T-22255 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1200 | 1200 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22250 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1200 | 1200 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22245 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.75″ x 0.82″ | |
| T-22240 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.75″ x 0.82″ | |
| T-22235 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.75″ x 0.82″ | |
| T-22230 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1000 | 1000 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22225 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.82″ | |
| T-22220 | T | Through Hole | 20 Hz to 25 KHz | 3 | 1000 | 12 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.82″ | |
| T-22217 | T | Through Hole | 20 Hz to 25 KHz | 3 | 900 | 900 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22215 | T | Through Hole | 20 Hz to 25 KHz | 3 | 900 | 600 | 1.22:1 | 2.45:1 | – | 0.75″ x 0.82″ | |
| T-22210 | T | Through Hole | 20 Hz to 25 KHz | 3 | 800 | 800 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22205 | T | Through Hole | 20 Hz to 25 KHz | 3 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.82″ | |
| T-22200 | T | Through Hole | 20 Hz to 25 KHz | 3 | 800 | 12.8 | 7.91:1 | 15.8:1 | – | 0.75″ x 0.82″ | |
| T-22195 | T | Through Hole | 20 Hz to 25 KHz | 3 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.75″ x 0.82″ | |
| T-22190 | T | Through Hole | 20 Hz to 25 KHz | 3 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.82″ | |
| T-22187 | T | Through Hole | 20 Hz to 25 KHz | 3 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.82″ | |
| T-22186 | T | Through Hole | 20 Hz to 25 KHz | 3 | 600 | 900 | 1:1.22 | – | – | 0.75″ x 0.82″ | |
| T-22185 | T | Through Hole | 20 Hz to 25 KHz | 3 | 600 | 600 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22180 | T | Through Hole | 20 Hz to 25 KHz | 3 | 600 | 600 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22175 | T | Through Hole | 20 Hz to 25 KHz | 3 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.82″ | |
| T-22170 | T | Through Hole | 20 Hz to 25 KHz | 3 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.82″ | |
| T-22167 | T | Through Hole | 20 Hz to 25 KHz | 3 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.82″ | |
| T-22165 | T | Through Hole | 20 Hz to 25 KHz | 3 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.75″ x 0.82″ | |
| T-22160 | T | Through Hole | 20 Hz to 25 KHz | 3 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.75″ x 0.82″ | |
| T-22155 | T | Through Hole | 20 Hz to 25 KHz | 3 | 500 | 500 | 1:1 | – | – | 0.75″ x 0.82″ | |
| T-22150 | T | Through Hole | 20 Hz to 25 KHz | 3 | 500 | 500 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22147 | T | Through Hole | 20 Hz to 25 KHz | 3 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.82″ | |
| T-22145 | T | Through Hole | 20 Hz to 25 KHz | 3 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.82″ | |
| T-22144 | T | Through Hole | 20 Hz to 25 KHz | 3 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.75″ x 0.82″ | |
| T-22142 | T | Through Hole | 20 Hz to 25 KHz | 3 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.75″ x 0.82″ | |
| T-22140 | T | Through Hole | 20 Hz to 25 KHz | 3 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.75″ x 0.82″ | |
| T-22135 | T | Through Hole | 20 Hz to 25 KHz | 3 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.75″ x 0.82″ | |
| T-22130 | T | Through Hole | 20 Hz to 25 KHz | 3 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.75″ x 0.82″ | |
| T-22125 | T | Through Hole | 20 Hz to 25 KHz | 3 | 400 | 400 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22120 | T | Through Hole | 20 Hz to 25 KHz | 3 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.82″ | |
| T-22115 | T | Through Hole | 20 Hz to 25 KHz | 3 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.82″ | |
| T-22110 | T | Through Hole | 20 Hz to 25 KHz | 3 | 400 | 40 | 3.16:1 | 16.32:1 | – | 0.75″ x 0.82″ | |
| T-22105 | T | Through Hole | 20 Hz to 25 KHz | 3 | 320 | 12.8 | 5:1 | 10:1 | – | 0.75″ x 0.82″ | |
| T-22100 | T | Through Hole | 20 Hz to 25 KHz | 3 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.82″ | |
| T-22095 | T | Through Hole | 20 Hz to 25 KHz | 3 | 300 | 300 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22090 | T | Through Hole | 20 Hz to 25 KHz | 3 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.82″ | |
| T-22085 | T | Through Hole | 20 Hz to 25 KHz | 3 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.82″ | |
| T-22080 | T | Through Hole | 20 Hz to 25 KHz | 3 | 300 | 12 | 5:1 | 10:1 | – | 0.75″ x 0.82″ | |
| T-22075 | T | Through Hole | 20 Hz to 25 KHz | 3 | 200 | 200 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22070 | T | Through Hole | 20 Hz to 25 KHz | 3 | 150 | 600 | 1:2 | 1:1 | – | 0.75″ x 0.82″ | |
| T-22065 | T | Through Hole | 20 Hz to 25 KHz | 3 | 150 | 150 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22060 | T | Through Hole | 20 Hz to 25 KHz | 3 | 150 | 100 | 1.22:1 | 2.44:1 | – | 0.75″ x 0.82″ | |
| T-22055 | T | Through Hole | 20 Hz to 25 KHz | 3 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.82″ | |
| T-22050 | T | Through Hole | 20 Hz to 25 KHz | 3 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.75″ x 0.82″ | |
| T-22045 | T | Through Hole | 20 Hz to 25 KHz | 3 | 120 | 120 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22040 | T | Through Hole | 20 Hz to 25 KHz | 3 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.82″ | |
| T-22035 | T | Through Hole | 20 Hz to 25 KHz | 3 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.75″ x 0.82″ | |
| T-22030 | T | Through Hole | 20 Hz to 25 KHz | 3 | 100 | 100 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22028 | T | Through Hole | 20 Hz to 25 KHz | 3 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.82″ | |
| T-22025 | T | Through Hole | 20 Hz to 25 KHz | 3 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.82″ | |
| T-22020 | T | Through Hole | 20 Hz to 25 KHz | 3 | 50 | 50 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22018 | T | Through Hole | 20 Hz to 25 KHz | 3 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.82″ | |
| T-22015 | T | Through Hole | 20 Hz to 25 KHz | 3 | 40 | 40 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22010 | T | Through Hole | 20 Hz to 25 KHz | 3 | 32 | 32 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22005 | T | Through Hole | 20 Hz to 25 KHz | 3 | 20 | 20 | 1:1 | 2:1 | – | 0.75″ x 0.82″ | |
| T-22003 | T | Through Hole | 20 Hz to 25 KHz | 3 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.82″ | |
| S-21620 | S | Through Hole | 50 Hz to 30 KHz | 0.07 | 135,000 | 82 | 40.6:1 | 81.2:1 | – | 0.75″ x 0.52″ | |
| S-21615 | S | Through Hole | 50 Hz to 30 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.52″ | |
| S-21614 | S | Through Hole | 50 Hz to 30 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.52″ | |
| S-21613 | S | Through Hole | 50 Hz to 30 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | – | 0.75″ x 0.52″ | |
| S-21610 | S | Through Hole | 50 Hz to 30 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.75″ x 0.52″ | |
| S-21605 | S | Through Hole | 50 Hz to 30 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.75″ x 0.52″ | |
| S-21600 | S | Through Hole | 50 Hz to 30 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.75″ x 0.52″ | |
| S-21595 | S | Through Hole | 50 Hz to 30 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | – | 0.75″ x 0.52″ | |
| S-21590 | S | Through Hole | 50 Hz to 30 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.75″ x 0.52″ | |
| S-21587 | S | Through Hole | 50 Hz to 30 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.75″ x 0.52″ | |
| S-21585 | S | Through Hole | 50 Hz to 30 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.75″ x 0.52″ | |
| S-21580 | S | Through Hole | 50 Hz to 30 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.75″ x 0.52″ | |
| S-21579 | S | Through Hole | 50 Hz to 30 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21578 | S | Through Hole | 50 Hz to 30 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.52″ | |
| S-21577 | S | Through Hole | 50 Hz to 30 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.75″ x 0.52″ | |
| S-21575 | S | Through Hole | 50 Hz to 30 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.52″ | |
| S-21570 | S | Through Hole | 50 Hz to 30 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21565 | S | Through Hole | 50 Hz to 30 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.52″ | |
| S-21560 | S | Through Hole | 50 Hz to 30 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.52″ | |
| S-21555 | S | Through Hole | 50 Hz to 30 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.52″ | |
| S-21550 | S | Through Hole | 50 Hz to 30 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.75″ x 0.52″ | |
| S-21545 | S | Through Hole | 50 Hz to 30 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21540 | S | Through Hole | 50 Hz to 30 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.52″ | |
| S-21535 | S | Through Hole | 50 Hz to 30 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.52″ | |
| S-21534 | S | Through Hole | 50 Hz to 30 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | – | 0.75″ x 0.52″ | |
| S-21532 | S | Through Hole | 50 Hz to 30 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | – | 0.75″ x 0.52″ | |
| S-21530 | S | Through Hole | 50 Hz to 30 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.75″ x 0.52″ | |
| S-21525 | S | Through Hole | 50 Hz to 30 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.75″ x 0.52″ | |
| S-21520 | S | Through Hole | 50 Hz to 30 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.75″ x 0.52″ | |
| S-21515 | S | Through Hole | 50 Hz to 30 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.52″ | |
| S-21510 | S | Through Hole | 50 Hz to 30 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21505 | S | Through Hole | 50 Hz to 30 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.52″ | |
| S-21500 | S | Through Hole | 50 Hz to 30 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.75″ x 0.52″ | |
| S-21495 | S | Through Hole | 50 Hz to 30 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.52″ | |
| S-21490 | S | Through Hole | 50 Hz to 30 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.75″ x 0.52″ | |
| S-21485 | S | Through Hole | 50 Hz to 30 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.75″ x 0.52″ | |
| S-21480 | S | Through Hole | 50 Hz to 30 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.65:1 | – | 0.75″ x 0.52″ | |
| S-21475 | S | Through Hole | 50 Hz to 30 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.75″ x 0.52″ | |
| S-21470 | S | Through Hole | 50 Hz to 30 KHz | 0.65 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21465 | S | Through Hole | 50 Hz to 30 KHz | 0.65 | 15,000 | 15,000 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21460 | S | Through Hole | 50 Hz to 30 KHz | 0.65 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.75″ x 0.52″ | |
| S-21455 | S | Through Hole | 50 Hz to 30 KHz | 0.65 | 15,000 | 600 | 5:1 | 10:1 | – | 0.75″ x 0.52″ | |
| S-21452 | S | Through Hole | 50 Hz to 30 KHz | 0.65 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.75″ x 0.52″ | |
| S-21450 | S | Through Hole | 50 Hz to 30 KHz | 0.65 | 15,000 | 400 | 6.12:1 | 12.25:1 | – | 0.75″ x 0.52″ | |
| S-21445 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21440 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21435 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | – | 0.75″ x 0.52″ | |
| S-21430 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 5000 | 1.41:1 | 1.83:1 | – | 0.75″ x 0.52″ | |
| S-21425 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.75″ x 0.52″ | |
| S-21420 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.52″ | |
| S-21415 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.75″ x 0.52″ | |
| S-21410 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.52″ | |
| S-21405 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.52″ | |
| S-21400 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.52″ | |
| S-21395 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.52″ | |
| S-21390 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | – | 0.75″ x 0.52″ | |
| S-21385 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | – | 0.75″ x 0.52″ | |
| S-21380 | S | Through Hole | 50 Hz to 30 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.75″ x 0.52″ | |
| S-21375 | S | Through Hole | 50 Hz to 30 KHz | 1.1 | 9000 | 9000 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21370 | S | Through Hole | 50 Hz to 30 KHz | 1.2 | 8000 | 1200 | 2.58:1 | – | – | 0.75″ x 0.52″ | |
| S-21365 | S | Through Hole | 50 Hz to 30 KHz | 1.2 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.75″ x 0.52″ | |
| S-21360 | S | Through Hole | 50 Hz to 30 KHz | 1.2 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.75″ x 0.52″ | |
| S-21355 | S | Through Hole | 50 Hz to 30 KHz | 1.3 | 7500 | 7500 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21350 | S | Through Hole | 50 Hz to 30 KHz | 1.3 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.52″ | |
| S-21345 | S | Through Hole | 50 Hz to 30 KHz | 1.3 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.52″ | |
| S-21340 | S | Through Hole | 50 Hz to 30 KHz | 1.3 | 7500 | 100 | 8.66:1 | 17.32:1 | – | 0.75″ x 0.52″ | |
| S-21335 | S | Through Hole | 50 Hz to 30 KHz | 1.3 | 7500 | 50 | 12.25:1 | 24.5:1 | – | 0.75″ x 0.52″ | |
| S-21330 | S | Through Hole | 50 Hz to 30 KHz | 2 | 5000 | 5000 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21325 | S | Through Hole | 50 Hz to 30 KHz | 2 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.52″ | |
| S-21320 | S | Through Hole | 50 Hz to 30 KHz | 2 | 4000 | 8000 | 1:1.41 | – | – | 0.75″ x 0.52″ | |
| S-21315 | S | Through Hole | 50 Hz to 30 KHz | 2 | 4000 | 1000 | 2:1 | 4:1 | – | 0.75″ x 0.52″ | |
| S-21314 | S | Through Hole | 50 Hz to 30 KHz | 2 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.52″ | |
| S-21312 | S | Through Hole | 50 Hz to 30 KHz | 2 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.52″ | |
| S-21310 | S | Through Hole | 50 Hz to 30 KHz | 2 | 3600 | 3600 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21305 | S | Through Hole | 50 Hz to 30 KHz | 2 | 3000 | 3000 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21300 | S | Through Hole | 50 Hz to 30 KHz | 2 | 3000 | 3000 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21297 | S | Through Hole | 50 Hz to 30 KHz | 2 | 2500 | 2500 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21295 | S | Through Hole | 50 Hz to 30 KHz | 2 | 2000 | 8000 | 1:2 | 1:1 | – | 0.75″ x 0.52″ | |
| S-21290 | S | Through Hole | 50 Hz to 30 KHz | 2 | 2000 | 2000 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21285 | S | Through Hole | 50 Hz to 30 KHz | 2 | 2000 | 2000 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21283 | S | Through Hole | 50 Hz to 30 KHz | 2 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.52″ | |
| S-21280 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1600 | 12.8 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.52″ | |
| S-21275 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1500 | 1500 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21270 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1500 | 600 | 1.58:1 | – | – | 0.75″ x 0.52″ | |
| S-21265 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.52″ | |
| S-21260 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1500 | 12 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.52″ | |
| S-21255 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1200 | 1200 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21250 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1200 | 1200 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21245 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.75″ x 0.52″ | |
| S-21240 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.75″ x 0.52″ | |
| S-21235 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.75″ x 0.52″ | |
| S-21230 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1000 | 1000 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21225 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.52″ | |
| S-21220 | S | Through Hole | 50 Hz to 30 KHz | 2 | 1000 | 12 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.52″ | |
| S-21217 | S | Through Hole | 50 Hz to 30 KHz | 2 | 900 | 900 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21215 | S | Through Hole | 50 Hz to 30 KHz | 2 | 900 | 600 | 1.23:1 | 2.45:1 | – | 0.75″ x 0.52″ | |
| S-21210 | S | Through Hole | 50 Hz to 30 KHz | 2 | 800 | 800 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21205 | S | Through Hole | 50 Hz to 30 KHz | 2 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.52″ | |
| S-21200 | S | Through Hole | 50 Hz to 30 KHz | 2 | 800 | 12.8 | 7.91:1 | 15.8:1 | – | 0.75″ x 0.52″ | |
| S-21195 | S | Through Hole | 50 Hz to 30 KHz | 2 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.75″ x 0.52″ | |
| S-21190 | S | Through Hole | 50 Hz to 30 KHz | 2 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.52″ | |
| S-21187 | S | Through Hole | 50 Hz to 30 KHz | 2 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.52″ | |
| S-21186 | S | Through Hole | 50 Hz to 30 KHz | 2 | 600 | 900 | 1:1.22 | – | – | 0.75″ x 0.52″ | |
| S-21185 | S | Through Hole | 50 Hz to 30 KHz | 2 | 600 | 600 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21180 | S | Through Hole | 50 Hz to 30 KHz | 2 | 600 | 600 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21175 | S | Through Hole | 50 Hz to 30 KHz | 2 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.52″ | |
| S-21170 | S | Through Hole | 50 Hz to 30 KHz | 2 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.52″ | |
| S-21167 | S | Through Hole | 50 Hz to 30 KHz | 2 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.52″ | |
| S-21165 | S | Through Hole | 50 Hz to 30 KHz | 2 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.75″ x 0.52″ | |
| S-21160 | S | Through Hole | 50 Hz to 30 KHz | 2 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.75″ x 0.52″ | |
| S-21155 | S | Through Hole | 50 Hz to 30 KHz | 2 | 500 | 500 | 1:1 | – | – | 0.75″ x 0.52″ | |
| S-21150 | S | Through Hole | 50 Hz to 30 KHz | 2 | 500 | 500 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21147 | S | Through Hole | 50 Hz to 30 KHz | 2 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.52″ | |
| S-21145 | S | Through Hole | 50 Hz to 30 KHz | 2 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.52″ | |
| S-21144 | S | Through Hole | 50 Hz to 30 KHz | 2 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.75″ x 0.52″ | |
| S-21142 | S | Through Hole | 50 Hz to 30 KHz | 2 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.75″ x 0.52″ | |
| S-21140 | S | Through Hole | 50 Hz to 30 KHz | 2 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.75″ x 0.52″ | |
| S-21135 | S | Through Hole | 50 Hz to 30 KHz | 2 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.75″ x 0.52″ | |
| S-21130 | S | Through Hole | 50 Hz to 30 KHz | 2 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.75″ x 0.52″ | |
| S-21125 | S | Through Hole | 50 Hz to 30 KHz | 2 | 400 | 400 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21120 | S | Through Hole | 50 Hz to 30 KHz | 2 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.52″ | |
| S-21115 | S | Through Hole | 50 Hz to 30 KHz | 2 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.52″ | |
| S-21110 | S | Through Hole | 50 Hz to 30 KHz | 2 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.52″ | |
| S-21105 | S | Through Hole | 50 Hz to 30 KHz | 2 | 320 | 12.8 | 5:1 | 10:1 | – | 0.75″ x 0.52″ | |
| S-21100 | S | Through Hole | 50 Hz to 30 KHz | 2 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.52″ | |
| S-21095 | S | Through Hole | 50 Hz to 30 KHz | 2 | 300 | 300 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21090 | S | Through Hole | 50 Hz to 30 KHz | 2 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.52″ | |
| S-21085 | S | Through Hole | 50 Hz to 30 KHz | 2 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.52″ | |
| S-21080 | S | Through Hole | 50 Hz to 30 KHz | 2 | 300 | 12 | 5:1 | 10:1 | – | 0.75″ x 0.52″ | |
| S-21075 | S | Through Hole | 50 Hz to 30 KHz | 2 | 200 | 200 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21070 | S | Through Hole | 50 Hz to 30 KHz | 2 | 150 | 600 | 1:2 | 1:1 | – | 0.75″ x 0.52″ | |
| S-21065 | S | Through Hole | 50 Hz to 30 KHz | 2 | 150 | 150 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21060 | S | Through Hole | 50 Hz to 30 KHz | 2 | 150 | 100 | 1.22:1 | 2.44:1 | – | 0.75″ x 0.52″ | |
| S-21055 | S | Through Hole | 50 Hz to 30 KHz | 2 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.52″ | |
| S-21050 | S | Through Hole | 50 Hz to 30 KHz | 2 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.75″ x 0.52″ | |
| S-21045 | S | Through Hole | 50 Hz to 30 KHz | 2 | 120 | 120 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21040 | S | Through Hole | 50 Hz to 30 KHz | 2 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.52″ | |
| S-21035 | S | Through Hole | 50 Hz to 30 KHz | 2 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.75″ x 0.52″ | |
| S-21030 | S | Through Hole | 50 Hz to 30 KHz | 2 | 100 | 100 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21028 | S | Through Hole | 50 Hz to 30 KHz | 2 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.52″ | |
| S-21025 | S | Through Hole | 50 Hz to 30 KHz | 2 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.52″ | |
| S-21020 | S | Through Hole | 50 Hz to 30 KHz | 2 | 50 | 50 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21018 | S | Through Hole | 50 Hz to 30 KHz | 2 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.52″ | |
| S-21015 | S | Through Hole | 50 Hz to 30 KHz | 2 | 40 | 40 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21010 | S | Through Hole | 50 Hz to 30 KHz | 2 | 32 | 32 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21005 | S | Through Hole | 50 Hz to 30 KHz | 2 | 20 | 20 | 1:1 | 2:1 | – | 0.75″ x 0.52″ | |
| S-21003 | S | Through Hole | 50 Hz to 30 KHz | 2 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.52″ | |
| R-20620 | R | Through Hole | 75 Hz to 30 KHz | 0.07 | 135,000 | 82 | 40.6:1 | 81.2:1 | – | 0.75″ x 0.38″ | |
| R-20615 | R | Through Hole | 75 Hz to 30 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.38″ | |
| R-20614 | R | Through Hole | 75 Hz to 30 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.38″ | |
| R-20613 | R | Through Hole | 75 Hz to 30 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | – | 0.75″ x 0.38″ | |
| R-20610 | R | Through Hole | 75 Hz to 30 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.75″ x 0.38″ | |
| R-20605 | R | Through Hole | 75 Hz to 30 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.75″ x 0.38″ | |
| R-20600 | R | Through Hole | 75 Hz to 30 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.75″ x 0.38″ | |
| R-20595 | R | Through Hole | 75 Hz to 30 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | – | 0.75″ x 0.38″ | |
| R-20590 | R | Through Hole | 75 Hz to 30 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.75″ x 0.38″ | |
| R-20587 | R | Through Hole | 75 Hz to 30 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.75″ x 0.38″ | |
| R-20585 | R | Through Hole | 75 Hz to 30 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.75″ x 0.38″ | |
| R-20580 | R | Through Hole | 75 Hz to 30 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.75″ x 0.38″ | |
| R-20579 | R | Through Hole | 75 Hz to 30 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20578 | R | Through Hole | 75 Hz to 30 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.38″ | |
| R-20577 | R | Through Hole | 75 Hz to 30 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.75″ x 0.38″ | |
| R-20575 | R | Through Hole | 75 Hz to 30 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.38″ | |
| R-20570 | R | Through Hole | 75 Hz to 30 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20565 | R | Through Hole | 75 Hz to 30 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.38″ | |
| R-20560 | R | Through Hole | 75 Hz to 30 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.38″ | |
| R-20555 | R | Through Hole | 75 Hz to 30 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.38″ | |
| R-20550 | R | Through Hole | 75 Hz to 30 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.75″ x 0.38″ | |
| R-20545 | R | Through Hole | 75 Hz to 30 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20540 | R | Through Hole | 75 Hz to 30 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.38″ | |
| R-20535 | R | Through Hole | 75 Hz to 30 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.38″ | |
| R-20534 | R | Through Hole | 75 Hz to 30 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | – | 0.75″ x 0.38″ | |
| R-20532 | R | Through Hole | 75 Hz to 30 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | – | 0.75″ x 0.38″ | |
| R-20530 | R | Through Hole | 75 Hz to 30 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.75″ x 0.38″ | |
| R-20525 | R | Through Hole | 75 Hz to 30 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.75″ x 0.38″ | |
| R-20520 | R | Through Hole | 75 Hz to 30 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.75″ x 0.38″ | |
| R-20515 | R | Through Hole | 75 Hz to 30 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.38″ | |
| R-20510 | R | Through Hole | 75 Hz to 30 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20505 | R | Through Hole | 75 Hz to 30 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.38″ | |
| R-20500 | R | Through Hole | 75 Hz to 30 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.75″ x 0.38″ | |
| R-20495 | R | Through Hole | 75 Hz to 30 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.38″ | |
| R-20490 | R | Through Hole | 75 Hz to 30 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.75″ x 0.38″ | |
| R-20485 | R | Through Hole | 75 Hz to 30 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.75″ x 0.38″ | |
| R-20480 | R | Through Hole | 75 Hz to 30 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.65:1 | – | 0.75″ x 0.38″ | |
| R-20475 | R | Through Hole | 75 Hz to 30 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.75″ x 0.38″ | |
| R-20470 | R | Through Hole | 75 Hz to 30 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20465 | R | Through Hole | 75 Hz to 30 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20460 | R | Through Hole | 75 Hz to 30 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.75″ x 0.38″ | |
| R-20455 | R | Through Hole | 75 Hz to 30 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | – | 0.75″ x 0.38″ | |
| R-20452 | R | Through Hole | 75 Hz to 30 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.75″ x 0.38″ | |
| R-20450 | R | Through Hole | 75 Hz to 30 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | – | 0.75″ x 0.38″ | |
| R-20445 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20440 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20435 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | – | 0.75″ x 0.38″ | |
| R-20430 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.38″ | |
| R-20425 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.75″ x 0.38″ | |
| R-20420 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.38″ | |
| R-20415 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.75″ x 0.38″ | |
| R-20410 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.38″ | |
| R-20405 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.38″ | |
| R-20400 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.38″ | |
| R-20395 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.38″ | |
| R-20390 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | – | 0.75″ x 0.38″ | |
| R-20385 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | – | 0.75″ x 0.38″ | |
| R-20380 | R | Through Hole | 75 Hz to 30 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.75″ x 0.38″ | |
| R-20375 | R | Through Hole | 75 Hz to 30 KHz | 1.1 | 9000 | 9000 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20370 | R | Through Hole | 75 Hz to 30 KHz | 1.2 | 8000 | 1200 | 2.58:1 | – | – | 0.75″ x 0.38″ | |
| R-20365 | R | Through Hole | 75 Hz to 30 KHz | 1.2 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.75″ x 0.38″ | |
| R-20360 | R | Through Hole | 75 Hz to 30 KHz | 1.2 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.75″ x 0.38″ | |
| R-20355 | R | Through Hole | 75 Hz to 30 KHz | 1.3 | 7500 | 7500 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20350 | R | Through Hole | 75 Hz to 30 KHz | 1.3 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.38″ | |
| R-20345 | R | Through Hole | 75 Hz to 30 KHz | 1.3 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.38″ | |
| R-20340 | R | Through Hole | 75 Hz to 30 KHz | 1.3 | 7500 | 100 | 8.66:1 | 17.32:1 | – | 0.75″ x 0.38″ | |
| R-20335 | R | Through Hole | 75 Hz to 30 KHz | 1.3 | 7500 | 50 | 12.25:1 | 24.5:1 | – | 0.75″ x 0.38″ | |
| R-20330 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 5000 | 5000 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20325 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.38″ | |
| R-20320 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 4000 | 8000 | 1:1.41 | – | – | 0.75″ x 0.38″ | |
| R-20315 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 4000 | 1000 | 2:1 | 4:1 | – | 0.75″ x 0.38″ | |
| R-20314 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.38″ | |
| R-20312 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.38″ | |
| R-20310 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 3600 | 3600 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20305 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 3000 | 3000 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20300 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 3000 | 3000 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20297 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 2500 | 2500 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20295 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 2000 | 8000 | 1:2 | 1:1 | – | 0.75″ x 0.38″ | |
| R-20290 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 2000 | 2000 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20285 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 2000 | 2000 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20283 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.38″ | |
| R-20280 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1600 | 12.8 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.38″ | |
| R-20275 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1500 | 1500 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20270 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1500 | 600 | 1.58:1 | – | – | 0.75″ x 0.38″ | |
| R-20265 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.38″ | |
| R-20260 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1500 | 12 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.38″ | |
| R-20255 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1200 | 1200 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20250 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1200 | 1200 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20245 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.75″ x 0.38″ | |
| R-20240 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.75″ x 0.38″ | |
| R-20235 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.75″ x 0.38″ | |
| R-20230 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1000 | 1000 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20225 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.38″ | |
| R-20220 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 1000 | 12 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.38″ | |
| R-20217 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 900 | 900 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20215 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 900 | 600 | 1.23:1 | 2.45:1 | – | 0.75″ x 0.38″ | |
| R-20210 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 800 | 800 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20205 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.38″ | |
| R-20200 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 800 | 12.8 | 7.91:1 | 15.8:1 | – | 0.75″ x 0.38″ | |
| R-20195 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.75″ x 0.38″ | |
| R-20190 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.38″ | |
| R-20187 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.38″ | |
| R-20186 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 600 | 900 | 1:1.22 | – | – | 0.75″ x 0.38″ | |
| R-20185 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 600 | 600 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20180 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 600 | 600 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20175 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.38″ | |
| R-20170 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.38″ | |
| R-20167 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.38″ | |
| R-20165 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.75″ x 0.38″ | |
| R-20160 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.75″ x 0.38″ | |
| R-20155 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 500 | 500 | 1:1 | – | – | 0.75″ x 0.38″ | |
| R-20150 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 500 | 500 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20147 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.38″ | |
| R-20145 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.38″ | |
| R-20144 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.75″ x 0.38″ | |
| R-20142 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.75″ x 0.38″ | |
| R-20140 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.75″ x 0.38″ | |
| R-20135 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.75″ x 0.38″ | |
| R-20130 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.75″ x 0.38″ | |
| R-20125 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 400 | 400 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20120 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.38″ | |
| R-20115 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.38″ | |
| R-20110 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.38″ | |
| R-20105 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 320 | 12.8 | 5:1 | 10:1 | – | 0.75″ x 0.38″ | |
| R-20100 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.38″ | |
| R-20095 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 300 | 300 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20090 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.38″ | |
| R-20085 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.38″ | |
| R-20080 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 300 | 12 | 5:1 | 10:1 | – | 0.75″ x 0.38″ | |
| R-20075 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 200 | 200 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20070 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 150 | 600 | 1:2 | 1:1 | – | 0.75″ x 0.38″ | |
| R-20065 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 150 | 150 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20060 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 150 | 100 | 1.22:1 | 2.44:1 | – | 0.75″ x 0.38″ | |
| R-20055 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.38″ | |
| R-20050 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.75″ x 0.38″ | |
| R-20045 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 120 | 120 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20040 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.38″ | |
| R-20035 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.75″ x 0.38″ | |
| R-20030 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 100 | 100 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20028 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.38″ | |
| R-20025 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.38″ | |
| R-20020 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 50 | 50 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20018 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.38″ | |
| R-20015 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 40 | 40 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20010 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 32 | 32 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20005 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 20 | 20 | 1:1 | 2:1 | – | 0.75″ x 0.38″ | |
| R-20003 | R | Through Hole | 75 Hz to 30 KHz | 1.5 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.38″ | |
| P-9815 | P | Insulated Leads | 300 Hz to 75 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| P-9810 | P | Insulated Leads | 300 Hz to 75 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.50″ x 0.35″ | |
| P-9805 | P | Insulated Leads | 300 Hz to 75 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.50″ x 0.35″ | |
| P-9800 | P | Insulated Leads | 300 Hz to 75 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.50″ x 0.35″ | |
| P-9795 | P | Insulated Leads | 300 Hz to 75 KHz | 0.1 | 95,000 | 15,000 | 2.52:1 | 5.03:1 | – | 0.50″ x 0.35″ | |
| P-9790 | P | Insulated Leads | 300 Hz to 75 KHz | 0.1 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.50″ x 0.35″ | |
| P-9787 | P | Insulated Leads | 300 Hz to 75 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.50″ x 0.35″ | |
| P-9785 | P | Insulated Leads | 300 Hz to 75 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.50″ x 0.35″ | |
| P-9780 | P | Insulated Leads | 300 Hz to 75 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.50″ x 0.35″ | |
| P-9779 | P | Insulated Leads | 300 Hz to 75 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.50″ x 0.35″ | |
| P-9777 | P | Insulated Leads | 300 Hz to 75 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.50″ x 0.35″ | |
| P-9775 | P | Insulated Leads | 300 Hz to 75 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.35″ | |
| P-9770 | P | Insulated Leads | 300 Hz to 75 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9765 | P | Insulated Leads | 300 Hz to 75 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| P-9760 | P | Insulated Leads | 300 Hz to 75 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| P-9755 | P | Insulated Leads | 300 Hz to 75 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| P-9750 | P | Insulated Leads | 300 Hz to 75 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.50″ x 0.35″ | |
| P-9745 | P | Insulated Leads | 300 Hz to 75 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9740 | P | Insulated Leads | 300 Hz to 75 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| P-9735 | P | Insulated Leads | 300 Hz to 75 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.50″ x 0.35″ | |
| P-9734 | P | Insulated Leads | 300 Hz to 75 KHz | 0.33 | 30,000 | 200 | 12.25:1 | 24.5:1 | – | 0.50″ x 0.35″ | |
| P-9732 | P | Insulated Leads | 300 Hz to 75 KHz | 0.33 | 30,000 | 500 | 7.75:1 | 15.5:1 | – | 0.50″ x 0.35″ | |
| P-9730 | P | Insulated Leads | 300 Hz to 75 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| P-9725 | P | Insulated Leads | 300 Hz to 75 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.50″ x 0.35″ | |
| P-9720 | P | Insulated Leads | 300 Hz to 75 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| P-9715 | P | Insulated Leads | 300 Hz to 75 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.35″ | |
| P-9710 | P | Insulated Leads | 300 Hz to 75 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9705 | P | Insulated Leads | 300 Hz to 75 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| P-9700 | P | Insulated Leads | 300 Hz to 75 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.50″ x 0.35″ | |
| P-9695 | P | Insulated Leads | 300 Hz to 75 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| P-9690 | P | Insulated Leads | 300 Hz to 75 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| P-9685 | P | Insulated Leads | 300 Hz to 75 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.50″ x 0.35″ | |
| P-9680 | P | Insulated Leads | 300 Hz to 75 KHz | 0.5 | 20,000 | 500 | 6.33:1 | 12.65:1 | – | 0.50″ x 0.35″ | |
| P-9675 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.50″ x 0.35″ | |
| P-9670 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9665 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 15,000 | 15,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9660 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.35″ | |
| P-9655 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 15,000 | 600 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| P-9652 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.50″ x 0.35″ | |
| P-9650 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 15,000 | 400 | 6.12:1 | 12.24:1 | – | 0.50″ x 0.35″ | |
| P-9645 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 10,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9640 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9635 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 7500 | 1.15:1 | 2.3:1 | – | 0.50″ x 0.35″ | |
| P-9630 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| P-9625 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.50″ x 0.35″ | |
| P-9620 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.50″ x 0.35″ | |
| P-9615 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.50″ x 0.35″ | |
| P-9610 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| P-9605 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.50″ x 0.35″ | |
| P-9600 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| P-9595 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.35″ | |
| P-9590 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 100 | 10:1 | 20:1 | – | 0.50″ x 0.35″ | |
| P-9585 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 16 | 25:1 | 50:1 | – | 0.50″ x 0.35″ | |
| P-9580 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.50″ x 0.35″ | |
| P-9575 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 9000 | 9000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9570 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 8000 | 1200 | 2.58:1 | – | – | 0.50″ x 0.35″ | |
| P-9565 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.50″ x 0.35″ | |
| P-9560 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.50″ x 0.35″ | |
| P-9555 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 7500 | 7500 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9550 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| P-9545 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.50″ x 0.35″ | |
| P-9540 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 7500 | 100 | 8.66:1 | 17.3:1 | – | 0.50″ x 0.35″ | |
| P-9535 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 7500 | 50 | 12.2:1 | 24.5:1 | – | 0.50″ x 0.35″ | |
| P-9530 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 5000 | 5000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9525 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| P-9520 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 4000 | 8000 | 1:1.41 | – | – | 0.50″ x 0.35″ | |
| P-9515 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 4000 | 1000 | 2:1 | 4:1 | – | 0.50″ x 0.35″ | |
| P-9514 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.50″ x 0.35″ | |
| P-9512 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.35″ | |
| P-9510 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 3600 | 3600 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9505 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 3000 | 3000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9500 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 3000 | 3000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9497 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 2500 | 2500 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9495 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 2000 | 8000 | 1:2 | 1:1 | – | 0.50″ x 0.35″ | |
| P-9490 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 2000 | 2000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9485 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 2000 | 2000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9483 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.35″ | |
| P-9480 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1600 | 12.8 | 11.2:1 | 22.4:1 | – | 0.50″ x 0.35″ | |
| P-9475 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1500 | 1500 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9470 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1500 | 600 | 1.58:1 | – | – | 0.50″ x 0.35″ | |
| P-9465 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| P-9460 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1500 | 12 | 11.2:1 | 22.4:1 | – | 0.50″ x 0.35″ | |
| P-9455 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1200 | 1200 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9450 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1200 | 1200 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9445 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.50″ x 0.35″ | |
| P-9440 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.50″ x 0.35″ | |
| P-9435 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.50″ x 0.35″ | |
| P-9430 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1000 | 1000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9425 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| P-9420 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 1000 | 12 | 9.13:1 | 18.3:1 | – | 0.50″ x 0.35″ | |
| P-9415 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 900 | 600 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.35″ | |
| P-9410 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 800 | 800 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9405 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.50″ x 0.35″ | |
| P-9400 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 800 | 12.8 | 7.9:1 | 15.8:1 | – | 0.50″ x 0.35″ | |
| P-9395 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.50″ x 0.35″ | |
| P-9390 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.35″ | |
| P-9387 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.50″ x 0.35″ | |
| P-9385 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 600 | 600 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9380 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 600 | 600 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9375 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| P-9370 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.50″ x 0.35″ | |
| P-9367 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| P-9365 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.50″ x 0.35″ | |
| P-9360 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.50″ x 0.35″ | |
| P-9355 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 500 | 500 | 1:1 | – | – | 0.50″ x 0.35″ | |
| P-9350 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 500 | 500 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9347 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.50″ x 0.35″ | |
| P-9345 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| P-9344 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.50″ x 0.35″ | |
| P-9342 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.50″ x 0.35″ | |
| P-9340 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.50″ x 0.35″ | |
| P-9335 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.50″ x 0.35″ | |
| P-9330 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.50″ x 0.35″ | |
| P-9325 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 400 | 400 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9320 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| P-9315 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.50″ x 0.35″ | |
| P-9310 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| P-9305 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 320 | 12.8 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| P-9300 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.50″ x 0.35″ | |
| P-9295 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 300 | 300 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9290 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| P-9285 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.50″ x 0.35″ | |
| P-9280 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 300 | 12 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| P-9275 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 200 | 200 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9270 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 150 | 600 | 1:2 | 1:1 | – | 0.50″ x 0.35″ | |
| P-9265 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 150 | 150 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9260 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 150 | 100 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.35″ | |
| P-9255 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| P-9250 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.50″ x 0.35″ | |
| P-9245 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 120 | 120 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9240 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| P-9235 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.50″ x 0.35″ | |
| P-9230 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 100 | 100 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9228 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.35″ | |
| P-9225 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.35″ | |
| P-9220 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 50 | 50 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9218 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| P-9215 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 40 | 40 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9210 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 32 | 32 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9205 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 20 | 20 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| P-9203 | P | Insulated Leads | 300 Hz to 75 KHz | 0.6 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.35″ | |
| N-6840 | N | Through Hole | 150 Hz to 20 KHz | 0.04 | 250,000 | 1000 | 15.8:1 | 31.6:1 | – | 0.5″ x 0.5″ | |
| N-6837 | N | Through Hole | 150 Hz to 20 KHz | 0.04 | 250,000 | 200 | 35.4:1 | 70.7:1 | – | 0.5″ x 0.5″ | |
| N-6835 | N | Through Hole | 150 Hz to 20 KHz | 0.05 | 200,000 | 20,000 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| N-6830 | N | Through Hole | 150 Hz to 20 KHz | 0.05 | 200,000 | 10,000 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| N-6825 | N | Through Hole | 150 Hz to 20 KHz | 0.05 | 200,000 | 1000 | 14.1:1 | 28.3:1 | – | 0.5″ x 0.5″ | |
| N-6823 | N | Through Hole | 150 Hz to 20 KHz | 0.05 | 200,000 | 500 | 20:1 | 40:1 | – | 0.5″ x 0.5″ | |
| N-6820 | N | Through Hole | 150 Hz to 20 KHz | 0.074 | 135,000 | 82 | 40.6:1 | 81.2:1 | – | 0.5″ x 0.5″ | |
| N-6815 | N | Through Hole | 150 Hz to 20 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| N-6814 | N | Through Hole | 150 Hz to 20 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | – | 0.5″ x 0.5″ | |
| N-6813 | N | Through Hole | 150 Hz to 20 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | – | 0.5″ x 0.5″ | |
| N-6810 | N | Through Hole | 150 Hz to 20 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.5″ x 0.5″ | |
| N-6805 | N | Through Hole | 150 Hz to 20 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.5″ x 0.5″ | |
| N-6800 | N | Through Hole | 150 Hz to 20 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.5″ x 0.5″ | |
| N-6795 | N | Through Hole | 150 Hz to 20 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | – | 0.5″ x 0.5″ | |
| N-6790 | N | Through Hole | 150 Hz to 20 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.5″ x 0.5″ | |
| N-6789 | N | Through Hole | 150 Hz to 20 KHz | 0.12 | 80,000 | 80,000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6787 | N | Through Hole | 150 Hz to 20 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.5″ x 0.5″ | |
| N-6785 | N | Through Hole | 150 Hz to 20 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.5″ x 0.5″ | |
| N-6780 | N | Through Hole | 150 Hz to 20 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.5″ x 0.5″ | |
| N-6779 | N | Through Hole | 150 Hz to 20 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6778 | N | Through Hole | 150 Hz to 20 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.5″ x 0.5″ | |
| N-6777 | N | Through Hole | 150 Hz to 20 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.5″ x 0.5″ | |
| N-6775 | N | Through Hole | 150 Hz to 20 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.5″ x 0.5″ | |
| N-6770 | N | Through Hole | 150 Hz to 75 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6765 | N | Through Hole | 150 Hz to 75 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| N-6760 | N | Through Hole | 150 Hz to 75 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| N-6755 | N | Through Hole | 150 Hz to 75 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| N-6750 | N | Through Hole | 150 Hz to 75 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.5″ x 0.5″ | |
| N-6745 | N | Through Hole | 150 Hz to 75 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6740 | N | Through Hole | 150 Hz to 75 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| N-6735 | N | Through Hole | 150 Hz to 75 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.5″ x 0.5″ | |
| N-6734 | N | Through Hole | 150 Hz to 75 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | – | 0.5″ x 0.5″ | |
| N-6732 | N | Through Hole | 150 Hz to 75 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | – | 0.5″ x 0.5″ | |
| N-6730 | N | Through Hole | 150 Hz to 75 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| N-6725 | N | Through Hole | 150 Hz to 75 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.5″ x 0.5″ | |
| N-6720 | N | Through Hole | 150 Hz to 75 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| N-6715 | N | Through Hole | 150 Hz to 75 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.5″ x 0.5″ | |
| N-6710 | N | Through Hole | 150 Hz to 75 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6705 | N | Through Hole | 150 Hz to 75 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| N-6700 | N | Through Hole | 150 Hz to 75 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.5″ x 0.5″ | |
| N-6695 | N | Through Hole | 150 Hz to 75 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| N-6690 | N | Through Hole | 150 Hz to 75 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| N-6685 | N | Through Hole | 150 Hz to 75 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.5″ x 0.5″ | |
| N-6680 | N | Through Hole | 150 Hz to 75 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.65:1 | – | 0.5″ x 0.5″ | |
| N-6675 | N | Through Hole | 150 Hz to 75 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.5″ x 0.5″ | |
| N-6670 | N | Through Hole | 150 Hz to 75 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6665 | N | Through Hole | 150 Hz to 75 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6660 | N | Through Hole | 150 Hz to 75 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.5″ x 0.5″ | |
| N-6655 | N | Through Hole | 150 Hz to 75 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| N-6652 | N | Through Hole | 150 Hz to 75 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.5″ x 0.5″ | |
| N-6650 | N | Through Hole | 150 Hz to 75 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | – | 0.5″ x 0.5″ | |
| N-6645 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 10,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6640 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6635 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | – | 0.5″ x 0.5″ | |
| N-6630 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| N-6625 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.5″ x 0.5″ | |
| N-6620 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.5″ x 0.5″ | |
| N-6615 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.5″ x 0.5″ | |
| N-6610 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| N-6605 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.5″ x 0.5″ | |
| N-6600 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| N-6595 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.5″ x 0.5″ | |
| N-6590 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | – | 0.5″ x 0.5″ | |
| N-6585 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | – | 0.5″ x 0.5″ | |
| N-6580 | N | Through Hole | 150 Hz to 75 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.5″ x 0.5″ | |
| N-6575 | N | Through Hole | 150 Hz to 75 KHz | 1 | 9000 | 9000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6570 | N | Through Hole | 150 Hz to 75 KHz | 1 | 8000 | 1200 | 2.58:1 | – | – | 0.5″ x 0.5″ | |
| N-6565 | N | Through Hole | 150 Hz to 75 KHz | 1 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.5″ x 0.5″ | |
| N-6560 | N | Through Hole | 150 Hz to 75 KHz | 1 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.5″ x 0.5″ | |
| N-6555 | N | Through Hole | 150 Hz to 75 KHz | 1 | 7500 | 7500 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6550 | N | Through Hole | 150 Hz to 75 KHz | 1 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| N-6545 | N | Through Hole | 150 Hz to 75 KHz | 1 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.5″ x 0.5″ | |
| N-6540 | N | Through Hole | 150 Hz to 75 KHz | 1 | 7500 | 100 | 8.66:1 | 17.32:1 | – | 0.5″ x 0.5″ | |
| N-6535 | N | Through Hole | 150 Hz to 75 KHz | 1 | 7500 | 50 | 12.25:1 | 24.5:1 | – | 0.5″ x 0.5″ | |
| N-6530 | N | Through Hole | 150 Hz to 75 KHz | 1 | 5000 | 5000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6525 | N | Through Hole | 150 Hz to 75 KHz | 1 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| N-6520 | N | Through Hole | 150 Hz to 75 KHz | 1 | 4000 | 8000 | 1:1.41 | – | – | 0.5″ x 0.5″ | |
| N-6515 | N | Through Hole | 150 Hz to 75 KHz | 1 | 4000 | 1000 | 2:1 | 4:1 | – | 0.5″ x 0.5″ | |
| N-6514 | N | Through Hole | 150 Hz to 75 KHz | 1 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.5″ x 0.5″ | |
| N-6512 | N | Through Hole | 150 Hz to 75 KHz | 1 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.5″ x 0.5″ | |
| N-6510 | N | Through Hole | 150 Hz to 75 KHz | 1 | 3600 | 3600 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6505 | N | Through Hole | 150 Hz to 75 KHz | 1 | 3000 | 3000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6500 | N | Through Hole | 150 Hz to 75 KHz | 1 | 3000 | 3000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6497 | N | Through Hole | 150 Hz to 75 KHz | 1 | 2500 | 2500 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6495 | N | Through Hole | 150 Hz to 75 KHz | 1 | 2000 | 8000 | 1:2 | 1:1 | – | 0.5″ x 0.5″ | |
| N-6490 | N | Through Hole | 150 Hz to 75 KHz | 1 | 2000 | 2000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6485 | N | Through Hole | 150 Hz to 75 KHz | 1 | 2000 | 2000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6483 | N | Through Hole | 150 Hz to 75 KHz | 1 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.5″ x 0.5″ | |
| N-6480 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1600 | 12.8 | 11.18:1 | 22.36:1 | – | 0.5″ x 0.5″ | |
| N-6475 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1500 | 1500 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6470 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1500 | 600 | 1.58:1 | – | – | 0.5″ x 0.5″ | |
| N-6465 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| N-6460 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1500 | 12 | 11.18:1 | 22.36:1 | – | 0.5″ x 0.5″ | |
| N-6455 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1200 | 1200 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6450 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1200 | 1200 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6445 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.5″ x 0.5″ | |
| N-6440 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.5″ x 0.5″ | |
| N-6435 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.5″ x 0.5″ | |
| N-6430 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1000 | 1000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6425 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| N-6420 | N | Through Hole | 150 Hz to 75 KHz | 1 | 1000 | 12 | 9.13:1 | 18.26:1 | – | 0.5″ x 0.5″ | |
| N-6417 | N | Through Hole | 150 Hz to 75 KHz | 1 | 900 | 900 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6415 | N | Through Hole | 150 Hz to 75 KHz | 1 | 900 | 600 | 1.23:1 | 2.45:1 | – | 0.5″ x 0.5″ | |
| N-6410 | N | Through Hole | 150 Hz to 75 KHz | 1 | 800 | 800 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6405 | N | Through Hole | 150 Hz to 75 KHz | 1 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.5″ x 0.5″ | |
| N-6400 | N | Through Hole | 150 Hz to 75 KHz | 1 | 800 | 12.8 | 7.91:1 | 15.8:1 | – | 0.5″ x 0.5″ | |
| N-6395 | N | Through Hole | 150 Hz to 75 KHz | 1 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.5″ x 0.5″ | |
| N-6390 | N | Through Hole | 150 Hz to 75 KHz | 1 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.5″ x 0.5″ | |
| N-6387 | N | Through Hole | 150 Hz to 75 KHz | 1 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.5″ x 0.5″ | |
| N-6386 | N | Through Hole | 150 Hz to 75 KHz | 1 | 600 | 900 | 1:1.22 | – | – | 0.5″ x 0.5″ | |
| N-6385 | N | Through Hole | 150 Hz to 75 KHz | 1 | 600 | 600 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6380 | N | Through Hole | 150 Hz to 75 KHz | 1 | 600 | 600 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6375 | N | Through Hole | 150 Hz to 75 KHz | 1 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| N-6370 | N | Through Hole | 150 Hz to 75 KHz | 1 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.5″ x 0.5″ | |
| N-6367 | N | Through Hole | 150 Hz to 75 KHz | 1 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| N-6365 | N | Through Hole | 150 Hz to 75 KHz | 1 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.5″ x 0.5″ | |
| N-6360 | N | Through Hole | 150 Hz to 75 KHz | 1 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.5″ x 0.5″ | |
| N-6355 | N | Through Hole | 150 Hz to 75 KHz | 1 | 500 | 500 | 1:1 | – | – | 0.5″ x 0.5″ | |
| N-6350 | N | Through Hole | 150 Hz to 75 KHz | 1 | 500 | 500 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6347 | N | Through Hole | 150 Hz to 75 KHz | 1 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.5″ x 0.5″ | |
| N-6345 | N | Through Hole | 150 Hz to 75 KHz | 1 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| N-6344 | N | Through Hole | 150 Hz to 75 KHz | 1 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.5″ x 0.5″ | |
| N-6342 | N | Through Hole | 150 Hz to 75 KHz | 1 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.5″ x 0.5″ | |
| N-6340 | N | Through Hole | 150 Hz to 75 KHz | 1 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.5″ x 0.5″ | |
| N-6335 | N | Through Hole | 150 Hz to 75 KHz | 1 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.5″ x 0.5″ | |
| N-6330 | N | Through Hole | 150 Hz to 75 KHz | 1 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.5″ x 0.5″ | |
| N-6325 | N | Through Hole | 150 Hz to 75 KHz | 1 | 400 | 400 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6320 | N | Through Hole | 150 Hz to 75 KHz | 1 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| N-6315 | N | Through Hole | 150 Hz to 75 KHz | 1 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.5″ x 0.5″ | |
| N-6310 | N | Through Hole | 150 Hz to 75 KHz | 1 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| N-6305 | N | Through Hole | 150 Hz to 75 KHz | 1 | 320 | 12.8 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| N-6300 | N | Through Hole | 150 Hz to 75 KHz | 1 | 300 | 600 | 1.41:1 | 1.41:1 | – | 0.5″ x 0.5″ | |
| N-6295 | N | Through Hole | 150 Hz to 75 KHz | 1 | 300 | 300 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6290 | N | Through Hole | 150 Hz to 75 KHz | 1 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| N-6285 | N | Through Hole | 150 Hz to 75 KHz | 1 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.5″ x 0.5″ | |
| N-6280 | N | Through Hole | 150 Hz to 75 KHz | 1 | 300 | 12 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| N-6275 | N | Through Hole | 150 Hz to 75 KHz | 1 | 200 | 200 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6270 | N | Through Hole | 150 Hz to 75 KHz | 1 | 150 | 600 | 1:2 | 1:1 | – | 0.5″ x 0.5″ | |
| N-6265 | N | Through Hole | 150 Hz to 75 KHz | 1 | 150 | 150 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6260 | N | Through Hole | 150 Hz to 75 KHz | 1 | 150 | 100 | 1.22:1 | 2.44:1 | – | 0.5″ x 0.5″ | |
| N-6255 | N | Through Hole | 150 Hz to 75 KHz | 1 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| N-6250 | N | Through Hole | 150 Hz to 75 KHz | 1 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.5″ x 0.5″ | |
| N-6245 | N | Through Hole | 150 Hz to 75 KHz | 1 | 120 | 120 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6240 | N | Through Hole | 150 Hz to 75 KHz | 1 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| N-6235 | N | Through Hole | 150 Hz to 75 KHz | 1 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.5″ x 0.5″ | |
| N-6230 | N | Through Hole | 150 Hz to 75 KHz | 1 | 100 | 100 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6228 | N | Through Hole | 150 Hz to 75 KHz | 1 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.5″ x 0.5″ | |
| N-6225 | N | Through Hole | 150 Hz to 75 KHz | 1 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.5″ x 0.5″ | |
| N-6220 | N | Through Hole | 150 Hz to 75 KHz | 1 | 50 | 50 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6218 | N | Through Hole | 150 Hz to 75 KHz | 1 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| N-6215 | N | Through Hole | 150 Hz to 75 KHz | 1 | 40 | 40 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6210 | N | Through Hole | 150 Hz to 75 KHz | 1 | 32 | 32 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6205 | N | Through Hole | 150 Hz to 75 KHz | 1 | 20 | 20 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| N-6203 | N | Through Hole | 150 Hz to 75 KHz | 1 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.5″ x 0.5″ | |
| L-8815 | L | Through Hole | 300 Hz to 75 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| L-8810 | L | Through Hole | 300 Hz to 75 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.50″ x 0.35″ | |
| L-8805 | L | Through Hole | 300 Hz to 75 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.50″ x 0.35″ | |
| L-8800 | L | Through Hole | 300 Hz to 75 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.50″ x 0.35″ | |
| L-8795 | L | Through Hole | 300 Hz to 75 KHz | 0.1 | 95,000 | 15,000 | 2.52:1 | 5.03:1 | – | 0.50″ x 0.35″ | |
| L-8790 | L | Through Hole | 300 Hz to 75 KHz | 0.1 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.50″ x 0.35″ | |
| L-8787 | L | Through Hole | 300 Hz to 75 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.50″ x 0.35″ | |
| L-8785 | L | Through Hole | 300 Hz to 75 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.50″ x 0.35″ | |
| L-8780 | L | Through Hole | 300 Hz to 75 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.50″ x 0.35″ | |
| L-8779 | L | Through Hole | 300 Hz to 75 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.50″ x 0.35″ | |
| L-8777 | L | Through Hole | 300 Hz to 75 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.50″ x 0.35″ | |
| L-8775 | L | Through Hole | 300 Hz to 75 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.35″ | |
| L-8770 | L | Through Hole | 300 Hz to 75 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8765 | L | Through Hole | 300 Hz to 75 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| L-8760 | L | Through Hole | 300 Hz to 75 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| L-8755 | L | Through Hole | 300 Hz to 75 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| L-8750 | L | Through Hole | 300 Hz to 75 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.50″ x 0.35″ | |
| L-8745 | L | Through Hole | 300 Hz to 75 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8740 | L | Through Hole | 300 Hz to 75 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| L-8735 | L | Through Hole | 300 Hz to 75 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.50″ x 0.35″ | |
| L-8734 | L | Through Hole | 300 Hz to 75 KHz | 0.33 | 30,000 | 200 | 12.25:1 | 24.5:1 | – | 0.50″ x 0.35″ | |
| L-8732 | L | Through Hole | 300 Hz to 75 KHz | 0.33 | 30,000 | 500 | 7.75:1 | 15.5:1 | – | 0.50″ x 0.35″ | |
| L-8730 | L | Through Hole | 300 Hz to 75 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| L-8725 | L | Through Hole | 300 Hz to 75 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.50″ x 0.35″ | |
| L-8720 | L | Through Hole | 300 Hz to 75 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| L-8715 | L | Through Hole | 300 Hz to 75 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.35″ | |
| L-8710 | L | Through Hole | 300 Hz to 75 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8705 | L | Through Hole | 300 Hz to 75 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| L-8700 | L | Through Hole | 300 Hz to 75 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.50″ x 0.35″ | |
| L-8695 | L | Through Hole | 300 Hz to 75 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| L-8690 | L | Through Hole | 300 Hz to 75 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| L-8685 | L | Through Hole | 300 Hz to 75 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.50″ x 0.35″ | |
| L-8680 | L | Through Hole | 300 Hz to 75 KHz | 0.5 | 20,000 | 500 | 6.33:1 | 12.65:1 | – | 0.50″ x 0.35″ | |
| L-8675 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.50″ x 0.35″ | |
| L-8670 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8665 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 15,000 | 15,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8660 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.35″ | |
| L-8655 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 15,000 | 600 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| L-8652 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.50″ x 0.35″ | |
| L-8650 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 15,000 | 400 | 6.12:1 | 12.24:1 | – | 0.50″ x 0.35″ | |
| L-8645 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 10,000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8640 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8635 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 7500 | 1.15:1 | 2.3:1 | – | 0.50″ x 0.35″ | |
| L-8630 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| L-8625 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.50″ x 0.35″ | |
| L-8620 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.50″ x 0.35″ | |
| L-8615 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.50″ x 0.35″ | |
| L-8610 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| L-8605 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.50″ x 0.35″ | |
| L-8600 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| L-8595 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.35″ | |
| L-8590 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 100 | 10:1 | 20:1 | – | 0.50″ x 0.35″ | |
| L-8585 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 16 | 25:1 | 50:1 | – | 0.50″ x 0.35″ | |
| L-8580 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.50″ x 0.35″ | |
| L-8575 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 9000 | 9000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8570 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 8000 | 1200 | 2.58:1 | – | – | 0.50″ x 0.35″ | |
| L-8565 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.50″ x 0.35″ | |
| L-8560 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.50″ x 0.35″ | |
| L-8555 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 7500 | 7500 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8550 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| L-8545 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.50″ x 0.35″ | |
| L-8540 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 7500 | 100 | 8.66:1 | 17.3:1 | – | 0.50″ x 0.35″ | |
| L-8535 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 7500 | 50 | 12.2:1 | 24.5:1 | – | 0.50″ x 0.35″ | |
| L-8530 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 5000 | 5000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8525 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| L-8520 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 4000 | 8000 | 1:1.41 | – | – | 0.50″ x 0.35″ | |
| L-8515 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 4000 | 1000 | 2:1 | 4:1 | – | 0.50″ x 0.35″ | |
| L-8514 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.50″ x 0.35″ | |
| L-8512 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.35″ | |
| L-8510 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 3600 | 3600 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8505 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 3000 | 3000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8500 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 3000 | 3000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8497 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 2500 | 2500 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8495 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 2000 | 8000 | 1:2 | 1:1 | – | 0.50″ x 0.35″ | |
| L-8490 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 2000 | 2000 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8485 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 2000 | 2000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8483 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.35″ | |
| L-8480 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1600 | 12.8 | 11.2:1 | 22.4:1 | – | 0.50″ x 0.35″ | |
| L-8475 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1500 | 1500 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8470 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1500 | 600 | 1.58:1 | – | – | 0.50″ x 0.35″ | |
| L-8465 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| L-8460 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1500 | 12 | 11.2:1 | 22.4:1 | – | 0.50″ x 0.35″ | |
| L-8455 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1200 | 1200 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8450 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1200 | 1200 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8445 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.50″ x 0.35″ | |
| L-8440 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.50″ x 0.35″ | |
| L-8435 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.50″ x 0.35″ | |
| L-8430 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1000 | 1000 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8425 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| L-8420 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 1000 | 12 | 9.13:1 | 18.3:1 | – | 0.50″ x 0.35″ | |
| L-8415 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 900 | 600 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.35″ | |
| L-8410 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 800 | 800 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8405 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.50″ x 0.35″ | |
| L-8400 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 800 | 12.8 | 7.9:1 | 15.8:1 | – | 0.50″ x 0.35″ | |
| L-8395 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.50″ x 0.35″ | |
| L-8390 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.35″ | |
| L-8387 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.50″ x 0.35″ | |
| L-8385 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 600 | 600 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8380 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 600 | 600 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8375 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| L-8370 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.50″ x 0.35″ | |
| L-8367 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.35″ | |
| L-8365 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.50″ x 0.35″ | |
| L-8360 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.50″ x 0.35″ | |
| L-8355 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 500 | 500 | 1:1 | – | – | 0.50″ x 0.35″ | |
| L-8350 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 500 | 500 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8347 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.50″ x 0.35″ | |
| L-8345 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| L-8344 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.50″ x 0.35″ | |
| L-8342 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.50″ x 0.35″ | |
| L-8340 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.50″ x 0.35″ | |
| L-8335 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.50″ x 0.35″ | |
| L-8330 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.50″ x 0.35″ | |
| L-8325 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 400 | 400 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8320 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| L-8315 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.50″ x 0.35″ | |
| L-8310 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.35″ | |
| L-8305 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 320 | 12.8 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| L-8300 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.50″ x 0.35″ | |
| L-8295 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 300 | 300 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8290 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| L-8285 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.50″ x 0.35″ | |
| L-8280 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 300 | 12 | 5:1 | 10:1 | – | 0.50″ x 0.35″ | |
| L-8275 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 200 | 200 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8270 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 150 | 600 | 1:2 | 1:1 | – | 0.50″ x 0.35″ | |
| L-8265 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 150 | 150 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8260 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 150 | 100 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.35″ | |
| L-8255 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| L-8250 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.50″ x 0.35″ | |
| L-8245 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 120 | 120 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8240 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.35″ | |
| L-8235 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.50″ x 0.35″ | |
| L-8230 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 100 | 100 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8228 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.35″ | |
| L-8225 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.35″ | |
| L-8220 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 50 | 50 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8218 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.35″ | |
| L-8215 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 40 | 40 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8210 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 32 | 32 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8205 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 20 | 20 | 1:1 | 2:1 | – | 0.50″ x 0.35″ | |
| L-8203 | L | Through Hole | 300 Hz to 75 KHz | 0.6 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.35″ | |
| K-7840 | K | Insulated Leads | 150 Hz to 20 KHz | 0.04 | 250,000 | 1000 | 15.8:1 | 31.6:1 | – | 0.5″ x 0.5″ | |
| K-7837 | K | Insulated Leads | 150 Hz to 20 KHz | 0.04 | 250,000 | 200 | 35.4:1 | 70.7:1 | – | 0.5″ x 0.5″ | |
| K-7835 | K | Insulated Leads | 150 Hz to 20 KHz | 0.05 | 200,000 | 20,000 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| K-7830 | K | Insulated Leads | 150 Hz to 20 KHz | 0.05 | 200,000 | 10,000 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| K-7825 | K | Insulated Leads | 150 Hz to 20 KHz | 0.05 | 200,000 | 1000 | 14.1:1 | 28.3:1 | – | 0.5″ x 0.5″ | |
| K-7823 | K | Insulated Leads | 150 Hz to 20 KHz | 0.05 | 200,000 | 500 | 20:1 | 40:1 | – | 0.5″ x 0.5″ | |
| K-7820 | K | Insulated Leads | 150 Hz to 20 KHz | 0.074 | 135,000 | 82 | 40.6:1 | 81.2:1 | – | 0.5″ x 0.5″ | |
| K-7815 | K | Insulated Leads | 150 Hz to 20 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| K-7814 | K | Insulated Leads | 150 Hz to 20 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | – | 0.5″ x 0.5″ | |
| K-7813 | K | Insulated Leads | 150 Hz to 20 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | – | 0.5″ x 0.5″ | |
| K-7810 | K | Insulated Leads | 150 Hz to 20 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.5″ x 0.5″ | |
| K-7805 | K | Insulated Leads | 150 Hz to 20 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.5″ x 0.5″ | |
| K-7800 | K | Insulated Leads | 150 Hz to 20 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.5″ x 0.5″ | |
| K-7795 | K | Insulated Leads | 150 Hz to 20 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | – | 0.5″ x 0.5″ | |
| K-7790 | K | Insulated Leads | 150 Hz to 20 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.5″ x 0.5″ | |
| K-7789 | K | Insulated Leads | 150 Hz to 20 KHz | 0.12 | 80,000 | 80,000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7787 | K | Insulated Leads | 150 Hz to 20 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.5″ x 0.5″ | |
| K-7785 | K | Insulated Leads | 150 Hz to 20 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.5″ x 0.5″ | |
| K-7780 | K | Insulated Leads | 150 Hz to 20 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.5″ x 0.5″ | |
| K-7779 | K | Insulated Leads | 150 Hz to 20 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7778 | K | Insulated Leads | 150 Hz to 20 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.5″ x 0.5″ | |
| K-7777 | K | Insulated Leads | 150 Hz to 20 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.5″ x 0.5″ | |
| K-7775 | K | Insulated Leads | 150 Hz to 20 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.5″ x 0.5″ | |
| K-7770 | K | Insulated Leads | 150 Hz to 75 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7765 | K | Insulated Leads | 150 Hz to 75 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| K-7760 | K | Insulated Leads | 150 Hz to 75 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| K-7755 | K | Insulated Leads | 150 Hz to 75 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| K-7750 | K | Insulated Leads | 150 Hz to 75 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.5″ x 0.5″ | |
| K-7745 | K | Insulated Leads | 150 Hz to 75 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7740 | K | Insulated Leads | 150 Hz to 75 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| K-7735 | K | Insulated Leads | 150 Hz to 75 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.5″ x 0.5″ | |
| K-7734 | K | Insulated Leads | 150 Hz to 75 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | – | 0.5″ x 0.5″ | |
| K-7732 | K | Insulated Leads | 150 Hz to 75 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | – | 0.5″ x 0.5″ | |
| K-7730 | K | Insulated Leads | 150 Hz to 75 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| K-7725 | K | Insulated Leads | 150 Hz to 75 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.5″ x 0.5″ | |
| K-7720 | K | Insulated Leads | 150 Hz to 75 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| K-7715 | K | Insulated Leads | 150 Hz to 75 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.5″ x 0.5″ | |
| K-7710 | K | Insulated Leads | 150 Hz to 75 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7705 | K | Insulated Leads | 150 Hz to 75 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| K-7700 | K | Insulated Leads | 150 Hz to 75 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.5″ x 0.5″ | |
| K-7695 | K | Insulated Leads | 150 Hz to 75 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| K-7690 | K | Insulated Leads | 150 Hz to 75 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| K-7685 | K | Insulated Leads | 150 Hz to 75 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.5″ x 0.5″ | |
| K-7680 | K | Insulated Leads | 150 Hz to 75 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.65:1 | – | 0.5″ x 0.5″ | |
| K-7675 | K | Insulated Leads | 150 Hz to 75 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.5″ x 0.5″ | |
| K-7670 | K | Insulated Leads | 150 Hz to 75 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7665 | K | Insulated Leads | 150 Hz to 75 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7660 | K | Insulated Leads | 150 Hz to 75 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.5″ x 0.5″ | |
| K-7655 | K | Insulated Leads | 150 Hz to 75 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| K-7652 | K | Insulated Leads | 150 Hz to 75 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.5″ x 0.5″ | |
| K-7650 | K | Insulated Leads | 150 Hz to 75 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | – | 0.5″ x 0.5″ | |
| K-7645 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 10,000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7640 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7635 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | – | 0.5″ x 0.5″ | |
| K-7630 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| K-7625 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.5″ x 0.5″ | |
| K-7620 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.5″ x 0.5″ | |
| K-7615 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.5″ x 0.5″ | |
| K-7610 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| K-7605 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.5″ x 0.5″ | |
| K-7600 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| K-7595 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.5″ x 0.5″ | |
| K-7590 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | – | 0.5″ x 0.5″ | |
| K-7585 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | – | 0.5″ x 0.5″ | |
| K-7580 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.5″ x 0.5″ | |
| K-7575 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 9000 | 9000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7570 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 8000 | 1200 | 2.58:1 | – | – | 0.5″ x 0.5″ | |
| K-7565 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.5″ x 0.5″ | |
| K-7560 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.5″ x 0.5″ | |
| K-7555 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 7500 | 7500 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7550 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| K-7545 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.5″ x 0.5″ | |
| K-7540 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 7500 | 100 | 8.66:1 | 17.32:1 | – | 0.5″ x 0.5″ | |
| K-7535 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 7500 | 50 | 12.25:1 | 24.5:1 | – | 0.5″ x 0.5″ | |
| K-7530 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 5000 | 5000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7525 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| K-7520 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 4000 | 8000 | 1:1.41 | – | – | 0.5″ x 0.5″ | |
| K-7515 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 4000 | 1000 | 2:1 | 4:1 | – | 0.5″ x 0.5″ | |
| K-7514 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.5″ x 0.5″ | |
| K-7512 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.5″ x 0.5″ | |
| K-7510 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 3600 | 3600 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7505 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 3000 | 3000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7500 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 3000 | 3000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7497 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 2500 | 2500 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7495 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 2000 | 8000 | 1:2 | 1:1 | – | 0.5″ x 0.5″ | |
| K-7490 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 2000 | 2000 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7485 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 2000 | 2000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7483 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.5″ x 0.5″ | |
| K-7480 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1600 | 12.8 | 11.18:1 | 22.36:1 | – | 0.5″ x 0.5″ | |
| K-7475 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1500 | 1500 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7470 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1500 | 600 | 1.58:1 | – | – | 0.5″ x 0.5″ | |
| K-7465 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| K-7460 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1500 | 12 | 11.18:1 | 22.36:1 | – | 0.5″ x 0.5″ | |
| K-7455 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1200 | 1200 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7450 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1200 | 1200 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7445 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.5″ x 0.5″ | |
| K-7440 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.5″ x 0.5″ | |
| K-7435 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.5″ x 0.5″ | |
| K-7430 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1000 | 1000 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7425 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| K-7420 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 1000 | 12 | 9.13:1 | 18.26:1 | – | 0.5″ x 0.5″ | |
| K-7417 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 900 | 900 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7415 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 900 | 600 | 1.23:1 | 2.45:1 | – | 0.5″ x 0.5″ | |
| K-7410 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 800 | 800 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7405 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.5″ x 0.5″ | |
| K-7400 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 800 | 12.8 | 7.91:1 | 15.8:1 | – | 0.5″ x 0.5″ | |
| K-7395 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.5″ x 0.5″ | |
| K-7390 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.5″ x 0.5″ | |
| K-7387 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.5″ x 0.5″ | |
| K-7386 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 600 | 900 | 1:1.22 | – | – | 0.5″ x 0.5″ | |
| K-7385 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 600 | 600 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7380 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 600 | 600 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7375 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| K-7370 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.5″ x 0.5″ | |
| K-7367 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.5″ x 0.5″ | |
| K-7365 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.5″ x 0.5″ | |
| K-7360 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.5″ x 0.5″ | |
| K-7355 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 500 | 500 | 1:1 | – | – | 0.5″ x 0.5″ | |
| K-7350 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 500 | 500 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7347 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.5″ x 0.5″ | |
| K-7345 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| K-7344 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.5″ x 0.5″ | |
| K-7342 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.5″ x 0.5″ | |
| K-7340 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.5″ x 0.5″ | |
| K-7335 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.5″ x 0.5″ | |
| K-7330 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.5″ x 0.5″ | |
| K-7325 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 400 | 400 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7320 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| K-7315 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.5″ x 0.5″ | |
| K-7310 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.5″ x 0.5″ | |
| K-7305 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 320 | 12.8 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| K-7300 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 300 | 600 | 1.41:1 | 1.41:1 | – | 0.5″ x 0.5″ | |
| K-7295 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 300 | 300 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7290 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| K-7285 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.5″ x 0.5″ | |
| K-7280 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 300 | 12 | 5:1 | 10:1 | – | 0.5″ x 0.5″ | |
| K-7275 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 200 | 200 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7270 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 150 | 600 | 1:2 | 1:1 | – | 0.5″ x 0.5″ | |
| K-7265 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 150 | 150 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7260 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 150 | 100 | 1.22:1 | 2.44:1 | – | 0.5″ x 0.5″ | |
| K-7255 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| K-7250 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.5″ x 0.5″ | |
| K-7245 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 120 | 120 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7240 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.5″ x 0.5″ | |
| K-7235 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.5″ x 0.5″ | |
| K-7230 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 100 | 100 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7228 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.5″ x 0.5″ | |
| K-7225 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.5″ x 0.5″ | |
| K-7220 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 50 | 50 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7218 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.5″ x 0.5″ | |
| K-7215 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 40 | 40 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7210 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 32 | 32 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7205 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 20 | 20 | 1:1 | 2:1 | – | 0.5″ x 0.5″ | |
| K-7203 | K | Insulated Leads | 150 Hz to 75 KHz | 1 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.5″ x 0.5″ | |
| G-29570 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| G-29565 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.25″ x 0.25″ | |
| G-29560 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.25″ x 0.25″ | |
| G-29555 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 20,000 | 800 | 5:1 | 10:1 | – | 0.25″ x 0.25″ | |
| G-29550 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.25″ x 0.25″ | |
| G-29545 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 20,000 | 500 | 6.33:1 | 12.65:1 | – | 0.25″ x 0.25″ | |
| G-29540 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.25″ x 0.25″ | |
| G-29535 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29530 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 15,000 | 15,000 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29525 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.25″ x 0.25″ | |
| G-29520 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 15,000 | 600 | 5:1 | 10:1 | – | 0.25″ x 0.25″ | |
| G-29515 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.25″ x 0.25″ | |
| G-29510 | G | Insulated Leads | 400 Hz to 250 KHz | 0.1 | 15,000 | 400 | 6.12:1 | 12.24:1 | – | 0.25″ x 0.25″ | |
| G-29505 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 10,000 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29500 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 10,000 | 1:1 | 2.1 | – | 0.25″ x 0.25″ | |
| G-29495 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 7500 | 1.15:1 | 2.3:1 | – | 0.25″ x 0.25″ | |
| G-29490 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| G-29485 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.25″ x 0.25″ | |
| G-29480 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.25″ x 0.25″ | |
| G-29475 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 1200 | 2.88:1 | 5.77:1 | – | 0.25″ x 0.25″ | |
| G-29470 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.25″ x 0.25″ | |
| G-29465 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.25″ x 0.25″ | |
| G-29460 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.25″ x 0.25″ | |
| G-29455 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.25″ x 0.25″ | |
| G-29450 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 100 | 10:1 | 20:1 | – | 0.25″ x 0.25″ | |
| G-29445 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 16 | 25:1 | 50:1 | – | 0.25″ x 0.25″ | |
| G-29440 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.25″ x 0.25″ | |
| G-29435 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 9000 | 9000 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29430 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 8000 | 1200 | 2.58:1 | – | – | 0.25″ x 0.25″ | |
| G-29425 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.25″ x 0.25″ | |
| G-29420 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.25″ x 0.25″ | |
| G-29415 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 7500 | 7500 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29410 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| G-29405 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.25″ x 0.25″ | |
| G-29400 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 7500 | 100 | 8.66:1 | 17.3:1 | – | 0.25″ x 0.25″ | |
| G-29395 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 7500 | 50 | 12.2:1 | 24.5:1 | – | 0.25″ x 0.25″ | |
| G-29390 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 5000 | 5000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29385 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.25″ x 0.25″ | |
| G-29380 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 4000 | 8000 | 1:1.41 | – | – | 0.25″ x 0.25″ | |
| G-29375 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 4000 | 1000 | 2:1 | 4:1 | – | 0.25″ x 0.25″ | |
| G-29370 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.25″ x 0.25″ | |
| G-29365 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.25″ x 0.25″ | |
| G-29360 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 3600 | 3600 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29355 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 3000 | 3000 | 1:1 | – | 0.25″ x 0.25″ | ||
| G-29350 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 3000 | 3000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29345 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 2500 | 2500 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29340 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 2000 | 8000 | 1:2 | 1:1 | – | 0.25″ x 0.25″ | |
| G-29335 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 2000 | 2000 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29330 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 2000 | 2000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29325 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.25″ x 0.25″ | |
| G-29320 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1600 | 12.8 | 11.2:1 | 22.4:1 | – | 0.25″ x 0.25″ | |
| G-29315 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1500 | 1500 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29310 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1500 | 600 | 1.58:1 | – | – | 0.25″ x 0.25″ | |
| G-29305 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| G-29300 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1500 | 12 | 11.2:1 | 22.4:1 | – | 0.25″ x 0.25″ | |
| G-29295 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1200 | 1200 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29290 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1200 | 1200 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29285 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.25″ x 0.25″ | |
| G-29280 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.25″ x 0.25″ | |
| G-29275 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.25″ x 0.25″ | |
| G-29270 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1000 | 1000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29265 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.25″ x 0.25″ | |
| G-29260 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 1000 | 12 | 9.13:1 | 18.3:1 | – | 0.25″ x 0.25″ | |
| G-29255 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 900 | 600 | 1.22:1 | 2.45:1 | – | 0.25″ x 0.25″ | |
| G-29250 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 800 | 800 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29245 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.25″ x 0.25″ | |
| G-29240 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 800 | 12.8 | 7.9:1 | 15.8:1 | – | 0.25″ x 0.25″ | |
| G-29235 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.25″ x 0.25″ | |
| G-29230 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.25″ x 0.25″ | |
| G-29225 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.25″ x 0.25″ | |
| G-29220 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 600 | 600 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29215 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 600 | 600 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29210 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| G-29205 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.25″ x 0.25″ | |
| G-29200 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.25″ x 0.25″ | |
| G-29195 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.25″ x 0.25″ | |
| G-29190 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.25″ x 0.25″ | |
| G-29185 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 500 | 500 | 1:1 | – | – | 0.25″ x 0.25″ | |
| G-29180 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 500 | 500 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29175 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.25″ x 0.25″ | |
| G-29170 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.25″ x 0.25″ | |
| G-29165 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.25″ x 0.25″ | |
| G-29160 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.25″ x 0.25″ | |
| G-29155 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.25″ x 0.25″ | |
| G-29150 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.25″ x 0.25″ | |
| G-29145 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.25″ x 0.25″ | |
| G-29140 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 400 | 400 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29135 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| G-29130 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.25″ x 0.25″ | |
| G-29125 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.25″ x 0.25″ | |
| G-29120 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 320 | 12.8 | 5:1 | 10:1 | – | 0.25″ x 0.25″ | |
| G-29115 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.25″ x 0.25″ | |
| G-29110 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 300 | 300 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29105 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| G-29100 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.25″ x 0.25″ | |
| G-29095 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 300 | 12 | 5:1 | 10:1 | – | 0.25″ x 0.25″ | |
| G-29090 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 200 | 200 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29085 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 150 | 600 | 1:2 | 1:1 | – | 0.25″ x 0.25″ | |
| G-29080 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 150 | 150 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29075 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 150 | 100 | 1.22:1 | 2.45:1 | – | 0.25″ x 0.25″ | |
| G-29070 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| G-29065 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 150 | 12 | 3.54:1 | 7.07:1 | – | 0.25″ x 0.25″ | |
| G-29060 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 120 | 120 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29055 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| G-29050 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.25″ x 0.25″ | |
| G-29045 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 100 | 100 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29040 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.25″ x 0.25″ | |
| G-29035 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.25″ x 0.25″ | |
| G-29030 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 50 | 50 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29025 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| G-29020 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 40 | 40 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29015 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 32 | 32 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29010 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 20 | 20 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| G-29005 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.25″ x 0.25″ | |
| G-29003 | G | Insulated Leads | 400 Hz to 250 KHz | 0.125 | 10 | 10 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28570 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| F-28565 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.25″ x 0.25″ | |
| F-28560 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.25″ x 0.25″ | |
| F-28555 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 20,000 | 800 | 5:1 | 10:1 | – | 0.25″ x 0.25″ | |
| F-28550 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.25″ x 0.25″ | |
| F-28545 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 20,000 | 500 | 6.33:1 | 12.65:1 | – | 0.25″ x 0.25″ | |
| F-28540 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.25″ x 0.25″ | |
| F-28535 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28530 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 15,000 | 15,000 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28525 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.25″ x 0.25″ | |
| F-28520 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 15,000 | 600 | 5:1 | 10:1 | – | 0.25″ x 0.25″ | |
| F-28515 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.25″ x 0.25″ | |
| F-28510 | F | Through Hole | 400 Hz to 250 KHz | 0.1 | 15,000 | 400 | 6.12:1 | 12.24:1 | – | 0.25″ x 0.25″ | |
| F-28505 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 10,000 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28500 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 10,000 | 1:1 | 2.1 | – | 0.25″ x 0.25″ | |
| F-28495 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 7500 | 1.15:1 | 2.3:1 | – | 0.25″ x 0.25″ | |
| F-28490 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| F-28485 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.25″ x 0.25″ | |
| F-28480 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.25″ x 0.25″ | |
| F-28475 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 1200 | 2.88:1 | 5.77:1 | – | 0.25″ x 0.25″ | |
| F-28470 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.25″ x 0.25″ | |
| F-28465 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.25″ x 0.25″ | |
| F-28460 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.25″ x 0.25″ | |
| F-28455 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.25″ x 0.25″ | |
| F-28450 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 100 | 10:1 | 20:1 | – | 0.25″ x 0.25″ | |
| F-28445 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 16 | 25:1 | 50:1 | – | 0.25″ x 0.25″ | |
| F-28440 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.25″ x 0.25″ | |
| F-28435 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 9000 | 9000 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28430 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 8000 | 1200 | 2.58:1 | – | – | 0.25″ x 0.25″ | |
| F-28425 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.25″ x 0.25″ | |
| F-28420 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.25″ x 0.25″ | |
| F-28415 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 7500 | 7500 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28410 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| F-28405 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.25″ x 0.25″ | |
| F-28400 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 7500 | 100 | 8.66:1 | 17.3:1 | – | 0.25″ x 0.25″ | |
| F-28395 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 7500 | 50 | 12.2:1 | 24.5:1 | – | 0.25″ x 0.25″ | |
| F-28390 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 5000 | 5000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28385 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.25″ x 0.25″ | |
| F-28380 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 4000 | 8000 | 1:1.41 | – | – | 0.25″ x 0.25″ | |
| F-28375 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 4000 | 1000 | 2:1 | 4:1 | – | 0.25″ x 0.25″ | |
| F-28370 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.25″ x 0.25″ | |
| F-28365 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.25″ x 0.25″ | |
| F-28360 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 3600 | 3600 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28355 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 3000 | 3000 | 1:1 | – | 0.25″ x 0.25″ | ||
| F-28350 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 3000 | 3000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28345 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 2500 | 2500 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28340 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 2000 | 8000 | 1:2 | 1:1 | – | 0.25″ x 0.25″ | |
| F-28335 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 2000 | 2000 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28330 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 2000 | 2000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28325 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.25″ x 0.25″ | |
| F-28320 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1600 | 12.8 | 11.2:1 | 22.4:1 | – | 0.25″ x 0.25″ | |
| F-28315 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1500 | 1500 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28310 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1500 | 600 | 1.58:1 | – | – | 0.25″ x 0.25″ | |
| F-28305 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| F-28300 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1500 | 12 | 11.2:1 | 22.4:1 | – | 0.25″ x 0.25″ | |
| F-28295 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1200 | 1200 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28290 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1200 | 1200 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28285 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.25″ x 0.25″ | |
| F-28280 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.25″ x 0.25″ | |
| F-28275 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.25″ x 0.25″ | |
| F-28270 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1000 | 1000 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28265 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.25″ x 0.25″ | |
| F-28260 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 1000 | 12 | 9.13:1 | 18.3:1 | – | 0.25″ x 0.25″ | |
| F-28255 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 900 | 600 | 1.22:1 | 2.45:1 | – | 0.25″ x 0.25″ | |
| F-28250 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 800 | 800 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28245 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.25″ x 0.25″ | |
| F-28240 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 800 | 12.8 | 7.9:1 | 15.8:1 | – | 0.25″ x 0.25″ | |
| F-28235 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.25″ x 0.25″ | |
| F-28230 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.25″ x 0.25″ | |
| F-28225 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.25″ x 0.25″ | |
| F-28220 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 600 | 600 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28215 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 600 | 600 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28210 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| F-28205 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.25″ x 0.25″ | |
| F-28200 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.25″ x 0.25″ | |
| F-28195 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.25″ x 0.25″ | |
| F-28190 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.25″ x 0.25″ | |
| F-28185 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 500 | 500 | 1:1 | – | – | 0.25″ x 0.25″ | |
| F-28180 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 500 | 500 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28175 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.25″ x 0.25″ | |
| F-28170 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.25″ x 0.25″ | |
| F-28165 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.25″ x 0.25″ | |
| F-28160 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.25″ x 0.25″ | |
| F-28155 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.25″ x 0.25″ | |
| F-28150 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.25″ x 0.25″ | |
| F-28145 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.25″ x 0.25″ | |
| F-28140 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 400 | 400 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28135 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| F-28130 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.25″ x 0.25″ | |
| F-28125 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.25″ x 0.25″ | |
| F-28120 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 320 | 12.8 | 5:1 | 10:1 | – | 0.25″ x 0.25″ | |
| F-28115 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.25″ x 0.25″ | |
| F-28110 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 300 | 300 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28105 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| F-28100 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.25″ x 0.25″ | |
| F-28095 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 300 | 12 | 5:1 | 10:1 | – | 0.25″ x 0.25″ | |
| F-28090 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 200 | 200 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28085 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 150 | 600 | 1:2 | 1:1 | – | 0.25″ x 0.25″ | |
| F-28080 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 150 | 150 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28075 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 150 | 100 | 1.22:1 | 2.45:1 | – | 0.25″ x 0.25″ | |
| F-28070 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| F-28065 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 150 | 12 | 3.54:1 | 7.07:1 | – | 0.25″ x 0.25″ | |
| F-28060 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 120 | 120 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28055 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.25″ x 0.25″ | |
| F-28050 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.25″ x 0.25″ | |
| F-28045 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 100 | 100 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28040 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.25″ x 0.25″ | |
| F-28035 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.25″ x 0.25″ | |
| F-28030 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 50 | 50 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28025 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.25″ x 0.25″ | |
| F-28020 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 40 | 40 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28015 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 32 | 32 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28010 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 20 | 20 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| F-28005 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.25″ x 0.25″ | |
| F-28003 | F | Through Hole | 400 Hz to 250 KHz | 0.125 | 10 | 10 | 1:1 | 2:1 | – | 0.25″ x 0.25″ | |
| CSS620 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.07 | 135,000 | 82 | 40.6:1 | 81.2:1 | – | 0.75″ x 0.56″ | |
| CSS615 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.56″ | |
| CSS614 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.56″ | |
| CSS613 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | – | 0.75″ x 0.56″ | |
| CSS610 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.75″ x 0.56″ | |
| CSS605 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.75″ x 0.56″ | |
| CSS600 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.75″ x 0.56″ | |
| CSS595 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | – | 0.75″ x 0.56″ | |
| CSS590 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.75″ x 0.56″ | |
| CSS587 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.75″ x 0.56″ | |
| CSS585 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.75″ x 0.56″ | |
| CSS580 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.75″ x 0.56″ | |
| CSS579 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS578 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.56″ | |
| CSS577 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.75″ x 0.56″ | |
| CSS575 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.56″ | |
| CSS570 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS565 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.56″ | |
| CSS560 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.56″ | |
| CSS555 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.56″ | |
| CSS550 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.75″ x 0.56″ | |
| CSS545 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS540 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.56″ | |
| CSS535 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.56″ | |
| CSS534 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | – | 0.75″ x 0.56″ | |
| CSS532 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | – | 0.75″ x 0.56″ | |
| CSS530 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.75″ x 0.56″ | |
| CSS525 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.75″ x 0.56″ | |
| CSS520 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.75″ x 0.56″ | |
| CSS515 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.56″ | |
| CSS510 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS505 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.56″ | |
| CSS500 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.75″ x 0.56″ | |
| CSS495 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.56″ | |
| CSS490 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.75″ x 0.56″ | |
| CSS485 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.75″ x 0.56″ | |
| CSS480 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.65:1 | – | 0.75″ x 0.56″ | |
| CSS475 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.75″ x 0.56″ | |
| CSS470 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS465 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 15,000 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS460 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.75″ x 0.56″ | |
| CSS455 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 600 | 5:1 | 10:1 | – | 0.75″ x 0.56″ | |
| CSS452 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.75″ x 0.56″ | |
| CSS450 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 400 | 6.12:1 | 12.25:1 | – | 0.75″ x 0.56″ | |
| CSS445 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS440 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS435 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | – | 0.75″ x 0.56″ | |
| CSS430 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 5000 | 1.41:1 | 1.83:1 | – | 0.75″ x 0.56″ | |
| CSS425 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.75″ x 0.56″ | |
| CSS420 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.56″ | |
| CSS415 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.75″ x 0.56″ | |
| CSS410 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.56″ | |
| CSS405 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.56″ | |
| CSS400 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.56″ | |
| CSS395 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.56″ | |
| CSS390 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | – | 0.75″ x 0.56″ | |
| CSS385 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | – | 0.75″ x 0.56″ | |
| CSS380 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.75″ x 0.56″ | |
| CSS375 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.1 | 9000 | 9000 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS370 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.2 | 8000 | 1200 | 2.58:1 | – | – | 0.75″ x 0.56″ | |
| CSS365 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.2 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.75″ x 0.56″ | |
| CSS360 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.2 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.75″ x 0.56″ | |
| CSS355 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 7500 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS350 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.56″ | |
| CSS345 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.56″ | |
| CSS340 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 100 | 8.66:1 | 17.32:1 | – | 0.75″ x 0.56″ | |
| CSS335 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 50 | 12.25:1 | 24.5:1 | – | 0.75″ x 0.56″ | |
| CSS330 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 5000 | 5000 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS325 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.56″ | |
| CSS320 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 4000 | 8000 | 1:1.41 | – | – | 0.75″ x 0.56″ | |
| CSS315 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 4000 | 1000 | 2:1 | 4:1 | – | 0.75″ x 0.56″ | |
| CSS314 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.56″ | |
| CSS312 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.56″ | |
| CSS310 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 3600 | 3600 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS305 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 3000 | 3000 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS300 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 3000 | 3000 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS297 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2500 | 2500 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS295 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2000 | 8000 | 1:2 | 1:1 | – | 0.75″ x 0.56″ | |
| CSS290 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2000 | 2000 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS285 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2000 | 2000 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS283 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.56″ | |
| CSS280 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1600 | 12.8 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.56″ | |
| CSS275 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1500 | 1500 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS270 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1500 | 600 | 1.58:1 | – | – | 0.75″ x 0.56″ | |
| CSS265 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.56″ | |
| CSS260 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1500 | 12 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.56″ | |
| CSS255 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1200 | 1200 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS250 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1200 | 1200 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS245 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.75″ x 0.56″ | |
| CSS240 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.75″ x 0.56″ | |
| CSS235 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.75″ x 0.56″ | |
| CSS230 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1000 | 1000 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS225 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.56″ | |
| CSS220 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1000 | 12 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.56″ | |
| CSS217 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 900 | 900 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS215 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 900 | 600 | 1.23:1 | 2.45:1 | – | 0.75″ x 0.56″ | |
| CSS210 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 800 | 800 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS205 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.56″ | |
| CSS200 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 800 | 12.8 | 7.91:1 | 15.8:1 | – | 0.75″ x 0.56″ | |
| CSS195 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.75″ x 0.56″ | |
| CSS190 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.56″ | |
| CSS187 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.56″ | |
| CSS186 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 900 | 1:1.22 | – | – | 0.75″ x 0.56″ | |
| CSS185 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 600 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS180 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 600 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS175 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.56″ | |
| CSS170 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.56″ | |
| CSS167 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.56″ | |
| CSS165 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.75″ x 0.56″ | |
| CSS160 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.75″ x 0.56″ | |
| CSS155 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 500 | 1:1 | – | – | 0.75″ x 0.56″ | |
| CSS150 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 500 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS147 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.56″ | |
| CSS145 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.56″ | |
| CSS144 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.75″ x 0.56″ | |
| CSS142 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.75″ x 0.56″ | |
| CSS140 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.75″ x 0.56″ | |
| CSS135 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.75″ x 0.56″ | |
| CSS130 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.75″ x 0.56″ | |
| CSS125 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 400 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS120 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.56″ | |
| CSS115 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.56″ | |
| CSS110 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.56″ | |
| CSS105 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 320 | 12.8 | 5:1 | 10:1 | – | 0.75″ x 0.56″ | |
| CSS100 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.56″ | |
| CSS095 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 300 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS090 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.56″ | |
| CSS085 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.56″ | |
| CSS080 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 12 | 5:1 | 10:1 | – | 0.75″ x 0.56″ | |
| CSS075 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 200 | 200 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS070 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 600 | 1:2 | 1:1 | – | 0.75″ x 0.56″ | |
| CSS065 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 150 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS060 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 100 | 1.22:1 | 2.44:1 | – | 0.75″ x 0.56″ | |
| CSS055 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.56″ | |
| CSS050 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.75″ x 0.56″ | |
| CSS045 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 120 | 120 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS040 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.56″ | |
| CSS035 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.75″ x 0.56″ | |
| CSS030 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 100 | 100 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS028 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.56″ | |
| CSS025 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.56″ | |
| CSS020 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 50 | 50 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS018 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.56″ | |
| CSS015 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 40 | 40 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS010 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 32 | 32 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS005 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 20 | 20 | 1:1 | 2:1 | – | 0.75″ x 0.56″ | |
| CSS003 | CSS | Round SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.56″ | |
| CSR620 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.07 | 135,000 | 82 | 40.6:1 | 81.2:1 | – | 0.75″ x 0.42″ | |
| CSR615 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.42″ | |
| CSR614 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.42″ | |
| CSR613 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | – | 0.75″ x 0.42″ | |
| CSR610 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.75″ x 0.42″ | |
| CSR605 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.75″ x 0.42″ | |
| CSR600 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.75″ x 0.42″ | |
| CSR595 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | – | 0.75″ x 0.42″ | |
| CSR590 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.75″ x 0.42″ | |
| CSR587 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.75″ x 0.42″ | |
| CSR585 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.75″ x 0.42″ | |
| CSR580 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.75″ x 0.42″ | |
| CSR579 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR578 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.42″ | |
| CSR577 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.75″ x 0.42″ | |
| CSR575 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.42″ | |
| CSR570 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR565 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.42″ | |
| CSR560 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.42″ | |
| CSR555 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.42″ | |
| CSR550 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.75″ x 0.42″ | |
| CSR545 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR540 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.42″ | |
| CSR535 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.42″ | |
| CSR534 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | – | 0.75″ x 0.42″ | |
| CSR532 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | – | 0.75″ x 0.42″ | |
| CSR530 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.75″ x 0.42″ | |
| CSR525 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.75″ x 0.42″ | |
| CSR520 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.75″ x 0.42″ | |
| CSR515 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.42″ | |
| CSR510 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR505 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.42″ | |
| CSR500 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.75″ x 0.42″ | |
| CSR495 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.42″ | |
| CSR490 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.75″ x 0.42″ | |
| CSR485 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.75″ x 0.42″ | |
| CSR480 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.65:1 | – | 0.75″ x 0.42″ | |
| CSR475 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.75″ x 0.42″ | |
| CSR470 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR465 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR460 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.75″ x 0.42″ | |
| CSR455 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | – | 0.75″ x 0.42″ | |
| CSR452 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.75″ x 0.42″ | |
| CSR450 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | – | 0.75″ x 0.42″ | |
| CSR445 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR440 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR435 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | – | 0.75″ x 0.42″ | |
| CSR430 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.42″ | |
| CSR425 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.75″ x 0.42″ | |
| CSR420 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.42″ | |
| CSR415 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.75″ x 0.42″ | |
| CSR410 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.42″ | |
| CSR405 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.42″ | |
| CSR400 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.42″ | |
| CSR395 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.42″ | |
| CSR390 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | – | 0.75″ x 0.42″ | |
| CSR385 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | – | 0.75″ x 0.42″ | |
| CSR380 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.75″ x 0.42″ | |
| CSR375 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.1 | 9000 | 9000 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR370 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.2 | 8000 | 1200 | 2.58:1 | – | – | 0.75″ x 0.42″ | |
| CSR365 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.2 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.75″ x 0.42″ | |
| CSR360 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.2 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.75″ x 0.42″ | |
| CSR355 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 7500 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR350 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.42″ | |
| CSR345 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.42″ | |
| CSR340 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 100 | 8.66:1 | 17.32:1 | – | 0.75″ x 0.42″ | |
| CSR335 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 50 | 12.25:1 | 24.5:1 | – | 0.75″ x 0.42″ | |
| CSR330 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 5000 | 5000 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR325 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.42″ | |
| CSR320 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 4000 | 8000 | 1:1.41 | – | – | 0.75″ x 0.42″ | |
| CSR315 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 4000 | 1000 | 2:1 | 4:1 | – | 0.75″ x 0.42″ | |
| CSR314 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.75″ x 0.42″ | |
| CSR312 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 4000 | 16 | 15.8:1 | 31.62:1 | – | 0.75″ x 0.42″ | |
| CSR310 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 3600 | 3600 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR305 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 3000 | 3000 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR300 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 3000 | 3000 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR297 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2500 | 2500 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR295 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2000 | 8000 | 1:2 | 1:1 | – | 0.75″ x 0.42″ | |
| CSR290 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2000 | 2000 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR285 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2000 | 2000 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR283 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.75″ x 0.42″ | |
| CSR280 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1600 | 12.8 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.42″ | |
| CSR275 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1500 | 1500 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR270 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1500 | 600 | 1.58:1 | – | – | 0.75″ x 0.42″ | |
| CSR265 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.42″ | |
| CSR260 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1500 | 12 | 11.18:1 | 22.36:1 | – | 0.75″ x 0.42″ | |
| CSR255 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1200 | 1200 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR250 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1200 | 1200 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR245 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.75″ x 0.42″ | |
| CSR240 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.75″ x 0.42″ | |
| CSR235 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.75″ x 0.42″ | |
| CSR230 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1000 | 1000 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR225 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.42″ | |
| CSR220 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1000 | 12 | 9.13:1 | 18.26:1 | – | 0.75″ x 0.42″ | |
| CSR217 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 900 | 900 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR215 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 900 | 600 | 1.23:1 | 2.45:1 | – | 0.75″ x 0.42″ | |
| CSR210 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 800 | 800 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR205 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.75″ x 0.42″ | |
| CSR200 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 800 | 12.8 | 7.91:1 | 15.8:1 | – | 0.75″ x 0.42″ | |
| CSR195 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.75″ x 0.42″ | |
| CSR190 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.75″ x 0.42″ | |
| CSR187 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.42″ | |
| CSR186 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 900 | 1:1.22 | – | – | 0.75″ x 0.42″ | |
| CSR185 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 600 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR180 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 600 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR175 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.42″ | |
| CSR170 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.75″ x 0.42″ | |
| CSR167 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.75″ x 0.42″ | |
| CSR165 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.75″ x 0.42″ | |
| CSR160 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.75″ x 0.42″ | |
| CSR155 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 500 | 1:1 | – | – | 0.75″ x 0.42″ | |
| CSR150 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 500 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR147 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.42″ | |
| CSR145 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.42″ | |
| CSR144 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.75″ x 0.42″ | |
| CSR142 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.75″ x 0.42″ | |
| CSR140 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.75″ x 0.42″ | |
| CSR135 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.75″ x 0.42″ | |
| CSR130 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.75″ x 0.42″ | |
| CSR125 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 400 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR120 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.42″ | |
| CSR115 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.75″ x 0.42″ | |
| CSR110 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.75″ x 0.42″ | |
| CSR105 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 320 | 12.8 | 5:1 | 10:1 | – | 0.75″ x 0.42″ | |
| CSR100 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.75″ x 0.42″ | |
| CSR095 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 300 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR090 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.42″ | |
| CSR085 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.75″ x 0.42″ | |
| CSR080 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 12 | 5:1 | 10:1 | – | 0.75″ x 0.42″ | |
| CSR075 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 200 | 200 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR070 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 600 | 1:2 | 1:1 | – | 0.75″ x 0.42″ | |
| CSR065 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 150 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR060 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 100 | 1.22:1 | 2.44:1 | – | 0.75″ x 0.42″ | |
| CSR055 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.42″ | |
| CSR050 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.75″ x 0.42″ | |
| CSR045 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 120 | 120 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR040 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.75″ x 0.42″ | |
| CSR035 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.75″ x 0.42″ | |
| CSR030 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 100 | 100 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR028 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.42″ | |
| CSR025 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.42″ | |
| CSR020 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 50 | 50 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR018 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.75″ x 0.42″ | |
| CSR015 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 40 | 40 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR010 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 32 | 32 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR005 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 20 | 20 | 1:1 | 2:1 | – | 0.75″ x 0.42″ | |
| CSR003 | CSR | Round SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.75″ x 0.42″ | |
| CSN840 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.04 | 250,000 | 1000 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.53″ | |
| CSN837 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.04 | 250,000 | 200 | 35.4:1 | 70.7:1 | – | 0.50″ x 0.53″ | |
| CSN835 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.05 | 200,000 | 20,000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.53″ | |
| CSN830 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.05 | 200,000 | 10,000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.53″ | |
| CSN825 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.05 | 200,000 | 1000 | 14.1:1 | 28.3:1 | – | 0.50″ x 0.53″ | |
| CSN823 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.05 | 200,000 | 500 | 20:1 | 40:1 | – | 0.50″ x 0.53″ | |
| CSN820 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.074 | 135,000 | 82 | 40.6:1 | 81.2:1 | – | 0.50″ x 0.53″ | |
| CSN815 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.53″ | |
| CSN814 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.53″ | |
| CSN813 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | – | 0.50″ x 0.53″ | |
| CSN810 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.50″ x 0.53″ | |
| CSN805 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.50″ x 0.53″ | |
| CSN800 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.50″ x 0.53″ | |
| CSN795 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | – | 0.50″ x 0.53″ | |
| CSN790 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.50″ x 0.53″ | |
| CSN789 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.12 | 80,000 | 80,000 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN787 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.50″ x 0.53″ | |
| CSN785 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.50″ x 0.53″ | |
| CSN780 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.50″ x 0.53″ | |
| CSN779 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN778 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.50″ x 0.53″ | |
| CSN777 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.50″ x 0.53″ | |
| CSN775 | CSN | Round SMT – Gull Lead | 150 Hz to 20 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.53″ | |
| CSN770 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN765 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.53″ | |
| CSN760 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.53″ | |
| CSN755 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.53″ | |
| CSN750 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.50″ x 0.53″ | |
| CSN745 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN740 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.53″ | |
| CSN735 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.50″ x 0.53″ | |
| CSN734 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | – | 0.50″ x 0.53″ | |
| CSN732 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | – | 0.50″ x 0.53″ | |
| CSN730 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.50″ x 0.53″ | |
| CSN725 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.50″ x 0.53″ | |
| CSN720 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.50″ x 0.53″ | |
| CSN715 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.53″ | |
| CSN710 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN705 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.53″ | |
| CSN700 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.50″ x 0.53″ | |
| CSN695 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.53″ | |
| CSN690 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.50″ x 0.53″ | |
| CSN685 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.50″ x 0.53″ | |
| CSN680 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12:65:1 | – | 0.50″ x 0.53″ | |
| CSN675 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.50″ x 0.53″ | |
| CSN670 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN665 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN660 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.53″ | |
| CSN655 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | – | 0.50″ x 0.53″ | |
| CSN652 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.50″ x 0.53″ | |
| CSN650 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | – | 0.50″ x 0.53″ | |
| CSN645 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 10,000 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN640 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN635 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | – | 0.50″ x 0.53″ | |
| CSN630 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.53″ | |
| CSN625 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.50″ x 0.53″ | |
| CSN620 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.50″ x 0.53″ | |
| CSN615 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.50″ x 0.53″ | |
| CSN610 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.53″ | |
| CSN605 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.50″ x 0.53″ | |
| CSN600 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.53″ | |
| CSN595 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.53″ | |
| CSN590 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | – | 0.50″ x 0.53″ | |
| CSN585 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | – | 0.50″ x 0.53″ | |
| CSN580 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.50″ x 0.53″ | |
| CSN575 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 9000 | 9000 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN570 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 8000 | 1200 | 2.58:1 | – | – | 0.50″ x 0.53″ | |
| CSN565 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.50″ x 0.53″ | |
| CSN560 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.50″ x 0.53″ | |
| CSN555 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 7500 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN550 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.53″ | |
| CSN545 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.50″ x 0.53″ | |
| CSN540 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 100 | 8.66:1 | 17.32:1 | – | 0.50″ x 0.53″ | |
| CSN535 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 50 | 12.25:1 | 24.5:1 | – | 0.50″ x 0.53″ | |
| CSN530 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 5000 | 5000 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN525 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.53″ | |
| CSN520 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 4000 | 8000 | 1:1.41 | – | – | 0.50″ x 0.53″ | |
| CSN515 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 4000 | 1000 | 2:1 | 4:1 | – | 0.50″ x 0.53″ | |
| CSN514 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.50″ x 0.53″ | |
| CSN512 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.53″ | |
| CSN510 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 3600 | 3600 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN505 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 3000 | 3000 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN500 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 3000 | 3000 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN497 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2500 | 2500 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN495 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2000 | 8000 | 1:2 | 1:1 | – | 0.50″ x 0.53″ | |
| CSN490 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2000 | 2000 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN485 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2000 | 2000 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN483 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.53″ | |
| CSN480 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1600 | 12.8 | 11.18:1 | 22.36:1 | – | 0.50″ x 0.53″ | |
| CSN475 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1500 | 1500 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN470 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1500 | 600 | 1.58:1 | – | – | 0.50″ x 0.53″ | |
| CSN465 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.53″ | |
| CSN460 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1500 | 12 | 11.18:1 | 22.36:1 | – | 0.50″ x 0.53″ | |
| CSN455 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1200 | 1200 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN450 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1200 | 1200 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN445 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.50″ x 0.53″ | |
| CSN440 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.50″ x 0.53″ | |
| CSN435 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.50″ x 0.53″ | |
| CSN430 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1000 | 1000 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN425 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.53″ | |
| CSN420 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1000 | 12 | 9.13:1 | 18.26:1 | – | 0.50″ x 0.53″ | |
| CSN417 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 900 | 900 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN415 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 900 | 600 | 1.23:1 | 2.45:1 | – | 0.50″ x 0.53″ | |
| CSN410 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 800 | 800 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN405 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.50″ x 0.53″ | |
| CSN400 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 800 | 12.8 | 7.91:1 | 15.8:1 | – | 0.50″ x 0.53″ | |
| CSN395 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.50″ x 0.53″ | |
| CSN390 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.53″ | |
| CSN387 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.50″ x 0.53″ | |
| CSN386 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 900 | 1:1.22 | – | – | 0.50″ x 0.53″ | |
| CSN385 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 600 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN380 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 600 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN375 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.53″ | |
| CSN370 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.50″ x 0.53″ | |
| CSN367 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.53″ | |
| CSN365 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.50″ x 0.53″ | |
| CSN360 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.50″ x 0.53″ | |
| CSN355 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 500 | 1:1 | – | – | 0.50″ x 0.53″ | |
| CSN350 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 500 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN347 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.50″ x 0.53″ | |
| CSN345 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.53″ | |
| CSN344 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.50″ x 0.53″ | |
| CSN342 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.50″ x 0.53″ | |
| CSN340 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.50″ x 0.53″ | |
| CSN335 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.50″ x 0.53″ | |
| CSN330 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.50″ x 0.53″ | |
| CSN325 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 400 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN320 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.53″ | |
| CSN315 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.50″ x 0.53″ | |
| CSN310 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.53″ | |
| CSN305 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 320 | 12.8 | 5:1 | 10:1 | – | 0.50″ x 0.53″ | |
| CSN300 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 600 | 1.41:1 | 1.41:1 | – | 0.50″ x 0.53″ | |
| CSN295 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 300 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN290 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.53″ | |
| CSN285 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.50″ x 0.53″ | |
| CSN280 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 12 | 5:1 | 10:1 | – | 0.50″ x 0.53″ | |
| CSN275 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 200 | 200 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN270 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 600 | 1:2 | 1:1 | – | 0.50″ x 0.53″ | |
| CSN265 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 150 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN260 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 100 | 1.22:1 | 2.44:1 | – | 0.50″ x 0.53″ | |
| CSN255 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.53″ | |
| CSN250 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.50″ x 0.53″ | |
| CSN245 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 120 | 120 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN240 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.53″ | |
| CSN235 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.50″ x 0.53″ | |
| CSN230 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 100 | 100 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN228 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.53″ | |
| CSN225 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.53″ | |
| CSN220 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 50 | 50 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN218 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.53″ | |
| CSN215 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 40 | 40 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN210 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 32 | 32 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN205 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 20 | 20 | 1:1 | 2:1 | – | 0.50″ x 0.53″ | |
| CSN203 | CSN | Round SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.53″ | |
| CSL815 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.39″ | |
| CSL810 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | – | 0.50″ x 0.39″ | |
| CSL805 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | – | 0.50″ x 0.39″ | |
| CSL800 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | – | 0.50″ x 0.39″ | |
| CSL795 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 95,000 | 15,000 | 2.52:1 | 5.03:1 | – | 0.50″ x 0.39″ | |
| CSL790 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 90,000 | 10,000 | 3:1 | 6:1 | – | 0.50″ x 0.39″ | |
| CSL787 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | – | 0.50″ x 0.39″ | |
| CSL785 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | – | 0.50″ x 0.39″ | |
| CSL780 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | – | 0.50″ x 0.39″ | |
| CSL779 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | – | 0.50″ x 0.39″ | |
| CSL777 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | – | 0.50″ x 0.39″ | |
| CSL775 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.39″ | |
| CSL770 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL765 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.39″ | |
| CSL760 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.39″ | |
| CSL755 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.39″ | |
| CSL750 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | – | 0.50″ x 0.39″ | |
| CSL745 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL740 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.39″ | |
| CSL735 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | – | 0.50″ x 0.39″ | |
| CSL734 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 200 | 12.25:1 | 24.5:1 | – | 0.50″ x 0.39″ | |
| CSL732 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 500 | 7.75:1 | 15.5:1 | – | 0.50″ x 0.39″ | |
| CSL730 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | – | 0.50″ x 0.39″ | |
| CSL725 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | – | 0.50″ x 0.39″ | |
| CSL720 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | – | 0.50″ x 0.39″ | |
| CSL715 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.39″ | |
| CSL710 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL705 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.39″ | |
| CSL700 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | – | 0.50″ x 0.39″ | |
| CSL695 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.39″ | |
| CSL690 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | – | 0.50″ x 0.39″ | |
| CSL685 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | – | 0.50″ x 0.39″ | |
| CSL680 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 500 | 6.33:1 | 12.65:1 | – | 0.50″ x 0.39″ | |
| CSL675 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 16,000 | 1000 | 4:1 | 8:1 | – | 0.50″ x 0.39″ | |
| CSL670 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 15,000 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL665 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 15,000 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL660 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.39″ | |
| CSL655 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 600 | 5:1 | 10:1 | – | 0.50″ x 0.39″ | |
| CSL652 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 500 | 5.48:1 | 10.95:1 | – | 0.50″ x 0.39″ | |
| CSL650 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 400 | 6.12:1 | 12.24:1 | – | 0.50″ x 0.39″ | |
| CSL645 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 10,000 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL640 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 10,000 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL635 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 7500 | 1.15:1 | 2.3:1 | – | 0.50″ x 0.39″ | |
| CSL630 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 5000 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.39″ | |
| CSL625 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 2000 | 2.24:1 | 4.47:1 | – | 0.50″ x 0.39″ | |
| CSL620 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 1500 | 2.58:1 | 5.16:1 | – | 0.50″ x 0.39″ | |
| CSL615 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 1200 | 2.89:1 | 5.77:1 | – | 0.50″ x 0.39″ | |
| CSL610 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 1000 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.39″ | |
| CSL605 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 600 | 4.08:1 | 8.16:1 | – | 0.50″ x 0.39″ | |
| CSL600 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 500 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.39″ | |
| CSL595 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 200 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.39″ | |
| CSL590 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 100 | 10:1 | 20:1 | – | 0.50″ x 0.39″ | |
| CSL585 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 16 | 25:1 | 50:1 | – | 0.50″ x 0.39″ | |
| CSL580 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 12.8 | 28:1 | 56:1 | – | 0.50″ x 0.39″ | |
| CSL575 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 9000 | 9000 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL570 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 8000 | 1200 | 2.58:1 | – | – | 0.50″ x 0.39″ | |
| CSL565 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 8000 | 1000 | 2.83:1 | 5.66:1 | – | 0.50″ x 0.39″ | |
| CSL560 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 8000 | 12.8 | 25:1 | 50:1 | – | 0.50″ x 0.39″ | |
| CSL555 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 7500 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL550 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 2500 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.39″ | |
| CSL545 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 600 | 3.54:1 | 7.07:1 | – | 0.50″ x 0.39″ | |
| CSL540 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 100 | 8.66:1 | 17.3:1 | – | 0.50″ x 0.39″ | |
| CSL535 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 50 | 12.2:1 | 24.5:1 | – | 0.50″ x 0.39″ | |
| CSL530 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 5000 | 5000 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL525 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 5000 | 500 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.39″ | |
| CSL520 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 4000 | 8000 | 1:1.41 | – | – | 0.50″ x 0.39″ | |
| CSL515 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 4000 | 1000 | 2:1 | 4:1 | – | 0.50″ x 0.39″ | |
| CSL514 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 4000 | 600 | 2.58:1 | 5.16:1 | – | 0.50″ x 0.39″ | |
| CSL512 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 4000 | 16 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.39″ | |
| CSL510 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 3600 | 3600 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL505 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 3000 | 3000 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL500 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 3000 | 3000 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL497 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2500 | 2500 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL495 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2000 | 8000 | 1:2 | 1:1 | – | 0.50″ x 0.39″ | |
| CSL490 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2000 | 2000 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL485 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2000 | 2000 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL483 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2000 | 8 | 15.8:1 | 31.6:1 | – | 0.50″ x 0.39″ | |
| CSL480 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1600 | 12.8 | 11.2:1 | 22.4:1 | – | 0.50″ x 0.39″ | |
| CSL475 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1500 | 1500 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL470 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1500 | 600 | 1.58:1 | – | – | 0.50″ x 0.39″ | |
| CSL465 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1500 | 500 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.39″ | |
| CSL460 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1500 | 12 | 11.2:1 | 22.4:1 | – | 0.50″ x 0.39″ | |
| CSL455 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1200 | 1200 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL450 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1200 | 1200 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL445 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1200 | 500 | 1.55:1 | 3.1:1 | – | 0.50″ x 0.39″ | |
| CSL440 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1200 | 12.8 | 9.68:1 | 19.4:1 | – | 0.50″ x 0.39″ | |
| CSL435 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1060 | 12.8 | 9.1:1 | 18.2:1 | – | 0.50″ x 0.39″ | |
| CSL430 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1000 | 1000 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL425 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1000 | 50 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.39″ | |
| CSL420 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1000 | 12 | 9.13:1 | 18.3:1 | – | 0.50″ x 0.39″ | |
| CSL415 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 900 | 600 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.39″ | |
| CSL410 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 800 | 800 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL405 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 800 | 48 | 4.08:1 | 8.16:1 | – | 0.50″ x 0.39″ | |
| CSL400 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 800 | 12.8 | 7.9:1 | 15.8:1 | – | 0.50″ x 0.39″ | |
| CSL395 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 700 | 100 | 2.65:1 | 5.29:1 | – | 0.50″ x 0.39″ | |
| CSL390 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 640 | 12.8 | 7.07:1 | 14.14:1 | – | 0.50″ x 0.39″ | |
| CSL387 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 1200 | 1:1.41 | 1.41:1 | – | 0.50″ x 0.39″ | |
| CSL385 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 600 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL380 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 600 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL375 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 200 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.39″ | |
| CSL370 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 48 | 3.54:1 | 7.07:1 | – | 0.50″ x 0.39″ | |
| CSL367 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 30 | 4.47:1 | 8.94:1 | – | 0.50″ x 0.39″ | |
| CSL365 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 12.8 | 6.85:1 | 13.7:1 | – | 0.50″ x 0.39″ | |
| CSL360 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 600 | 1:1.1 | 1.83:1 | – | 0.50″ x 0.39″ | |
| CSL355 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 500 | 1:1 | – | – | 0.50″ x 0.39″ | |
| CSL350 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 500 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL347 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 150 | 1.83:1 | 3.65:1 | – | 0.50″ x 0.39″ | |
| CSL345 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 50 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.39″ | |
| CSL344 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 16 | 5.6:1 | 11.2:1 | – | 0.50″ x 0.39″ | |
| CSL342 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 12.8 | 6.25:1 | 12.5:1 | – | 0.50″ x 0.39″ | |
| CSL340 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 4000 | 1:3.16 | 1:1.58 | – | 0.50″ x 0.39″ | |
| CSL335 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 2000 | 1:2.24 | 1:1.12 | – | 0.50″ x 0.39″ | |
| CSL330 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 1000 | 1:1.58 | 1.26:1 | – | 0.50″ x 0.39″ | |
| CSL325 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 400 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL320 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 200 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.39″ | |
| CSL315 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 120 | 1.83:1 | 3.65:1 | – | 0.50″ x 0.39″ | |
| CSL310 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 40 | 3.16:1 | 6.32:1 | – | 0.50″ x 0.39″ | |
| CSL305 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 320 | 12.8 | 5:1 | 10:1 | – | 0.50″ x 0.39″ | |
| CSL300 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 600 | 1:1.41 | 1.41:1 | – | 0.50″ x 0.39″ | |
| CSL295 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 300 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL290 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 150 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.39″ | |
| CSL285 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 50 | 2.45:1 | 4.9:1 | – | 0.50″ x 0.39″ | |
| CSL280 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 12 | 5:1 | 10:1 | – | 0.50″ x 0.39″ | |
| CSL275 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 200 | 200 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL270 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 600 | 1:2 | 1:1 | – | 0.50″ x 0.39″ | |
| CSL265 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 150 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL260 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 100 | 1.22:1 | 2.45:1 | – | 0.50″ x 0.39″ | |
| CSL255 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 50 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.39″ | |
| CSL250 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 12 | 3.54:1 | 7.08:1 | – | 0.50″ x 0.39″ | |
| CSL245 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 120 | 120 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL240 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 120 | 60 | 1.41:1 | 2.83:1 | – | 0.50″ x 0.39″ | |
| CSL235 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 120 | 12.8 | 3.06:1 | 6.12:1 | – | 0.50″ x 0.39″ | |
| CSL230 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 100 | 100 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL228 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 100 | 40 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.39″ | |
| CSL225 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 80 | 32 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.39″ | |
| CSL220 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 50 | 50 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL218 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 48 | 16 | 1.73:1 | 3.46:1 | – | 0.50″ x 0.39″ | |
| CSL215 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 40 | 40 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL210 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 32 | 32 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL205 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 20 | 20 | 1:1 | 2:1 | – | 0.50″ x 0.39″ | |
| CSL203 | CSL | Round SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 20 | 8 | 1.58:1 | 3.16:1 | – | 0.50″ x 0.39″ | |
| 84587 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84585 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84580 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84579 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84578 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84577 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84575 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84570 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84565 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84560 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84555 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84550 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84545 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84540 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84535 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84534 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84532 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84530 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84525 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84520 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84515 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84510 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84505 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84500 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84495 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84490 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84485 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84480 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.6:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84475 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84470 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84465 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84460 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84455 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84452 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84450 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84445 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 10,000 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84440 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84435 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84430 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84425 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84420 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84415 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84410 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84405 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84400 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84395 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84390 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84385 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84380 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84375 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.1 | 9000 | 9000 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84370 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.2 | 8000 | 1200 | 2.58:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84365 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.2 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84360 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.2 | 8000 | 12.8 | 25:1 | 50:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84355 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.3 | 7500 | 7500 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84350 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.3 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84345 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.3 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84340 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.3 | 7500 | 100 | 8.66:1 | 17.32:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84335 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 1.3 | 7500 | 50 | 12.25:1 | 24.5:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84330 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 2 | 5000 | 5000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84325 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 2 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84320 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 2.5 | 4000 | 8000 | 1:1.41 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84315 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 2.5 | 4000 | 1000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84314 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 2.5 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84312 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 2.5 | 4000 | 16 | 15.8:1 | 31.6:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84310 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 2.7 | 3600 | 3600 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84305 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 3000 | 3000 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84300 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 3000 | 3000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84297 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 2500 | 2500 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84295 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 2000 | 8000 | 1:2 | 1:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84290 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 2000 | 2000 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84285 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 2000 | 2000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84283 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84280 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1600 | 12.8 | 11.18:1 | 22.36:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84275 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1500 | 1500 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84270 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1500 | 600 | 1.58:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84265 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84260 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1500 | 12 | 11.18:1 | 22.36:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84255 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1200 | 1200 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84250 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1200 | 1200 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84245 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84240 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84235 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84230 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1000 | 1000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84225 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84220 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 1000 | 12 | 9.13:1 | 18.26:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84217 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 900 | 900 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84215 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 900 | 600 | 1.22:1 | 2.45:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84210 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 800 | 800 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84205 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 800 | 48 | 4.08:1 | 8.16:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84200 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 800 | 12.8 | 7.91:1 | 15.8:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84195 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 700 | 100 | 2.65:1 | 5.29:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84190 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 640 | 12.8 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84187 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84186 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 600 | 900 | 1:1.22 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84185 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 600 | 600 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84180 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 600 | 600 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84175 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 600 | 200 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84170 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 600 | 48 | 3.54:1 | 7.07:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84167 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 600 | 30 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84165 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84160 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 500 | 600 | 1:1.1 | 1.83:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84155 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 500 | 500 | 1:1 | – | 0.80″ x 0.80″ x 0.92″ | – | |
| 84150 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 500 | 500 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84147 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 500 | 150 | 1.83:1 | 3.65:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84145 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 500 | 50 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84144 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 500 | 16 | 5.6:1 | 11.2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84142 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84140 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84135 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84130 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84125 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 400 | 400 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84120 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 400 | 200 | 1.41:1 | 2.83:1. | 0.80″ x 0.80″ x 0.92″ | – | |
| 84115 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 400 | 120 | 1.83:1 | 3.65:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84110 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 400 | 40 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84105 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 320 | 12.8 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84100 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 300 | 600 | 1:1.41 | 1.41:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84095 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 300 | 300 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84090 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 300 | 150 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84085 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 300 | 50 | 2.45:1 | 4.9:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84080 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 300 | 12 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84075 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 200 | 200 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84070 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 150 | 600 | 1:2 | 1:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84065 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 150 | 150 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84060 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 150 | 100 | 1.22:1 | 2.44:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84055 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 150 | 50 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84050 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 150 | 12 | 3.54:1 | 7.08:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84045 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 120 | 120 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84040 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 120 | 60 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84035 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84030 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 100 | 100 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84028 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 100 | 40 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84025 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 80 | 32 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84020 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 50 | 50 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84018 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 48 | 16 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84015 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 40 | 40 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84010 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 32 | 32 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84005 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 20 | 20 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 84003 | 84000 | Square SMT – Gull Lead | 20 Hz to 25 KHz | 3 | 20 | 8 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.92″ | – | |
| 83620 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.07 | 135,000 | 82 | 40.6:1 | 81.2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83615 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83614 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83613 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83610 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83605 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83600 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83595 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83590 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83587 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83585 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83580 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83579 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83578 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83577 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83575 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83570 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83565 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83560 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83555 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83550 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83545 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83540 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83535 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83534 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83532 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83530 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83525 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83520 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83515 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83510 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83505 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83500 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83495 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83490 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83485 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83480 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.65:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83475 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83470 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 15,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83465 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 15,000 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83460 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83455 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 600 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83452 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83450 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 0.65 | 15,000 | 400 | 6.12:1 | 12.25:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83445 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83440 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83435 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83430 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 5000 | 1.41:1 | 1.83:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83425 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83420 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83415 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83410 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83405 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83400 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83395 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83390 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83385 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83380 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83375 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.1 | 9000 | 9000 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83370 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.2 | 8000 | 1200 | 2.58:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83365 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.2 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83360 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.2 | 8000 | 12.8 | 25:1 | 50:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83355 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 7500 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83350 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83345 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83340 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 100 | 8.66:1 | 17.32:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83335 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 1.3 | 7500 | 50 | 12.25:1 | 24.5:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83330 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 5000 | 5000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83325 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83320 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 4000 | 8000 | 1:1.41 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83315 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 4000 | 1000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83314 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83312 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 4000 | 16 | 15.8:1 | 31.6:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83310 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 3600 | 3600 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83305 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 3000 | 3000 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83300 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 3000 | 3000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83297 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2500 | 2500 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83295 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2000 | 8000 | 1:2 | 1:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83290 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2000 | 2000 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83285 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2000 | 2000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83283 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83280 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1600 | 12.8 | 11.18:1 | 22.36:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83275 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1500 | 1500 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83270 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1500 | 600 | 1.58:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83265 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83260 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1500 | 12 | 11.18:1 | 22.36:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83255 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1200 | 1200 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83250 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1200 | 1200 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83245 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83240 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83235 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83230 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1000 | 1000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83225 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83220 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 1000 | 12 | 9.13:1 | 18.26:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83217 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 900 | 900 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83215 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 900 | 600 | 1.23:1 | 2.45:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83210 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 800 | 800 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83205 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 800 | 48 | 4.08:1 | 8.16:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83200 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 800 | 12.8 | 7.91:1 | 15.8:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83195 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 700 | 100 | 2.65:1 | 5.29:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83190 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 640 | 12.8 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83187 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83186 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 900 | 1:1.22 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83185 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 600 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83180 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 600 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83175 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 200 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83170 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 48 | 3.54:1 | 7.07:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83167 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 30 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83165 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83160 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 600 | 1:1.1 | 1.83:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83155 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 500 | 1:1 | – | 0.80″ x 0.80″ x 0.61″ | – | |
| 83150 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 500 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83147 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 150 | 1.83:1 | 3.65:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83145 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 50 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83144 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 16 | 5.6:1 | 11.2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83142 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83140 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83135 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83130 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83125 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 400 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83120 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 200 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83115 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 120 | 1.83:1 | 3.65:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83110 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 400 | 40 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83105 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 320 | 12.8 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83100 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 600 | 1:1.41 | 1.41:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83095 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 300 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83090 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 150 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83085 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 50 | 2.45:1 | 4.9:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83080 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 300 | 12 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83075 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 200 | 200 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83070 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 600 | 1:2 | 1:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83065 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 150 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83060 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 100 | 1.22:1 | 2.44:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83055 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 50 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83050 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 150 | 12 | 3.54:1 | 7.08:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83045 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 120 | 120 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83040 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 120 | 60 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83035 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83030 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 100 | 100 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83028 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 100 | 40 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83025 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 80 | 32 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83020 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 50 | 50 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83018 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 48 | 16 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83015 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 40 | 40 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83010 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 32 | 32 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83005 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 20 | 20 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 83003 | 83000 | Square SMT – Gull Lead | 50 Hz to 30 KHz | 2 | 20 | 8 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.61″ | – | |
| 82620 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.07 | 135,000 | 82 | 40.6:1 | 81.2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82615 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82614 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82613 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82610 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82605 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82600 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82595 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82590 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82587 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82585 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82580 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82579 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82578 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82577 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82575 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82570 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82565 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82560 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82555 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82550 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82545 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82540 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82535 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82534 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82532 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82530 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82525 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82520 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82515 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82510 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82505 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82500 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82495 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82490 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82485 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82480 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12.65:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82475 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82470 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82465 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82460 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82455 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82452 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82450 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82445 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82440 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82435 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82430 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82425 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82420 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82415 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82410 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82405 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82400 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82395 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82390 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82385 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82380 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82375 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.1 | 9000 | 9000 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82370 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.2 | 8000 | 1200 | 2.58:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82365 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.2 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82360 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.2 | 8000 | 12.8 | 25:1 | 50:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82355 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 7500 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82350 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82345 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82340 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 100 | 8.66:1 | 17.32:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82335 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.3 | 7500 | 50 | 12.25:1 | 24.5:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82330 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 5000 | 5000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82325 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82320 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 4000 | 8000 | 1:1.41 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82315 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 4000 | 1000 | 2:1 | 4:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82314 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82312 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 4000 | 16 | 15.8:1 | 31.62:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82310 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 3600 | 3600 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82305 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 3000 | 3000 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82300 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 3000 | 3000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82297 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2500 | 2500 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82295 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2000 | 8000 | 1:2 | 1:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82290 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2000 | 2000 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82285 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2000 | 2000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82283 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82280 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1600 | 12.8 | 11.18:1 | 22.36:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82275 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1500 | 1500 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82270 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1500 | 600 | 1.58:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82265 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82260 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1500 | 12 | 11.18:1 | 22.36:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82255 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1200 | 1200 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82250 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1200 | 1200 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82245 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82240 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82235 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82230 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1000 | 1000 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82225 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82220 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 1000 | 12 | 9.13:1 | 18.26:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82217 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 900 | 900 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82215 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 900 | 600 | 1.23:1 | 2.45:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82210 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 800 | 800 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82205 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 800 | 48 | 4.08:1 | 8.16:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82200 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 800 | 12.8 | 7.91:1 | 15.8:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82195 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 700 | 100 | 2.65:1 | 5.29:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82190 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 640 | 12.8 | 7.07:1 | 14.14:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82187 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82186 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 900 | 1:1.22 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82185 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 600 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82180 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 600 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82175 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 200 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82170 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 48 | 3.54:1 | 7.07:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82167 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 30 | 4.47:1 | 8.94:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82165 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82160 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 600 | 1:1.1 | 1.83:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82155 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 500 | 1:1 | – | 0.80″ x 0.80″ x 0.46″ | – | |
| 82150 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 500 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82147 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 150 | 1.83:1 | 3.65:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82145 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 50 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82144 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 16 | 5.6:1 | 11.2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82142 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82140 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82135 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82130 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82125 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 400 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82120 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 200 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82115 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 120 | 1.83:1 | 3.65:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82110 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 400 | 40 | 3.16:1 | 6.32:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82105 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 320 | 12.8 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82100 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 600 | 1:1.41 | 1.41:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82095 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 300 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82090 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 150 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82085 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 50 | 2.45:1 | 4.9:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82080 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 300 | 12 | 5:1 | 10:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82075 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 200 | 200 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82070 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 600 | 1:2 | 1:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82065 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 150 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82060 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 100 | 1.22:1 | 2.44:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82055 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 50 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82050 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 150 | 12 | 3.54:1 | 7.08:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82045 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 120 | 120 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82040 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 120 | 60 | 1.41:1 | 2.83:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82035 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82030 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 100 | 100 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82028 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 100 | 40 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82025 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 80 | 32 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82020 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 50 | 50 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82018 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 48 | 16 | 1.73:1 | 3.46:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82015 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 40 | 40 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82010 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 32 | 32 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82005 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 20 | 20 | 1:1 | 2:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 82003 | 82000 | Square SMT – Gull Lead | 75 Hz to 30 KHz | 1.5 | 20 | 8 | 1.58:1 | 3.16:1 | 0.80″ x 0.80″ x 0.46″ | – | |
| 81625 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.062 | 40,000 | 400 | 10:1 | 20:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81620 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 30,000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81615 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81610 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 5000 | 2.45:1 | 4.9:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81605 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 200 | 12.25:1 | 24.5:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81600 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 500 | 7.75:1 | 15.5:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81595 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 1200 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81590 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 50 | 24.5:1 | 49:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81585 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.1 | 25,000 | 1000 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81580 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.1 | 25,000 | 500 | 7.07:1 | 14.14:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81575 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 20,000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81570 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81565 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 5000 | 2:1 | 4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81560 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81555 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 800 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81550 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81545 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 500 | 6.33:1 | 12.65:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81540 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.15 | 16,000 | 1000 | 4:1 | 8:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81535 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 15,000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81530 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 15,000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81525 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81520 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 600 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81515 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81510 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 400 | 6.12:1 | 12.24:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81505 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 10,000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81500 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 10,000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81495 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 7500 | 1.15:1 | 2.3:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81490 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81485 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81480 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81475 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 1200 | 2.89:1 | 5.77:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81470 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81465 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81460 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81455 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81450 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 100 | 10:1 | 20:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81445 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 16 | 25:1 | 50:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81440 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 12.8 | 28:1 | 56:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81435 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.27 | 9000 | 9000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81430 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.3 | 8000 | 1200 | 2.58:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81425 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.3 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81420 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.3 | 8000 | 12.8 | 25:1 | 50:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81415 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 7500 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81410 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81405 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81400 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 100 | 8.66:1 | 17.3:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81395 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 50 | 12.2:1 | 24.5:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81390 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 5000 | 5000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81385 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81380 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 4000 | 8000 | 1:1.41 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81375 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 4000 | 1000 | 2:1 | 4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81370 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81365 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 4000 | 16 | 15.8:1 | 31.6:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81360 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 3600 | 3600 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81355 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 3000 | 3000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81350 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 3000 | 3000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81345 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 2500 | 2500 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81340 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 2000 | 8000 | 1:2 | 1:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81335 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 2000 | 2000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81330 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 2000 | 2000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81325 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81320 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1600 | 12.8 | 11.2:1 | 22.4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81315 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1500 | 1500 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81310 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1500 | 600 | 1.58:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81305 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81300 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1500 | 12 | 11.2:1 | 22.4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81295 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1200 | 1200 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81290 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1200 | 1200 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81285 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81280 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81275 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81270 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1000 | 1000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81265 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81260 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 1000 | 12 | 9.13:1 | 18.3:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81255 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 900 | 600 | 1.22:1 | 2.45:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81250 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 800 | 800 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81245 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 800 | 48 | 4.08:1 | 8.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81240 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 800 | 12.8 | 7.9:1 | 15.8:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81235 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 700 | 100 | 2.65:1 | 5.29:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81230 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 640 | 12.8 | 7.07:1 | 14.4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81225 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81220 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 600 | 600 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81215 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 600 | 600 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81210 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 600 | 200 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81205 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 600 | 48 | 3.54:1 | 7.07:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81200 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 600 | 30 | 4.47:1 | 8.94:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81195 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81190 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 500 | 600 | 1:1.1 | 1.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81185 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 500 | 500 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 81180 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 500 | 500 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81175 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 500 | 150 | 1.83:1 | 3.65:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81170 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 500 | 50 | 3.16:1 | 6.32:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81165 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 500 | 16 | 5.6:1 | 11.2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81160 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81155 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81150 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81145 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81140 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 400 | 400 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81135 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 400 | 200 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81130 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 400 | 120 | 1.83:1 | 3.65:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81125 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 400 | 40 | 3.16:1 | 6.32:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81120 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 320 | 12.8 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81115 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 300 | 600 | 1:1.41 | 1.41:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81110 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 300 | 300 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81105 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 300 | 150 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81100 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 300 | 50 | 2.45:1 | 4.9:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81095 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 300 | 12 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81090 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 200 | 200 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81085 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 150 | 600 | 1:2 | 1:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81080 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 150 | 150 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81075 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 150 | 100 | 1.22:1 | 2.45:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81070 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 150 | 50 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81065 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 150 | 12 | 3.54:1 | 7.08:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81060 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 120 | 120 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81055 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 120 | 60 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81050 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81045 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 100 | 100 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81040 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 100 | 40 | 1.58:1 | 3.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81035 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 80 | 32 | 1.58:1 | 3.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81030 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 50 | 50 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81025 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 48 | 16 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81020 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 40 | 40 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81015 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 32 | 32 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81010 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 20 | 20 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81005 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 20 | 8 | 1.58:1 | 3.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 81003 | 81000 | Square SMT – J Lead | 400 Hz to 100 KHz | 0.4 | 10 | 10 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 80570 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80565 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 5000 | 2:1 | 4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80560 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80555 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 800 | 5:1 | 10:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80550 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80545 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 500 | 6.33:1 | 12.65:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80540 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 16,000 | 1000 | 4:1 | 8:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80535 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 15,000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80530 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 15,000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80525 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80520 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 600 | 5:1 | 10:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80515 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80510 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 400 | 6.12:1 | 12.24:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80505 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 10,000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80500 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 10,000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80495 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 7500 | 1.15:1 | 2.3:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80490 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80485 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80480 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80475 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 1200 | 2.88:1 | 5.77:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80470 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80465 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80460 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80455 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80450 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 100 | 10:1 | 20:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80445 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 16 | 25:1 | 50:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80440 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 12.8 | 28:1 | 56:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80435 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 9000 | 9000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80430 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 8000 | 1200 | 2.58:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80425 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80420 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 8000 | 12.8 | 25:1 | 50:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80415 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 7500 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80410 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80405 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80400 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 100 | 8.66:1 | 17.3:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80395 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 50 | 12.2:1 | 24.5:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80390 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 5000 | 5000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80385 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80380 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 4000 | 8000 | 1:1.41 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80375 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 4000 | 1000 | 2:1 | 4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80370 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80365 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 4000 | 16 | 15.8:1 | 31.6:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80360 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 3600 | 3600 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80355 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 3000 | 3000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80350 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 3000 | 3000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80345 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 2500 | 2500 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80340 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 2000 | 8000 | 1:2 | 1:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80335 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 2000 | 2000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80330 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 2000 | 2000 | 1:1 | 2.1:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80325 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80320 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1600 | 12.8 | 11.2:1 | 22.4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80315 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1500 | 1500 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80310 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1500 | 600 | 1.58:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80305 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80300 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1500 | 12 | 11.2:1 | 22.4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80295 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1200 | 1200 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80290 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1200 | 1200 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80285 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80280 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80275 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80270 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1000 | 1000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80265 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80260 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 1000 | 12 | 9.13:1 | 18.3:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80255 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 900 | 600 | 1.22:1 | 2.45:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80250 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 800 | 800 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80245 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 800 | 48 | 4.08:1 | 8.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80240 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 800 | 12.8 | 7.9:1 | 15.8:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80235 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 700 | 100 | 2.65:1 | 5.29:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80230 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 640 | 12.8 | 7.07:1 | 14.14:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80225 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80220 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 600 | 600 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80215 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 600 | 600 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80210 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 600 | 200 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80205 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 600 | 48 | 3.54:1 | 7.07:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80200 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 600 | 30 | 4.47:1 | 8.94:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80195 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80190 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 500 | 600 | 1:1.1 | 1.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80185 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 500 | 500 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 80180 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 500 | 500 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80175 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 500 | 150 | 1.83:1 | 3.65:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80170 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 500 | 50 | 3.16:1 | 6.32:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80165 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 500 | 16 | 5.6:1 | 11.2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80160 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80155 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80150 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80145 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80140 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 400 | 400 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80135 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 400 | 200 | 1.41:1 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80130 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 400 | 120 | 1.83:1 | 3.65:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80125 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 400 | 40 | 3.16:1 | 6.32:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80120 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 320 | 12.8 | 5:1 | 10:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80115 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 300 | 600 | 1:1.41 | 1.41:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80110 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 300 | 300 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80105 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 300 | 150 | 1:1.41 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80100 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 300 | 50 | 2.45:1 | 4.9:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80095 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 300 | 12 | 5:1 | 10:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80090 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 200 | 200 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80085 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 150 | 600 | 1:2 | 1:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80080 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 150 | 150 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80075 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 150 | 100 | 1.22:1 | 2.45:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80070 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 150 | 50 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80065 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 150 | 12 | 3.54:1 | 7.07:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80060 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 120 | 120 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80055 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 120 | 60 | 1.41:1 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80050 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80045 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 100 | 100 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80040 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 100 | 40 | 1.58:1 | 3.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80035 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 80 | 32 | 1.58:1 | 3.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80030 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 50 | 50 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80025 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 48 | 16 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80020 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 40 | 40 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80015 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 32 | 32 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80010 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 20 | 20 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80005 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 20 | 8 | 1.58:1 | 3.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 80003 | 80000 | Square SMT – J Lead | 400 Hz to 250 KHz | 0.125 | 10 | 10 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 77840 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.04 | 250,000 | 1000 | 15.8:1 | 31.6:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77837 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.04 | 250,000 | 200 | 35.4:1 | 70.7:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77835 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.05 | 200,000 | 20,000 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77830 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.05 | 200,000 | 10,000 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77825 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.05 | 200,000 | 1000 | 14.1:1 | 28.3:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77823 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.05 | 200,000 | 500 | 20:1 | 40:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77820 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.074 | 135,000 | 82 | 40.6:1 | 81.2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77815 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77814 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 2000 | 7.07:1 | 14.14:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77813 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 1000 | 10:1 | 20:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77810 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77805 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77800 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77795 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.1 | 95,000 | 15,000 | 2.5:1 | 5:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77790 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.11 | 90,000 | 10,000 | 3:1 | 6:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77789 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.12 | 80,000 | 80,000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77787 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77785 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77780 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77779 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.2 | 50,000 | 50,000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77778 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77777 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77775 | 77000 | Square SMT – Gull Lead | 150 Hz to 20 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77770 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77765 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77760 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77755 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77750 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77745 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77740 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77735 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77734 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 200 | 12.2:1 | 24.5:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77732 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 500 | 7.7:1 | 15.5:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77730 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77725 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77720 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77715 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77710 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77705 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77700 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77695 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77690 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77685 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77680 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.5 | 20,000 | 500 | 6.32:1 | 12:65:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77675 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.62 | 16,000 | 1000 | 4:1 | 8:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77670 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 15,000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77665 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 15,000 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77660 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77655 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 600 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77652 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77650 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 0.66 | 15,000 | 400 | 6.12:1 | 12.25:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77645 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 10,000 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77640 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 10,000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77635 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 7500 | 1.16:1 | 2.31:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77630 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77625 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77620 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77615 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 1200 | 2.89:1 | 5.77:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77610 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77605 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77600 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77595 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77590 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 100 | 10:1 | 20:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77585 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 16 | 25:1 | 50:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77580 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 10,000 | 12.8 | 28:1 | 56:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77575 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 9000 | 9000 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77570 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 8000 | 1200 | 2.58:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77565 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77560 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 8000 | 12.8 | 25:1 | 50:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77555 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 7500 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77550 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77545 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77540 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 100 | 8.66:1 | 17.32:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77535 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 7500 | 50 | 12.25:1 | 24.5:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77530 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 5000 | 5000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77525 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77520 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 4000 | 8000 | 1:1.41 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77515 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 4000 | 1000 | 2:1 | 4:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77514 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77512 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 4000 | 16 | 15.8:1 | 31.6:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77510 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 3600 | 3600 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77505 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 3000 | 3000 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77500 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 3000 | 3000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77497 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2500 | 2500 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77495 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2000 | 8000 | 1:2 | 1:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77490 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2000 | 2000 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77485 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2000 | 2000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77483 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77480 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1600 | 12.8 | 11.18:1 | 22.36:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77475 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1500 | 1500 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77470 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1500 | 600 | 1.58:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77465 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77460 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1500 | 12 | 11.18:1 | 22.36:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77455 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1200 | 1200 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77450 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1200 | 1200 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77445 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77440 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77435 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77430 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1000 | 1000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77425 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77420 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 1000 | 12 | 9.13:1 | 18.26:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77417 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 900 | 900 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77415 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 900 | 600 | 1.23:1 | 2.45:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77410 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 800 | 800 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77405 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 800 | 48 | 4.08:1 | 8.16:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77400 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 800 | 12.8 | 7.91:1 | 15.8:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77395 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 700 | 100 | 2.65:1 | 5.29:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77390 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 640 | 12.8 | 7.07:1 | 14.14:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77387 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77386 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 900 | 1:1.22 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77385 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 600 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77380 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 600 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77375 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 200 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77370 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 48 | 3.54:1 | 7.07:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77367 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 30 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77365 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77360 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 600 | 1:1.1 | 1.83:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77355 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 500 | 1:1 | – | 0.55″ x 0.55″ x 0.57″ | – | |
| 77350 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 500 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77347 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 150 | 1.83:1 | 3.65:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77345 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 50 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77344 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 16 | 5.6:1 | 11.2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77342 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77340 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77335 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77330 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77325 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 400 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77320 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 200 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77315 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 120 | 1.83:1 | 3.65:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77310 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 400 | 40 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77305 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 320 | 12.8 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77300 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 600 | 1.41:1 | 1.41:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77295 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 300 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77290 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 150 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77285 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 50 | 2.45:1 | 4.9:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77280 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 300 | 12 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77275 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 200 | 200 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77270 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 600 | 1:2 | 1:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77265 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 150 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77260 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 100 | 1.22:1 | 2.44:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77255 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 50 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77250 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 150 | 12 | 3.54:1 | 7.08:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77245 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 120 | 120 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77240 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 120 | 60 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77235 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77230 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 100 | 100 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77228 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 100 | 40 | 1.58:1 | 3.16:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77225 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 80 | 32 | 1.58:1 | 3.16:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77220 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 50 | 50 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77218 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 48 | 16 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77215 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 40 | 40 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77210 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 32 | 32 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77205 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 20 | 20 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 77203 | 77000 | Square SMT – Gull Lead | 150 Hz to 75 KHz | 1 | 20 | 8 | 1.58:1 | 3.16:1 | 0.55″ x 0.55″ x 0.57″ | – | |
| 76815 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 100,000 | 10,000 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76810 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 100,000 | 500 | 14.1:1 | 28.3:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76805 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 100,000 | 100 | 31.6:1 | 63.2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76800 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 100,000 | 60 | 40.8:1 | 81.6:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76795 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 95,000 | 15,000 | 2.52:1 | 5.03:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76790 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.1 | 90,000 | 10,000 | 3:1 | 6:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76787 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.12 | 80,000 | 15,000 | 2.3:1 | 4.6:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76785 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.16 | 62,500 | 50 | 35.4:1 | 70.7:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76780 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.16 | 60,000 | 15,000 | 2:1 | 4:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76779 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.2 | 50,000 | 600 | 9.13:1 | 18.26:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76777 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.2 | 50,000 | 500 | 10:1 | 20:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76775 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.2 | 50,000 | 200 | 15.8:1 | 31.6:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76770 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 40,000 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76765 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 20,000 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76760 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 4000 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76755 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 2000 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76750 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.25 | 40,000 | 400 | 10:1 | 20:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76745 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 30,000 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76740 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76735 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 5000 | 2.45:1 | 4.9:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76734 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 200 | 12.25:1 | 24.5:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76732 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 500 | 7.75:1 | 15.5:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76730 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 1200 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76725 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.33 | 30,000 | 50 | 24.5:1 | 49:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76720 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.4 | 25,000 | 1000 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76715 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.4 | 25,000 | 500 | 7.07:1 | 14.14:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76710 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 20,000 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76705 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76700 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 5000 | 2:1 | 4:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76695 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76690 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 800 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76685 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76680 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.5 | 20,000 | 500 | 6.33:1 | 12.65:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76675 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 16,000 | 1000 | 4:1 | 8:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76670 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 15,000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76665 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 15,000 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76660 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76655 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 600 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76652 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76650 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 15,000 | 400 | 6.12:1 | 12.24:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76645 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 10,000 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76640 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 10,000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76635 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 7500 | 1.15:1 | 2.3:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76630 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76625 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76620 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76615 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 1200 | 2.89:1 | 5.77:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76610 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76605 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76600 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76595 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76590 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 100 | 10:1 | 20:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76585 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 16 | 25:1 | 50:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76580 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 10,000 | 12.8 | 28:1 | 56:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76575 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 9000 | 9000 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76570 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 8000 | 1200 | 2.58:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76565 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76560 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 8000 | 12.8 | 25:1 | 50:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76555 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 7500 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76550 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76545 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76540 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 100 | 8.66:1 | 17.3:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76535 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 7500 | 50 | 12.2:1 | 24.5:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76530 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 5000 | 5000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76525 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76520 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 4000 | 8000 | 1:1.41 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76515 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 4000 | 1000 | 2:1 | 4:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76514 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76512 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 4000 | 16 | 15.8:1 | 31.6:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76510 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 3600 | 3600 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76505 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 3000 | 3000 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76500 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 3000 | 3000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76497 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2500 | 2500 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76495 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2000 | 8000 | 1:2 | 1:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76490 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2000 | 2000 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76485 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2000 | 2000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76483 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76480 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1600 | 12.8 | 11.2:1 | 22.4:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76475 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1500 | 1500 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76470 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1500 | 600 | 1.58:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76465 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76460 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1500 | 12 | 11.2:1 | 22.4:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76455 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1200 | 1200 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76450 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1200 | 1200 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76445 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76440 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76435 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76430 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1000 | 1000 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76425 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76420 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 1000 | 12 | 9.13:1 | 18.3:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76415 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 900 | 600 | 1.22:1 | 2.45:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76410 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 800 | 800 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76405 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 800 | 48 | 4.08:1 | 8.16:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76400 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 800 | 12.8 | 7.9:1 | 15.8:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76395 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 700 | 100 | 2.65:1 | 5.29:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76390 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 640 | 12.8 | 7.07:1 | 14.14:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76387 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76385 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 600 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76380 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 600 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76375 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 200 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76370 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 48 | 3.54:1 | 7.07:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76367 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 30 | 4.47:1 | 8.94:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76365 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76360 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 600 | 1:1.1 | 1.83:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76355 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 500 | 1:1 | – | 0.55″ x 0.55″ x 0.42″ | – | |
| 76350 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 500 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76347 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 150 | 1.83:1 | 3.65:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76345 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 50 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76344 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 16 | 5.6:1 | 11.2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76342 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76340 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76335 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76330 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76325 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 400 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76320 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 200 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76315 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 120 | 1.83:1 | 3.65:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76310 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 400 | 40 | 3.16:1 | 6.32:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76305 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 320 | 12.8 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76300 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 600 | 1:1.41 | 1.41:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76295 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 300 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76290 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 150 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76285 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 50 | 2.45:1 | 4.9:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76280 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 300 | 12 | 5:1 | 10:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76275 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 200 | 200 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76270 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 600 | 1:2 | 1:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76265 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 150 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76260 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 100 | 1.22:1 | 2.45:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76255 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 50 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76250 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 150 | 12 | 3.54:1 | 7.08:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76245 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 120 | 120 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76240 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 120 | 60 | 1.41:1 | 2.83:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76235 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76230 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 100 | 100 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76228 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 100 | 40 | 1.58:1 | 3.16:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76225 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 80 | 32 | 1.58:1 | 3.16:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76220 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 50 | 50 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76218 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 48 | 16 | 1.73:1 | 3.46:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76215 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 40 | 40 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76210 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 32 | 32 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76205 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 20 | 20 | 1:1 | 2:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 76203 | 76000 | Square SMT – Gull Lead | 300 Hz to 75 KHz | 0.6 | 20 | 8 | 1.58:1 | 3.16:1 | 0.55″ x 0.55″ x 0.42″ | – | |
| 71625 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.062 | 40,000 | 400 | 10:1 | 20:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71620 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 30,000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71615 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 10,000 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71610 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 5000 | 2.45:1 | 4.9:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71605 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 200 | 12.25:1 | 24.5:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71600 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 500 | 7.75:1 | 15.5:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71595 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 1200 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71590 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.083 | 30,000 | 50 | 24.5:1 | 49:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71585 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.1 | 25,000 | 1000 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71580 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.1 | 25,000 | 500 | 7.07:1 | 14.14:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71575 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 20,000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71570 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71565 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 5000 | 2:1 | 4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71560 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71555 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 800 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71550 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71545 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.125 | 20,000 | 500 | 6.33:1 | 12.65:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71540 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.15 | 16,000 | 1000 | 4:1 | 8:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71535 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 15,000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71530 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 15,000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71525 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71520 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 600 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71515 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71510 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.16 | 15,000 | 400 | 6.12:1 | 12.24:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71505 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 10,000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71500 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 10,000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71495 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 7500 | 1.15:1 | 2.3:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71490 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71485 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71480 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71475 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 1200 | 2.89:1 | 5.77:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71470 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71465 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71460 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71455 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71450 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 100 | 10:1 | 20:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71445 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 16 | 25:1 | 50:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71440 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.25 | 10,000 | 12.8 | 28:1 | 56:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71435 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.27 | 9000 | 9000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71430 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.3 | 8000 | 1200 | 2.58:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71425 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.3 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71420 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.3 | 8000 | 12.8 | 25:1 | 50:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71415 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 7500 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71410 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71405 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71400 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 100 | 8.66:1 | 17.3:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71395 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.33 | 7500 | 50 | 12.2:1 | 24.5:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71390 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 5000 | 5000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71385 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71380 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 4000 | 8000 | 1:1.41 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71375 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 4000 | 1000 | 2:1 | 4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71370 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71365 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 4000 | 16 | 15.8:1 | 31.6:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71360 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 3600 | 3600 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71355 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 3000 | 3000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71350 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 3000 | 3000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71345 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 2500 | 2500 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71340 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 2000 | 8000 | 1:2 | 1:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71335 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 2000 | 2000 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71330 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 2000 | 2000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71325 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71320 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1600 | 12.8 | 11.2:1 | 22.4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71315 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1500 | 1500 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71310 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1500 | 600 | 1.58:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71305 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71300 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1500 | 12 | 11.2:1 | 22.4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71295 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1200 | 1200 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71290 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1200 | 1200 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71285 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71280 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71275 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71270 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1000 | 1000 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71265 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71260 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 1000 | 12 | 9.13:1 | 18.3:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71255 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 900 | 600 | 1.22:1 | 2.45:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71250 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 800 | 800 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71245 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 800 | 48 | 4.08:1 | 8.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71240 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 800 | 12.8 | 7.9:1 | 15.8:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71235 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 700 | 100 | 2.65:1 | 5.29:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71230 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 640 | 12.8 | 7.07:1 | 14.4:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71225 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71220 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 600 | 600 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71215 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 600 | 600 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71210 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 600 | 200 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71205 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 600 | 48 | 3.54:1 | 7.07:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71200 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 600 | 30 | 4.47:1 | 8.94:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71195 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71190 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 500 | 600 | 1:1.1 | 1.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71185 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 500 | 500 | 1:1 | – | 0.38″ x 0.38″ x 0.40″ | – | |
| 71180 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 500 | 500 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71175 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 500 | 150 | 1.83:1 | 3.65:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71170 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 500 | 50 | 3.16:1 | 6.32:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71165 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 500 | 16 | 5.6:1 | 11.2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71160 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71155 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71150 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71145 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71140 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 400 | 400 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71135 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 400 | 200 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71130 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 400 | 120 | 1.83:1 | 3.65:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71125 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 400 | 40 | 3.16:1 | 6.32:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71120 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 320 | 12.8 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71115 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 300 | 600 | 1:1.41 | 1.41:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71110 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 300 | 300 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71105 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 300 | 150 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71100 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 300 | 50 | 2.45:1 | 4.9:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71095 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 300 | 12 | 5:1 | 10:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71090 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 200 | 200 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71085 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 150 | 600 | 1:2 | 1:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71080 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 150 | 150 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71075 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 150 | 100 | 1.22:1 | 2.45:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71070 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 150 | 50 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71065 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 150 | 12 | 3.54:1 | 7.08:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71060 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 120 | 120 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71055 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 120 | 60 | 1.41:1 | 2.83:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71050 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71045 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 100 | 100 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71040 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 100 | 40 | 1.58:1 | 3.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71035 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 80 | 32 | 1.58:1 | 3.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71030 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 50 | 50 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71025 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 48 | 16 | 1.73:1 | 3.46:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71020 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 40 | 40 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71015 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 32 | 32 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71010 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 20 | 20 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71005 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 20 | 8 | 1.58:1 | 3.16:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 71003 | 71000 | Square SMT – Gull Lead | 400 Hz to 100 KHz | 0.4 | 10 | 10 | 1:1 | 2:1 | 0.38″ x 0.38″ x 0.40″ | – | |
| 70570 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 10,000 | 1.41:1 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70565 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 5000 | 2:1 | 4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70560 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 1000 | 4.47:1 | 8.94:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70555 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 800 | 5:1 | 10:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70550 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 600 | 5.77:1 | 11.55:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70545 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 20,000 | 500 | 6.33:1 | 12.65:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70540 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 16,000 | 1000 | 4:1 | 8:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70535 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 15,000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70530 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 15,000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70525 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 10,000 | 1.22:1 | 2.45:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70520 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 600 | 5:1 | 10:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70515 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 500 | 5.48:1 | 10.95:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70510 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.1 | 15,000 | 400 | 6.12:1 | 12.24:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70505 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 10,000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70500 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 10,000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70495 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 7500 | 1.15:1 | 2.3:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70490 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 5000 | 1.41:1 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70485 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 2000 | 2.24:1 | 4.47:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70480 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 1500 | 2.58:1 | 5.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70475 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 1200 | 2.88:1 | 5.77:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70470 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 1000 | 3.16:1 | 6.32:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70465 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 600 | 4.08:1 | 8.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70460 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 500 | 4.47:1 | 8.94:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70455 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 200 | 7.07:1 | 14.14:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70450 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 100 | 10:1 | 20:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70445 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 16 | 25:1 | 50:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70440 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10,000 | 12.8 | 28:1 | 56:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70435 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 9000 | 9000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70430 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 8000 | 1200 | 2.58:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70425 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 8000 | 1000 | 2.83:1 | 5.66:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70420 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 8000 | 12.8 | 25:1 | 50:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70415 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 7500 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70410 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 2500 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70405 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 600 | 3.54:1 | 7.07:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70400 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 100 | 8.66:1 | 17.3:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70395 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 7500 | 50 | 12.2:1 | 24.5:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70390 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 5000 | 5000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70385 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 5000 | 500 | 3.16:1 | 6.32:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70380 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 4000 | 8000 | 1:1.41 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70375 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 4000 | 1000 | 2:1 | 4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70370 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 4000 | 600 | 2.58:1 | 5.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70365 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 4000 | 16 | 15.8:1 | 31.6:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70360 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 3600 | 3600 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70355 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 3000 | 3000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70350 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 3000 | 3000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70345 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 2500 | 2500 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70340 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 2000 | 8000 | 1:2 | 1:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70335 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 2000 | 2000 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70330 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 2000 | 2000 | 1:1 | 2.1:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70325 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 2000 | 8 | 15.8:1 | 31.6:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70320 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1600 | 12.8 | 11.2:1 | 22.4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70315 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1500 | 1500 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70310 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1500 | 600 | 1.58:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70305 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1500 | 500 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70300 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1500 | 12 | 11.2:1 | 22.4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70295 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1200 | 1200 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70290 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1200 | 1200 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70285 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1200 | 500 | 1.55:1 | 3.1:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70280 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1200 | 12.8 | 9.68:1 | 19.4:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70275 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1060 | 12.8 | 9.1:1 | 18.2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70270 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1000 | 1000 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70265 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1000 | 50 | 4.47:1 | 8.94:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70260 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 1000 | 12 | 9.13:1 | 18.3:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70255 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 900 | 600 | 1.22:1 | 2.45:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70250 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 800 | 800 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70245 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 800 | 48 | 4.08:1 | 8.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70240 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 800 | 12.8 | 7.9:1 | 15.8:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70235 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 700 | 100 | 2.65:1 | 5.29:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70230 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 640 | 12.8 | 7.07:1 | 14.14:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70225 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 600 | 1200 | 1:1.41 | 1.41:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70220 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 600 | 600 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70215 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 600 | 600 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70210 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 600 | 200 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70205 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 600 | 48 | 3.54:1 | 7.07:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70200 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 600 | 30 | 4.47:1 | 8.94:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70195 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 600 | 12.8 | 6.85:1 | 13.7:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70190 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 500 | 600 | 1:1.1 | 1.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70185 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 500 | 500 | 1:1 | – | 0.31″ x 0.31″ x 0.34″ | – | |
| 70180 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 500 | 500 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70175 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 500 | 150 | 1.83:1 | 3.65:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70170 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 500 | 50 | 3.16:1 | 6.32:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70165 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 500 | 16 | 5.6:1 | 11.2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70160 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 500 | 12.8 | 6.25:1 | 12.5:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70155 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 400 | 4000 | 1:3.16 | 1:1.58 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70150 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 400 | 2000 | 1:2.24 | 1:1.12 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70145 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 400 | 1000 | 1:1.58 | 1.26:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70140 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 400 | 400 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70135 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 400 | 200 | 1.41:1 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70130 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 400 | 120 | 1.83:1 | 3.65:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70125 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 400 | 40 | 3.16:1 | 6.32:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70120 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 320 | 12.8 | 5:1 | 10:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70115 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 300 | 600 | 1:1.41 | 1.41:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70110 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 300 | 300 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70105 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 300 | 150 | 1:1.41 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70100 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 300 | 50 | 2.45:1 | 4.9:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70095 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 300 | 12 | 5:1 | 10:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70090 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 200 | 200 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70085 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 150 | 600 | 1:2 | 1:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70080 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 150 | 150 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70075 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 150 | 100 | 1.22:1 | 2.45:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70070 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 150 | 50 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70065 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 150 | 12 | 3.54:1 | 7.07:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70060 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 120 | 120 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70055 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 120 | 60 | 1.41:1 | 2.83:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70050 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 120 | 12.8 | 3.06:1 | 6.12:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70045 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 100 | 100 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70040 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 100 | 40 | 1.58:1 | 3.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70035 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 80 | 32 | 1.58:1 | 3.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70030 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 50 | 50 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70025 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 48 | 16 | 1.73:1 | 3.46:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70020 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 40 | 40 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70015 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 32 | 32 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70010 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 20 | 20 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70005 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 20 | 8 | 1.58:1 | 3.16:1 | 0.31″ x 0.31″ x 0.34″ | – | |
| 70003 | 70000 | Square SMT – Gull Lead | 400 Hz to 250 KHz | 0.125 | 10 | 10 | 1:1 | 2:1 | 0.31″ x 0.31″ x 0.34″ | – |
