Series F, G, 70000 & 80000

≤ 100mW at 400Hz to 250KHz

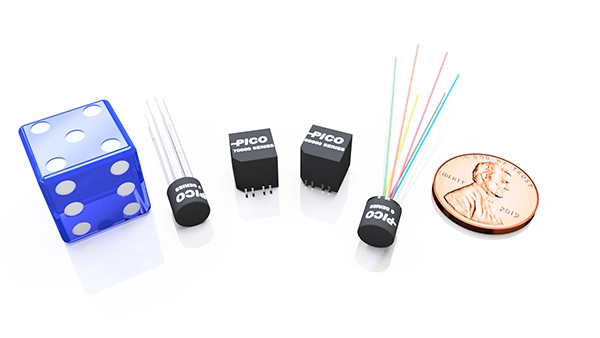

The F & G and 70000 & 80000 series are ultra-miniature transformers in an encapsulated package with design layouts as through-hole with insulated leads option, or surface mount types. They can operate over a wide temperature range of -55°C to +130°C. Our proprietary materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance.

Download Datasheet

Features

Extreme resistance to impact, shock, and vibration
Manufactured to MIL-PRF-27, Class S, Grade 5
High reliability for space and mission critical applications
Ultra miniature in size and minimalistic design
Design layouts in through-hole with insulated leads option or surface mount types
Available with magnetic shielding and/or electrostatic shielding

Options

Screening and qualification criteria to flight standard
Capability to thermal shock up to 300 cycles
Extra layers of magnetic shielding
Fully RoHS compliant or with exemption 7(a)
Modifications to mechanical design and electrical characteristics
Custom new design and parameters

Part Number	Mounting	Frequency Range (±3 dB)	≥ 1kHz Maximum Power (W)	≥ 400Hz Power (W)	Primary Impedance (Ω)	Secondary Impedance (Ω)	Turns Ratio (Prim/Sec) Series Connection	Turns Ratio (Prim/Sec) Parallel Connection	Primary Unbalanced DC Current (mA)	Primary DC Resistance (Ω)	Secondary DC Resistance (Ω) Series	Secondary DC Resistance (Ω) Parallel	Size (L x W x H) inches	Size (D x H) inches	Downloads
G-29570	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	20,000	10,000	1.41:1	2.83:1	0.3	1600	1100	275	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29565	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	20,000	5000	2:1	4:1	0.3	1600	600	150	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29560	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	20,000	1000	4.47:1	8.94:1	0.3	1600	106	26.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29555	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	20,000	800	5:1	10:1	0.3	1600	94	23.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29550	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	20,000	600	5.77:1	11.55:1	0.3	1600	66	16.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29545	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	20,000	500	6.33:1	12.65:1	0.3	1600	60	15	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29540	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	16,000	1000	4:1	8:1	0.35	1500	115	28.75	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29535	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	15,000	15,000	1:1	2:1	0.35	1420	1730	433	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29530	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	15,000	15,000	1:1	–	0.35	1420	1730	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29525	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	15,000	10,000	1.22:1	2.45:1	0.35	1420	1100	275	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29520	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	15,000	600	5:1	10:1	0.35	1420	68	17	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29515	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	15,000	500	5.48:1	10.95:1	0.35	1420	49	12.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29510	Insulated Leads	400 Hz to 250 KHz	0.1	0.015	15,000	400	6.12:1	12.24:1	0.35	1420	43	10.75	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29505	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	10,000	1:1	–	0.36	1200	1440	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29500	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	10,000	1:1	2.1	0.36	1200	1200	300	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29495	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	7500	1.15:1	2.3:1	0.36	1200	1020	255	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29490	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	5000	1.41:1	2.83:1	0.36	1200	650	162.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29485	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	2000	2.24:1	4.47:1	0.36	1200	260	65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29480	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	1500	2.58:1	5.16:1	0.36	1200	215	53.8	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29475	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	1200	2.88:1	5.77:1	0.36	1200	160	40	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29470	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	1000	3.16:1	6.32:1	0.36	1200	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29465	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	600	4.08:1	8.16:1	0.36	1200	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29460	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	500	4.47:1	8.94:1	0.36	1200	65	16.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29455	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	200	7.07:1	14.14:1	0.36	1200	27	6.75	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29450	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	100	10:1	20:1	0.36	1200	12	3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29445	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	16	25:1	50:1	0.36	1200	1.77	0.44	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29440	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10,000	12.8	28:1	56:1	0.36	1200	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29435	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	9000	9000	1:1	–	0.4	1160	1160	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29430	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	8000	1200	2.58:1	–	0.4	865	160	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29425	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	8000	1000	2.83:1	5.66:1	0.4	865	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29420	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	8000	12.8	25:1	50:1	0.4	865	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29415	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	7500	7500	1:1	–	0.4	835	1020	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29410	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	7500	2500	1.73:1	3.46:1	0.4	835	280	70	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29405	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	7500	600	3.54:1	7.07:1	0.4	835	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29400	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	7500	100	8.66:1	17.3:1	0.4	835	12	3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29395	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	7500	50	12.2:1	24.5:1	0.5	835	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29390	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	5000	5000	1:1	2:1	0.5	540	650	162.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29385	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	5000	500	3.16:1	6.32:1	0.5	540	65	16.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29380	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	4000	8000	1:1.41	–	0.57	400	1070	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29375	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	4000	1000	2:1	4:1	0.57	400	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29370	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	4000	600	2.58:1	5.16:1	0.57	400	73	18.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29365	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	4000	16	15.8:1	31.6:1	0.57	400	2.3	0.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29360	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	3600	3600	1:1	2:1	0.6	370	450	112.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29355	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	3000	3000	1:1		0.65	330	330	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29350	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	3000	3000	1:1	2:1	0.65	330	330	82.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29345	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	2500	2500	1:1	2:1	0.75	280	280	70	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29340	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	2000	8000	1:2	1:1	0.8	218	830	207.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29335	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	2000	2000	1:1	–	0.8	218	260	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29330	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	2000	2000	1:1	2:1	0.8	218	260	65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29325	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	2000	8	15.8:1	31.6:1	0.8	218	1	0.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29320	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1600	12.8	11.2:1	22.4:1	1	190	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29315	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1500	1500	1:1	–	1	180	215	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29310	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1500	600	1.58:1	–	1	180	73	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29305	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1500	500	1.73:1	3.46:1	1	180	65	16.31	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29300	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1500	12	11.2:1	22.4:1	1	180	1.55	0.39	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29295	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1200	1200	1:1	–	1	133	160	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29290	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1200	1200	1:1	2:1	1	133	160	40	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29285	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1200	500	1.55:1	3.1:1	1	133	65	16.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29280	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1200	12.8	9.68:1	19.4:1	1	133	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29275	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1060	12.8	9.1:1	18.2:1	1.2	125	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29270	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1000	1000	1:1	2:1	1.2	120	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29265	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1000	50	4.47:1	8.94:1	1.2	120	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29260	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	1000	12	9.13:1	18.3:1	1.2	120	1.55	0.39	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29255	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	900	600	1.22:1	2.45:1	1.2	93	74	18.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29250	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	800	800	1:1	2:1	1.3	88	106	26.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29245	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	800	48	4.08:1	8.16:1	1.3	88	6.7	1.68	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29240	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	800	12.8	7.9:1	15.8:1	1.3	88	16	4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29235	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	700	100	2.65:1	5.29:1	1.35	65	12	3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29230	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	640	12.8	7.07:1	14.14:1	1.5	62	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29225	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	600	1200	1:1.41	1.41:1	1.5	59	160	40	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29220	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	600	600	1:1	–	1.5	59	72	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29215	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	600	600	1:1	2:1	1.5	59	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29210	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	600	200	1.73:1	3.46:1	1.5	59	26.5	6.63	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29205	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	600	48	3.54:1	7.07:1	1.5	59	5.2	1.3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29200	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	600	30	4.47:1	8.94:1	1.5	59	4.1	1.03	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29195	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	600	12.8	6.85:1	13.7:1	1.5	59	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29190	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	500	600	1:1.1	1.83:1	1.6	54	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29185	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	500	500	1:1	–	1.6	54	65	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29180	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	500	500	1:1	2:1	1.6	54	65	16.3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29175	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	500	150	1.83:1	3.65:1	1.6	54	18.3	4.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29170	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	500	50	3.16:1	6.32:1	1.6	54	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29165	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	500	16	5.6:1	11.2:1	1.6	54	2.3	0.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29160	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	500	12.8	6.25:1	12.5:1	1.6	54	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29155	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	400	4000	1:3.16	1:1.58	1.8	49	476	119	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29150	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	400	2000	1:2.24	1:1.12	1.8	49	270	67.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29145	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	400	1000	1:1.58	1.26:1	1.8	49	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29140	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	400	400	1:1	2:1	1.8	49	49	12.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29135	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	400	200	1.41:1	2.83:1	1.8	49	27.3	6.83	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29130	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	400	120	1.83:1	3.65:1	1.8	49	16.3	4.08	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29125	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	400	40	3.16:1	6.32:1	1.8	49	4.7	1.18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29120	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	320	12.8	5:1	10:1	2	34	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29115	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	300	600	1:1.41	1.41:1	2	33	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29110	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	300	300	1:1	2:1	2	33	40.3	10.08	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29105	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	300	150	1.41:1	2.83:1	2	33	18.3	4.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29100	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	300	50	2.45:1	4.9:1	2	33	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29095	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	300	12	5:1	10:1	2	33	1.56	0.39	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29090	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	200	200	1:1	2:1	2.5	22	26.8	6.7	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29085	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	150	600	1:2	1:1	3	15	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29080	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	150	150	1:1	2:1	3	15	18.3	4.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29075	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	150	100	1.22:1	2.45:1	3	15	14.5	3.63	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29070	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	150	50	1.73:1	3.46:1	3	15	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29065	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	150	12	3.54:1	7.07:1	3	15	1.56	0.39	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29060	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	120	120	1:1	2:1	3.3	13.2	16	4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29055	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	120	60	1.41:1	2.83:1	3.3	13.2	7.3	1.83	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29050	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	120	12.8	3.06:1	6.12:1	3.3	13.2	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29045	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	100	100	1:1	2:1	3.6	12.1	12	3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29040	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	100	40	1.58:1	3.16:1	3.6	12.1	4.85	1.21	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29035	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	80	32	1.58:1	3.16:1	4	8.5	4.25	1.06	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29030	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	50	50	1:1	2:1	5	5.5	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29025	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	48	16	1.73:1	3.46:1	5.2	4.3	2.3	0.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29020	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	40	40	1:1	2:1	5.6	4	4.77	1.19	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29015	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	32	32	1:1	2:1	6.5	3.52	4.32	1.08	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29010	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	20	20	1:1	2:1	8	2.1	2.56	0.64	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29005	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	20	8	1.58:1	3.16:1	8	2.1	1.28	0.32	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
G-29003	Insulated Leads	400 Hz to 250 KHz	0.125	0.02	10	10	1:1	2:1	11.5	1.1	1.35	0.34	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28570	Through Hole	400 Hz to 250 KHz	0.1	0.015	20,000	10,000	1.41:1	2.83:1	0.3	1600	1100	275	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28565	Through Hole	400 Hz to 250 KHz	0.1	0.015	20,000	5000	2:1	4:1	0.3	1600	600	150	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28560	Through Hole	400 Hz to 250 KHz	0.1	0.015	20,000	1000	4.47:1	8.94:1	0.3	1600	106	26.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28555	Through Hole	400 Hz to 250 KHz	0.1	0.015	20,000	800	5:1	10:1	0.3	1600	94	23.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28550	Through Hole	400 Hz to 250 KHz	0.1	0.015	20,000	600	5.77:1	11.55:1	0.3	1600	66	16.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28545	Through Hole	400 Hz to 250 KHz	0.1	0.015	20,000	500	6.33:1	12.65:1	0.3	1600	60	15	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28540	Through Hole	400 Hz to 250 KHz	0.1	0.015	16,000	1000	4:1	8:1	0.35	1500	115	28.75	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28535	Through Hole	400 Hz to 250 KHz	0.1	0.015	15,000	15,000	1:1	2:1	0.35	1420	1730	433	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28530	Through Hole	400 Hz to 250 KHz	0.1	0.015	15,000	15,000	1:1	–	0.35	1420	1730	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28525	Through Hole	400 Hz to 250 KHz	0.1	0.015	15,000	10,000	1.22:1	2.45:1	0.35	1420	1100	275	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28520	Through Hole	400 Hz to 250 KHz	0.1	0.015	15,000	600	5:1	10:1	0.35	1420	68	17	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28515	Through Hole	400 Hz to 250 KHz	0.1	0.015	15,000	500	5.48:1	10.95:1	0.35	1420	49	12.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28510	Through Hole	400 Hz to 250 KHz	0.1	0.015	15,000	400	6.12:1	12.24:1	0.35	1420	43	10.75	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28505	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	10,000	1:1	–	0.36	1200	1440	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28500	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	10,000	1:1	2.1	0.36	1200	1200	300	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28495	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	7500	1.15:1	2.3:1	0.36	1200	1020	255	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28490	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	5000	1.41:1	2.83:1	0.36	1200	650	162.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28485	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	2000	2.24:1	4.47:1	0.36	1200	260	65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28480	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	1500	2.58:1	5.16:1	0.36	1200	215	53.8	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28475	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	1200	2.88:1	5.77:1	0.36	1200	160	40	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28470	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	1000	3.16:1	6.32:1	0.36	1200	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28465	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	600	4.08:1	8.16:1	0.36	1200	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28460	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	500	4.47:1	8.94:1	0.36	1200	65	16.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28455	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	200	7.07:1	14.14:1	0.36	1200	27	6.75	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28450	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	100	10:1	20:1	0.36	1200	12	3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28445	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	16	25:1	50:1	0.36	1200	1.77	0.44	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28440	Through Hole	400 Hz to 250 KHz	0.125	0.02	10,000	12.8	28:1	56:1	0.36	1200	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28435	Through Hole	400 Hz to 250 KHz	0.125	0.02	9000	9000	1:1	–	0.4	1160	1160	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28430	Through Hole	400 Hz to 250 KHz	0.125	0.02	8000	1200	2.58:1	–	0.4	865	160	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28425	Through Hole	400 Hz to 250 KHz	0.125	0.02	8000	1000	2.83:1	5.66:1	0.4	865	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28420	Through Hole	400 Hz to 250 KHz	0.125	0.02	8000	12.8	25:1	50:1	0.4	865	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28415	Through Hole	400 Hz to 250 KHz	0.125	0.02	7500	7500	1:1	–	0.4	835	1020	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28410	Through Hole	400 Hz to 250 KHz	0.125	0.02	7500	2500	1.73:1	3.46:1	0.4	835	280	70	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28405	Through Hole	400 Hz to 250 KHz	0.125	0.02	7500	600	3.54:1	7.07:1	0.4	835	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28400	Through Hole	400 Hz to 250 KHz	0.125	0.02	7500	100	8.66:1	17.3:1	0.4	835	12	3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28395	Through Hole	400 Hz to 250 KHz	0.125	0.02	7500	50	12.2:1	24.5:1	0.5	835	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28390	Through Hole	400 Hz to 250 KHz	0.125	0.02	5000	5000	1:1	2:1	0.5	540	650	162.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28385	Through Hole	400 Hz to 250 KHz	0.125	0.02	5000	500	3.16:1	6.32:1	0.5	540	65	16.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28380	Through Hole	400 Hz to 250 KHz	0.125	0.02	4000	8000	1:1.41	–	0.57	400	1070	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28375	Through Hole	400 Hz to 250 KHz	0.125	0.02	4000	1000	2:1	4:1	0.57	400	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28370	Through Hole	400 Hz to 250 KHz	0.125	0.02	4000	600	2.58:1	5.16:1	0.57	400	73	18.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28365	Through Hole	400 Hz to 250 KHz	0.125	0.02	4000	16	15.8:1	31.6:1	0.57	400	2.3	0.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28360	Through Hole	400 Hz to 250 KHz	0.125	0.02	3600	3600	1:1	2:1	0.6	370	450	112.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28355	Through Hole	400 Hz to 250 KHz	0.125	0.02	3000	3000	1:1		0.65	330	330	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28350	Through Hole	400 Hz to 250 KHz	0.125	0.02	3000	3000	1:1	2:1	0.65	330	330	82.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28345	Through Hole	400 Hz to 250 KHz	0.125	0.02	2500	2500	1:1	2:1	0.75	280	280	70	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28340	Through Hole	400 Hz to 250 KHz	0.125	0.02	2000	8000	1:2	1:1	0.8	218	830	207.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28335	Through Hole	400 Hz to 250 KHz	0.125	0.02	2000	2000	1:1	–	0.8	218	260	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28330	Through Hole	400 Hz to 250 KHz	0.125	0.02	2000	2000	1:1	2:1	0.8	218	260	65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28325	Through Hole	400 Hz to 250 KHz	0.125	0.02	2000	8	15.8:1	31.6:1	0.8	218	1	0.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28320	Through Hole	400 Hz to 250 KHz	0.125	0.02	1600	12.8	11.2:1	22.4:1	1	190	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28315	Through Hole	400 Hz to 250 KHz	0.125	0.02	1500	1500	1:1	–	1	180	215	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28310	Through Hole	400 Hz to 250 KHz	0.125	0.02	1500	600	1.58:1	–	1	180	73	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28305	Through Hole	400 Hz to 250 KHz	0.125	0.02	1500	500	1.73:1	3.46:1	1	180	65	16.31	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28300	Through Hole	400 Hz to 250 KHz	0.125	0.02	1500	12	11.2:1	22.4:1	1	180	1.55	0.39	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28295	Through Hole	400 Hz to 250 KHz	0.125	0.02	1200	1200	1:1	–	1	133	160	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28290	Through Hole	400 Hz to 250 KHz	0.125	0.02	1200	1200	1:1	2:1	1	133	160	40	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28285	Through Hole	400 Hz to 250 KHz	0.125	0.02	1200	500	1.55:1	3.1:1	1	133	65	16.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28280	Through Hole	400 Hz to 250 KHz	0.125	0.02	1200	12.8	9.68:1	19.4:1	1	133	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28275	Through Hole	400 Hz to 250 KHz	0.125	0.02	1060	12.8	9.1:1	18.2:1	1.2	125	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28270	Through Hole	400 Hz to 250 KHz	0.125	0.02	1000	1000	1:1	2:1	1.2	120	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28265	Through Hole	400 Hz to 250 KHz	0.125	0.02	1000	50	4.47:1	8.94:1	1.2	120	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28260	Through Hole	400 Hz to 250 KHz	0.125	0.02	1000	12	9.13:1	18.3:1	1.2	120	1.55	0.39	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28255	Through Hole	400 Hz to 250 KHz	0.125	0.02	900	600	1.22:1	2.45:1	1.2	93	74	18.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28250	Through Hole	400 Hz to 250 KHz	0.125	0.02	800	800	1:1	2:1	1.3	88	106	26.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28245	Through Hole	400 Hz to 250 KHz	0.125	0.02	800	48	4.08:1	8.16:1	1.3	88	6.7	1.68	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28240	Through Hole	400 Hz to 250 KHz	0.125	0.02	800	12.8	7.9:1	15.8:1	1.3	88	16	4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28235	Through Hole	400 Hz to 250 KHz	0.125	0.02	700	100	2.65:1	5.29:1	1.35	65	12	3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28230	Through Hole	400 Hz to 250 KHz	0.125	0.02	640	12.8	7.07:1	14.14:1	1.5	62	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28225	Through Hole	400 Hz to 250 KHz	0.125	0.02	600	1200	1:1.41	1.41:1	1.5	59	160	40	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28220	Through Hole	400 Hz to 250 KHz	0.125	0.02	600	600	1:1	–	1.5	59	72	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28215	Through Hole	400 Hz to 250 KHz	0.125	0.02	600	600	1:1	2:1	1.5	59	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28210	Through Hole	400 Hz to 250 KHz	0.125	0.02	600	200	1.73:1	3.46:1	1.5	59	26.5	6.63	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28205	Through Hole	400 Hz to 250 KHz	0.125	0.02	600	48	3.54:1	7.07:1	1.5	59	5.2	1.3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28200	Through Hole	400 Hz to 250 KHz	0.125	0.02	600	30	4.47:1	8.94:1	1.5	59	4.1	1.03	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28195	Through Hole	400 Hz to 250 KHz	0.125	0.02	600	12.8	6.85:1	13.7:1	1.5	59	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28190	Through Hole	400 Hz to 250 KHz	0.125	0.02	500	600	1:1.1	1.83:1	1.6	54	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28185	Through Hole	400 Hz to 250 KHz	0.125	0.02	500	500	1:1	–	1.6	54	65	–	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28180	Through Hole	400 Hz to 250 KHz	0.125	0.02	500	500	1:1	2:1	1.6	54	65	16.3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28175	Through Hole	400 Hz to 250 KHz	0.125	0.02	500	150	1.83:1	3.65:1	1.6	54	18.3	4.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28170	Through Hole	400 Hz to 250 KHz	0.125	0.02	500	50	3.16:1	6.32:1	1.6	54	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28165	Through Hole	400 Hz to 250 KHz	0.125	0.02	500	16	5.6:1	11.2:1	1.6	54	2.3	0.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28160	Through Hole	400 Hz to 250 KHz	0.125	0.02	500	12.8	6.25:1	12.5:1	1.6	54	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28155	Through Hole	400 Hz to 250 KHz	0.125	0.02	400	4000	1:3.16	1:1.58	1.8	49	476	119	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28150	Through Hole	400 Hz to 250 KHz	0.125	0.02	400	2000	1:2.24	1:1.12	1.8	49	270	67.5	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28145	Through Hole	400 Hz to 250 KHz	0.125	0.02	400	1000	1:1.58	1.26:1	1.8	49	120	30	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28140	Through Hole	400 Hz to 250 KHz	0.125	0.02	400	400	1:1	2:1	1.8	49	49	12.25	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28135	Through Hole	400 Hz to 250 KHz	0.125	0.02	400	200	1.41:1	2.83:1	1.8	49	27.3	6.83	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28130	Through Hole	400 Hz to 250 KHz	0.125	0.02	400	120	1.83:1	3.65:1	1.8	49	16.3	4.08	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28125	Through Hole	400 Hz to 250 KHz	0.125	0.02	400	40	3.16:1	6.32:1	1.8	49	4.7	1.18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28120	Through Hole	400 Hz to 250 KHz	0.125	0.02	320	12.8	5:1	10:1	2	34	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28115	Through Hole	400 Hz to 250 KHz	0.125	0.02	300	600	1:1.41	1.41:1	2	33	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28110	Through Hole	400 Hz to 250 KHz	0.125	0.02	300	300	1:1	2:1	2	33	40.3	10.08	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28105	Through Hole	400 Hz to 250 KHz	0.125	0.02	300	150	1.41:1	2.83:1	2	33	18.3	4.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28100	Through Hole	400 Hz to 250 KHz	0.125	0.02	300	50	2.45:1	4.9:1	2	33	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28095	Through Hole	400 Hz to 250 KHz	0.125	0.02	300	12	5:1	10:1	2	33	1.56	0.39	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28090	Through Hole	400 Hz to 250 KHz	0.125	0.02	200	200	1:1	2:1	2.5	22	26.8	6.7	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28085	Through Hole	400 Hz to 250 KHz	0.125	0.02	150	600	1:2	1:1	3	15	72	18	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28080	Through Hole	400 Hz to 250 KHz	0.125	0.02	150	150	1:1	2:1	3	15	18.3	4.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28075	Through Hole	400 Hz to 250 KHz	0.125	0.02	150	100	1.22:1	2.45:1	3	15	14.5	3.63	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28070	Through Hole	400 Hz to 250 KHz	0.125	0.02	150	50	1.73:1	3.46:1	3	15	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28065	Through Hole	400 Hz to 250 KHz	0.125	0.02	150	12	3.54:1	7.07:1	3	15	1.56	0.39	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28060	Through Hole	400 Hz to 250 KHz	0.125	0.02	120	120	1:1	2:1	3.3	13.2	16	4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28055	Through Hole	400 Hz to 250 KHz	0.125	0.02	120	60	1.41:1	2.83:1	3.3	13.2	7.3	1.83	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28050	Through Hole	400 Hz to 250 KHz	0.125	0.02	120	12.8	3.06:1	6.12:1	3.3	13.2	1.6	0.4	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28045	Through Hole	400 Hz to 250 KHz	0.125	0.02	100	100	1:1	2:1	3.6	12.1	12	3	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28040	Through Hole	400 Hz to 250 KHz	0.125	0.02	100	40	1.58:1	3.16:1	3.6	12.1	4.85	1.21	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28035	Through Hole	400 Hz to 250 KHz	0.125	0.02	80	32	1.58:1	3.16:1	4	8.5	4.25	1.06	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28030	Through Hole	400 Hz to 250 KHz	0.125	0.02	50	50	1:1	2:1	5	5.5	6.6	1.65	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28025	Through Hole	400 Hz to 250 KHz	0.125	0.02	48	16	1.73:1	3.46:1	5.2	4.3	2.3	0.58	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28020	Through Hole	400 Hz to 250 KHz	0.125	0.02	40	40	1:1	2:1	5.6	4	4.77	1.19	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28015	Through Hole	400 Hz to 250 KHz	0.125	0.02	32	32	1:1	2:1	6.5	3.52	4.32	1.08	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28010	Through Hole	400 Hz to 250 KHz	0.125	0.02	20	20	1:1	2:1	8	2.1	2.56	0.64	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28005	Through Hole	400 Hz to 250 KHz	0.125	0.02	20	8	1.58:1	3.16:1	8	2.1	1.28	0.32	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
F-28003	Through Hole	400 Hz to 250 KHz	0.125	0.02	10	10	1:1	2:1	11.5	1.1	1.35	0.34	–	0.25″ x 0.25″	Datasheet Technical Drawing Electrical Schematic 3D Step File
80570	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	20,000	10,000	1.41:1	2.83:1	0.3	1600	1100	275	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80565	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	20,000	5000	2:1	4:1	0.3	1600	600	150	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80560	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	20,000	1000	4.47:1	8.94:1	0.3	1600	106	26.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80555	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	20,000	800	5:1	10:1	0.3	1600	94	23.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80550	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	20,000	600	5.77:1	11.55:1	0.3	1600	66	16.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80545	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	20,000	500	6.33:1	12.65:1	0.3	1600	60	15	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80540	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	16,000	1000	4:1	8:1	0.35	1500	115	28.75	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80535	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	15,000	15,000	1:1	2:1	0.35	1420	1730	433	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80530	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	15,000	15,000	1:1	–	0.35	1420	1730	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80525	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	15,000	10,000	1.22:1	2.45:1	0.35	1420	1100	275	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80520	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	15,000	600	5:1	10:1	0.35	1420	68	17	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80515	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	15,000	500	5.48:1	10.95:1	0.35	1420	49	12.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80510	Square SMT – J Lead	400 Hz to 250 KHz	0.1	0.015	15,000	400	6.12:1	12.24:1	0.35	1420	43	10.75	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80505	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	10,000	1:1	–	0.36	1200	1440	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80500	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	10,000	1:1	2:1	0.36	1200	1200	300	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80495	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	7500	1.15:1	2.3:1	0.36	1200	1020	255	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80490	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	5000	1.41:1	2.83:1	0.36	1200	650	162.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80485	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	2000	2.24:1	4.47:1	0.36	1200	260	65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80480	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	1500	2.58:1	5.16:1	0.36	1200	215	53.8	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80475	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	1200	2.88:1	5.77:1	0.36	1200	160	40	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80470	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	1000	3.16:1	6.32:1	0.36	1200	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80465	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	600	4.08:1	8.16:1	0.36	1200	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80460	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	500	4.47:1	8.94:1	0.36	1200	65	16.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80455	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	200	7.07:1	14.14:1	0.36	1200	27	6.75	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80450	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	100	10:1	20:1	0.36	1200	12	3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80445	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	16	25:1	50:1	0.36	1200	1.77	0.44	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80440	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10,000	12.8	28:1	56:1	0.36	1200	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80435	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	9000	9000	1:1	–	0.4	1160	1160	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80430	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	8000	1200	2.58:1	–	0.4	865	160	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80425	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	8000	1000	2.83:1	5.66:1	0.4	865	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80420	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	8000	12.8	25:1	50:1	0.4	865	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80415	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	7500	7500	1:1	–	0.4	835	1020	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80410	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	7500	2500	1.73:1	3.46:1	0.4	835	280	70	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80405	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	7500	600	3.54:1	7.07:1	0.4	835	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80400	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	7500	100	8.66:1	17.3:1	0.4	835	12	3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80395	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	7500	50	12.2:1	24.5:1	0.5	835	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80390	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	5000	5000	1:1	2:1	0.5	540	650	162.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80385	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	5000	500	3.16:1	6.32:1	0.5	540	65	16.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80380	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	4000	8000	1:1.41	–	0.57	400	1070	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80375	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	4000	1000	2:1	4:1	0.57	400	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80370	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	4000	600	2.58:1	5.16:1	0.57	400	73	18.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80365	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	4000	16	15.8:1	31.6:1	0.57	400	2.3	0.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80360	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	3600	3600	1:1	2:1	0.6	370	450	112.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80355	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	3000	3000	1:1	–	0.65	330	330	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80350	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	3000	3000	1:1	2:1	0.65	330	330	82.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80345	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	2500	2500	1:1	2:1	0.75	280	280	70	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80340	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	2000	8000	1:2	1:1	0.8	218	830	207.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80335	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	2000	2000	1:1	–	0.8	218	260	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80330	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	2000	2000	1:1	2.1:1	0.8	218	260	65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80325	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	2000	8	15.8:1	31.6:1	0.8	218	1	0.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80320	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1600	12.8	11.2:1	22.4:1	1	190	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80315	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1500	1500	1:1	–	1	180	215	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80310	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1500	600	1.58:1	–	1	180	73	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80305	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1500	500	1.73:1	3.46:1	1	180	65	16.3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80300	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1500	12	11.2:1	22.4:1	1	180	1.55	0.39	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80295	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1200	1200	1:1	–	1	133	160	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80290	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1200	1200	1:1	2:1	1	133	160	40	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80285	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1200	500	1.55:1	3.1:1	1	133	65	16.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80280	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1200	12.8	9.68:1	19.4:1	1	133	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80275	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1060	12.8	9.1:1	18.2:1	1.2	125	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80270	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1000	1000	1:1	2:1	1.2	120	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80265	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1000	50	4.47:1	8.94:1	1.2	120	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80260	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	1000	12	9.13:1	18.3:1	1.2	120	1.55	0.39	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80255	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	900	600	1.22:1	2.45:1	1.2	93	74	18.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80250	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	800	800	1:1	2:1	1.3	88	106	26.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80245	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	800	48	4.08:1	8.16:1	1.3	88	6.7	1.68	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80240	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	800	12.8	7.9:1	15.8:1	1.3	88	15	4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80235	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	700	100	2.65:1	5.29:1	1.35	65	12	3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80230	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	640	12.8	7.07:1	14.14:1	1.5	62	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80225	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	600	1200	1:1.41	1.41:1	1.5	59	160	40	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80220	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	600	600	1:1	–	1.5	59	72	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80215	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	600	600	1:1	2:1	1.5	59	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80210	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	600	200	1.73:1	3.46:1	1.5	59	26.5	6.63	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80205	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	600	48	3.54:1	7.07:1	1.5	59	5.2	1.3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80200	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	600	30	4.47:1	8.94:1	1.5	59	4.1	1.03	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80195	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	600	12.8	6.85:1	13.7:1	1.5	59	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80190	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	500	600	1:1.1	1.83:1	1.6	54	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80185	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	500	500	1:1	–	1.6	54	65	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80180	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	500	500	1:1	2:1	1.6	54	65	16.3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80175	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	500	150	1.83:1	3.65:1	1.6	54	18.3	4.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80170	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	500	50	3.16:1	6.32:1	1.6	54	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80165	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	500	16	5.6:1	11.2:1	1.6	54	2.3	0.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80160	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	500	12.8	6.25:1	12.5:1	1.6	54	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80155	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	400	4000	1:3.16	1:1.58	1.8	49	476	119	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80150	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	400	2000	1:2.24	1:1.12	1.8	49	270	67.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80145	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	400	1000	1:1.58	1.26:1	1.8	48	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80140	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	400	400	1:1	2:1	1.8	49	49	12.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80135	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	400	200	1.41:1	2.83:1	1.8	49	27.3	6.83	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80130	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	400	120	1.83:1	3.65:1	1.8	49	16.3	4.08	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80125	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	400	40	3.16:1	6.32:1	1.8	49	4.7	1.18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80120	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	320	12.8	5:1	10:1	2	34	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80115	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	300	600	1:1.41	1.41:1	2	33	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80110	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	300	300	1:1	2:1	2	33	40.3	10.08	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80105	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	300	150	1:1.41	2.83:1	2	33	18.3	4.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80100	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	300	50	2.45:1	4.9:1	2	33	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80095	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	300	12	5:1	10:1	2	33	1.56	0.39	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80090	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	200	200	1:1	2:1	2.5	22	25.8	6.7	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80085	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	150	600	1:2	1:1	3	15	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80080	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	150	150	1:1	2:1	3	15	18.3	4.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80075	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	150	100	1.22:1	2.45:1	3	15	14.5	3.63	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80070	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	150	50	1.73:1	3.46:1	3	15	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80065	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	150	12	3.54:1	7.07:1	3	15	1.56	0.39	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80060	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	120	120	1:1	2:1	3.3	13.2	16	4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80055	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	120	60	1.41:1	2.83:1	3.3	13.2	7.3	1.83	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80050	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	120	12.8	3.06:1	6.12:1	3.3	13.2	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80045	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	100	100	1:1	2:1	3.6	12.1	12	3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80040	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	100	40	1.58:1	3.16:1	3.6	12.1	4.85	1.21	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80035	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	80	32	1.58:1	3.16:1	4	8.5	4.25	1.06	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80030	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	50	50	1:1	2:1	5	5.5	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80025	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	48	16	1.73:1	3.46:1	5.2	4.3	2.3	0.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80020	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	40	40	1:1	2:1	5.6	4	4.77	1.19	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80015	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	32	32	1:1	2:1	6.5	3.52	4.32	1.08	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80010	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	20	20	1:1	2:1	8	2.1	2.56	0.64	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80005	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	20	8	1.58:1	3.16:1	8	2.1	1.28	0.32	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
80003	Square SMT – J Lead	400 Hz to 250 KHz	0.125	0.02	10	10	1:1	2:1	11.5	1.1	1.35	0.34	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70570	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	20,000	10,000	1.41:1	2.83:1	0.3	1600	1100	275	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70565	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	20,000	5000	2:1	4:1	0.3	1600	600	150	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70560	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	20,000	1000	4.47:1	8.94:1	0.3	1600	106	26.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70555	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	20,000	800	5:1	10:1	0.3	1600	94	23.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70550	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	20,000	600	5.77:1	11.55:1	0.3	1600	66	16.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70545	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	20,000	500	6.33:1	12.65:1	0.3	1600	60	15	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70540	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	16,000	1000	4:1	8:1	0.35	1500	115	28.75	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70535	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	15,000	15,000	1:1	2:1	0.35	1420	1730	433	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70530	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	15,000	15,000	1:1	–	0.35	1420	1730	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70525	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	15,000	10,000	1.22:1	2.45:1	0.35	1420	1100	275	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70520	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	15,000	600	5:1	10:1	0.35	1420	68	17	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70515	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	15,000	500	5.48:1	10.95:1	0.35	1420	49	12.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70510	Square SMT – Gull Lead	400 Hz to 250 KHz	0.1	0.015	15,000	400	6.12:1	12.24:1	0.35	1420	43	10.75	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70505	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	10,000	1:1	–	0.36	1200	1440	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70500	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	10,000	1:1	2:1	0.36	1200	1200	300	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70495	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	7500	1.15:1	2.3:1	0.36	1200	1020	255	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70490	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	5000	1.41:1	2.83:1	0.36	1200	650	162.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70485	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	2000	2.24:1	4.47:1	0.36	1200	260	65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70480	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	1500	2.58:1	5.16:1	0.36	1200	215	53.8	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70475	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	1200	2.88:1	5.77:1	0.36	1200	160	40	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70470	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	1000	3.16:1	6.32:1	0.36	1200	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70465	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	600	4.08:1	8.16:1	0.36	1200	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70460	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	500	4.47:1	8.94:1	0.36	1200	65	16.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70455	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	200	7.07:1	14.14:1	0.36	1200	27	6.75	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70450	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	100	10:1	20:1	0.36	1200	12	3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70445	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	16	25:1	50:1	0.36	1200	1.77	0.44	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70440	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10,000	12.8	28:1	56:1	0.36	1200	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70435	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	9000	9000	1:1	–	0.4	1160	1160	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70430	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	8000	1200	2.58:1	–	0.4	865	160	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70425	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	8000	1000	2.83:1	5.66:1	0.4	865	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70420	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	8000	12.8	25:1	50:1	0.4	865	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70415	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	7500	7500	1:1	–	0.4	835	1020	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70410	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	7500	2500	1.73:1	3.46:1	0.4	835	280	70	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70405	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	7500	600	3.54:1	7.07:1	0.4	835	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70400	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	7500	100	8.66:1	17.3:1	0.4	835	12	3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70395	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	7500	50	12.2:1	24.5:1	0.5	835	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70390	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	5000	5000	1:1	2:1	0.5	540	650	162.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70385	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	5000	500	3.16:1	6.32:1	0.5	540	65	16.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70380	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	4000	8000	1:1.41	–	0.57	400	1070	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70375	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	4000	1000	2:1	4:1	0.57	400	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70370	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	4000	600	2.58:1	5.16:1	0.57	400	73	18.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70365	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	4000	16	15.8:1	31.6:1	0.57	400	2.3	0.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70360	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	3600	3600	1:1	2:1	0.6	370	450	112.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70355	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	3000	3000	1:1	–	0.65	330	330	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70350	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	3000	3000	1:1	2:1	0.65	330	330	82.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70345	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	2500	2500	1:1	2:1	0.75	280	280	70	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70340	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	2000	8000	1:2	1:1	0.8	218	830	207.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70335	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	2000	2000	1:1	–	0.8	218	260	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70330	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	2000	2000	1:1	2.1:1	0.8	218	260	65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70325	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	2000	8	15.8:1	31.6:1	0.8	218	1	0.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70320	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1600	12.8	11.2:1	22.4:1	1	190	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70315	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1500	1500	1:1	–	1	180	215	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70310	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1500	600	1.58:1	–	1	180	73	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70305	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1500	500	1.73:1	3.46:1	1	180	65	16.3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70300	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1500	12	11.2:1	22.4:1	1	180	1.55	0.39	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70295	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1200	1200	1:1	–	1	133	160	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70290	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1200	1200	1:1	2:1	1	133	160	40	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70285	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1200	500	1.55:1	3.1:1	1	133	65	16.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70280	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1200	12.8	9.68:1	19.4:1	1	133	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70275	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1060	12.8	9.1:1	18.2:1	1.2	125	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70270	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1000	1000	1:1	2:1	1.2	120	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70265	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1000	50	4.47:1	8.94:1	1.2	120	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70260	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	1000	12	9.13:1	18.3:1	1.2	120	1.55	0.39	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70255	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	900	600	1.22:1	2.45:1	1.2	93	74	18.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70250	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	800	800	1:1	2:1	1.3	88	106	26.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70245	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	800	48	4.08:1	8.16:1	1.3	88	6.7	1.68	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70240	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	800	12.8	7.9:1	15.8:1	1.3	88	15	4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70235	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	700	100	2.65:1	5.29:1	1.35	65	12	3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70230	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	640	12.8	7.07:1	14.14:1	1.5	62	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70225	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	600	1200	1:1.41	1.41:1	1.5	59	160	40	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70220	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	600	600	1:1	–	1.5	59	72	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70215	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	600	600	1:1	2:1	1.5	59	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70210	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	600	200	1.73:1	3.46:1	1.5	59	26.5	6.63	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70205	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	600	48	3.54:1	7.07:1	1.5	59	5.2	1.3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70200	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	600	30	4.47:1	8.94:1	1.5	59	4.1	1.03	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70195	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	600	12.8	6.85:1	13.7:1	1.5	59	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70190	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	500	600	1:1.1	1.83:1	1.6	54	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70185	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	500	500	1:1	–	1.6	54	65	–	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70180	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	500	500	1:1	2:1	1.6	54	65	16.3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70175	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	500	150	1.83:1	3.65:1	1.6	54	18.3	4.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70170	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	500	50	3.16:1	6.32:1	1.6	54	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70165	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	500	16	5.6:1	11.2:1	1.6	54	2.3	0.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70160	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	500	12.8	6.25:1	12.5:1	1.6	54	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70155	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	400	4000	1:3.16	1:1.58	1.8	49	476	119	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70150	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	400	2000	1:2.24	1:1.12	1.8	49	270	67.5	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70145	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	400	1000	1:1.58	1.26:1	1.8	48	120	30	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70140	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	400	400	1:1	2:1	1.8	49	49	12.25	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70135	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	400	200	1.41:1	2.83:1	1.8	49	27.3	6.83	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70130	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	400	120	1.83:1	3.65:1	1.8	49	16.3	4.08	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70125	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	400	40	3.16:1	6.32:1	1.8	49	4.7	1.18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70120	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	320	12.8	5:1	10:1	2	34	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70115	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	300	600	1:1.41	1.41:1	2	33	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70110	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	300	300	1:1	2:1	2	33	40.3	10.08	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70105	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	300	150	1:1.41	2.83:1	2	33	18.3	4.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70100	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	300	50	2.45:1	4.9:1	2	33	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70095	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	300	12	5:1	10:1	2	33	1.56	0.39	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70090	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	200	200	1:1	2:1	2.5	22	25.8	6.7	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70085	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	150	600	1:2	1:1	3	15	72	18	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70080	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	150	150	1:1	2:1	3	15	18.3	4.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70075	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	150	100	1.22:1	2.45:1	3	15	14.5	3.63	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70070	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	150	50	1.73:1	3.46:1	3	15	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70065	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	150	12	3.54:1	7.07:1	3	15	1.56	0.39	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70060	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	120	120	1:1	2:1	3.3	13.2	16	4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70055	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	120	60	1.41:1	2.83:1	3.3	13.2	7.3	1.83	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70050	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	120	12.8	3.06:1	6.12:1	3.3	13.2	1.6	0.4	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70045	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	100	100	1:1	2:1	3.6	12.1	12	3	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70040	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	100	40	1.58:1	3.16:1	3.6	12.1	4.85	1.21	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70035	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	80	32	1.58:1	3.16:1	4	8.5	4.25	1.06	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70030	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	50	50	1:1	2:1	5	5.5	6.6	1.65	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70025	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	48	16	1.73:1	3.46:1	5.2	4.3	2.3	0.58	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70020	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	40	40	1:1	2:1	5.6	4	4.77	1.19	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70015	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	32	32	1:1	2:1	6.5	3.52	4.32	1.08	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70010	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	20	20	1:1	2:1	8	2.1	2.56	0.64	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70005	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	20	8	1.58:1	3.16:1	8	2.1	1.28	0.32	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File
70003	Square SMT – Gull Lead	400 Hz to 250 KHz	0.125	0.02	10	10	1:1	2:1	11.5	1.1	1.35	0.34	0.31″ x 0.31″ x 0.34″	–	Datasheet Technical Drawing Electrical Schematic Land Pattern 3D Step File

Series F, G, 70000 & 80000

≤ 100mW at 400Hz to 250KHz

Custom Solutions

Features

Options
