Specifications
MountingThrough Hole
Nominal Input Voltage (VDC)900
Input Voltage Range (VDC)700 - 1200
Single Output Voltage (VDC)200
Output Min. Current (A)0
Output Max. Current (A)1.25
Max Output Power (W)250
Max. Line Regulation Vin Min to Vin Max (%)0.2
Load Regulation 10 - 100% (%)1
Efficiency @ Full Load Typical (%)85
Output Voltage Ripple (Full Load) 1-1MHz BW (Vp-p)0.4
Full Load Output Voltage Tolerance (±%)1
Baseplate Operating Temperature Range (°C)0 to +85
Baseplate Storage Temperature Range (°C)-55 to +105
CoolingConduction
Dimensions - L x W x H (in)4.6 x 2.5 x 0.8
Weight (grams)340
CaseAluminum baseplate and Glass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage - Input/Output (VDC)4242
Isolation Voltage - Input/baseplate (VDC)2121
Isolation Voltage - Output/baseplate (VDC)2121
Operating Frequency (kHz)100
Short Circuit ProtectionHiccup mode, self-recovery
Input Over Voltage ProtectionYes
Input Under Voltage ProtectionYes
Overtemperature ProtectionYes
Compatible Heat SinkCH, CV
Compatible Thermal InterfaceTI
Description

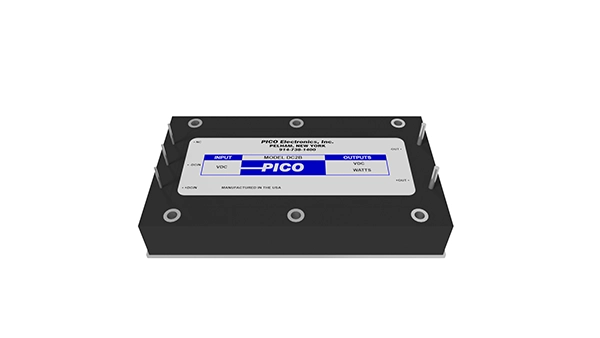

The DC1, DC2A & DC2B series are isolated DC-DC converters with a wide selection of input voltage ranges from 120V to 1200V and output power up to 300W. These modules have sense feature to accurately regulate the voltage at a remote load. Input is protected against reverse polarity.
The full brick case size has threaded inserts to mount securely for high vibration and shock applications. Conduction cooling is available through the baseplate or compatible heat sink.
