Specifications
MountingThrough Hole
Output TypeRegulated
Nominal Input Voltage (VDC)12
Input Voltage Range - Regulated Output (VDC)10.8 - 13.2
Dual Output Voltage per Output (VDC)5
Output Min. Current (mA)0
Output Max Current per Output (mA)50
Max Power per Output (W)0.25
Line Regulation Vin Min to Vin Nom to Vin Max (±%)0.2
Load Regulation 0-100% (%)0.4
Efficiency @ Full Load at Nominal Input Voltage Typical (%)40
Efficiency LO Line (%)45
Efficiency HI Line (%)36
Input Current @ No Load Typical at Nominal Input Voltage (mA)32
Input Current @ Full Load Typical at Nominal Input Voltage (mA)104
Typical Output Voltage Ripple @ Full Load (Vp-p)0.075
Full Load Output Voltage Tolerance (±VDC)0.1
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.01
Dimensions - L x W x H (in)1 x 0.5 x 0.3
Weight (grams)10
CaseGlass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage (VDC)500
Operating Frequency (kHz)20 to 40
Short Circuit ProtectionTemporary
Description

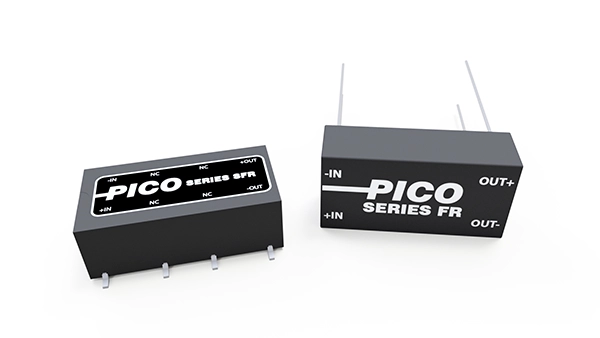

The FR & SFR series are isolated DC-DC converter with tight regulation, low ripple and low profile – 0.300″ height. These modules are excellent for applications where the input voltage is constant and the load regulation must be tightly regulated. Single and dual isolated output models are standard. They can operate up to 1W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
