Specifications
MountingThrough Hole
Output TypeProportional
Nominal Input Voltage (VDC)24
Input Voltage Range - Proportional Output (VDC)17 - 28
Single Output Voltage (VDC)3.3
Output Min. Current (mA)0
Output Max. Current (mA)454
Max Output Power (W)1.5
Efficiency @ Full Load Typical (%)60
Input Current at No Load (mA)10
Typical Input Current @ Full Load (mA)104
Typical Output Voltage Ripple @ Full Load (Vp-p)0.15
Full Load Output Voltage Tolerance (±VDC)0.2
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)1.12 x 0.7 x 0.3
Weight (grams)8.5
CaseGlass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage (VDC)500
Operating Frequency (kHz)20 to 40
Short Circuit ProtectionTemporary
Description

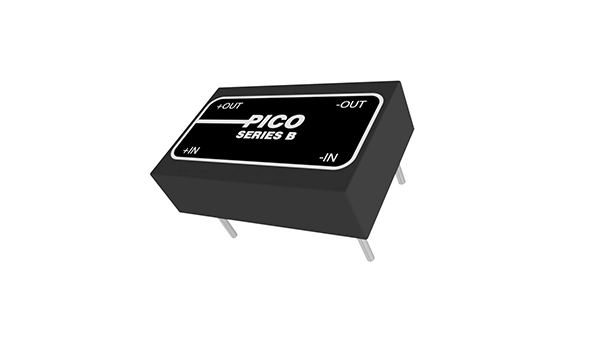

The B & SB series are unregulated DC-DC converters in an ultra-miniature encapsulated package – 1.12″ x 0.7″ footprint and low profile – 0.3″. Over 180 models are available in both single and dual outputs. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
