Specifications
MountingSurface Mount
Output TypeProportional
Nominal Input Voltage (VDC)24
Input Voltage Range - Proportional Output (VDC)21.6 - 26.4
Single Output Voltage (VDC)1000
Output Min. Current (mA)0.125
Output Max. Current (mA)1.25
Max Output Power (W)1.25
Efficiency @ Full Load Typical (%)70
Typical Input Current @ Full Load (mA)74
Typical Output Voltage Ripple @ Full Load (Vp-p)3
Full Load Output Voltage Tolerance (±%)3
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)0.5 x 0.5 x 0.54
Weight (grams)5
Moisture Sensitivity Level3
CaseGlass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage - Input/Output (VDC)1500
Operating Frequency (kHz)20 to 40
Description

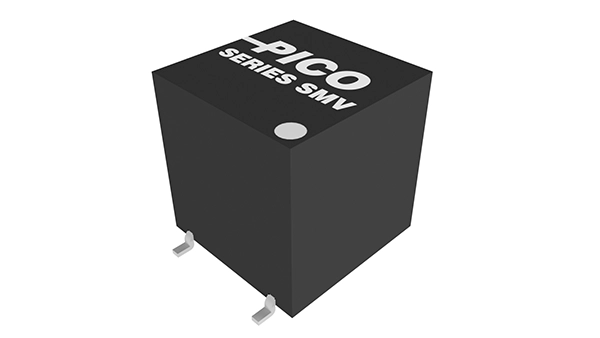

The AV & SMV series are unregulated DC-DC converters in a low profile package, down to 0.400″, footprint with up to 1000V single or dual output models. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
