Specifications
MountingThrough Hole
Output TypeRegulated Programmable
Nominal Input Voltage (VDC)28
Input Voltage Range - Regulated Output (VDC)18 - 36
Single Output Voltage (VDC)400
Minimum Output Voltage (VDC)40
Maximum Output Voltage (VDC)400
Output Max. Current (mA)188
Max Output Power (W)75
Line Regulation Min Vin to Max Vin (%)0.2
Load Regulation 10 - 100% (%)0.5
Efficiency @ Full Load Typical (%)88
Typical Output Voltage Ripple @ Full Load (Vp-p)2
Full Load Output Voltage Tolerance (±%)0.5
Baseplate Operating Temperature Range (°C)0 to +85
Baseplate Storage Temperature Range (°C)-55 to +125
CoolingConduction
Output Temperature Coefficient (PPM/°C)50
Dimensions - L x W x H (in)3 x 2 x 0.5
Weight (grams)110
CaseAluminum baseplate and Glass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage - Input/Output (VDC)3000
Isolation Voltage - Input/baseplate (VDC)2100
Isolation Voltage - Output/baseplate (VDC)2100
Operating Frequency (kHz)340
Short Circuit ProtectionOutput Current Limit
Input Over Voltage ProtectionYes
Input Under Voltage ProtectionYes
Output Current ProtectionYes
Overtemperature ProtectionYes
Control FeatureYes
Output Voltage ProgrammingYes
Output Current ProgrammingYes
Voltage MonitorYes
Compatible Heat SinkHIPCH
Compatible Thermal InterfaceHIPTI
Description

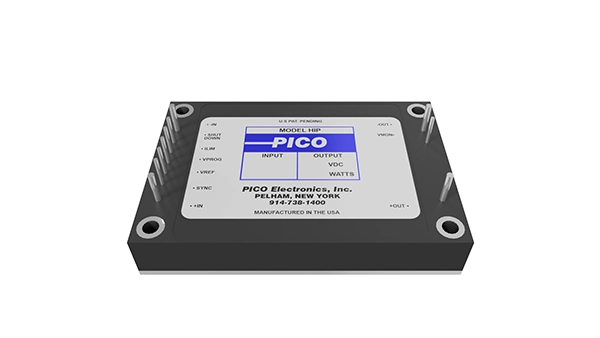

The HIP series of fully regulated modules are 10% to 100% output voltage programmable by internal reference or external voltage. These modules have an adjustable current limit, voltage monitor, shutdown and operating frequency synchronization features. Protections include input over/undervoltage, output short-circuit, and over temperature.
The 3″ x 2″ x 0.5″ case size has threaded inserts to mount securely for high vibration and shock applications. Conduction cooling is available through the baseplate or compatible heat sink.
