Specifications

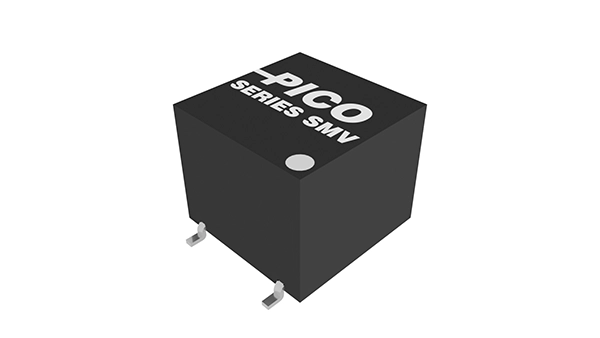

MountingSurface Mount
Output TypeProportional
Nominal Input Voltage (VDC)28
Input Voltage Range - Proportional Output (VDC)25.2 - 30.8
Dual Output Voltage (±VDC)150
Output Min. Current per Output (mA)0.42
Output Max Current per Output (mA)4.17
Max Power per Output (W)0.625
Efficiency @ Full Load Typical (%)79
Typical Input Current @ Full Load (mA)57
Typical Output Voltage Ripple @ Full Load (Vp-p)0.8
Full Load Output Voltage Tolerance (±%)3
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)0.5 x 0.5 x 0.44
Weight (grams)4
Moisture Sensitivity Level3
CaseGlass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage - Input/Output (VDC)1000
Operating Frequency (kHz)20 to 40
Description

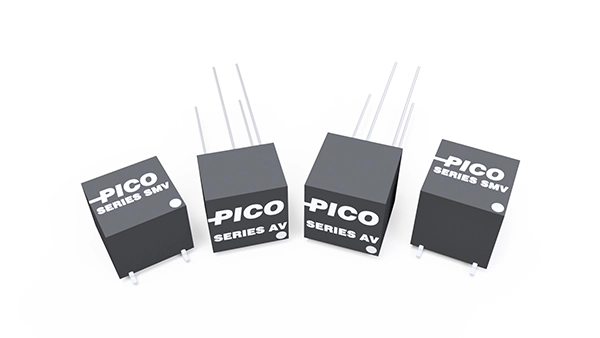

The AV & SMV series are unregulated DC-DC converters in a low profile package, down to 0.400″, footprint with up to 1000V single or dual output models. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
