33353

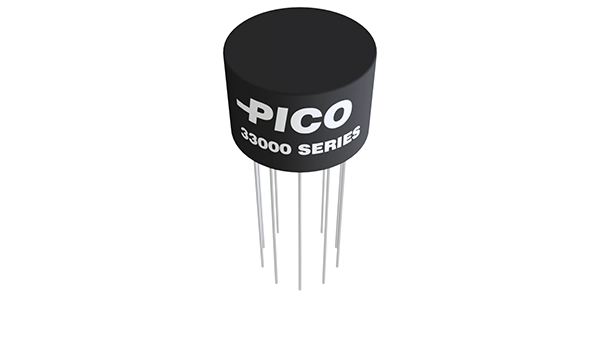

Series 31000 to 36000 – DC-DC Converter Transformer
Specifications
MountingThrough Hole
Input DC Voltage (V)24
Output DC Voltage - Bridge (V)300
Output DC Voltage - Full-Wave (V)150
Output DC Voltage - Dual Bridge (V)± 150
Max. Output Power (W) @ -55°C to +105°C5
Max. Output Power (W) @ -55°C to +70°C-
Self-Saturating Frequency - Typ. (kHz)10
Square Wave Driven Frequency - Typ. (Hz)30K to 60K
Dielectric Withstanding Voltage (Vrms)900
Insulation Resistance @ 300 VDC≥ 10 GΩ
Operational Temperature (°C)-55 to +130
Weight (g)7.1
Size (D x H) inches0.63" x 0.42"
CaseEpoxy Insulated Metal
ConstructionEncapsulated
Manufactured toMIL-PRF-27
Description
Pico DC-DC converter transformers are ultra-miniature in size as the energy driver to the switch-mode power supplies. They are power efficient in reducing core losses and able to be used in a wide variety of energy conversion applications. These are designed to maximum performance at low switching operating frequency and minimal losses. The electrical rectification process of these components are designed for bridge, dual-bridge, and full wave circuit configurations. Though, they are certainly not limited to these topologies.
