Specifications
MountingThrough Hole
Output TypeRegulated
Nominal Input Voltage (VDC)27
Input Voltage Range - Regulated Output (VDC)18 - 36
Dual Output Voltage per Output (VDC)28
Output Min. Current per Output (mA)4.5
Output Max Current per Output (mA)45
Max Power per Output (W)1.25
Line Regulation Vin Min to Vin Nom to Vin Max (Β±%)0.5
Load Regulation 25% Load to Nom load to Max Load (Β±%)0.75
Efficiency @ Full Load at Nominal Input Voltage Typical (%)78
Input Current @ Full Load Typical at Nominal Input Voltage (mA)119
Typical Output Voltage Ripple @ Full Load 1 MHz BW (Vp-p)0.2
Full Load Output Voltage Tolerance (Β±VDC)0.14
Ambient Operating Temperature Range (Β°C)-55 to +85
Ambient Storage Temperature Range (Β°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/Β°C)0.02
Dimensions - L x W x H (in)1.9 x 1 x 0.3
Weight (grams)26
Case6-Sided Epoxy Insulated Metal
PottingVacuum Impregnated Epoxy
Isolation Voltage (VDC)500
Operating Frequency (kHz)40
Short Circuit ProtectionTemporary
Control FeatureYes
Trim Feature (%)0 to +5
Description

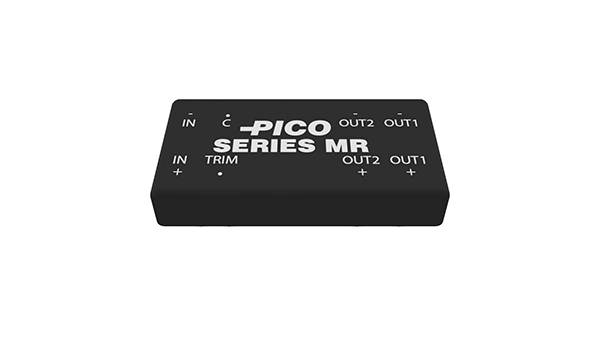

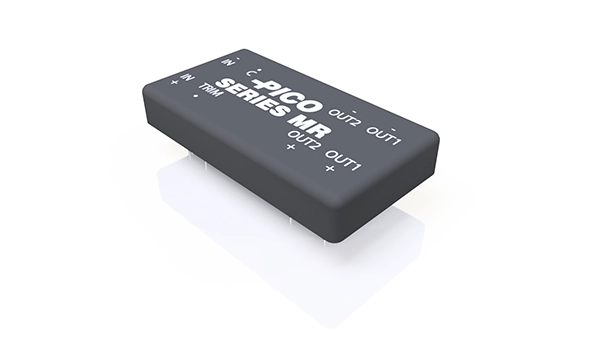

The MR series are regulated DC-DC converters with upgraded MIL screened / qualified components and expanded operating temperature range. The 6-sided epoxy insulated shielded case is in a low profile package – 1.900″ x 1.000″ x 0.300″. Over 40 models are available in both single and dual isolated outputs. They can operate over the wide temperature range of -55Β°C to +85Β°C without derating, a heat sink or active cooling.
