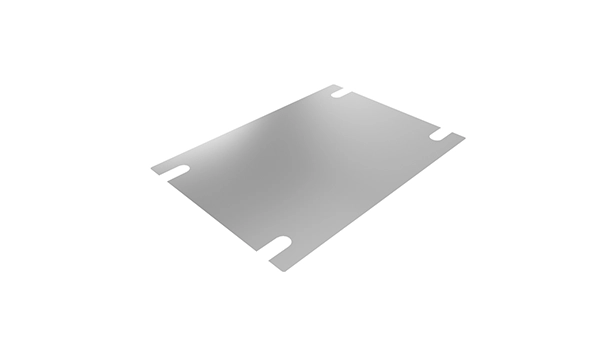

TIDC3 render 1

TIDC3

Downloads

Mechanical Drawing3D Model

Compatible Series

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Specifications

Dimensions (in)3.225 x 2.28 x 0.003
MaterialAlloy Aluminum Substrate
Thermal Conductivity (BTU-in/hr sq.ft °F)1530
Coefficient of Thermal Expansion, (25-100°C, 10-6 in-in/°F)13.1
Brinell Hardness (HB)23
Endurance Limit (PSI)5000
Compatible SeriesDC3 & DC3-T
