Specifications
MountingTerminal Strip
Power Supply TypeSwitching
Power Factor CorrectedNo PFC
Input Voltage Range (VAC)90 - 130
Minimum Input Line Frequency Range (Hz)47
Maximum Input Line Frequency Range (Hz)440
Dual Output Voltage (±VDC)15
Max Load Current Per Output (A)0.165
Max Output Power per Output (W)2.5
Line Regulation at Full Load (±%)1
Voltage Load Regulation 25-100% Load (±%)2
Efficiency at Full Load Typical (%)70
Output Ripple at Full Load 1 MHz BW (mVp-p)100
Output Voltage Tolerance (±%)2
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +105
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)2.77 x 1.825 x 0.5
Weight (grams)68
CaseDiallyl Phthalate (DAP)
PottingVacuum Impregnated Epoxy
Operating Frequency (kHz)100
Short Circuit ProtectionContinuous
Description

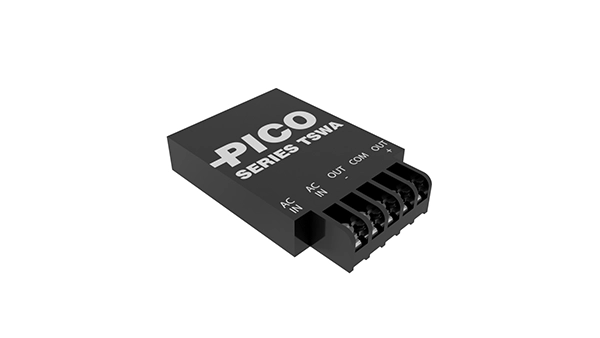

The SW series is a switching AC-DC power supply available in single and dual outputs. They offer excellent line and load regulation and is continuously protected against short circuits. The highly reliable module is capable of up to 5W power in a wide ambient temperature range -25ºC to +70ºC. These modules are the perfect design choice for your most stringent industrial applications.
All packages has a low profile height, 0.500″, and terminal strip packages have threaded inserts to mount securely for high vibration and shock applications.
