W-26215

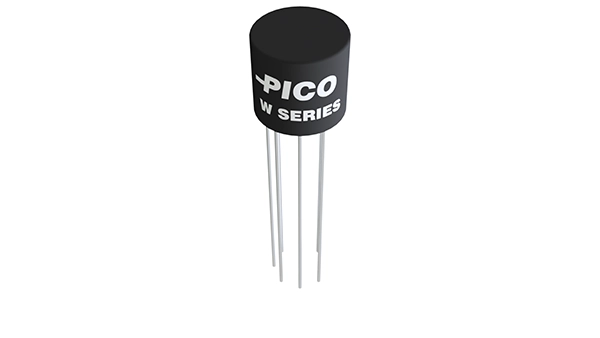

Series W, 71000 & 81000 – Audio Transformer

Specifications

≥ 1kHz Maximum Power (W)0.4
≥ 400Hz Power (W)0.075
Primary Impedance (Ω)600
Secondary Impedance (Ω)600
Turns Ratio (Prim/Sec) Series Connection1:1
Turns Ratio (Prim/Sec) Parallel Connection2:1
Primary Unbalanced DC Current (mA)4.1
Primary DC Resistance (Ω)60
Secondary DC Resistance (Ω) Series72
Secondary DC Resistance (Ω) Parallel18
Dielectric Withstanding Voltage (Vrms)200
Insulation Resistance at 300VDC≥ 10 GΩ
Operational Temperature (°C)-55 to +130
Typical Weight (g)2.5
Size (D x H) inches0.35" x 0.32"
CaseEpoxy Insulated Metal
ConstructionEncapsulated
Manufactured toMIL-PRF-27
Magnetic ShieldingYes

Description

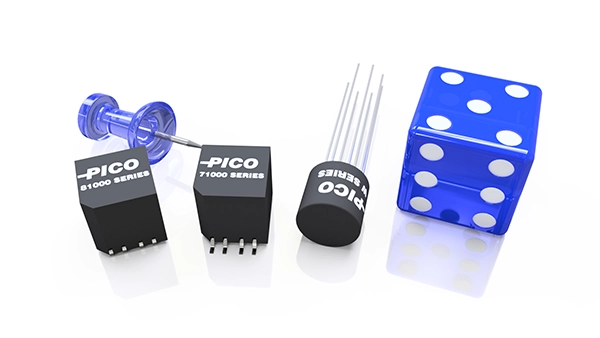

The W and 71000 & 81000 series are ultra-miniature transformers in an encapsulated package with design layouts as plug-in or surface mount types. They can operate over a wide temperature range of -55°C to +130°C. Our materials and methods allow extreme temperatures of vapor phase, IR or other reflow procedures without degrading the high reliability of their physical form and electrical performance.
