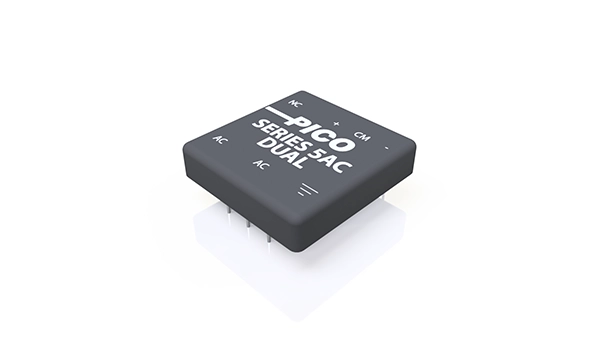

The 5AC series is a switching AC-DC power supply available in a low profile 0.500″ height and in single and dual outputs. They offer excellent line and load regulation and is continuously protected against short circuits. The highly reliable module is capable of up to 5W power in a wide ambient temperature range -25ºC to +70ºC. These modules are the perfect design choice for your most stringent industrial applications.
# of Outputs
Input Voltage Range (VAC)
Single Output Voltage (VDC)
Dual Output Voltage (VDC)
| Part Number | Mounting | # of Outputs | Power Supply Type | Power Factor Corrected | Input Voltage Range (VAC) | Single Output Voltage (VDC) | Single Max Output Power (W) | Dual Output Voltage (VDC) | Dual Max Output Power (W) | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|
| H5AC5S | Through Hole | Single | Switching | No PFC | 170 – 240 | 5 | 5 | – | – | |
| H5AC5D | Through Hole | Dual | Switching | No PFC | 170 – 240 | – | – | ±5 | ±2.5 | |
| H5AC24S | Through Hole | Single | Switching | No PFC | 170 – 240 | 24 | 5 | – | – | |
| H5AC15S | Through Hole | Single | Switching | No PFC | 170 – 240 | 15 | 5 | – | – | |
| H5AC15D | Through Hole | Dual | Switching | No PFC | 170 – 240 | – | – | ±15 | ±2.5 | |
| H5AC12S | Through Hole | Single | Switching | No PFC | 170 – 240 | 12 | 5 | – | – | |
| H5AC12D | Through Hole | Dual | Switching | No PFC | 170 – 240 | – | – | ±12 | ±2.5 | |
| 5AC5S | Through Hole | Single | Switching | No PFC | 90 – 130 | 5 | 5 | – | – | |
| 5AC5D | Through Hole | Dual | Switching | No PFC | 90 – 130 | – | – | ±5 | ±2.5 | |
| 5AC24S | Through Hole | Single | Switching | No PFC | 90 – 130 | 24 | 5 | – | – | |
| 5AC15S | Through Hole | Single | Switching | No PFC | 90 – 130 | 15 | 5 | – | – | |
| 5AC15D | Through Hole | Dual | Switching | No PFC | 90 – 130 | – | – | ±15 | ±2.5 | |
| 5AC12S | Through Hole | Single | Switching | No PFC | 90 – 130 | 12 | 5 | – | – | |
| 5AC12D | Through Hole | Dual | Switching | No PFC | 90 – 130 | – | – | ±12 | ±2.5 |
