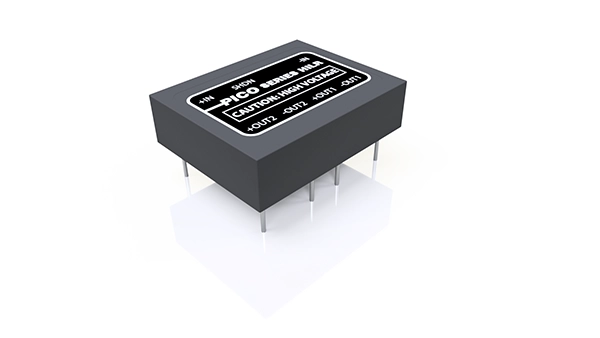

Series HILR render 1

Series HILR

5W Isolated Regulated Low Profile DC-DC Converter

The HILR series is an isolated DC-DC converter with wide and high input voltage range between 125 – 475 VDC, tight regulation, low ripple and low profile – 0.500″ height. These modules are fully protected from input over/undervoltage, output overcurrent, and over temperature. Shutdown feature, single and dual isolated output models are standard. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • Wide input voltage range – 125 to 475V
  • Up to 5W output at +70°C ambient
  • Low profile – 0.500” height
  • 3.3 to 100V output models
  • Down to 0.5% line regulation
  • 1500V Input/output isolation
  • Single and dual isolated output
  • Protected against input over/undervoltage, output overcurrent, and over temperature
  • No heat sink or derating required

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

# of Outputs

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Part Number Mounting# of OutputsOutput TypeNominal Input Voltage (VDC)Input Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
HILR5SThrough HoleSingleRegulated300125 – 47555 – –
DatasheetMechanical Drawing3D Model
HILR5DThrough HoleDualRegulated300125 – 475 – – 5/52.5/2.5
DatasheetMechanical Drawing3D Model
HILR48SThrough HoleSingleRegulated300125 – 475485 – –
DatasheetMechanical Drawing3D Model
HILR48DThrough HoleDualRegulated300125 – 475 – – 48/482.5/2.5
DatasheetMechanical Drawing3D Model
HILR3.3SThrough HoleSingleRegulated300125 – 4753.34 – –
DatasheetMechanical Drawing3D Model
HILR3.3DThrough HoleDualRegulated300125 – 475 – – 3.3/3.32/2
DatasheetMechanical Drawing3D Model
HILR28SThrough HoleSingleRegulated300125 – 475285 – –
DatasheetMechanical Drawing3D Model
HILR28DThrough HoleDualRegulated300125 – 475 – – 28/282.5/2.5
DatasheetMechanical Drawing3D Model
HILR24SThrough HoleSingleRegulated300125 – 475245 – –
DatasheetMechanical Drawing3D Model
HILR24DThrough HoleDualRegulated300125 – 475 – – 24/242.5/2.5
DatasheetMechanical Drawing3D Model
HILR15SThrough HoleSingleRegulated300125 – 475155 – –
DatasheetMechanical Drawing3D Model
HILR15DThrough HoleDualRegulated300125 – 475 – – 15/152.5/2.5
DatasheetMechanical Drawing3D Model
HILR12SThrough HoleSingleRegulated300125 – 475125 – –
DatasheetMechanical Drawing3D Model
HILR12DThrough HoleDualRegulated300125 – 475 – – 12/122.5/2.5
DatasheetMechanical Drawing3D Model
HILR100SThrough HoleSingleRegulated300125 – 4751005 – –
DatasheetMechanical Drawing3D Model
