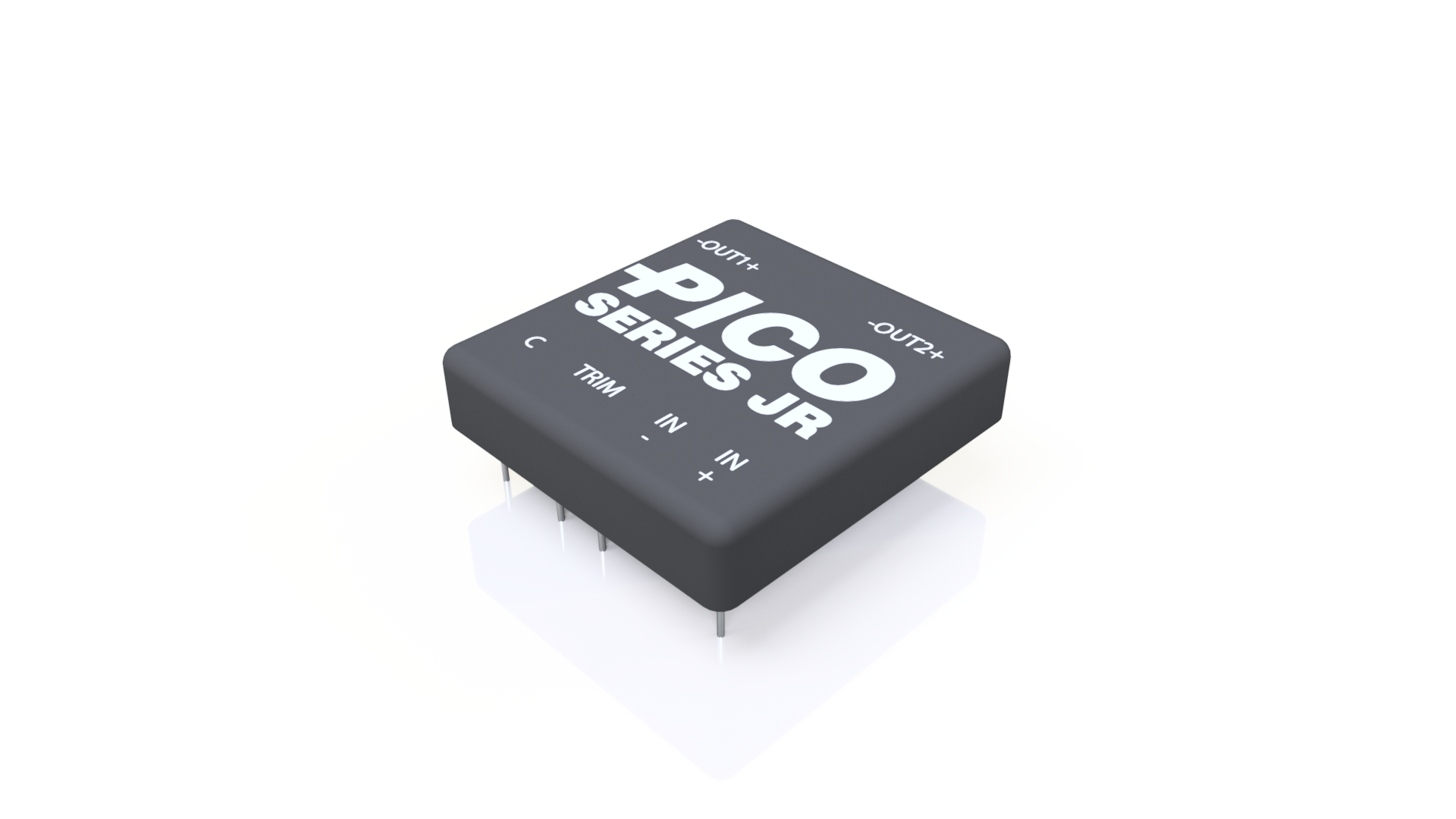

Series JR render 1

Series JR

15W Isolated Regulated Low Profile DC-DC Converter

The JR series is an isolated/regulated DC-DC converter with wide input range, tight regulation and six-sided shielded case. These modules have trimming and control features. Single and dual isolated output models are standard. They can operate up to 15W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • Up to 15W output at +70°C ambient
  • Low profile – 0.500” height
  • Up to 3.33:1 input voltage range
  • 3.3 to 100V output models
  • Six-sided shielded case
  • Control feature
  • Trimmable output
  • Input/output isolation
  • Single and dual isolated output
  • No external components required
  • No heat sink or derating required

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

# of Outputs

Input Voltage Range (VDC)

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Part Number Mounting# of OutputsOutput TypeNominal Input Voltage (VDC)Input Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
JRC9SThrough HoleSingleRegulated3918 – 60915 – –
DatasheetMechanical Drawing3D Model
JRC9DThrough HoleDualRegulated3918 – 60 – – 9/97.5/7.5
DatasheetMechanical Drawing3D Model
JRC5SThrough HoleSingleRegulated3918 – 60515 – –
DatasheetMechanical Drawing3D Model
JRC5DThrough HoleDualRegulated3918 – 60 – – 5/57.5/7.5
DatasheetMechanical Drawing3D Model
JRC5.2SThrough HoleSingleRegulated3918 – 605.215 – –
DatasheetMechanical Drawing3D Model
JRC48SThrough HoleSingleRegulated3918 – 604815 – –
DatasheetMechanical Drawing3D Model
JRC48DThrough HoleDualRegulated3918 – 60 – – 48/487.5/7.5
DatasheetMechanical Drawing3D Model
JRC3.3SThrough HoleSingleRegulated3918 – 603.315 – –
DatasheetMechanical Drawing3D Model
JRC28SThrough HoleSingleRegulated3918 – 602815 – –
DatasheetMechanical Drawing3D Model
JRC28DThrough HoleDualRegulated3918 – 60 – – 28/287.5/7.5
DatasheetMechanical Drawing3D Model
JRC24SThrough HoleSingleRegulated3918 – 602415 – –
DatasheetMechanical Drawing3D Model
JRC24DThrough HoleDualRegulated3918 – 60 – – 24/247.5/7.5
DatasheetMechanical Drawing3D Model
JRC15SThrough HoleSingleRegulated3918 – 601515 – –
DatasheetMechanical Drawing3D Model
JRC15DThrough HoleDualRegulated3918 – 60 – – 15/157.5/7.5
DatasheetMechanical Drawing3D Model
JRC12SThrough HoleSingleRegulated3918 – 601215 – –
DatasheetMechanical Drawing3D Model
JRC12DThrough HoleDualRegulated3918 – 60 – – 12/127.5/7.5
DatasheetMechanical Drawing3D Model
JRC100SThrough HoleSingleRegulated3918 – 6010015 – –
DatasheetMechanical Drawing3D Model
JRB9SThrough HoleSingleRegulated4836 – 60915 – –
DatasheetMechanical Drawing3D Model
JRB9DThrough HoleDualRegulated4836 – 60 – – 9/97.5/7.5
DatasheetMechanical Drawing3D Model
JRB5SThrough HoleSingleRegulated4836 – 60515 – –
DatasheetMechanical Drawing3D Model
JRB5DThrough HoleDualRegulated4836 – 60 – – 5/57.5/7.5
DatasheetMechanical Drawing3D Model
JRB5.2SThrough HoleSingleRegulated4836 – 605.215 – –
DatasheetMechanical Drawing3D Model
JRB48SThrough HoleSingleRegulated4836 – 604815 – –
DatasheetMechanical Drawing3D Model
JRB48DThrough HoleDualRegulated4836 – 60 – – 48/487.5/7.5
DatasheetMechanical Drawing3D Model
JRB3.3SThrough HoleSingleRegulated4836 – 603.315 – –
DatasheetMechanical Drawing3D Model
JRB28SThrough HoleSingleRegulated4836 – 602815 – –
DatasheetMechanical Drawing3D Model
JRB28DThrough HoleDualRegulated4836 – 60 – – 28/287.5/7.5
DatasheetMechanical Drawing3D Model
JRB24SThrough HoleSingleRegulated4836 – 602415 – –
DatasheetMechanical Drawing3D Model
JRB24DThrough HoleDualRegulated4836 – 60 – – 24/247.5/7.5
DatasheetMechanical Drawing3D Model
JRB15SThrough HoleSingleRegulated4836 – 601515 – –
DatasheetMechanical Drawing3D Model
JRB15DThrough HoleDualRegulated4836 – 60 – – 15/157.5/7.5
DatasheetMechanical Drawing3D Model
JRB12SThrough HoleSingleRegulated4836 – 601215 – –
DatasheetMechanical Drawing3D Model
JRB12DThrough HoleDualRegulated4836 – 60 – – 12/127.5/7.5
DatasheetMechanical Drawing3D Model
JRB100SThrough HoleSingleRegulated4836 – 6010015 – –
DatasheetMechanical Drawing3D Model
JRA9SThrough HoleSingleRegulated2718 – 36915 – –
DatasheetMechanical Drawing3D Model
JRA9DThrough HoleDualRegulated2718 – 36 – – 9/97.5/7.5
DatasheetMechanical Drawing3D Model
JRA5SThrough HoleSingleRegulated2718 – 36515 – –
DatasheetMechanical Drawing3D Model
JRA5DThrough HoleDualRegulated2718 – 36 – – 5/57.5/7.5
DatasheetMechanical Drawing3D Model
JRA5.2SThrough HoleSingleRegulated2718 – 365.215 – –
DatasheetMechanical Drawing3D Model
JRA48SThrough HoleSingleRegulated2718 – 364815 – –
DatasheetMechanical Drawing3D Model
JRA48DThrough HoleDualRegulated2718 – 36 – – 48/487.5/7.5
DatasheetMechanical Drawing3D Model
JRA3.3SThrough HoleSingleRegulated2718 – 363.315 – –
DatasheetMechanical Drawing3D Model
JRA28SThrough HoleSingleRegulated2718 – 362815 – –
DatasheetMechanical Drawing3D Model
JRA28DThrough HoleDualRegulated2718 – 36 – – 28/287.5/7.5
DatasheetMechanical Drawing3D Model
JRA24SThrough HoleSingleRegulated2718 – 362415 – –
DatasheetMechanical Drawing3D Model
JRA24DThrough HoleDualRegulated2718 – 36 – – 24/247.5/7.5
DatasheetMechanical Drawing3D Model
JRA15SThrough HoleSingleRegulated2718 – 361515 – –
DatasheetMechanical Drawing3D Model
JRA15DThrough HoleDualRegulated2718 – 36 – – 15/157.5/7.5
DatasheetMechanical Drawing3D Model
JRA12SThrough HoleSingleRegulated2718 – 361215 – –
DatasheetMechanical Drawing3D Model
JRA12DThrough HoleDualRegulated2718 – 36 – – 12/127.5/7.5
DatasheetMechanical Drawing3D Model
JRA100SThrough HoleSingleRegulated2718 – 3610015 – –
DatasheetMechanical Drawing3D Model
