Series LF/LM

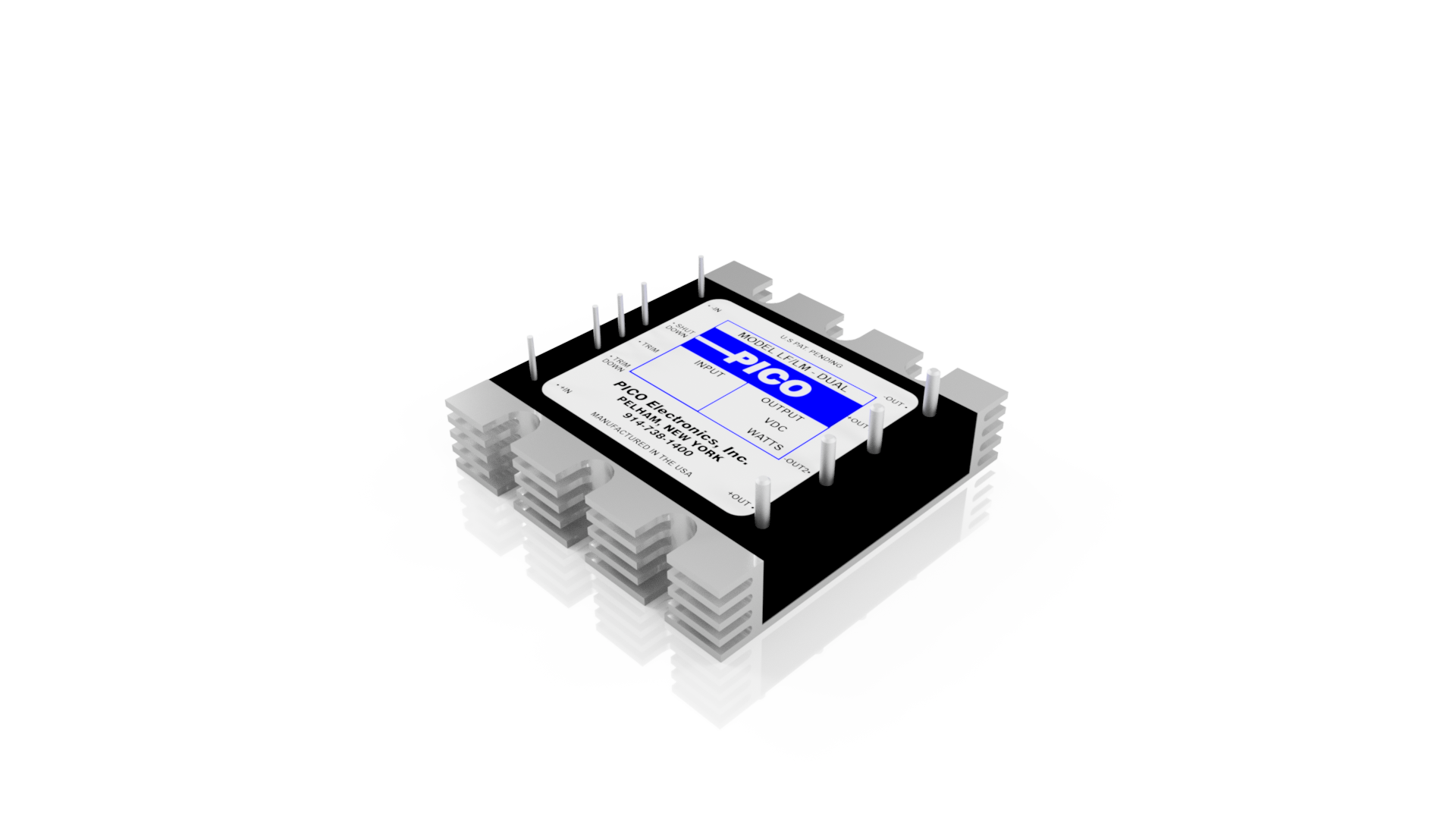

75W Isolated Regulated High Power DC-DC Converter

The LF/LM series are isolated DC-DC converters with a wide selection of input voltage ranges from 18V to 380V in a compact half brick size foot print – 2.4″ x 2.3″. These modules have trim capability and shutdown features. Protections include input overvoltage, output short-circuit, output overvoltage and over temperature.

The unique case has integrated side heat sink for better thermal dissipation but is capable of conduction cooling through the baseplate or additional top mounted heat sink.

Download Datasheet

Compatible Heat SinksLCH, LCV

Compatible Thermal InterfacesLTI

Features

18V to 380V input range models
3.3V to 200V output models
Up to 75W output
Input/output isolation
Integrated side heat sink
Parallel operation option
Single and dual isolated outputs
Industrial temperature option -40°C (LF)
Military temperature option -55°C (LM)
Trim capability
Remote shutdown feature
Fixed operating frequency
No external components required

Options

Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
Parallel Operation

Part Number	Mounting	# of Outputs	Temperature Range	Input Voltage Range (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Dual Output Voltage (VDC)	Dual Max Output Power (W)	Nominal Input Voltage (VDC)	Downloads
LMD9S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	9	65	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD9D	Through Hole	Dual	-55°C to +85°C Baseplate	200 – 380	–	–	9/9	32.5/32.5	300	Datasheet Mechanical Drawing 3D Model
LMD5S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	5	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD5D	Through Hole	Dual	-55°C to +85°C Baseplate	200 – 380	–	–	5/5	25/25	300	Datasheet Mechanical Drawing 3D Model
LMD5.2S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	5.2	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD48S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	48	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD48D	Through Hole	Dual	-55°C to +85°C Baseplate	200 – 380	–	–	48/48	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LMD3.3S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	3.3	30	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD28S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	28	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD28D	Through Hole	Dual	-55°C to +85°C Baseplate	200 – 380	–	–	28/28	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LMD250S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	250	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD24S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	24	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD24D	Through Hole	Dual	-55°C to +85°C Baseplate	200 – 380	–	–	24/24	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LMD225S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	225	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD200S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	200	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD175S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	175	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD15S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	15	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD15D	Through Hole	Dual	-55°C to +85°C Baseplate	200 – 380	–	–	15/15	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LMD150S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	150	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD12S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	12	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD12D	Through Hole	Dual	-55°C to +85°C Baseplate	200 – 380	–	–	12/12	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LMD125S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	125	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LMD100S	Through Hole	Single	-55°C to +85°C Baseplate	200 – 380	100	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LMC9S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	9	65	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC9D	Through Hole	Dual	-55°C to +85°C Baseplate	100 – 180	–	–	9/9	32.5/32.5	150	Datasheet Mechanical Drawing 3D Model
LMC5S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	5	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC5D	Through Hole	Dual	-55°C to +85°C Baseplate	100 – 180	–	–	5/5	25/25	150	Datasheet Mechanical Drawing 3D Model
LMC5.2S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	5.2	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC48S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	48	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC48D	Through Hole	Dual	-55°C to +85°C Baseplate	100 – 180	–	–	48/48	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LMC3.3S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	3.3	30	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC28S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	28	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC28D	Through Hole	Dual	-55°C to +85°C Baseplate	100 – 180	–	–	28/28	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LMC250S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	250	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC24S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	24	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC24D	Through Hole	Dual	-55°C to +85°C Baseplate	100 – 180	–	–	24/24	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LMC225S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	225	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC200S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	200	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC175S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	175	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC15S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	15	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC15D	Through Hole	Dual	-55°C to +85°C Baseplate	100 – 180	–	–	15/15	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LMC150S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	150	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC12S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	12	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC12D	Through Hole	Dual	-55°C to +85°C Baseplate	100 – 180	–	–	12/12	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LMC125S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	125	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LMC100S	Through Hole	Single	-55°C to +85°C Baseplate	100 – 180	100	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LMB9S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	9	65	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB9D	Through Hole	Dual	-55°C to +85°C Baseplate	36 – 72	–	–	9/9	32.5/32.5	48	Datasheet Mechanical Drawing 3D Model
LMB5S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	5	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB5D	Through Hole	Dual	-55°C to +85°C Baseplate	36 – 72	–	–	5/5	25/25	48	Datasheet Mechanical Drawing 3D Model
LMB5.2S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	5.2	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB48S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	48	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB48D	Through Hole	Dual	-55°C to +85°C Baseplate	36 – 72	–	–	48/48	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LMB3.3S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	3.3	30	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB28S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	28	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB28D	Through Hole	Dual	-55°C to +85°C Baseplate	36 – 72	–	–	28/28	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LMB250S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	250	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB24S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	24	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB24D	Through Hole	Dual	-55°C to +85°C Baseplate	36 – 72	–	–	24/24	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LMB225S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	225	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB200S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	200	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB175S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	175	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB15S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	15	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB15D	Through Hole	Dual	-55°C to +85°C Baseplate	36 – 72	–	–	15/15	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LMB150S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	150	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB12S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	12	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB12D	Through Hole	Dual	-55°C to +85°C Baseplate	36 – 72	–	–	12/12	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LMB125S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	125	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LMB100S	Through Hole	Single	-55°C to +85°C Baseplate	36 – 72	100	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LMA9S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	9	60	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA9D	Through Hole	Dual	-55°C to +85°C Baseplate	18 – 36	–	–	9/9	30/30	28	Datasheet Mechanical Drawing 3D Model
LMA5S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	5	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA5D	Through Hole	Dual	-55°C to +85°C Baseplate	18 – 36	–	–	5/5	25/25	28	Datasheet Mechanical Drawing 3D Model
LMA5.2S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	5.2	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA48S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	48	75	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA48D	Through Hole	Dual	-55°C to +85°C Baseplate	18 – 36	–	–	48/48	37.5/37.5	28	Datasheet Mechanical Drawing 3D Model
LMA3.3S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	3.3	30	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA28S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	28	75	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA28D	Through Hole	Dual	-55°C to +85°C Baseplate	18 – 36	–	–	28/28	37.5/37.5	28	Datasheet Mechanical Drawing 3D Model
LMA24S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	24	75	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA24D	Through Hole	Dual	-55°C to +85°C Baseplate	18 – 36	–	–	24/24	37.5/37.5	28	Datasheet Mechanical Drawing 3D Model
LMA200S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	200	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA175S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	175	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA15S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	15	65	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA15D	Through Hole	Dual	-55°C to +85°C Baseplate	18 – 36	–	–	15/15	32.5/32.5	28	Datasheet Mechanical Drawing 3D Model
LMA150S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	150	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA12S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	12	60	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA12D	Through Hole	Dual	-55°C to +85°C Baseplate	18 – 36	–	–	12/12	30/30	28	Datasheet Mechanical Drawing 3D Model
LMA125S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	125	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LMA100S	Through Hole	Single	-55°C to +85°C Baseplate	18 – 36	100	75	–	–	28	Datasheet Mechanical Drawing 3D Model
LFD9S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	9	65	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD9D	Through Hole	Dual	-40°C to +85°C Baseplate	200 – 380	–	–	9/9	32.5/32.5	300	Datasheet Mechanical Drawing 3D Model
LFD5S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	5	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD5D	Through Hole	Dual	-40°C to +85°C Baseplate	200 – 380	–	–	5/5	25/25	300	Datasheet Mechanical Drawing 3D Model
LFD5.2S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	5.2	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD48S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	48	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD48D	Through Hole	Dual	-40°C to +85°C Baseplate	200 – 380	–	–	48/48	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LFD3.3S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	3.3	30	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD28S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	28	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD28D	Through Hole	Dual	-40°C to +85°C Baseplate	200 – 380	–	–	28/28	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LFD250S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	250	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD24S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	24	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD24D	Through Hole	Dual	-40°C to +85°C Baseplate	200 – 380	–	–	24/24	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LFD225S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	225	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD200S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	200	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD175S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	175	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD15S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	15	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD15D	Through Hole	Dual	-40°C to +85°C Baseplate	200 – 380	–	–	15/15	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LFD150S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	150	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD12S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	12	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD12D	Through Hole	Dual	-40°C to +85°C Baseplate	200 – 380	–	–	12/12	37.5/37.5	300	Datasheet Mechanical Drawing 3D Model
LFD125S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	125	50	–	–	300	Datasheet Mechanical Drawing 3D Model
LFD100S	Through Hole	Single	-40°C to +85°C Baseplate	200 – 380	100	75	–	–	300	Datasheet Mechanical Drawing 3D Model
LFC9S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	9	65	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC9D	Through Hole	Dual	-40°C to +85°C Baseplate	100 – 180	–	–	9/9	32.5/32.5	150	Datasheet Mechanical Drawing 3D Model
LFC5S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	5	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC5D	Through Hole	Dual	-40°C to +85°C Baseplate	100 – 180	–	–	5/5	25/25	150	Datasheet Mechanical Drawing 3D Model
LFC5.2S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	5.2	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC48S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	48	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC48D	Through Hole	Dual	-40°C to +85°C Baseplate	100 – 180	–	–	48/48	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LFC3.3S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	3.3	30	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC28S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	28	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC28D	Through Hole	Dual	-40°C to +85°C Baseplate	100 – 180	–	–	28/28	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LFC250S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	250	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC24S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	24	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC24D	Through Hole	Dual	-40°C to +85°C Baseplate	100 – 180	–	–	24/24	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LFC225S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	225	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC200S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	200	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC175S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	175	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC15S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	15	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC15D	Through Hole	Dual	-40°C to +85°C Baseplate	100 – 180	–	–	15/15	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LFC150S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	150	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC12S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	12	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC12D	Through Hole	Dual	-40°C to +85°C Baseplate	100 – 180	–	–	12/12	37.5/37.5	150	Datasheet Mechanical Drawing 3D Model
LFC125S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	125	50	–	–	150	Datasheet Mechanical Drawing 3D Model
LFC100S	Through Hole	Single	-40°C to +85°C Baseplate	100 – 180	100	75	–	–	150	Datasheet Mechanical Drawing 3D Model
LFB9S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	9	65	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB9D	Through Hole	Dual	-40°C to +85°C Baseplate	36 – 72	–	–	9/9	32.5/32.5	48	Datasheet Mechanical Drawing 3D Model
LFB5S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	5	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB5D	Through Hole	Dual	-40°C to +85°C Baseplate	36 – 72	–	–	5/5	25/25	48	Datasheet Mechanical Drawing 3D Model
LFB5.2S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	5.2	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB48S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	48	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB48D	Through Hole	Dual	-40°C to +85°C Baseplate	36 – 72	–	–	48/48	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LFB3.3S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	3.3	30	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB28S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	28	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB28D	Through Hole	Dual	-40°C to +85°C Baseplate	36 – 72	–	–	28/28	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LFB250S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	250	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB24S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	24	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB24D	Through Hole	Dual	-40°C to +85°C Baseplate	36 – 72	–	–	24/24	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LFB225S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	225	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB200S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	200	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB175S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	175	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB15S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	15	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB15D	Through Hole	Dual	-40°C to +85°C Baseplate	36 – 72	–	–	15/15	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LFB150S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	150	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB12S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	12	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB12D	Through Hole	Dual	-40°C to +85°C Baseplate	36 – 72	–	–	12/12	37.5/37.5	48	Datasheet Mechanical Drawing 3D Model
LFB125S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	125	50	–	–	48	Datasheet Mechanical Drawing 3D Model
LFB100S	Through Hole	Single	-40°C to +85°C Baseplate	36 – 72	100	75	–	–	48	Datasheet Mechanical Drawing 3D Model
LFA9S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	9	60	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA9D	Through Hole	Dual	-40°C to +85°C Baseplate	18 – 36	–	–	9/9	30/30	28	Datasheet Mechanical Drawing 3D Model
LFA5S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	5	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA5D	Through Hole	Dual	-40°C to +85°C Baseplate	18 – 36	–	–	5/5	25/25	28	Datasheet Mechanical Drawing 3D Model
LFA5.2S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	5.2	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA48S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	48	75	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA48D	Through Hole	Dual	-40°C to +85°C Baseplate	18 – 36	–	–	48/48	37.5/37.5	28	Datasheet Mechanical Drawing 3D Model
LFA3.3S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	3.3	30	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA28S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	28	75	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA28D	Through Hole	Dual	-40°C to +85°C Baseplate	18 – 36	–	–	28/28	37.5/37.5	28	Datasheet Mechanical Drawing 3D Model
LFA24S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	24	75	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA24D	Through Hole	Dual	-40°C to +85°C Baseplate	18 – 36	–	–	24/24	37.5/37.5	28	Datasheet Mechanical Drawing 3D Model
LFA200S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	200	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA175S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	175	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA15S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	15	65	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA15D	Through Hole	Dual	-40°C to +85°C Baseplate	18 – 36	–	–	15/15	32.5/32.5	28	Datasheet Mechanical Drawing 3D Model
LFA150S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	150	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA12S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	12	60	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA12D	Through Hole	Dual	-40°C to +85°C Baseplate	18 – 36	–	–	12/12	30/30	28	Datasheet Mechanical Drawing 3D Model
LFA125S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	125	50	–	–	28	Datasheet Mechanical Drawing 3D Model
LFA100S	Through Hole	Single	-40°C to +85°C Baseplate	18 – 36	100	75	–	–	28	Datasheet Mechanical Drawing 3D Model

Series LF/LM

75W Isolated Regulated High Power DC-DC Converter

Custom Solutions

Features

Options
