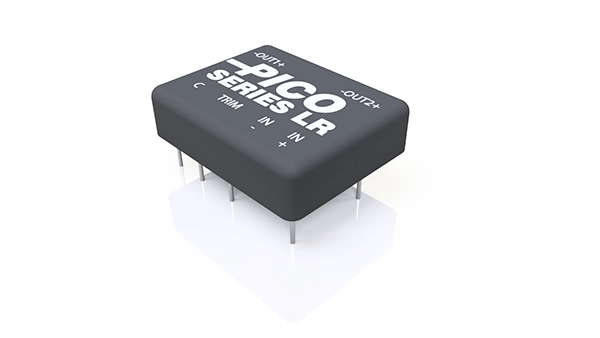

Series LR render 1

Series LR

5W Isolated Regulated Low Profile DC-DC Converter

The LR series is an isolated DC-DC converter with wide input range, tight regulation and six-sided shielded case. These modules have trim and control features. Single and dual isolated output models are standard. They can operate up to 5W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • Up to 5W output at +70°C ambient
  • Low profile – 0.500” height
  • Up to 3.33:1 input voltage range
  • 2 to 100V output models
  • Six-sided shielded case
  • Control feature
  • Trimmable output
  • Input/output isolation
  • Single and dual isolated output
  • No external components required
  • No heat sink or derating required

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

# of Outputs

Input Voltage Range (VDC)

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Part Number Mounting# of OutputsOutput TypeInput Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Nominal Input Voltage (VDC)Downloads
LRF9SThrough HoleSingleRegulated8 – 2495 – – 16
DatasheetMechanical Drawing3D Model
LRF9DThrough HoleDualRegulated8 – 24 – – 9/92.5/2.516
DatasheetMechanical Drawing3D Model
LRF5SThrough HoleSingleRegulated8 – 2455 – – 16
DatasheetMechanical Drawing3D Model
LRF5DThrough HoleDualRegulated8 – 24 – – 5/52.5/2.516
DatasheetMechanical Drawing3D Model
LRF5.2SThrough HoleSingleRegulated8 – 245.25 – – 16
DatasheetMechanical Drawing3D Model
LRF48SThrough HoleSingleRegulated8 – 24485 – – 16
DatasheetMechanical Drawing3D Model
LRF48DThrough HoleDualRegulated8 – 24 – – 48/482.5/2.516
DatasheetMechanical Drawing3D Model
LRF3.3SThrough HoleSingleRegulated8 – 243.34 – – 16
DatasheetMechanical Drawing3D Model
LRF2SThrough HoleSingleRegulated8 – 2423 – – 16
DatasheetMechanical Drawing3D Model
LRF28SThrough HoleSingleRegulated8 – 24285 – – 16
DatasheetMechanical Drawing3D Model
LRF28DThrough HoleDualRegulated8 – 24 – – 28/282.5/2.516
DatasheetMechanical Drawing3D Model
LRF24SThrough HoleSingleRegulated8 – 24245 – – 16
DatasheetMechanical Drawing3D Model
LRF24DThrough HoleDualRegulated8 – 24 – – 24/242.5/2.516
DatasheetMechanical Drawing3D Model
LRF15SThrough HoleSingleRegulated8 – 24155 – – 16
DatasheetMechanical Drawing3D Model
LRF15DThrough HoleDualRegulated8 – 24 – – 15/152.5/2.516
DatasheetMechanical Drawing3D Model
LRF12SThrough HoleSingleRegulated8 – 24125 – – 16
DatasheetMechanical Drawing3D Model
LRF12DThrough HoleDualRegulated8 – 24 – – 12/122.5/2.516
DatasheetMechanical Drawing3D Model
LRF100SThrough HoleSingleRegulated8 – 241005 – – 16
DatasheetMechanical Drawing3D Model
LRE9SThrough HoleSingleRegulated5 – 1594 – – 10
DatasheetMechanical Drawing3D Model
LRE9DThrough HoleDualRegulated5 – 15 – – 9/92/210
DatasheetMechanical Drawing3D Model
LRE5SThrough HoleSingleRegulated5 – 1553 – – 10
DatasheetMechanical Drawing3D Model
LRE5DThrough HoleDualRegulated5 – 15 – – 5/51.5/1.510
DatasheetMechanical Drawing3D Model
LRE5.2SThrough HoleSingleRegulated5 – 155.23 – – 10
DatasheetMechanical Drawing3D Model
LRE48SThrough HoleSingleRegulated5 – 15484 – – 10
DatasheetMechanical Drawing3D Model
LRE48DThrough HoleDualRegulated5 – 15 – – 48/482/210
DatasheetMechanical Drawing3D Model
LRE3.3SThrough HoleSingleRegulated5 – 153.33 – – 10
DatasheetMechanical Drawing3D Model
LRE2SThrough HoleSingleRegulated5 – 1522 – – 10
DatasheetMechanical Drawing3D Model
LRE28SThrough HoleSingleRegulated5 – 15284 – – 10
DatasheetMechanical Drawing3D Model
LRE28DThrough HoleDualRegulated5 – 15 – – 28/282/210
DatasheetMechanical Drawing3D Model
LRE24SThrough HoleSingleRegulated5 – 15244 – – 10
DatasheetMechanical Drawing3D Model
LRE24DThrough HoleDualRegulated5 – 15 – – 24/242/210
DatasheetMechanical Drawing3D Model
LRE15SThrough HoleSingleRegulated5 – 15154 – – 10
DatasheetMechanical Drawing3D Model
LRE15DThrough HoleDualRegulated5 – 15 – – 15/152/210
DatasheetMechanical Drawing3D Model
LRE12SThrough HoleSingleRegulated5 – 15124 – – 10
DatasheetMechanical Drawing3D Model
LRE12DThrough HoleDualRegulated5 – 15 – – 12/122/210
DatasheetMechanical Drawing3D Model
LRE100SThrough HoleSingleRegulated5 – 151004 – – 10
DatasheetMechanical Drawing3D Model
LRC9SThrough HoleSingleRegulated18 – 6095 – – 39
DatasheetMechanical Drawing3D Model
LRC9DThrough HoleDualRegulated18 – 60 – – 9/92.5/2.539
DatasheetMechanical Drawing3D Model
LRC5SThrough HoleSingleRegulated18 – 6055 – – 39
DatasheetMechanical Drawing3D Model
LRC5DThrough HoleDualRegulated18 – 60 – – 5/52.5/2.539
DatasheetMechanical Drawing3D Model
LRC5.2SThrough HoleSingleRegulated18 – 605.25 – – 39
DatasheetMechanical Drawing3D Model
LRC48SThrough HoleSingleRegulated18 – 60485 – – 39
DatasheetMechanical Drawing3D Model
LRC48DThrough HoleDualRegulated18 – 60 – – 48/482.5/2.539
DatasheetMechanical Drawing3D Model
LRC3.3SThrough HoleSingleRegulated18 – 603.34 – – 39
DatasheetMechanical Drawing3D Model
LRC2SThrough HoleSingleRegulated18 – 6023 – – 39
DatasheetMechanical Drawing3D Model
LRC28SThrough HoleSingleRegulated18 – 60285 – – 39
DatasheetMechanical Drawing3D Model
LRC28DThrough HoleDualRegulated18 – 60 – – 28/282.5/2.539
DatasheetMechanical Drawing3D Model
LRC24SThrough HoleSingleRegulated18 – 60245 – – 39
DatasheetMechanical Drawing3D Model
LRC24DThrough HoleDualRegulated18 – 60 – – 24/242.5/2.539
DatasheetMechanical Drawing3D Model
LRC15SThrough HoleSingleRegulated18 – 60155 – – 39
DatasheetMechanical Drawing3D Model
LRC15DThrough HoleDualRegulated18 – 60 – – 15/152.5/2.539
DatasheetMechanical Drawing3D Model
LRC12SThrough HoleSingleRegulated18 – 60125 – – 39
DatasheetMechanical Drawing3D Model
LRC12DThrough HoleDualRegulated18 – 60 – – 12/122.5/2.539
DatasheetMechanical Drawing3D Model
LRC100SThrough HoleSingleRegulated18 – 601005 – – 39
DatasheetMechanical Drawing3D Model
LRB9SThrough HoleSingleRegulated36 – 6095 – – 48
DatasheetMechanical Drawing3D Model
LRB9DThrough HoleDualRegulated36 – 60 – – 9/92.5/2.548
DatasheetMechanical Drawing3D Model
LRB5SThrough HoleSingleRegulated36 – 6055 – – 48
DatasheetMechanical Drawing3D Model
LRB5DThrough HoleDualRegulated36 – 60 – – 5/52.5/2.548
DatasheetMechanical Drawing3D Model
LRB5.2SThrough HoleSingleRegulated36 – 605.25 – – 48
DatasheetMechanical Drawing3D Model
LRB48SThrough HoleSingleRegulated36 – 60485 – – 48
DatasheetMechanical Drawing3D Model
LRB48DThrough HoleDualRegulated36 – 60 – – 48/482.5/2.548
DatasheetMechanical Drawing3D Model
LRB3.3SThrough HoleSingleRegulated36 – 603.34 – – 48
DatasheetMechanical Drawing3D Model
LRB2SThrough HoleSingleRegulated36 – 6023 – – 48
DatasheetMechanical Drawing3D Model
LRB28SThrough HoleSingleRegulated36 – 60285 – – 48
DatasheetMechanical Drawing3D Model
LRB28DThrough HoleDualRegulated36 – 60 – – 28/282.5/2.548
DatasheetMechanical Drawing3D Model
LRB24SThrough HoleSingleRegulated36 – 60245 – – 48
DatasheetMechanical Drawing3D Model
LRB24DThrough HoleDualRegulated36 – 60 – – 24/242.5/2.548
DatasheetMechanical Drawing3D Model
LRB15SThrough HoleSingleRegulated36 – 60155 – – 48
DatasheetMechanical Drawing3D Model
LRB15DThrough HoleDualRegulated36 – 60 – – 15/152.5/2.548
DatasheetMechanical Drawing3D Model
LRB12SThrough HoleSingleRegulated36 – 60125 – – 48
DatasheetMechanical Drawing3D Model
LRB12DThrough HoleDualRegulated36 – 60 – – 12/122.5/2.548
DatasheetMechanical Drawing3D Model
LRB100SThrough HoleSingleRegulated36 – 601005 – – 48
DatasheetMechanical Drawing3D Model
LRA9SThrough HoleSingleRegulated18 – 3695 – – 27
DatasheetMechanical Drawing3D Model
LRA9DThrough HoleDualRegulated18 – 36 – – 9/92.5/2.527
DatasheetMechanical Drawing3D Model
LRA5SThrough HoleSingleRegulated18 – 3655 – – 27
DatasheetMechanical Drawing3D Model
LRA5DThrough HoleDualRegulated18 – 36 – – 5/52.5/2.527
DatasheetMechanical Drawing3D Model
LRA5.2SThrough HoleSingleRegulated18 – 365.25 – – 27
DatasheetMechanical Drawing3D Model
LRA48SThrough HoleSingleRegulated18 – 36485 – – 27
DatasheetMechanical Drawing3D Model
LRA48DThrough HoleDualRegulated18 – 36 – – 48/482.5/2.527
DatasheetMechanical Drawing3D Model
LRA3.3SThrough HoleSingleRegulated18 – 363.34 – – 27
DatasheetMechanical Drawing3D Model
LRA2SThrough HoleSingleRegulated18 – 3623 – – 27
DatasheetMechanical Drawing3D Model
LRA28SThrough HoleSingleRegulated18 – 36285 – – 27
DatasheetMechanical Drawing3D Model
LRA28DThrough HoleDualRegulated18 – 36 – – 28/282.5/2.527
DatasheetMechanical Drawing3D Model
LRA24SThrough HoleSingleRegulated18 – 36245 – – 27
DatasheetMechanical Drawing3D Model
LRA24DThrough HoleDualRegulated18 – 36 – – 24/242.5/2.527
DatasheetMechanical Drawing3D Model
LRA15SThrough HoleSingleRegulated18 – 36155 – – 27
DatasheetMechanical Drawing3D Model
LRA15DThrough HoleDualRegulated18 – 36 – – 15/152.5/2.527
DatasheetMechanical Drawing3D Model
LRA12SThrough HoleSingleRegulated18 – 36125 – – 27
DatasheetMechanical Drawing3D Model
LRA12DThrough HoleDualRegulated18 – 36 – – 12/122.5/2.527
DatasheetMechanical Drawing3D Model
LRA100SThrough HoleSingleRegulated18 – 361005 – – 27
DatasheetMechanical Drawing3D Model
