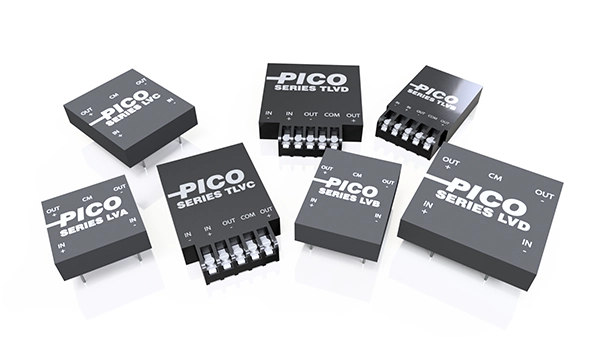

Series LV & TLV render 1

Series LV & TLV

3-10W Isolated Regulated Low Profile DC-DC Converter

The LV & TLV series are regulated DC-DC converters with a wide 36 to 80V input range and low profile – 0.500″. Over 70 models are available in both single and dual outputs, through hole and terminal strip. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • Up to 10W output models
  • Encapsulated semiconductors, conservatively rated for maximum reliability
  • Low profile – down to 0.500” height
  • Wide input voltage range – 36 to 80V
  • 3.3 to 48V output models
  • Up to 1000VDC isolation at 100MΩ
  • Input/output isolation
  • Single and dual output
  • No heat sink or derating required
  • No external components required

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Mounting

# of Outputs

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Part Number SeriesMounting# of OutputsOutput TypeNominal Input Voltage (VDC)Input Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
TLVD5STLVTerminal StripSingleRegulated4836 – 8059 – –
DatasheetMechanical Drawing3D Model
TLVD5DTLVTerminal StripDualRegulated4836 – 80 – – ±5±4.5
DatasheetMechanical Drawing3D Model
TLVD5.2STLVTerminal StripSingleRegulated4836 – 805.29 – –
DatasheetMechanical Drawing3D Model
TLVD48STLVTerminal StripSingleRegulated4836 – 804810 – –
DatasheetMechanical Drawing3D Model
TLVD3.3STLVTerminal StripSingleRegulated4836 – 803.37 – –
DatasheetMechanical Drawing3D Model
TLVD28STLVTerminal StripSingleRegulated4836 – 802810 – –
DatasheetMechanical Drawing3D Model
TLVD24STLVTerminal StripSingleRegulated4836 – 802410 – –
DatasheetMechanical Drawing3D Model
TLVD15STLVTerminal StripSingleRegulated4836 – 801510 – –
DatasheetMechanical Drawing3D Model
TLVD15DTLVTerminal StripDualRegulated4836 – 80 – – ±15±5
DatasheetMechanical Drawing3D Model
TLVD12STLVTerminal StripSingleRegulated4836 – 801210 – –
DatasheetMechanical Drawing3D Model
TLVD12DTLVTerminal StripDualRegulated4836 – 80 – – ±12±5
DatasheetMechanical Drawing3D Model
TLVC5STLVTerminal StripSingleRegulated4836 – 8057 – –
DatasheetMechanical Drawing3D Model
TLVC5DTLVTerminal StripDualRegulated4836 – 80 – – ±5±3.5
DatasheetMechanical Drawing3D Model
TLVC5.2STLVTerminal StripSingleRegulated4836 – 805.27 – –
DatasheetMechanical Drawing3D Model
TLVC48STLVTerminal StripSingleRegulated4836 – 80488 – –
DatasheetMechanical Drawing3D Model
TLVC3.3STLVTerminal StripSingleRegulated4836 – 803.35 – –
DatasheetMechanical Drawing3D Model
TLVC28STLVTerminal StripSingleRegulated4836 – 80288 – –
DatasheetMechanical Drawing3D Model
TLVC24STLVTerminal StripSingleRegulated4836 – 80248 – –
DatasheetMechanical Drawing3D Model
TLVC15STLVTerminal StripSingleRegulated4836 – 80158 – –
DatasheetMechanical Drawing3D Model
TLVC15DTLVTerminal StripDualRegulated4836 – 80 – – ±15±4
DatasheetMechanical Drawing3D Model
TLVC12STLVTerminal StripSingleRegulated4836 – 80128 – –
DatasheetMechanical Drawing3D Model
TLVC12DTLVTerminal StripDualRegulated4836 – 80 – – ±12±4
DatasheetMechanical Drawing3D Model
TLVB5STLVTerminal StripSingleRegulated4836 – 8055 – –
DatasheetMechanical Drawing3D Model
TLVB5DTLVTerminal StripDualRegulated4836 – 80 – – ±5±2.5
DatasheetMechanical Drawing3D Model
TLVB5.2STLVTerminal StripSingleRegulated4836 – 805.25 – –
DatasheetMechanical Drawing3D Model
TLVB48STLVTerminal StripSingleRegulated4836 – 80485 – –
DatasheetMechanical Drawing3D Model
TLVB3.3STLVTerminal StripSingleRegulated4836 – 803.34 – –
DatasheetMechanical Drawing3D Model
TLVB28STLVTerminal StripSingleRegulated4836 – 80285 – –
DatasheetMechanical Drawing3D Model
TLVB24STLVTerminal StripSingleRegulated4836 – 80245 – –
DatasheetMechanical Drawing3D Model
TLVB15STLVTerminal StripSingleRegulated4836 – 80155 – –
DatasheetMechanical Drawing3D Model
TLVB15DTLVTerminal StripDualRegulated4836 – 80 – – ±15±2.5
DatasheetMechanical Drawing3D Model
TLVB12STLVTerminal StripSingleRegulated4836 – 80125 – –
DatasheetMechanical Drawing3D Model
TLVB12DTLVTerminal StripDualRegulated4836 – 80 – – ±12±2.5
DatasheetMechanical Drawing3D Model
LVD5SLVThrough HoleSingleRegulated4836 – 8059 – –
DatasheetMechanical Drawing3D Model
LVD5DLVThrough HoleDualRegulated4836 – 80 – – ±5±4.5
DatasheetMechanical Drawing3D Model
LVD5.2SLVThrough HoleSingleRegulated4836 – 805.29 – –
DatasheetMechanical Drawing3D Model
LVD48SLVThrough HoleSingleRegulated4836 – 804810 – –
DatasheetMechanical Drawing3D Model
LVD3.3SLVThrough HoleSingleRegulated4836 – 803.37 – –
DatasheetMechanical Drawing3D Model
LVD28SLVThrough HoleSingleRegulated4836 – 802810 – –
DatasheetMechanical Drawing3D Model
LVD24SLVThrough HoleSingleRegulated4836 – 802410 – –
DatasheetMechanical Drawing3D Model
LVD15SLVThrough HoleSingleRegulated4836 – 801510 – –
DatasheetMechanical Drawing3D Model
LVD15DLVThrough HoleDualRegulated4836 – 80 – – ±15±5
DatasheetMechanical Drawing3D Model
LVD12SLVThrough HoleSingleRegulated4836 – 801210 – –
DatasheetMechanical Drawing3D Model
LVD12DLVThrough HoleDualRegulated4836 – 80 – – ±12±5
DatasheetMechanical Drawing3D Model
LVC5SLVThrough HoleSingleRegulated4836 – 8057 – –
DatasheetMechanical Drawing3D Model
LVC5DLVThrough HoleDualRegulated4836 – 80 – – ±5±3.5
DatasheetMechanical Drawing3D Model
LVC5.2SLVThrough HoleSingleRegulated4836 – 805.27 – –
DatasheetMechanical Drawing3D Model
LVC48SLVThrough HoleSingleRegulated4836 – 80488 – –
DatasheetMechanical Drawing3D Model
LVC3.3SLVThrough HoleSingleRegulated4836 – 803.35 – –
DatasheetMechanical Drawing3D Model
LVC28SLVThrough HoleSingleRegulated4836 – 80288 – –
DatasheetMechanical Drawing3D Model
LVC24SLVThrough HoleSingleRegulated4836 – 80248 – –
DatasheetMechanical Drawing3D Model
LVC15SLVThrough HoleSingleRegulated4836 – 80158 – –
DatasheetMechanical Drawing3D Model
LVC15DLVThrough HoleDualRegulated4836 – 80 – – ±15±4
DatasheetMechanical Drawing3D Model
LVC12SLVThrough HoleSingleRegulated4836 – 80128 – –
DatasheetMechanical Drawing3D Model
LVC12DLVThrough HoleDualRegulated4836 – 80 – – ±12±4
DatasheetMechanical Drawing3D Model
LVB5SLVThrough HoleSingleRegulated4836 – 8055 – –
DatasheetMechanical Drawing3D Model
LVB5DLVThrough HoleDualRegulated4836 – 80 – – ±5±2.5
DatasheetMechanical Drawing3D Model
LVB5.2SLVThrough HoleSingleRegulated4836 – 805.25 – –
DatasheetMechanical Drawing3D Model
LVB48SLVThrough HoleSingleRegulated4836 – 80485 – –
DatasheetMechanical Drawing3D Model
LVB3.3SLVThrough HoleSingleRegulated4836 – 803.34 – –
DatasheetMechanical Drawing3D Model
LVB28SLVThrough HoleSingleRegulated4836 – 80285 – –
DatasheetMechanical Drawing3D Model
LVB24SLVThrough HoleSingleRegulated4836 – 80245 – –
DatasheetMechanical Drawing3D Model
LVB15SLVThrough HoleSingleRegulated4836 – 80155 – –
DatasheetMechanical Drawing3D Model
LVB15DLVThrough HoleDualRegulated4836 – 80 – – ±15±2.5
DatasheetMechanical Drawing3D Model
LVB12SLVThrough HoleSingleRegulated4836 – 80125 – –
DatasheetMechanical Drawing3D Model
LVB12DLVThrough HoleDualRegulated4836 – 80 – – ±12±2.5
DatasheetMechanical Drawing3D Model
LVA5SLVThrough HoleSingleRegulated4836 – 8053 – –
DatasheetMechanical Drawing3D Model
LVA5DLVThrough HoleDualRegulated4836 – 80 – – ±5±1.5
DatasheetMechanical Drawing3D Model
LVA5.2SLVThrough HoleSingleRegulated4836 – 805.23 – –
DatasheetMechanical Drawing3D Model
LVA48SLVThrough HoleSingleRegulated4836 – 80483 – –
DatasheetMechanical Drawing3D Model
LVA3.3SLVThrough HoleSingleRegulated4836 – 803.32 – –
DatasheetMechanical Drawing3D Model
LVA28SLVThrough HoleSingleRegulated4836 – 80283 – –
DatasheetMechanical Drawing3D Model
LVA24SLVThrough HoleSingleRegulated4836 – 80243 – –
DatasheetMechanical Drawing3D Model
LVA15SLVThrough HoleSingleRegulated4836 – 80153 – –
DatasheetMechanical Drawing3D Model
LVA15DLVThrough HoleDualRegulated4836 – 80 – – ±15±1.5
DatasheetMechanical Drawing3D Model
LVA12SLVThrough HoleSingleRegulated4836 – 80123 – –
DatasheetMechanical Drawing3D Model
LVA12DLVThrough HoleDualRegulated4836 – 80 – – ±12±1.5
DatasheetMechanical Drawing3D Model
