Specifications
MountingThrough Hole
Power Supply TypeSwitching
Power Factor CorrectedNo PFC
Input Voltage Range (VAC)90 - 130
Minimum Input Line Frequency Range (Hz)47
Maximum Input Line Frequency Range (Hz)440
Dual Output Voltage (±VDC)15
Max Load Current Per Output (A)1.833
Max Output Power per Output (W)27.5
Line Regulation at Full Load (±%)0.2
Voltage Load Regulation 10-100% Load (±%)0.3
Efficiency at Full Load Typical (%)83
Output Ripple at Full Load 1 MHz BW (mVp-p)50
Output Voltage Tolerance (±%)0.5
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)5.6 x 4.3 x 0.5
Weight (grams)485
Case6-Sided Epoxy Insulated Metal
PottingVacuum Impregnated Epoxy
Isolation Voltage - Input/Output (VRMS)1200
Operating Frequency (kHz)40 to 60
Short Circuit ProtectionContinuous
Description

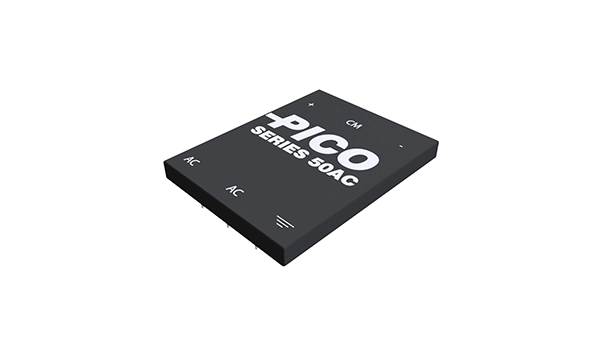

The 50AC series is a switching AC-DC power supply available in single, dual and triple outputs. They offer excellent line and load regulation and continuously protected against short circuits. The highly reliable module is capable of up to 55W power in a wide ambient temperature range -25ºC to +70ºC. These modules are the perfect design choice for your most stringent industrial applications.
The case has a low profile height, 0.500″, and threaded inserts to mount securely for high vibration and shock applications.
