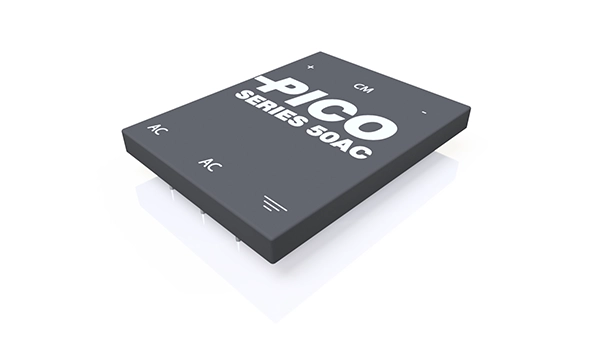

The 50AC series is a switching AC-DC power supply available in single, dual and triple outputs. They offer excellent line and load regulation and continuously protected against short circuits. The highly reliable module is capable of up to 55W power in a wide ambient temperature range -25ºC to +70ºC. These modules are the perfect design choice for your most stringent industrial applications.
The case has a low profile height, 0.500″, and threaded inserts to mount securely for high vibration and shock applications.
# of Outputs
Input Voltage Range (VAC)
Single Output Voltage (VDC)
Single Max Output Power (W)
Dual Output Voltage (VDC)
Dual Max Output Power (W)
Triple Output Voltage (VDC)
Triple Max Output Power (W)
| Part Number | Mounting | # of Outputs | Power Supply Type | Power Factor Corrected | Input Voltage Range (VAC) | Single Output Voltage (VDC) | Single Max Output Power (W) | Dual Output Voltage (VDC) | Dual Max Output Power (W) | Triple Output Voltage (VDC) | Triple Max Output Power (W) | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H50AC5T15 | Through Hole | Triple | Switching | No PFC | 170 – 240 | – | – | – | – | 5, ±15 | 40, ±2.5 | |
| H50AC5T12 | Through Hole | Triple | Switching | No PFC | 170 – 240 | – | – | – | – | 5, ±12 | 40, ±2.5 | |
| H50AC5S | Through Hole | Single | Switching | No PFC | 170 – 240 | 5 | 45 | – | – | – | – | |
| H50AC5D | Through Hole | Dual | Switching | No PFC | 170 – 240 | – | – | ±5 | ±22.5 | – | – | |
| H50AC28S | Through Hole | Single | Switching | No PFC | 170 – 240 | 28 | 55 | – | – | – | – | |
| H50AC24S | Through Hole | Single | Switching | No PFC | 170 – 240 | 24 | 55 | – | – | – | – | |
| H50AC15T5 | Through Hole | Triple | Switching | No PFC | 170 – 240 | – | – | – | – | 15, ±5 | 45, ±2.5 | |
| H50AC15S | Through Hole | Single | Switching | No PFC | 170 – 240 | 15 | 55 | – | – | – | – | |
| H50AC15D | Through Hole | Dual | Switching | No PFC | 170 – 240 | – | – | ±15 | ±27.5 | – | – | |
| H50AC12T5 | Through Hole | Triple | Switching | No PFC | 170 – 240 | – | – | – | – | 12, ±5 | 45, ±2.5 | |
| H50AC12S | Through Hole | Single | Switching | No PFC | 170 – 240 | 12 | 55 | – | – | – | – | |
| H50AC12D | Through Hole | Dual | Switching | No PFC | 170 – 240 | – | – | ±12 | ±27.5 | – | – | |
| 50AC5T15 | Through Hole | Triple | Switching | No PFC | 90 – 130 | – | – | – | – | 5, ±15 | 40, ±2.5 | |
| 50AC5T12 | Through Hole | Triple | Switching | No PFC | 90 – 130 | – | – | – | – | 5, ±12 | 40, ±2.5 | |
| 50AC5S | Through Hole | Single | Switching | No PFC | 90 – 130 | 5 | 45 | – | – | – | – | |
| 50AC5D | Through Hole | Dual | Switching | No PFC | 90 – 130 | – | – | ±5 | ±22.5 | – | – | |
| 50AC28S | Through Hole | Single | Switching | No PFC | 90 – 130 | 28 | 55 | – | – | – | – | |
| 50AC24S | Through Hole | Single | Switching | No PFC | 90 – 130 | 24 | 55 | – | – | – | – | |
| 50AC15T5 | Through Hole | Triple | Switching | No PFC | 90 – 130 | – | – | – | – | 15, ±5 | 45, ±2.5 | |
| 50AC15S | Through Hole | Single | Switching | No PFC | 90 – 130 | 15 | 55 | – | – | – | – | |
| 50AC15D | Through Hole | Dual | Switching | No PFC | 90 – 130 | – | – | ±15 | ±27.5 | – | – | |
| 50AC12T5 | Through Hole | Triple | Switching | No PFC | 90 – 130 | – | – | – | – | 12, ±5 | 45, ±2.5 | |
| 50AC12S | Through Hole | Single | Switching | No PFC | 90 – 130 | 12 | 55 | – | – | – | – | |
| 50AC12D | Through Hole | Dual | Switching | No PFC | 90 – 130 | – | – | ±12 | ±27.5 | – | – |
