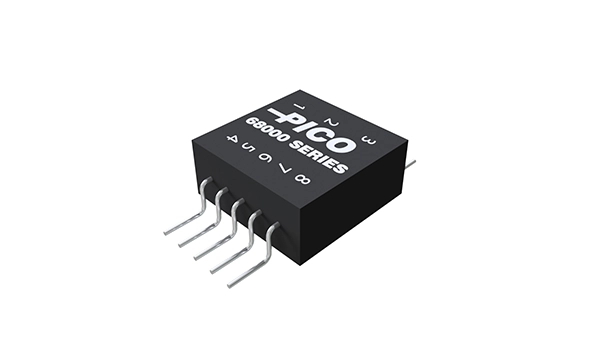

Series 68200 – MIL-PRF-21038/27 Data Bus Transformer

Downloads

Electrical SchematicDatasheetTechnical Drawing3D Step File

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Specifications

MIL-PRF-21038/27-XX-12
Turns Ratio (±3%)1.4:1
2:1
Primary Terminals1-3
Secondary Terminals4-8
5-7
Max. DC Resistance (Ω)(1-3) 3.5
(4-8) 3.0
Min. Impedance (Ω)(1-3)
7,200
CMR (dB min.)45
Droop % (max.)20
Overshoot (V)±1
Configuration (downloads)D
Dielectric Withstanding Voltage (Vrms)100
Insulation Resistance at 250VDC≥ 1 GΩ
Operational Temperature (°C)-55 to +130
Maximum Weight (g)5
Size (L x W x H) inches0.625 x 0.625 x 0.28
CaseGlass Reinforced Polymer

Description

Pico’s 682xx series of pulse transformers are designed to meet QPL MIL–PRF-21038/27 standards. These units are in strict compliance to MIL–PRF–21038. Pico is the supplier for MIL–PRF-21038/27 -01 thru -31 parts. The 682xx series have high input impedance from 75 kHz to 1 MHz over the temperature range of from -55C to +130C. These transformers have maximum 20% droop and over shoot is 1V maximum. The common mode rejection (CMR) is greater than 45dB. These units are designed to withstand 100Vrms from primary to secondary and are epoxy encapsulated and achieve MSL of 3. As always, Pico offers smallest possible packaging with high reliability. We are a QPL facility that are able to test these transformers to level M and level T of MIL-PRF-27.
