Specifications
MountingThrough Hole
Power Supply TypeSwitching
Power Factor CorrectedPFC
Input Voltage Range (VAC)85 - 250, 165 - 250 (3Φ)
Input Voltage Range 3Φ (VAC)165 - 250
Minimum Input Line Frequency Range (Hz)47
Maximum Input Line Frequency Range (Hz)440
Output Voltage (VDC)365
Max Load Current (A)2.74
Max Output Power (W)1000
Voltage Load Regulation 10-100% Load (±%)3
Efficiency at Full Load Typical (%)90
Output Voltage Tolerance (±%)2
Baseplate Operating Temperature Range (°C)0 to 85
Baseplate Storage Temperature Range (°C)-55 to +105
CoolingConduction
Dimensions - L x W x H (in)4.6 x 2.5 x 0.5
Weight (grams)231
CaseAluminum baseplate and Glass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage - Input/Output (VDC)Non-isolated
Isolation Voltage - Input/baseplate (VDC)2121
Isolation Voltage - Output/baseplate (VDC)2121
Operating Frequency (kHz)100
Overtemperature ProtectionYes
EnableYes
Frequency SynchronizationYes
Compatible Heat SinkCH, CV
Compatible Thermal InterfaceTI
Description

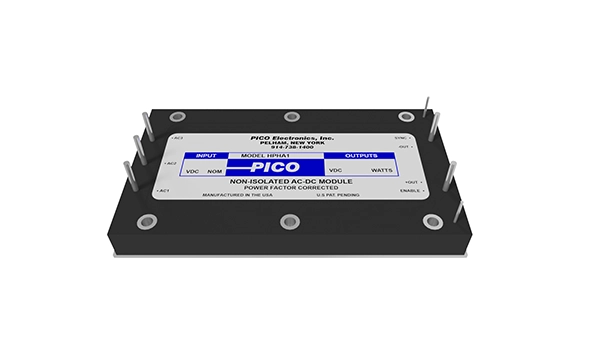

The Power Factor Corrected Modules are the perfect front ends for your universal AC single or 3-phase input to DC output applications. The standard 4.6″ x 2.5″ x 0.5″ full brick or 2.5″ x 2.3″ x 0.5″ half brick footprint is one of the smallest on the market today in this power range. Providing a 365V regulated DC output, it can be used as a front end for PICO’s FD/MD/LFD/LMD/LPD/ PD/HPD series of DC-DC converters to step down further ranging from 3.3V to 350V. Many laser and motor applications can use the 365V output directly.
