Series PHA

500 to 2000W Non-Isolated Regulated Power Factor Corrected Modules

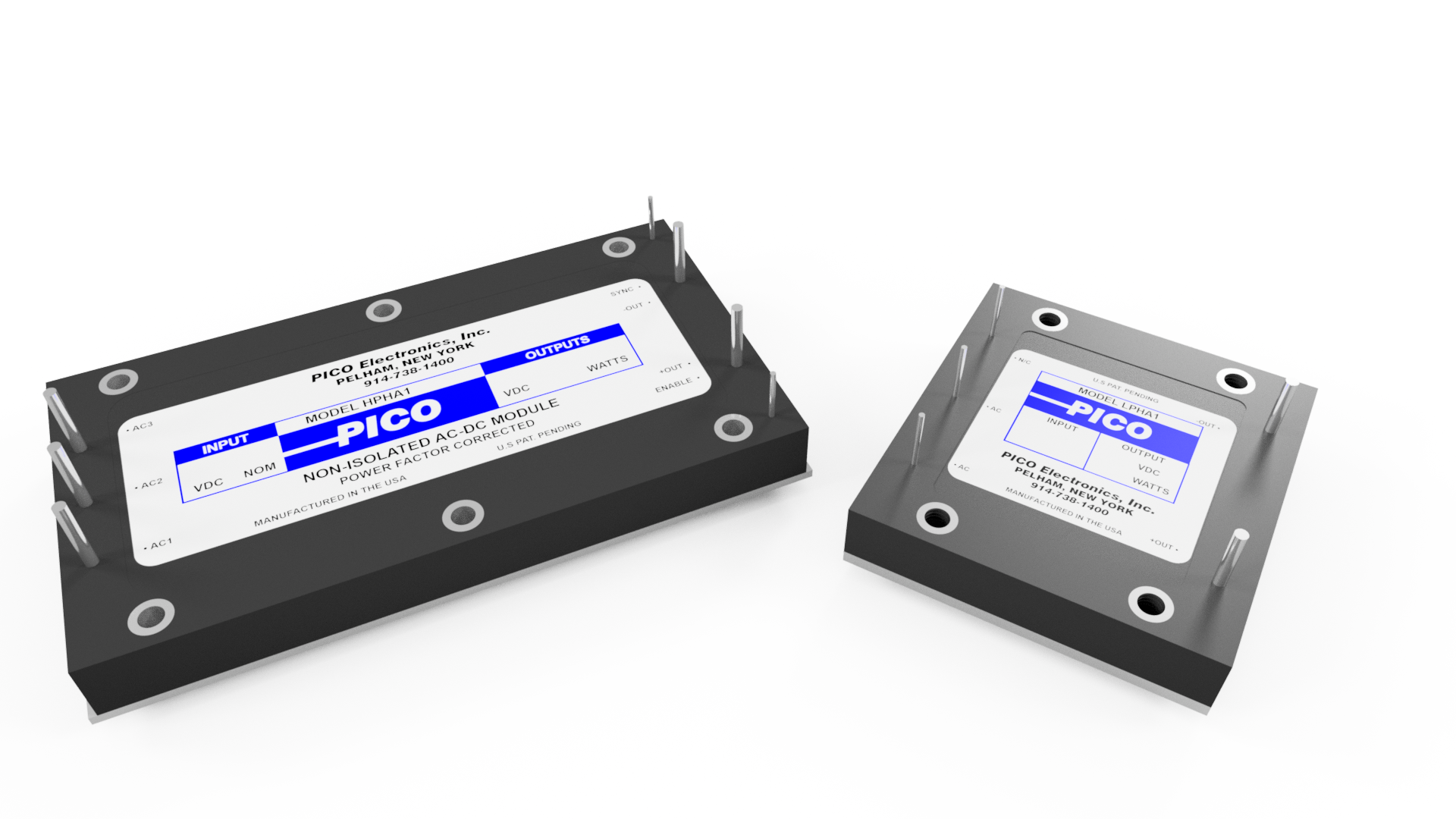

The Power Factor Corrected Modules are the perfect front ends for your universal AC single or 3-phase input to DC output applications. The standard 4.6″ x 2.5″ x 0.5″ full brick or 2.5″ x 2.3″ x 0.5″ half brick footprint is one of the smallest on the market today in this power range. Providing a 365V regulated DC output, it can be used as a front end for PICO’s FD/MD/LFD/LMD/LPD/ PD/HPD series of DC-DC converters to step down further ranging from 3.3V to 350V. Many laser and motor applications can use the 365V output directly.

Features

  • Up to 0.99 Power Factor
  • Single or three-phase input (HPHA2)
  • Meets EN/IEC 610000-3-2
  • Up to 2kW output power in a full brick size
  • Non-isolated & Regulated 365V output
  • Operating Frequency sync feature (HPHA1/HPHA2)
  • Enable DC/DC delay turn on feature (HPHA1/HPHA2)
  • Fixed operating frequency
  • Compatible with other Pico DC-DC converters providing isolated for 3.3 to 350V outputs

Options

  • Expanded operating temp: -40°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, or Output Power

1Φ Input Voltage Range (VAC)

3Φ Input Voltage Range (VAC)

Single Max Output Power (W)

Part Number Mounting# of OutputsPower Supply TypePower Factor CorrectedInput Voltage Range (VAC)Single Output Voltage (VDC)Single Max Output Power (W)Downloads
PHA1Through HoleSingleSwitchingPFC85 – 250365500
LPHA1Through HoleSingleSwitchingPFC85 – 250365250
HPHA2Through HoleSingleSwitchingPFC85 – 250, 165 – 250 (3Φ)3652000
HPHA1Through HoleSingleSwitchingPFC85 – 250, 165 – 250 (3Φ)3651000
