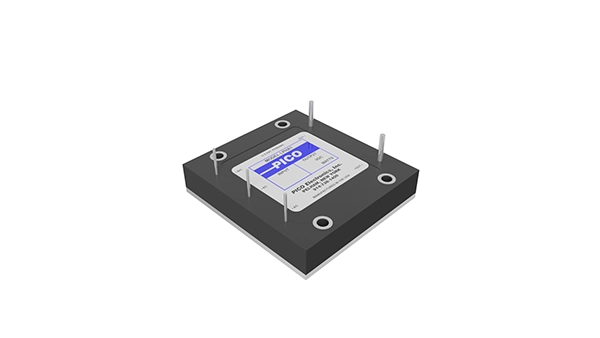

Specifications
MountingThrough Hole
Power Supply TypeSwitching
Power Factor CorrectedPFC
Input Voltage Range (VAC)85 - 250
Minimum Input Line Frequency Range (Hz)47
Maximum Input Line Frequency Range (Hz)440
Output Voltage (VDC)365
Max Load Current (A)0.685
Max Output Power (W)250
Voltage Load Regulation 10-100% Load (±%)3
Efficiency at Full Load Typical (%)90
Output Voltage Tolerance (±%)2
Baseplate Operating Temperature Range (°C)0 to 85
Baseplate Storage Temperature Range (°C)-55 to +105
CoolingConduction
Dimensions - L x W x H (in)2.5 x 2.3 x 0.5
Weight (grams)112
CaseAluminum baseplate and Glass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage - Input/Output (VDC)Non-isolated
Isolation Voltage - Input/baseplate (VRMS)2500
Isolation Voltage - Output/baseplate (VRMS)2500
Operating Frequency (kHz)100
Compatible Heat SinkLCH, LCV
Compatible Thermal InterfaceLTI
Description

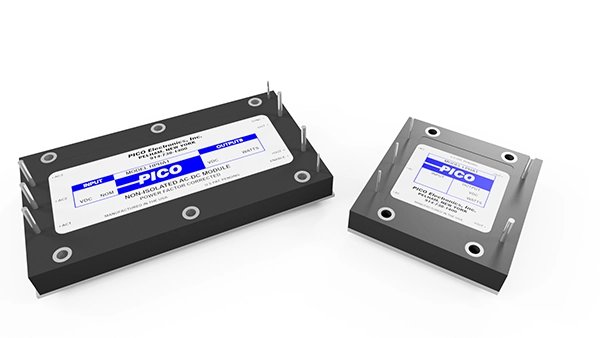

The Power Factor Corrected Modules are the perfect front ends for your universal AC single or 3-phase input to DC output applications. The standard 4.6″ x 2.5″ x 0.5″ full brick or 2.5″ x 2.3″ x 0.5″ half brick footprint is one of the smallest on the market today in this power range. Providing a 365V regulated DC output, it can be used as a front end for PICO’s FD/MD/LFD/LMD/LPD/ PD/HPD series of DC-DC converters to step down further ranging from 3.3V to 350V. Many laser and motor applications can use the 365V output directly.
