Specifications
MountingThrough Hole
Output TypeRegulated
Nominal Input Voltage (VDC)39
Input Voltage Range - Regulated Output (VDC)18 - 60
Single Output Voltage (VDC)28
Output Min. Current (mA)53.6
Output Max. Current (mA)536
Max Output Power (W)15
Line Regulation Vin Min to Vin Nom to Vin Max (±%)0.5
Load Regulation 25% Load to Nom load to Max Load (±%)0.5
Efficiency @ Full Load at Nominal Input Voltage Typical (%)84
Input Current @ Full Load Typical at Nominal Input Voltage (mA)460
Typical Output Voltage Ripple @ Full Load 1 MHz BW (Vp-p)0.04
Full Load Output Voltage Tolerance (±VDC)0.14
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)2.3 x 2.2 x 0.5
Weight (grams)115
Case6-Sided Epoxy Insulated Metal
PottingVacuum Impregnated Epoxy
Isolation Voltage (VDC)500
Operating Frequency (kHz)40
Short Circuit ProtectionTemporary
Control FeatureYes
Trim Feature (%)0 to +5
Description

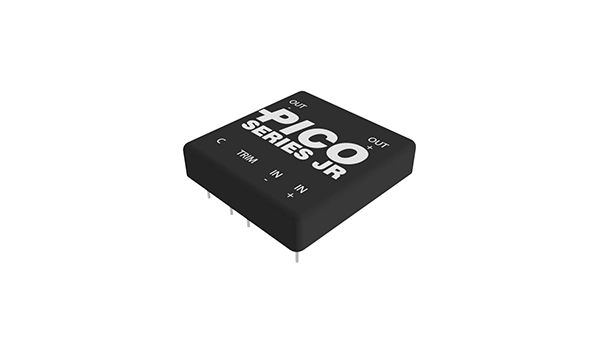

The JR series is an isolated/regulated DC-DC converter with wide input range, tight regulation and six-sided shielded case. These modules have trimming and control features. Single and dual isolated output models are standard. They can operate up to 15W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
