Specifications
MountingThrough Hole
Output TypeRegulated
Nominal Input Voltage (VDC)16
Input Voltage Range - Regulated Output (VDC)8 - 24
Single Output Voltage (VDC)2
Output Min. Current (mA)150
Output Max. Current (A)1.5
Max Output Power (W)3
Line Regulation Vin Min to Vin Nom to Vin Max (±%)3
Load Regulation 25% Load to Nom load to Max Load (±%)3.5
Efficiency @ Full Load at Nominal Input Voltage Typical (%)69
Input Current @ Full Load Typical at Nominal Input Voltage (mA)272
Typical Output Voltage Ripple @ Full Load 1 MHz BW (Vp-p)0.15
Full Load Output Voltage Tolerance (±VDC)0.03
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)1.92 x 1.52 x 0.5
Weight (grams)65
Case6-Sided Epoxy Insulated Metal
PottingVacuum Impregnated Epoxy
Isolation Voltage (VDC)500
Operating Frequency (kHz)40
Short Circuit ProtectionTemporary
Control FeatureYes
Trim Feature (%)0 to +5
Description

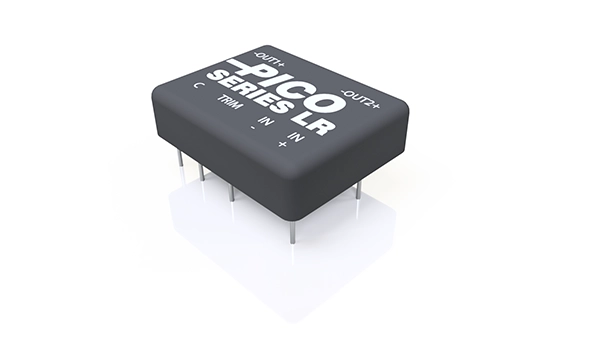

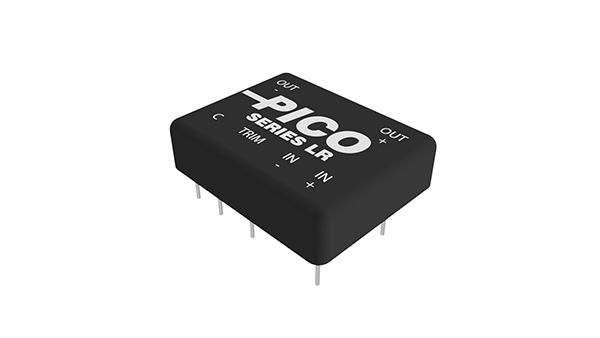

The LR series is an isolated DC-DC converter with wide input range, tight regulation and six-sided shielded case. These modules have trim and control features. Single and dual isolated output models are standard. They can operate up to 5W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
