Specifications
MountingSurface Mount
Output TypeRegulated
Nominal Input Voltage (VDC)16
Input Voltage Range - Regulated Output (VDC)8 - 24
Single Output Voltage (VDC)28
Output Min. Current (mA)28.6
Output Max. Current (mA)286
Max Output Power (W)8
Line Regulation Vin Min to Vin Nom to Vin Max (±%)1
Load Regulation 25% Load to Nom load to Max Load (±%)1
Efficiency @ Full Load at Nominal Input Voltage Typical (%)81
Input Current @ Full Load Typical at Nominal Input Voltage (mA)615
Typical Output Voltage Ripple @ Full Load 1 MHz BW (Vp-p)0.125
Full Load Output Voltage Tolerance (±VDC)0.14
Ambient Operating Temperature Range (°C)-25 to +70
Ambient Storage Temperature Range (°C)-55 to +125
CoolingFree Air Convection
Output Temperature Coefficient (%/°C)0.02
Dimensions - L x W x H (in)1.82 x 1.5 x 0.53
Weight (grams)95
Moisture Sensitivity Level3
CaseGlass Reinforced Polymer
PottingVacuum Impregnated Epoxy
Isolation Voltage (VDC)500
Operating Frequency (kHz)40
Short Circuit ProtectionTemporary
Control FeatureYes
Trim Feature (%)0 to +5
Description

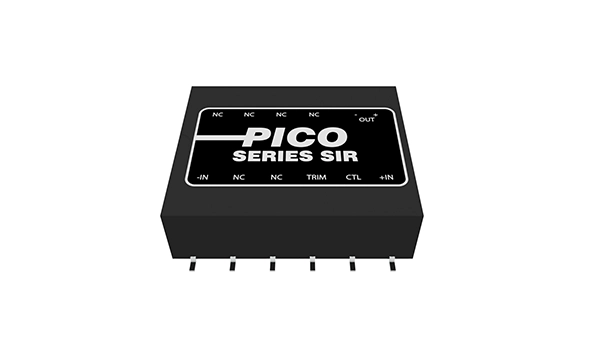

The IR & SIR series are isolated/regulated DC-DC converters with wide input range and tight regulation specifications. These modules have trimming and control features. Single and dual isolated output models are standard. They can operate up to 10W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.
