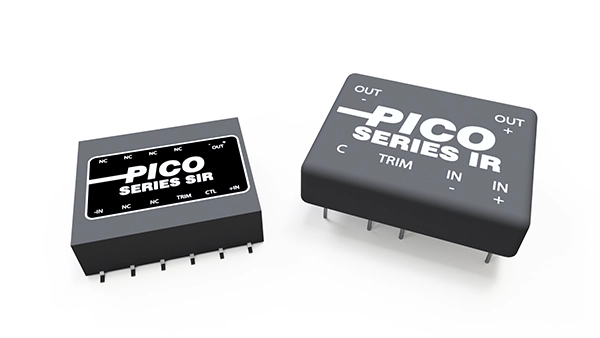

Series IR & SIR

10W Isolated Regulated Low Profile DC-DC Converter

The IR & SIR series are isolated/regulated DC-DC converters with wide input range and tight regulation specifications. These modules have trimming and control features. Single and dual isolated output models are standard. They can operate up to 10W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Features

Up to 10W output at +70°C ambient
Low profile – 0.500” height
Up to 3.33:1 input voltage range
2 to 100V output models
Six-sided shielded case (Series SIR)
Control feature
Trimmable output
Input/output isolation
Single and dual isolated output
No external components required
No heat sink or derating required

Options

Expanded operating temp: -55°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Part Number	Series	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Input Voltage Range (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Dual Output Voltage (VDC)	Dual Max Output Power (W)	Downloads
SIRF9S	SIR	Surface Mount	Single	Regulated	16	8 – 24	9	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF9D	SIR	Surface Mount	Dual	Regulated	16	8 – 24	–	–	9/9	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF5S	SIR	Surface Mount	Single	Regulated	16	8 – 24	5	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF5D	SIR	Surface Mount	Dual	Regulated	16	8 – 24	–	–	5/5	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF5.2S	SIR	Surface Mount	Single	Regulated	16	8 – 24	5.2	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF48S	SIR	Surface Mount	Single	Regulated	16	8 – 24	48	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF48D	SIR	Surface Mount	Dual	Regulated	16	8 – 24	–	–	48/48	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF3.3S	SIR	Surface Mount	Single	Regulated	16	8 – 24	3.3	7	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF28S	SIR	Surface Mount	Single	Regulated	16	8 – 24	28	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF28D	SIR	Surface Mount	Dual	Regulated	16	8 – 24	–	–	28/28	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF24S	SIR	Surface Mount	Single	Regulated	16	8 – 24	24	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF24D	SIR	Surface Mount	Dual	Regulated	16	8 – 24	–	–	24/24	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF15S	SIR	Surface Mount	Single	Regulated	16	8 – 24	15	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF15D	SIR	Surface Mount	Dual	Regulated	16	8 – 24	–	–	15/15	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF12S	SIR	Surface Mount	Single	Regulated	16	8 – 24	12	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF12D	SIR	Surface Mount	Dual	Regulated	16	8 – 24	–	–	12/12	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRF100S	SIR	Surface Mount	Single	Regulated	16	8 – 24	100	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE9S	SIR	Surface Mount	Single	Regulated	10	5 – 15	9	6	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE9D	SIR	Surface Mount	Dual	Regulated	10	5 – 15	–	–	9/9	3/3	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE5S	SIR	Surface Mount	Single	Regulated	10	5 – 15	5	5	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE5D	SIR	Surface Mount	Dual	Regulated	10	5 – 15	–	–	5/5	2.5/2.5	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE5.2S	SIR	Surface Mount	Single	Regulated	10	5 – 15	5.2	5	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE48S	SIR	Surface Mount	Single	Regulated	10	5 – 15	48	6	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE48D	SIR	Surface Mount	Dual	Regulated	10	5 – 15	–	–	48/48	3/3	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE3.3S	SIR	Surface Mount	Single	Regulated	10	5 – 15	3.3	5	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE28S	SIR	Surface Mount	Single	Regulated	10	5 – 15	28	6	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE28D	SIR	Surface Mount	Dual	Regulated	10	5 – 15	–	–	28/28	3/3	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE24S	SIR	Surface Mount	Single	Regulated	10	5 – 15	24	6	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE24D	SIR	Surface Mount	Dual	Regulated	10	5 – 15	–	–	24/24	3/3	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE15S	SIR	Surface Mount	Single	Regulated	10	5 – 15	15	6	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE15D	SIR	Surface Mount	Dual	Regulated	10	5 – 15	–	–	15/15	3/3	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE12S	SIR	Surface Mount	Single	Regulated	10	5 – 15	12	6	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE12D	SIR	Surface Mount	Dual	Regulated	10	5 – 15	–	–	12/12	3/3	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRE100S	SIR	Surface Mount	Single	Regulated	10	5 – 15	100	6	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC9S	SIR	Surface Mount	Single	Regulated	39	18 – 60	9	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC9D	SIR	Surface Mount	Dual	Regulated	39	18 – 60	–	–	9/9	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC5S	SIR	Surface Mount	Single	Regulated	39	18 – 60	5	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC5D	SIR	Surface Mount	Dual	Regulated	39	18 – 60	–	–	5/5	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC5.2S	SIR	Surface Mount	Single	Regulated	39	18 – 60	5.2	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC48S	SIR	Surface Mount	Single	Regulated	39	18 – 60	48	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC48D	SIR	Surface Mount	Dual	Regulated	39	18 – 60	–	–	48/48	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC3.3S	SIR	Surface Mount	Single	Regulated	39	18 – 60	3.3	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC28S	SIR	Surface Mount	Single	Regulated	39	18 – 60	28	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC28D	SIR	Surface Mount	Dual	Regulated	39	18 – 60	–	–	28/28	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC24S	SIR	Surface Mount	Single	Regulated	39	18 – 60	24	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC24D	SIR	Surface Mount	Dual	Regulated	39	18 – 60	–	–	24/24	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC15S	SIR	Surface Mount	Single	Regulated	39	18 – 60	15	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC15D	SIR	Surface Mount	Dual	Regulated	39	18 – 60	–	–	15/15	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC12S	SIR	Surface Mount	Single	Regulated	39	18 – 60	12	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC12D	SIR	Surface Mount	Dual	Regulated	39	18 – 60	–	–	12/12	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRC100S	SIR	Surface Mount	Single	Regulated	39	18 – 60	100	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB9S	SIR	Surface Mount	Single	Regulated	48	36 – 60	9	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB9D	SIR	Surface Mount	Dual	Regulated	48	36 – 60	–	–	9/9	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB5S	SIR	Surface Mount	Single	Regulated	48	36 – 60	5	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB5D	SIR	Surface Mount	Dual	Regulated	48	36 – 60	–	–	5/5	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB5.2S	SIR	Surface Mount	Single	Regulated	48	36 – 60	5.2	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB48S	SIR	Surface Mount	Single	Regulated	48	36 – 60	48	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB48D	SIR	Surface Mount	Dual	Regulated	48	36 – 60	–	–	48/48	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB3.3S	SIR	Surface Mount	Single	Regulated	48	36 – 60	3.3	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB28S	SIR	Surface Mount	Single	Regulated	48	36 – 60	28	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB28D	SIR	Surface Mount	Dual	Regulated	48	36 – 60	–	–	28/28	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB24S	SIR	Surface Mount	Single	Regulated	48	36 – 60	24	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB24D	SIR	Surface Mount	Dual	Regulated	48	36 – 60	–	–	24/24	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB15S	SIR	Surface Mount	Single	Regulated	48	36 – 60	15	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB15D	SIR	Surface Mount	Dual	Regulated	48	36 – 60	–	–	15/15	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB12S	SIR	Surface Mount	Single	Regulated	48	36 – 60	12	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB12D	SIR	Surface Mount	Dual	Regulated	48	36 – 60	–	–	12/12	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRB100S	SIR	Surface Mount	Single	Regulated	48	36 – 60	100	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA9S	SIR	Surface Mount	Single	Regulated	27	18 – 36	9	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA9D	SIR	Surface Mount	Dual	Regulated	27	18 – 36	–	–	9/9	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA5S	SIR	Surface Mount	Single	Regulated	27	18 – 36	5	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA5D	SIR	Surface Mount	Dual	Regulated	27	18 – 36	–	–	5/5	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA5.2S	SIR	Surface Mount	Single	Regulated	27	18 – 36	5.2	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA48S	SIR	Surface Mount	Single	Regulated	27	18 – 36	48	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA48D	SIR	Surface Mount	Dual	Regulated	27	18 – 36	–	–	48/48	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA3.3S	SIR	Surface Mount	Single	Regulated	27	18 – 36	3.3	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA28S	SIR	Surface Mount	Single	Regulated	27	18 – 36	28	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA28D	SIR	Surface Mount	Dual	Regulated	27	18 – 36	–	–	28/28	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA24S	SIR	Surface Mount	Single	Regulated	27	18 – 36	24	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA24D	SIR	Surface Mount	Dual	Regulated	27	18 – 36	–	–	24/24	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA15S	SIR	Surface Mount	Single	Regulated	27	18 – 36	15	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA15D	SIR	Surface Mount	Dual	Regulated	27	18 – 36	–	–	15/15	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA12S	SIR	Surface Mount	Single	Regulated	27	18 – 36	12	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA12D	SIR	Surface Mount	Dual	Regulated	27	18 – 36	–	–	12/12	4/4	Datasheet Mechanical Drawing Land Pattern 3D Model
SIRA100S	SIR	Surface Mount	Single	Regulated	27	18 – 36	100	8	–	–	Datasheet Mechanical Drawing Land Pattern 3D Model
IRF9S	IR	Through Hole	Single	Regulated	16	8 – 24	9	10	–	–	Datasheet Mechanical Drawing 3D Model
IRF9D	IR	Through Hole	Dual	Regulated	16	8 – 24	–	–	9/9	5/5	Datasheet Mechanical Drawing 3D Model
IRF5S	IR	Through Hole	Single	Regulated	16	8 – 24	5	10	–	–	Datasheet Mechanical Drawing 3D Model
IRF5D	IR	Through Hole	Dual	Regulated	16	8 – 24	–	–	5/5	5/5	Datasheet Mechanical Drawing 3D Model
IRF5.2S	IR	Through Hole	Single	Regulated	16	8 – 24	5.2	10	–	–	Datasheet Mechanical Drawing 3D Model
IRF48S	IR	Through Hole	Single	Regulated	16	8 – 24	48	10	–	–	Datasheet Mechanical Drawing 3D Model
IRF48D	IR	Through Hole	Dual	Regulated	16	8 – 24	–	–	48/48	5/5	Datasheet Mechanical Drawing 3D Model
IRF3.3S	IR	Through Hole	Single	Regulated	16	8 – 24	3.3	8	–	–	Datasheet Mechanical Drawing 3D Model
IRF2S	IR	Through Hole	Single	Regulated	16	8 – 24	2	5	–	–	Datasheet Mechanical Drawing 3D Model
IRF28S	IR	Through Hole	Single	Regulated	16	8 – 24	28	10	–	–	Datasheet Mechanical Drawing 3D Model
IRF28D	IR	Through Hole	Dual	Regulated	16	8 – 24	–	–	28/28	5/5	Datasheet Mechanical Drawing 3D Model
IRF24S	IR	Through Hole	Single	Regulated	16	8 – 24	24	10	–	–	Datasheet Mechanical Drawing 3D Model
IRF24D	IR	Through Hole	Dual	Regulated	16	8 – 24	–	–	24/24	5/5	Datasheet Mechanical Drawing 3D Model
IRF15S	IR	Through Hole	Single	Regulated	16	8 – 24	15	10	–	–	Datasheet Mechanical Drawing 3D Model
IRF15D	IR	Through Hole	Dual	Regulated	16	8 – 24	–	–	15/15	5/5	Datasheet Mechanical Drawing 3D Model
IRF12S	IR	Through Hole	Single	Regulated	16	8 – 24	12	10	–	–	Datasheet Mechanical Drawing 3D Model
IRF12D	IR	Through Hole	Dual	Regulated	16	8 – 24	–	–	12/12	5/5	Datasheet Mechanical Drawing 3D Model
IRF100S	IR	Through Hole	Single	Regulated	16	8 – 24	100	10	–	–	Datasheet Mechanical Drawing 3D Model
IRE9S	IR	Through Hole	Single	Regulated	10	5 – 15	9	8	–	–	Datasheet Mechanical Drawing 3D Model
IRE9D	IR	Through Hole	Dual	Regulated	10	5 – 15	–	–	9/9	4/4	Datasheet Mechanical Drawing 3D Model
IRE5S	IR	Through Hole	Single	Regulated	10	5 – 15	5	6	–	–	Datasheet Mechanical Drawing 3D Model
IRE5D	IR	Through Hole	Dual	Regulated	10	5 – 15	–	–	5/5	3/3	Datasheet Mechanical Drawing 3D Model
IRE5.2S	IR	Through Hole	Single	Regulated	10	5 – 15	5.2	6	–	–	Datasheet Mechanical Drawing 3D Model
IRE48S	IR	Through Hole	Single	Regulated	10	5 – 15	48	8	–	–	Datasheet Mechanical Drawing 3D Model
IRE48D	IR	Through Hole	Dual	Regulated	10	5 – 15	–	–	48/48	4/4	Datasheet Mechanical Drawing 3D Model
IRE3.3S	IR	Through Hole	Single	Regulated	10	5 – 15	3.3	5	–	–	Datasheet Mechanical Drawing 3D Model
IRE2S	IR	Through Hole	Single	Regulated	10	5 – 15	2	4	–	–	Datasheet Mechanical Drawing 3D Model
IRE28S	IR	Through Hole	Single	Regulated	10	5 – 15	28	8	–	–	Datasheet Mechanical Drawing 3D Model
IRE28D	IR	Through Hole	Dual	Regulated	10	5 – 15	–	–	28/28	4/4	Datasheet Mechanical Drawing 3D Model
IRE24S	IR	Through Hole	Single	Regulated	10	5 – 15	24	8	–	–	Datasheet Mechanical Drawing 3D Model
IRE24D	IR	Through Hole	Dual	Regulated	10	5 – 15	–	–	24/24	4/4	Datasheet Mechanical Drawing 3D Model
IRE15S	IR	Through Hole	Single	Regulated	10	5 – 15	15	8	–	–	Datasheet Mechanical Drawing 3D Model
IRE15D	IR	Through Hole	Dual	Regulated	10	5 – 15	–	–	15/15	4/4	Datasheet Mechanical Drawing 3D Model
IRE12S	IR	Through Hole	Single	Regulated	10	5 – 15	12	8	–	–	Datasheet Mechanical Drawing 3D Model
IRE12D	IR	Through Hole	Dual	Regulated	10	5 – 15	–	–	12/12	4/4	Datasheet Mechanical Drawing 3D Model
IRE100S	IR	Through Hole	Single	Regulated	10	5 – 15	100	6	–	–	Datasheet Mechanical Drawing 3D Model
IRC9S	IR	Through Hole	Single	Regulated	39	18 – 60	9	10	–	–	Datasheet Mechanical Drawing 3D Model
IRC9D	IR	Through Hole	Dual	Regulated	39	18 – 60	–	–	9/9	5/5	Datasheet Mechanical Drawing 3D Model
IRC5S	IR	Through Hole	Single	Regulated	39	18 – 60	5	10	–	–	Datasheet Mechanical Drawing 3D Model
IRC5D	IR	Through Hole	Dual	Regulated	39	18 – 60	–	–	5/5	5/5	Datasheet Mechanical Drawing 3D Model
IRC5.2S	IR	Through Hole	Single	Regulated	39	18 – 60	5.2	10	–	–	Datasheet Mechanical Drawing 3D Model
IRC48S	IR	Through Hole	Single	Regulated	39	18 – 60	48	10	–	–	Datasheet Mechanical Drawing 3D Model
IRC48D	IR	Through Hole	Dual	Regulated	39	18 – 60	–	–	48/48	5/5	Datasheet Mechanical Drawing 3D Model
IRC3.3S	IR	Through Hole	Single	Regulated	39	18 – 60	3.3	9	–	–	Datasheet Mechanical Drawing 3D Model
IRC2S	IR	Through Hole	Single	Regulated	39	18 – 60	2	6	–	–	Datasheet Mechanical Drawing 3D Model
IRC28S	IR	Through Hole	Single	Regulated	39	18 – 60	28	10	–	–	Datasheet Mechanical Drawing 3D Model
IRC28D	IR	Through Hole	Dual	Regulated	39	18 – 60	–	–	28/28	5/5	Datasheet Mechanical Drawing 3D Model
IRC24S	IR	Through Hole	Single	Regulated	39	18 – 60	24	10	–	–	Datasheet Mechanical Drawing 3D Model
IRC24D	IR	Through Hole	Dual	Regulated	39	18 – 60	–	–	24/24	5/5	Datasheet Mechanical Drawing 3D Model
IRC15S	IR	Through Hole	Single	Regulated	39	18 – 60	15	10	–	–	Datasheet Mechanical Drawing 3D Model
IRC15D	IR	Through Hole	Dual	Regulated	39	18 – 60	–	–	15/15	5/5	Datasheet Mechanical Drawing 3D Model
IRC12S	IR	Through Hole	Single	Regulated	39	18 – 60	12	10	–	–	Datasheet Mechanical Drawing 3D Model
IRC12D	IR	Through Hole	Dual	Regulated	39	18 – 60	–	–	12/12	5/5	Datasheet Mechanical Drawing 3D Model
IRC100S	IR	Through Hole	Single	Regulated	39	18 – 60	100	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB9S	IR	Through Hole	Single	Regulated	48	36 – 60	9	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB9D	IR	Through Hole	Dual	Regulated	48	36 – 60	–	–	9/9	5/5	Datasheet Mechanical Drawing 3D Model
IRB5S	IR	Through Hole	Single	Regulated	48	36 – 60	5	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB5D	IR	Through Hole	Dual	Regulated	48	36 – 60	–	–	5/5	5/5	Datasheet Mechanical Drawing 3D Model
IRB5.2S	IR	Through Hole	Single	Regulated	48	36 – 60	5.2	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB48S	IR	Through Hole	Single	Regulated	48	36 – 60	48	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB48D	IR	Through Hole	Dual	Regulated	48	36 – 60	–	–	48/48	5/5	Datasheet Mechanical Drawing 3D Model
IRB3.3S	IR	Through Hole	Single	Regulated	48	36 – 60	3.3	9	–	–	Datasheet Mechanical Drawing 3D Model
IRB2S	IR	Through Hole	Single	Regulated	48	36 – 60	2	6	–	–	Datasheet Mechanical Drawing 3D Model
IRB28S	IR	Through Hole	Single	Regulated	48	36 – 60	28	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB28D	IR	Through Hole	Dual	Regulated	48	36 – 60	–	–	28/28	5/5	Datasheet Mechanical Drawing 3D Model
IRB24S	IR	Through Hole	Single	Regulated	48	36 – 60	24	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB24D	IR	Through Hole	Dual	Regulated	48	36 – 60	–	–	24/24	5/5	Datasheet Mechanical Drawing 3D Model
IRB15S	IR	Through Hole	Single	Regulated	48	36 – 60	15	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB15D	IR	Through Hole	Dual	Regulated	48	36 – 60	–	–	15/15	5/5	Datasheet Mechanical Drawing 3D Model
IRB12S	IR	Through Hole	Single	Regulated	48	36 – 60	12	10	–	–	Datasheet Mechanical Drawing 3D Model
IRB12D	IR	Through Hole	Dual	Regulated	48	36 – 60	–	–	12/12	5/5	Datasheet Mechanical Drawing 3D Model
IRB100S	IR	Through Hole	Single	Regulated	48	36 – 60	100	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA9S	IR	Through Hole	Single	Regulated	27	18 – 36	9	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA9D	IR	Through Hole	Dual	Regulated	27	18 – 36	–	–	9/9	5/5	Datasheet Mechanical Drawing 3D Model
IRA5S	IR	Through Hole	Single	Regulated	27	18 – 36	5	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA5D	IR	Through Hole	Dual	Regulated	27	18 – 36	–	–	5/5	5/5	Datasheet Mechanical Drawing 3D Model
IRA5.2S	IR	Through Hole	Single	Regulated	27	18 – 36	5.2	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA48S	IR	Through Hole	Single	Regulated	27	18 – 36	48	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA48D	IR	Through Hole	Dual	Regulated	27	18 – 36	–	–	48/48	5/5	Datasheet Mechanical Drawing 3D Model
IRA3.3S	IR	Through Hole	Single	Regulated	27	18 – 36	3.3	9	–	–	Datasheet Mechanical Drawing 3D Model
IRA2S	IR	Through Hole	Single	Regulated	27	18 – 36	2	6	–	–	Datasheet Mechanical Drawing 3D Model
IRA28S	IR	Through Hole	Single	Regulated	27	18 – 36	28	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA28D	IR	Through Hole	Dual	Regulated	27	18 – 36	–	–	28/28	5/5	Datasheet Mechanical Drawing 3D Model
IRA24S	IR	Through Hole	Single	Regulated	27	18 – 36	24	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA24D	IR	Through Hole	Dual	Regulated	27	18 – 36	–	–	24/24	5/5	Datasheet Mechanical Drawing 3D Model
IRA15S	IR	Through Hole	Single	Regulated	27	18 – 36	15	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA15D	IR	Through Hole	Dual	Regulated	27	18 – 36	–	–	15/15	5/5	Datasheet Mechanical Drawing 3D Model
IRA12S	IR	Through Hole	Single	Regulated	27	18 – 36	12	10	–	–	Datasheet Mechanical Drawing 3D Model
IRA12D	IR	Through Hole	Dual	Regulated	27	18 – 36	–	–	12/12	5/5	Datasheet Mechanical Drawing 3D Model
IRA100S	IR	Through Hole	Single	Regulated	27	18 – 36	100	10	–	–	Datasheet Mechanical Drawing 3D Model

Series IR & SIR

10W Isolated Regulated Low Profile DC-DC Converter

Custom Solutions

Features

Options
