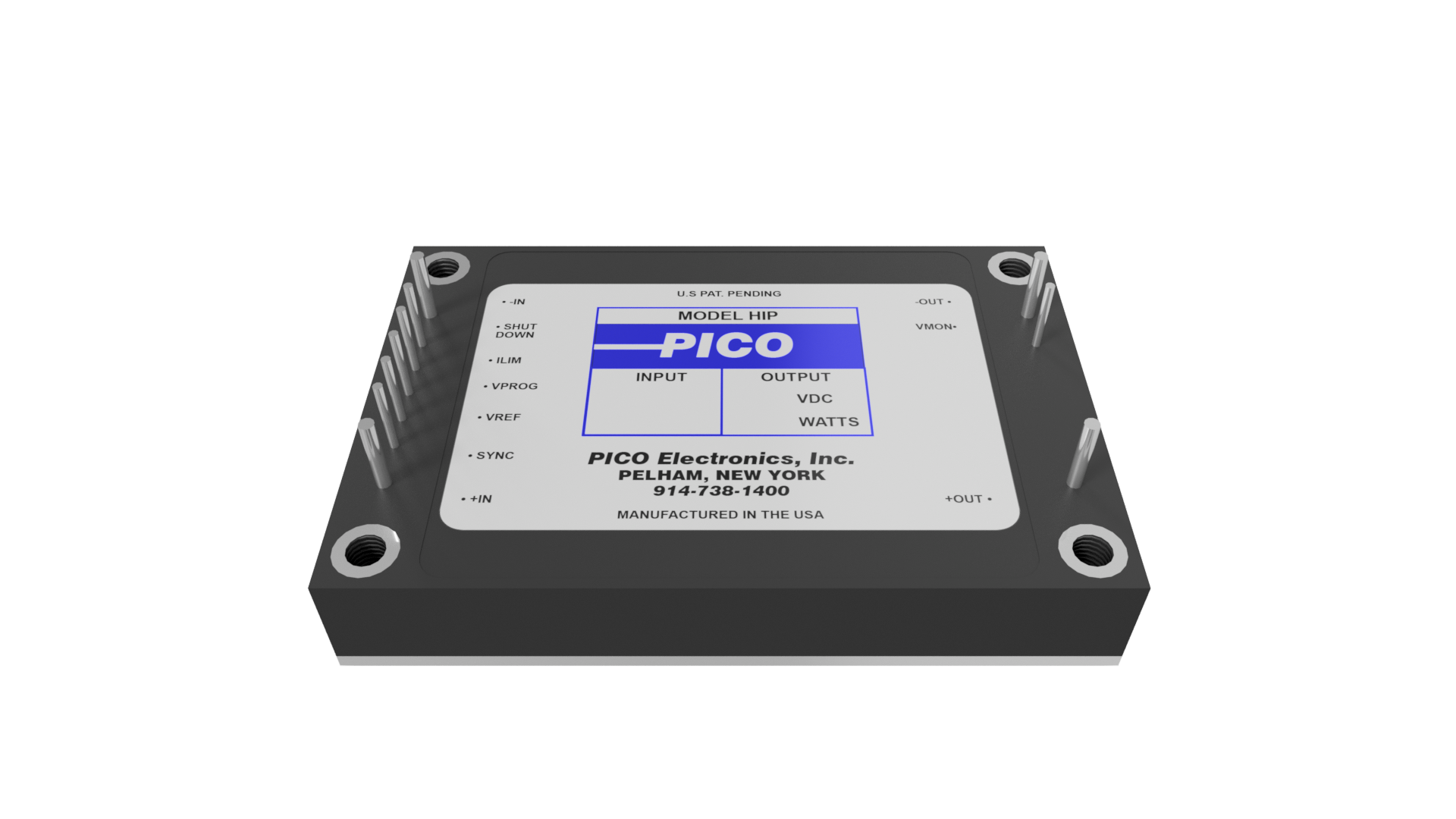

Series HIP

100W Isolated Regulated Programmable High Voltage DC-DC Converter

The HIP series of fully regulated modules are 10% to 100% output voltage programmable by internal reference or external voltage. These modules have an adjustable current limit, voltage monitor, shutdown and operating frequency synchronization features. Protections include input over/undervoltage, output short-circuit, and over temperature.

The 3″ x 2″ x 0.5″ case size has threaded inserts to mount securely for high vibration and shock applications. Conduction cooling is available through the baseplate or compatible heat sink.

Compatible Heat SinksHIPCH
Compatible Thermal InterfacesHIPTI

Features

  • 10-100% programmable output feature
  • Up to 100W output power
  • Compact 3” x 2” x 0.5” case size
  • 2:1 input voltage range
  • Protected against input over/undervoltage, output short-circuit, and over temperature
  • Frequency synchronization feature
  • Adjustable output current limit feature
  • Shutdown feature
  • Output voltage monitor feature

Options

  • Expanded operating temp: -40°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Input Voltage Range (VDC)

Single Output Voltage (VDC)

Single Max Output Power (W)

Part Number Mounting# of OutputsOutput TypeNominal Input Voltage (VDC)Input Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Downloads
28HIP500Through HoleSingleRegulated Programmable2818 – 3650075
28HIP400Through HoleSingleRegulated Programmable2818 – 3640075
28HIP300Through HoleSingleRegulated Programmable2818 – 36300100
28HIP200Through HoleSingleRegulated Programmable2818 – 36200100
28HIP100Through HoleSingleRegulated Programmable2818 – 36100100
15HIP500Through HoleSingleRegulated Programmable1510 – 2050050
15HIP400Through HoleSingleRegulated Programmable1510 – 2040050
15HIP300Through HoleSingleRegulated Programmable1510 – 2030050
15HIP200Through HoleSingleRegulated Programmable1510 – 2020050
15HIP100Through HoleSingleRegulated Programmable1510 – 2010050
