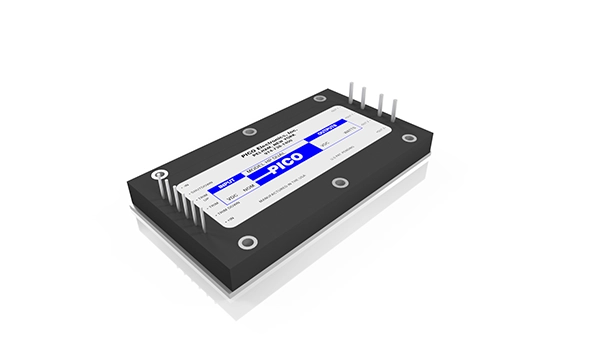

The HP series are isolated DC-DC converters with a wide selection of input voltage ranges from 36V to 380V in a low profile full brick size – 4.6″ x 2.5″ x 0.5″. These modules have trim capability and shutdown features. Protections include input overvoltage, output short-circuit, output overvoltage and over temperature.
The unique case has integrated side heat sink for better thermal dissipation but is capable of conduction cooling through the baseplate or additional top mounted heat sink.
# of Outputs
Input Voltage Range (VDC)
Single Output Voltage (VDC)
Single Max Output Power (W)
Dual Output Voltage (VDC)
Dual Max Output Power (W)
| Part Number | Mounting | # of Outputs | Temperature Range | Nominal Input Voltage (VDC) | Input Voltage Range (VDC) | Single Output Voltage (VDC) | Single Max Output Power (W) | Dual Output Voltage (VDC) | Dual Max Output Power (W) | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|
| HPD9S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 9 | 150 | – | – | |
| HPD9D | Through Hole | Dual | 0°C to +85°C Baseplate | 300 | 200 – 380 | – | – | 9/9 | 75/75 | |
| HPD5S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 5 | 100 | – | – | |
| HPD5D | Through Hole | Dual | 0°C to +85°C Baseplate | 300 | 200 – 380 | – | – | 5/5 | 50/50 | |
| HPD5.2S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 5.2 | 100 | – | – | |
| HPD48S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 48 | 200 | – | – | |
| HPD48D | Through Hole | Dual | 0°C to +85°C Baseplate | 300 | 200 – 380 | – | – | 48/48 | 75/75 | |
| HPD3.3S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 3.3 | 75 | – | – | |
| HPD28S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 28 | 200 | – | – | |
| HPD28D | Through Hole | Dual | 0°C to +85°C Baseplate | 300 | 200 – 380 | – | – | 28/28 | 75/75 | |
| HPD24S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 24 | 200 | – | – | |
| HPD24D | Through Hole | Dual | 0°C to +85°C Baseplate | 300 | 200 – 380 | – | – | 24/24 | 75/75 | |
| HPD15S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 15 | 200 | – | – | |
| HPD15D | Through Hole | Dual | 0°C to +85°C Baseplate | 300 | 200 – 380 | – | – | 15/15 | 75/75 | |
| HPD12S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 12 | 200 | – | – | |
| HPD12D | Through Hole | Dual | 0°C to +85°C Baseplate | 300 | 200 – 380 | – | – | 12/12 | 75/75 | |
| HPD100S | Through Hole | Single | 0°C to +85°C Baseplate | 300 | 200 – 380 | 100 | 150 | – | – | |
| HPC9S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 9 | 150 | – | – | |
| HPC9D | Through Hole | Dual | 0°C to +85°C Baseplate | 150 | 100 – 180 | – | – | 9/9 | 75/75 | |
| HPC5S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 5 | 100 | – | – | |
| HPC5D | Through Hole | Dual | 0°C to +85°C Baseplate | 150 | 100 – 180 | – | – | 5/5 | 50/50 | |
| HPC5.2S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 5.2 | 100 | – | – | |
| HPC48S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 48 | 200 | – | – | |
| HPC48D | Through Hole | Dual | 0°C to +85°C Baseplate | 150 | 100 – 180 | – | – | 48/48 | 75/75 | |
| HPC3.3S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 3.3 | 75 | – | – | |
| HPC28S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 28 | 200 | – | – | |
| HPC28D | Through Hole | Dual | 0°C to +85°C Baseplate | 150 | 100 – 180 | – | – | 28/28 | 75/75 | |
| HPC24S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 24 | 200 | – | – | |
| HPC24D | Through Hole | Dual | 0°C to +85°C Baseplate | 150 | 100 – 180 | – | – | 24/24 | 75/75 | |
| HPC15S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 15 | 200 | – | – | |
| HPC15D | Through Hole | Dual | 0°C to +85°C Baseplate | 150 | 100 – 180 | – | – | 15/15 | 75/75 | |
| HPC12S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 12 | 200 | – | – | |
| HPC12D | Through Hole | Dual | 0°C to +85°C Baseplate | 150 | 100 – 180 | – | – | 12/12 | 75/75 | |
| HPC100S | Through Hole | Single | 0°C to +85°C Baseplate | 150 | 100 – 180 | 100 | 150 | – | – | |
| HPB9S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 9 | 150 | – | – | |
| HPB9D | Through Hole | Dual | 0°C to +85°C Baseplate | 48 | 36 – 72 | – | – | 9/9 | 75/75 | |
| HPB5S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 5 | 100 | – | – | |
| HPB5D | Through Hole | Dual | 0°C to +85°C Baseplate | 48 | 36 – 72 | – | – | 5/5 | 50/50 | |
| HPB5.2S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 5.2 | 100 | – | – | |
| HPB48S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 48 | 150 | – | – | |
| HPB48D | Through Hole | Dual | 0°C to +85°C Baseplate | 48 | 36 – 72 | – | – | 48/48 | 75/75 | |
| HPB3.3S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 3.3 | 60 | – | – | |
| HPB28S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 28 | 150 | – | – | |
| HPB28D | Through Hole | Dual | 0°C to +85°C Baseplate | 48 | 36 – 72 | – | – | 28/28 | 75/75 | |
| HPB24S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 24 | 150 | – | – | |
| HPB24D | Through Hole | Dual | 0°C to +85°C Baseplate | 48 | 36 – 72 | – | – | 24/24 | 75/75 | |
| HPB15S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 15 | 150 | – | – | |
| HPB15D | Through Hole | Dual | 0°C to +85°C Baseplate | 48 | 36 – 72 | – | – | 15/15 | 75/75 | |
| HPB12S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 12 | 150 | – | – | |
| HPB12D | Through Hole | Dual | 0°C to +85°C Baseplate | 48 | 36 – 72 | – | – | 12/12 | 75/75 | |
| HPB100S | Through Hole | Single | 0°C to +85°C Baseplate | 48 | 36 – 72 | 100 | 150 | – | – |
