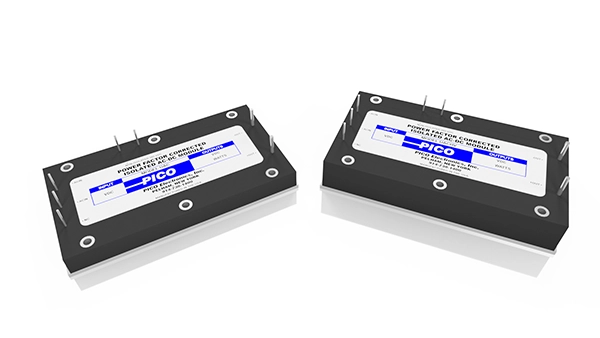

Series UAC render 1

Series UAC

250W Isolated Regulated Power Factor Corrected Modules

The UAC series are isolated AC to DC power supplies with integrated power factor corrections. The low profile 4.6″ x 2.5″ x 0.5″ full brick can power up to 250W. Output voltage models ranges from 5V to 300V. The combination of front end PFC module and isolated low voltage output saves space – one module instead of two modules.

Download Datasheet
Compatible Heat SinksCH, CV
Compatible Thermal InterfacesTI

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • 0.99 Power Factor
  • Wide input voltage range
  • Meets EN/IEC 610000-3-2
  • Up to 250W output power in a full brick size
  • Input/output isolation
  • Regulated 5V to 300V output models
  • Fixed operating frequency
  • Low 0.5″ height

Options

  • Expanded operating temp: -40°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, or Output Power
  • 360-800Hz input frequency

Single Output Voltage (VDC)

Single Max Output Power (W)

Part Number Mounting# of OutputsPower Supply TypePower Factor CorrectedInput Voltage Range (VAC)Single Output Voltage (VDC)Single Max Output Power (W)Downloads
UACHV300SThrough HoleSingleSwitchingPFC85 – 265300250
DatasheetMechanical Drawing3D Model
UACHV275SThrough HoleSingleSwitchingPFC85 – 265275250
DatasheetMechanical Drawing3D Model
UACHV250SThrough HoleSingleSwitchingPFC85 – 265250250
DatasheetMechanical Drawing3D Model
UACHV225SThrough HoleSingleSwitchingPFC85 – 265225250
DatasheetMechanical Drawing3D Model
UACHV200SThrough HoleSingleSwitchingPFC85 – 265200250
DatasheetMechanical Drawing3D Model
UACHV175SThrough HoleSingleSwitchingPFC85 – 265175250
DatasheetMechanical Drawing3D Model
UACHV150SThrough HoleSingleSwitchingPFC85 – 265150250
DatasheetMechanical Drawing3D Model
UACHV125SThrough HoleSingleSwitchingPFC85 – 265125250
DatasheetMechanical Drawing3D Model
UACHV100SThrough HoleSingleSwitchingPFC85 – 265100250
DatasheetMechanical Drawing3D Model
UAC9SThrough HoleSingleSwitchingPFC85 – 2659100
DatasheetMechanical Drawing3D Model
UAC5SThrough HoleSingleSwitchingPFC85 – 2655100
DatasheetMechanical Drawing3D Model
UAC48SThrough HoleSingleSwitchingPFC85 – 26548200
DatasheetMechanical Drawing3D Model
UAC28SThrough HoleSingleSwitchingPFC85 – 26528200
DatasheetMechanical Drawing3D Model
UAC24SThrough HoleSingleSwitchingPFC85 – 26524200
DatasheetMechanical Drawing3D Model
UAC15SThrough HoleSingleSwitchingPFC85 – 26515150
DatasheetMechanical Drawing3D Model
UAC12SThrough HoleSingleSwitchingPFC85 – 26512150
DatasheetMechanical Drawing3D Model
