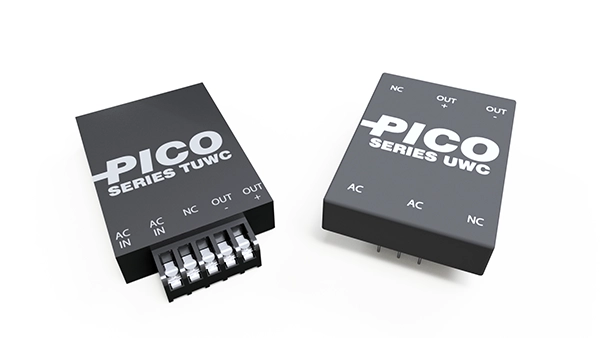

Series UWC & TUWC render 1

Series UWC & TUWC

20W Isolated Regulated AC-DC Power Supply

The UWC & TUWC series is a switching AC-DC power supply available in single and dual outputs. They offer excellent line and load regulation and is continuously protected against short circuits. The highly reliable module is capable of up to 20W power in a wide ambient temperature range -20ºC to +70ºC. These modules are the perfect design choice for your most stringent industrial applications.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • Up to 20W output power
  • Single and dual outputs
  • Compact size – 3.215″ x 2.27″
  • Through hole or terminal strip
  • Continuous short-circuit protection
  • Universal input range – 85-265VAC
  • Fixed operating frequency

Options

  • Expanded operating temp: -40°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, or Output Power

Mounting

# of Outputs

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Part Number SeriesMounting# of OutputsPower Supply TypePower Factor CorrectedInput Voltage Range (VAC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
UWC5SUWCThrough HoleSingleSwitchingNo PFC85 – 265515 – –
DatasheetMechanical Drawing3D Model
UWC5DUWCThrough HoleDualSwitchingNo PFC85 – 265 – – ±5±7.5
DatasheetMechanical Drawing3D Model
UWC5.2SUWCThrough HoleSingleSwitchingNo PFC85 – 2655.215 – –
DatasheetMechanical Drawing3D Model
UWC48SUWCThrough HoleSingleSwitchingNo PFC85 – 2654820 – –
DatasheetMechanical Drawing3D Model
UWC3.3SUWCThrough HoleSingleSwitchingNo PFC85 – 2653.310 – –
DatasheetMechanical Drawing3D Model
UWC28SUWCThrough HoleSingleSwitchingNo PFC85 – 2652820 – –
DatasheetMechanical Drawing3D Model
UWC28DUWCThrough HoleDualSwitchingNo PFC85 – 265 – – ±28±10
DatasheetMechanical Drawing3D Model
UWC24SUWCThrough HoleSingleSwitchingNo PFC85 – 2652420 – –
DatasheetMechanical Drawing3D Model
UWC24DUWCThrough HoleDualSwitchingNo PFC85 – 265 – – ±24±10
DatasheetMechanical Drawing3D Model
UWC15SUWCThrough HoleSingleSwitchingNo PFC85 – 2651520 – –
DatasheetMechanical Drawing3D Model
UWC15DUWCThrough HoleDualSwitchingNo PFC85 – 265 – – ±15±10
DatasheetMechanical Drawing3D Model
UWC12SUWCThrough HoleSingleSwitchingNo PFC85 – 2651220 – –
DatasheetMechanical Drawing3D Model
UWC12DUWCThrough HoleDualSwitchingNo PFC85 – 265 – – ±12±10
DatasheetMechanical Drawing3D Model
TUWC5STUWCTerminal StripSingleSwitchingNo PFC85 – 265515 – –
DatasheetMechanical Drawing3D Model
TUWC5DTUWCTerminal StripDualSwitchingNo PFC85 – 265 – – ±5±7.5
DatasheetMechanical Drawing3D Model
TUWC5.2STUWCTerminal StripSingleSwitchingNo PFC85 – 2655.215 – –
DatasheetMechanical Drawing3D Model
TUWC48STUWCTerminal StripSingleSwitchingNo PFC85 – 2654820 – –
DatasheetMechanical Drawing3D Model
TUWC3.3STUWCTerminal StripSingleSwitchingNo PFC85 – 2653.310 – –
DatasheetMechanical Drawing3D Model
TUWC28STUWCTerminal StripSingleSwitchingNo PFC85 – 2652820 – –
DatasheetMechanical Drawing3D Model
TUWC28DTUWCTerminal StripDualSwitchingNo PFC85 – 265 – – ±28±10
DatasheetMechanical Drawing3D Model
TUWC24STUWCTerminal StripSingleSwitchingNo PFC85 – 2652420 – –
DatasheetMechanical Drawing3D Model
TUWC24DTUWCTerminal StripDualSwitchingNo PFC85 – 265 – – ±24±10
DatasheetMechanical Drawing3D Model
TUWC15STUWCTerminal StripSingleSwitchingNo PFC85 – 2651520 – –
DatasheetMechanical Drawing3D Model
TUWC15DTUWCTerminal StripDualSwitchingNo PFC85 – 265 – – ±15±10
DatasheetMechanical Drawing3D Model
TUWC12STUWCTerminal StripSingleSwitchingNo PFC85 – 2651220 – –
DatasheetMechanical Drawing3D Model
TUWC12DTUWCTerminal StripDualSwitchingNo PFC85 – 265 – – ±12±10
DatasheetMechanical Drawing3D Model
