Series VV & SVV (100-500V)

Name: Pico Electronics
Address: 143 Sparks Avenue, Pelham, New York, 10803, US
Telephone: 800-431-1064

4W Isolated Proportional High Voltage DC-DC Converter

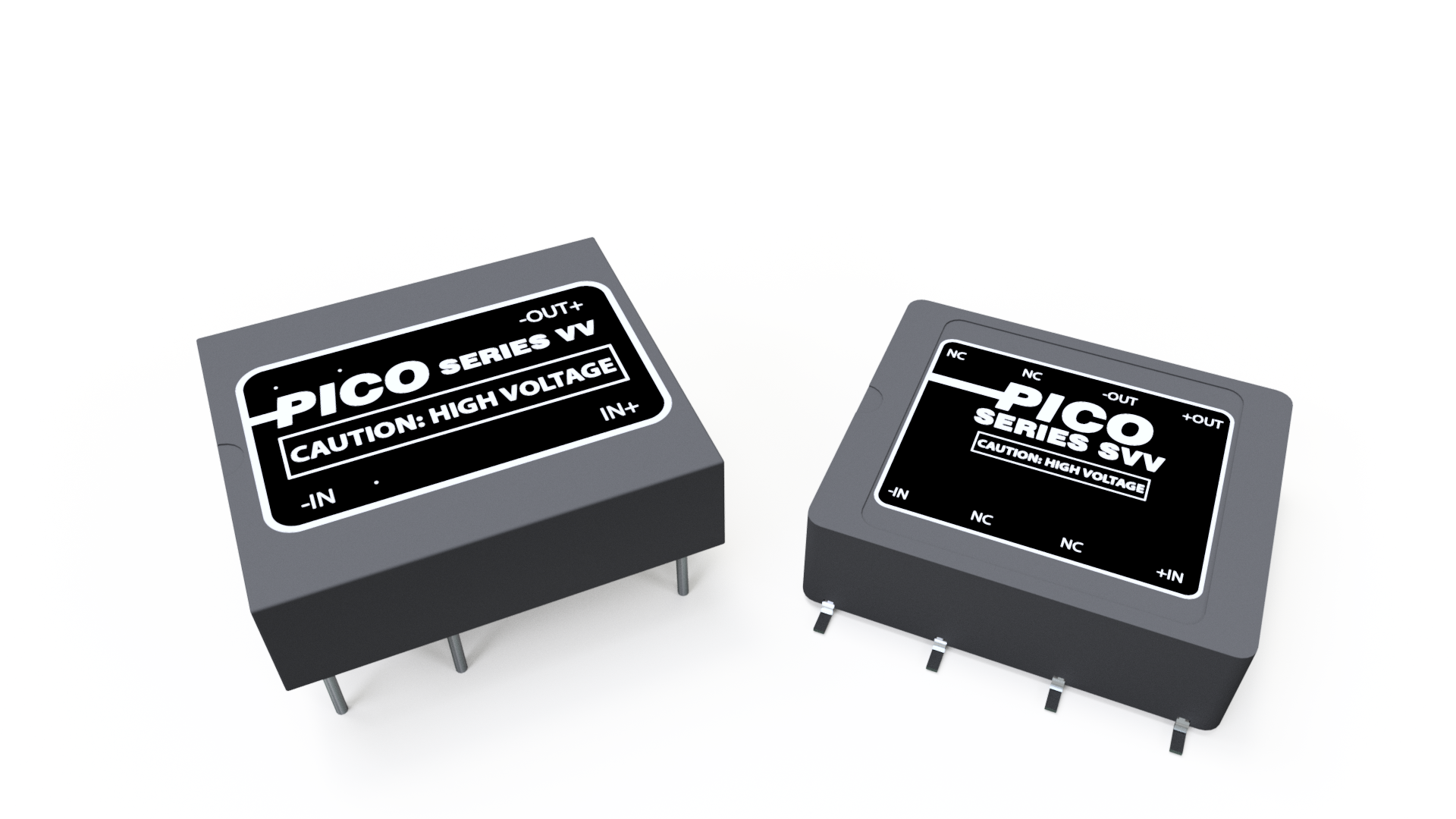

The VV series are unregulated DC-DC converters in a low profile package 0.400″ (through hole) or 0.430″ (surface mount) footprint with up to 500V single output models. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Features

4W output power
Output voltage is proportional to input voltage
Up to 500V output models
Wide input voltage range
Through hole or surface mount packages
Input/output isolation
Low ripple
No heat sink or derating required

Options

Expanded operating temp: -55°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Available RoHS Compliant module
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Part Number	Series	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Downloads

Part Number	Series	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Downloads
12SVV100SOpens a new window	SVV	Surface Mount	Single	Proportional	12	100	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
12SVV200SOpens a new window	SVV	Surface Mount	Single	Proportional	12	200	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
12SVV300SOpens a new window	SVV	Surface Mount	Single	Proportional	12	300	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
12SVV400SOpens a new window	SVV	Surface Mount	Single	Proportional	12	400	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
12SVV500SOpens a new window	SVV	Surface Mount	Single	Proportional	12	500	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
12VV100SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	12	100	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12VV200SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	12	200	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12VV300SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	12	300	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12VV400SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	12	400	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
12VV500SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	12	500	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
24SVV100SOpens a new window	SVV	Surface Mount	Single	Proportional	24	100	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
24SVV200SOpens a new window	SVV	Surface Mount	Single	Proportional	24	200	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
24SVV300SOpens a new window	SVV	Surface Mount	Single	Proportional	24	300	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
24SVV400SOpens a new window	SVV	Surface Mount	Single	Proportional	24	400	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
24SVV500SOpens a new window	SVV	Surface Mount	Single	Proportional	24	500	4	DatasheetOpens a new window Mechanical DrawingOpens a new window Land PatternOpens a new window 3D ModelOpens a new window
24VV100SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	24	100	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
24VV200SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	24	200	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
24VV300SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	24	300	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
24VV400SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	24	400	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
24VV500SOpens a new window	VV (100-500V)	Through Hole	Single	Proportional	24	500	4	DatasheetOpens a new window Mechanical DrawingOpens a new window 3D ModelOpens a new window
