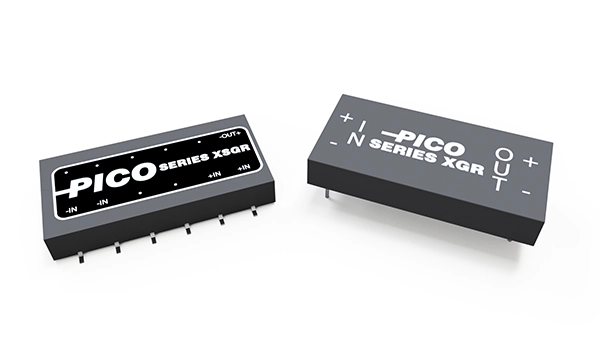

Series XGR & XSGR render 1

Series XGR & XSGR

4.5W Isolated Regulated Low Profile DC-DC Converter

The XGR & XSGR series are isolated DC-DC converter with tight regulation, low ripple and low profile – 0.350″ height. These modules are excellent for applications where the input voltage has some variation and the output voltage must be tightly regulated throughout output loading variations. Single and dual isolated output models are standard. They can operate up to 4.5W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • 5 to 28V input models
  • Up to 4.5W output at +70°C ambient
  • Low profile – 0.350” height
  • 2 to 15V output models
  • Down to 0.5% load regulation
  • No minimum load
  • Input/output isolation
  • Single and dual isolated output
  • No external components required
  • No heat sink or derating required

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Available RoHS Compliant module
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Mounting

# of Outputs

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Input Voltage Range (VDC)

Part Number SeriesMounting# of OutputsOutput TypeNominal Input Voltage (VDC)Input Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
5XSGR9SXSGRSurface MountSingleRegulated54.5 – 5.592.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR9DXSGRSurface MountDualRegulated54.5 – 5.5 – – 9/91.25/1.25
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR5SXSGRSurface MountSingleRegulated54.5 – 5.552 – –
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR5DXSGRSurface MountDualRegulated54.5 – 5.5 – – 5/51/1
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR3.3SXSGRSurface MountSingleRegulated54.5 – 5.53.31.75 – –
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR2SXSGRSurface MountSingleRegulated54.5 – 5.521.25 – –
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR15SXSGRSurface MountSingleRegulated54.5 – 5.5153 – –
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR15DXSGRSurface MountDualRegulated54.5 – 5.5 – – 15/151.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR12SXSGRSurface MountSingleRegulated54.5 – 5.5123 – –
DatasheetMechanical DrawingLand Pattern3D Model
5XSGR12DXSGRSurface MountDualRegulated54.5 – 5.5 – – 12/121.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
5XGR9SXGRThrough HoleSingleRegulated54.5 – 5.592.5 – –
DatasheetMechanical Drawing3D Model
5XGR9DXGRThrough HoleDualRegulated54.5 – 5.5 – – 9/91.25/1.25
DatasheetMechanical Drawing3D Model
5XGR5SXGRThrough HoleSingleRegulated54.5 – 5.552 – –
DatasheetMechanical Drawing3D Model
5XGR5DXGRThrough HoleDualRegulated54.5 – 5.5 – – 5/51/1
DatasheetMechanical Drawing3D Model
5XGR3.3SXGRThrough HoleSingleRegulated54.5 – 5.53.31.75 – –
DatasheetMechanical Drawing3D Model
5XGR2SXGRThrough HoleSingleRegulated54.5 – 5.521.25 – –
DatasheetMechanical Drawing3D Model
5XGR15SXGRThrough HoleSingleRegulated54.5 – 5.5153 – –
DatasheetMechanical Drawing3D Model
5XGR15DXGRThrough HoleDualRegulated54.5 – 5.5 – – 15/151.5/1.5
DatasheetMechanical Drawing3D Model
5XGR12SXGRThrough HoleSingleRegulated54.5 – 5.5123 – –
DatasheetMechanical Drawing3D Model
5XGR12DXGRThrough HoleDualRegulated54.5 – 5.5 – – 12/121.5/1.5
DatasheetMechanical Drawing3D Model
28XSGR9SXSGRSurface MountSingleRegulated2825.2 – 30.893.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR9DXSGRSurface MountDualRegulated2825.2 – 30.8 – – 9/91.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR5SXSGRSurface MountSingleRegulated2825.2 – 30.853 – –
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR5DXSGRSurface MountDualRegulated2825.2 – 30.8 – – 5/51.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR3.3SXSGRSurface MountSingleRegulated2825.2 – 30.83.32 – –
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR2SXSGRSurface MountSingleRegulated2825.2 – 30.821.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR15SXSGRSurface MountSingleRegulated2825.2 – 30.8154.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR15DXSGRSurface MountDualRegulated2825.2 – 30.8 – – 15/152.25/2.25
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR12SXSGRSurface MountSingleRegulated2825.2 – 30.8124.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28XSGR12DXSGRSurface MountDualRegulated2825.2 – 30.8 – – 12/122.25/2.25
DatasheetMechanical DrawingLand Pattern3D Model
28XGR9SXGRThrough HoleSingleRegulated2825.2 – 30.893.5 – –
DatasheetMechanical Drawing3D Model
28XGR9DXGRThrough HoleDualRegulated2825.2 – 30.8 – – 9/91.75/1.75
DatasheetMechanical Drawing3D Model
28XGR5SXGRThrough HoleSingleRegulated2825.2 – 30.853 – –
DatasheetMechanical Drawing3D Model
28XGR5DXGRThrough HoleDualRegulated2825.2 – 30.8 – – 5/51.5/1.5
DatasheetMechanical Drawing3D Model
28XGR3.3SXGRThrough HoleSingleRegulated2825.2 – 30.83.32 – –
DatasheetMechanical Drawing3D Model
28XGR2SXGRThrough HoleSingleRegulated2825.2 – 30.821.5 – –
DatasheetMechanical Drawing3D Model
28XGR15SXGRThrough HoleSingleRegulated2825.2 – 30.8154.5 – –
DatasheetMechanical Drawing3D Model
28XGR15DXGRThrough HoleDualRegulated2825.2 – 30.8 – – 15/152.25/2.25
DatasheetMechanical Drawing3D Model
28XGR12SXGRThrough HoleSingleRegulated2825.2 – 30.8124.5 – –
DatasheetMechanical Drawing3D Model
28XGR12DXGRThrough HoleDualRegulated2825.2 – 30.8 – – 12/122.25/2.25
DatasheetMechanical Drawing3D Model
24XSGR9SXSGRSurface MountSingleRegulated2421.6 – 26.493 – –
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR9DXSGRSurface MountDualRegulated2421.6 – 26.4 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR5SXSGRSurface MountSingleRegulated2421.6 – 26.452.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR5DXSGRSurface MountDualRegulated2421.6 – 26.4 – – 5/51.25/1.25
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR3.3SXSGRSurface MountSingleRegulated2421.6 – 26.43.32 – –
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR2SXSGRSurface MountSingleRegulated2421.6 – 26.421.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR15SXSGRSurface MountSingleRegulated2421.6 – 26.4154 – –
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR15DXSGRSurface MountDualRegulated2421.6 – 26.4 – – 15/152/2
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR12SXSGRSurface MountSingleRegulated2421.6 – 26.4124 – –
DatasheetMechanical DrawingLand Pattern3D Model
24XSGR12DXSGRSurface MountDualRegulated2421.6 – 26.4 – – 12/122/2
DatasheetMechanical DrawingLand Pattern3D Model
24XGR9SXGRThrough HoleSingleRegulated2421.6 – 26.493 – –
DatasheetMechanical Drawing3D Model
24XGR9DXGRThrough HoleDualRegulated2421.6 – 26.4 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
24XGR5SXGRThrough HoleSingleRegulated2421.6 – 26.452.5 – –
DatasheetMechanical Drawing3D Model
24XGR5DXGRThrough HoleDualRegulated2421.6 – 26.4 – – 5/51.25/1.25
DatasheetMechanical Drawing3D Model
24XGR3.3SXGRThrough HoleSingleRegulated2421.6 – 26.43.32 – –
DatasheetMechanical Drawing3D Model
24XGR2SXGRThrough HoleSingleRegulated2421.6 – 26.421.5 – –
DatasheetMechanical Drawing3D Model
24XGR15SXGRThrough HoleSingleRegulated2421.6 – 26.4154 – –
DatasheetMechanical Drawing3D Model
24XGR15DXGRThrough HoleDualRegulated2421.6 – 26.4 – – 15/152/2
DatasheetMechanical Drawing3D Model
24XGR12SXGRThrough HoleSingleRegulated2421.6 – 26.4124 – –
DatasheetMechanical Drawing3D Model
24XGR12DXGRThrough HoleDualRegulated2421.6 – 26.4 – – 12/122/2
DatasheetMechanical Drawing3D Model
15XSGR9SXSGRSurface MountSingleRegulated1513.5 – 16.593 – –
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR9DXSGRSurface MountDualRegulated1513.5 – 16.5 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR5SXSGRSurface MountSingleRegulated1513.5 – 16.552 – –
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR5DXSGRSurface MountDualRegulated1513.5 – 16.5 – – 5/51/1
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR3.3SXSGRSurface MountSingleRegulated1513.5 – 16.53.32 – –
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR2SXSGRSurface MountSingleRegulated1513.5 – 16.521.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR15SXSGRSurface MountSingleRegulated1513.5 – 16.5154 – –
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR15DXSGRSurface MountDualRegulated1513.5 – 16.5 – – 15/152/2
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR12SXSGRSurface MountSingleRegulated1513.5 – 16.5124 – –
DatasheetMechanical DrawingLand Pattern3D Model
15XSGR12DXSGRSurface MountDualRegulated1513.5 – 16.5 – – 12/122/2
DatasheetMechanical DrawingLand Pattern3D Model
15XGR9SXGRThrough HoleSingleRegulated1513.5 – 16.593 – –
DatasheetMechanical Drawing3D Model
15XGR9DXGRThrough HoleDualRegulated1513.5 – 16.5 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
15XGR5SXGRThrough HoleSingleRegulated1513.5 – 16.552 – –
DatasheetMechanical Drawing3D Model
15XGR5DXGRThrough HoleDualRegulated1513.5 – 16.5 – – 5/51/1
DatasheetMechanical Drawing3D Model
15XGR3.3SXGRThrough HoleSingleRegulated1513.5 – 16.53.32 – –
DatasheetMechanical Drawing3D Model
15XGR2SXGRThrough HoleSingleRegulated1513.5 – 16.521.5 – –
DatasheetMechanical Drawing3D Model
15XGR15SXGRThrough HoleSingleRegulated1513.5 – 16.5154 – –
DatasheetMechanical Drawing3D Model
15XGR15DXGRThrough HoleDualRegulated1513.5 – 16.5 – – 15/152/2
DatasheetMechanical Drawing3D Model
15XGR12SXGRThrough HoleSingleRegulated1513.5 – 16.5124 – –
DatasheetMechanical Drawing3D Model
15XGR12DXGRThrough HoleDualRegulated1513.5 – 16.5 – – 12/122/2
DatasheetMechanical Drawing3D Model
12XSGR9SXSGRSurface MountSingleRegulated1210.8 – 13.293 – –
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR9DXSGRSurface MountDualRegulated1210.8 – 13.2 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR5SXSGRSurface MountSingleRegulated1210.8 – 13.252 – –
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR5DXSGRSurface MountDualRegulated1210.8 – 13.2 – – 5/51/1
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR3.3SXSGRSurface MountSingleRegulated1210.8 – 13.23.32 – –
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR2SXSGRSurface MountSingleRegulated1210.8 – 13.221.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR15SXSGRSurface MountSingleRegulated1210.8 – 13.2154 – –
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR15DXSGRSurface MountDualRegulated1210.8 – 13.2 – – 15/152/2
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR12SXSGRSurface MountSingleRegulated1210.8 – 13.2124 – –
DatasheetMechanical DrawingLand Pattern3D Model
12XSGR12DXSGRSurface MountDualRegulated1210.8 – 13.2 – – 12/122/2
DatasheetMechanical DrawingLand Pattern3D Model
12XGR9SXGRThrough HoleSingleRegulated1210.8 – 13.293 – –
DatasheetMechanical Drawing3D Model
12XGR9DXGRThrough HoleDualRegulated1210.8 – 13.2 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
12XGR5SXGRThrough HoleSingleRegulated1210.8 – 13.252 – –
DatasheetMechanical Drawing3D Model
12XGR5DXGRThrough HoleDualRegulated1210.8 – 13.2 – – 5/51/1
DatasheetMechanical Drawing3D Model
12XGR3.3SXGRThrough HoleSingleRegulated1210.8 – 13.23.32 – –
DatasheetMechanical Drawing3D Model
12XGR2SXGRThrough HoleSingleRegulated1210.8 – 13.221.5 – –
DatasheetMechanical Drawing3D Model
12XGR15SXGRThrough HoleSingleRegulated1210.8 – 13.2154 – –
DatasheetMechanical Drawing3D Model
12XGR15DXGRThrough HoleDualRegulated1210.8 – 13.2 – – 15/152/2
DatasheetMechanical Drawing3D Model
12XGR12SXGRThrough HoleSingleRegulated1210.8 – 13.2124 – –
DatasheetMechanical Drawing3D Model
12XGR12DXGRThrough HoleDualRegulated1210.8 – 13.2 – – 12/122/2
DatasheetMechanical Drawing3D Model
