Series AV (1500-10kV)

Name: Pico Electronics
Address: 143 Sparks Avenue, Pelham, New York, 10803, US
Telephone: 800-431-1064

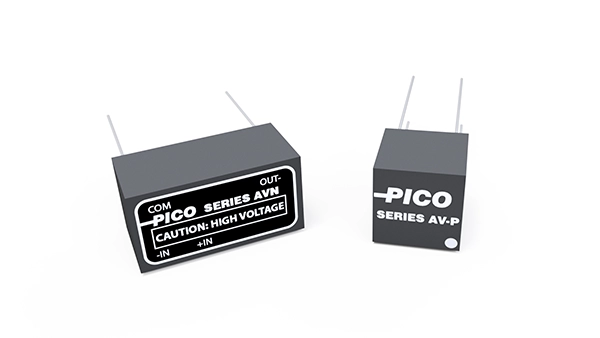

1.25W Isolated/Non-isolated Proportional High Voltage DC-DC Converter

The AV & SMV series are unregulated DC-DC converters in a low profile 0.5″ package footprint with up to 10,000V positive or negative output models. 0.5″ x 0.5″ footprint packages are available up to 5kV; 1.0″ x 0.5″ are available up to 10kV. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Features

1.25W output power
Up to 10,000V output models
5 to 48V input models
Down to 0.500″ height
Through hole mounting
Transformer Isolated modules
Positive or negative output voltage up to 10kV
Single output models
No heat sink or derating required

Options

Expanded operating temp: -55°C to +85°C
Select screening per MIL-STD-883:
- Stabilization Bake: Ref. Method 1008
- Temperature Cycle: Ref. Method 1010
- Burn-In: Ref. Method 1015
Available RoHS Compliant module
Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Part Number	Mounting	# of Outputs	Output Type	Nominal Input Voltage (VDC)	Single Output Voltage (VDC)	Single Max Output Power (W)	Downloads
5AVP9K	Through Hole	Single	Proportional	5	+9000	1.25	Datasheet Mechanical Drawing 3D Model
5AVP8K	Through Hole	Single	Proportional	5	+8000	1.25	Datasheet Mechanical Drawing 3D Model
5AVP7K	Through Hole	Single	Proportional	5	+7000	1.25	Datasheet Mechanical Drawing 3D Model
5AVP6K	Through Hole	Single	Proportional	5	+6000	1.25	Datasheet Mechanical Drawing 3D Model
5AVP10K	Through Hole	Single	Proportional	5	+10000	1.25	Datasheet Mechanical Drawing 3D Model
5AVN9K	Through Hole	Single	Proportional	5	-9000	1.25	Datasheet Mechanical Drawing 3D Model
5AVN8K	Through Hole	Single	Proportional	5	-8000	1.25	Datasheet Mechanical Drawing 3D Model
5AVN7K	Through Hole	Single	Proportional	5	-7000	1.25	Datasheet Mechanical Drawing 3D Model
5AVN6K	Through Hole	Single	Proportional	5	-6000	1.25	Datasheet Mechanical Drawing 3D Model
5AVN10K	Through Hole	Single	Proportional	5	-10000	1.25	Datasheet Mechanical Drawing 3D Model
5AV5000-P	Through Hole	Single	Proportional	5	+5000	1.25	Datasheet Mechanical Drawing 3D Model
5AV5000-N	Through Hole	Single	Proportional	5	-5000	1.25	Datasheet Mechanical Drawing 3D Model
5AV5000	Through Hole	Single	Proportional	5	5000	1.25	Datasheet Mechanical Drawing 3D Model
5AV4500-P	Through Hole	Single	Proportional	5	+4500	1.25	Datasheet Mechanical Drawing 3D Model
5AV4500-N	Through Hole	Single	Proportional	5	-4500	1.25	Datasheet Mechanical Drawing 3D Model
5AV4500	Through Hole	Single	Proportional	5	4500	1.25	Datasheet Mechanical Drawing 3D Model
5AV4000-P	Through Hole	Single	Proportional	5	+4000	1.25	Datasheet Mechanical Drawing 3D Model
5AV4000-N	Through Hole	Single	Proportional	5	-4000	1.25	Datasheet Mechanical Drawing 3D Model
5AV4000	Through Hole	Single	Proportional	5	4000	1.25	Datasheet Mechanical Drawing 3D Model
5AV3500-P	Through Hole	Single	Proportional	5	+3500	1.25	Datasheet Mechanical Drawing 3D Model
5AV3500-N	Through Hole	Single	Proportional	5	-3500	1.25	Datasheet Mechanical Drawing 3D Model
5AV3500	Through Hole	Single	Proportional	5	3500	1.25	Datasheet Mechanical Drawing 3D Model
5AV3000-P	Through Hole	Single	Proportional	5	+3000	1.25	Datasheet Mechanical Drawing 3D Model
5AV3000-N	Through Hole	Single	Proportional	5	-3000	1.25	Datasheet Mechanical Drawing 3D Model
5AV3000	Through Hole	Single	Proportional	5	3000	1.25	Datasheet Mechanical Drawing 3D Model
5AV2500-P	Through Hole	Single	Proportional	5	+2500	1.25	Datasheet Mechanical Drawing 3D Model
5AV2500-N	Through Hole	Single	Proportional	5	-2500	1.25	Datasheet Mechanical Drawing 3D Model
5AV2500	Through Hole	Single	Proportional	5	2500	1.25	Datasheet Mechanical Drawing 3D Model
5AV2000-P	Through Hole	Single	Proportional	5	+2000	1.25	Datasheet Mechanical Drawing 3D Model
5AV2000-N	Through Hole	Single	Proportional	5	-2000	1.25	Datasheet Mechanical Drawing 3D Model
5AV2000	Through Hole	Single	Proportional	5	2000	1.25	Datasheet Mechanical Drawing 3D Model
5AV1500-P	Through Hole	Single	Proportional	5	+1500	1.25	Datasheet Mechanical Drawing 3D Model
5AV1500-N	Through Hole	Single	Proportional	5	-1500	1.25	Datasheet Mechanical Drawing 3D Model
5AV1500	Through Hole	Single	Proportional	5	1500	1.25	Datasheet Mechanical Drawing 3D Model
48AV5000-P	Through Hole	Single	Proportional	48	+5000	1.25	Datasheet Mechanical Drawing 3D Model
48AV5000-N	Through Hole	Single	Proportional	48	-5000	1.25	Datasheet Mechanical Drawing 3D Model
48AV5000	Through Hole	Single	Proportional	48	5000	1.25	Datasheet Mechanical Drawing 3D Model
48AV4500-P	Through Hole	Single	Proportional	48	+4500	1.25	Datasheet Mechanical Drawing 3D Model
48AV4500-N	Through Hole	Single	Proportional	48	-4500	1.25	Datasheet Mechanical Drawing 3D Model
48AV4500	Through Hole	Single	Proportional	48	4500	1.25	Datasheet Mechanical Drawing 3D Model
48AV4000-P	Through Hole	Single	Proportional	48	+4000	1.25	Datasheet Mechanical Drawing 3D Model
48AV4000-N	Through Hole	Single	Proportional	48	-4000	1.25	Datasheet Mechanical Drawing 3D Model
48AV4000	Through Hole	Single	Proportional	48	4000	1.25	Datasheet Mechanical Drawing 3D Model
48AV3500-P	Through Hole	Single	Proportional	48	+3500	1.25	Datasheet Mechanical Drawing 3D Model
48AV3500-N	Through Hole	Single	Proportional	48	-3500	1.25	Datasheet Mechanical Drawing 3D Model
48AV3500	Through Hole	Single	Proportional	48	3500	1.25	Datasheet Mechanical Drawing 3D Model
48AV3000-P	Through Hole	Single	Proportional	48	+3000	1.25	Datasheet Mechanical Drawing 3D Model
48AV3000-N	Through Hole	Single	Proportional	48	-3000	1.25	Datasheet Mechanical Drawing 3D Model
48AV3000	Through Hole	Single	Proportional	48	3000	1.25	Datasheet Mechanical Drawing 3D Model
48AV2500-P	Through Hole	Single	Proportional	48	+2500	1.25	Datasheet Mechanical Drawing 3D Model
48AV2500-N	Through Hole	Single	Proportional	48	-2500	1.25	Datasheet Mechanical Drawing 3D Model
48AV2500	Through Hole	Single	Proportional	48	2500	1.25	Datasheet Mechanical Drawing 3D Model
48AV2000-P	Through Hole	Single	Proportional	48	+2000	1.25	Datasheet Mechanical Drawing 3D Model
48AV2000-N	Through Hole	Single	Proportional	48	-2000	1.25	Datasheet Mechanical Drawing 3D Model
48AV2000	Through Hole	Single	Proportional	48	2000	1.25	Datasheet Mechanical Drawing 3D Model
48AV1500-P	Through Hole	Single	Proportional	48	+1500	1.25	Datasheet Mechanical Drawing 3D Model
48AV1500-N	Through Hole	Single	Proportional	48	-1500	1.25	Datasheet Mechanical Drawing 3D Model
48AV1500	Through Hole	Single	Proportional	48	1500	1.25	Datasheet Mechanical Drawing 3D Model
28AVP9K	Through Hole	Single	Proportional	28	+9000	1.25	Datasheet Mechanical Drawing 3D Model
28AVP8K	Through Hole	Single	Proportional	28	+8000	1.25	Datasheet Mechanical Drawing 3D Model
28AVP7K	Through Hole	Single	Proportional	28	+7000	1.25	Datasheet Mechanical Drawing 3D Model
28AVP6K	Through Hole	Single	Proportional	28	+6000	1.25	Datasheet Mechanical Drawing 3D Model
28AVP10K	Through Hole	Single	Proportional	28	+10000	1.25	Datasheet Mechanical Drawing 3D Model
28AVN9K	Through Hole	Single	Proportional	28	-9000	1.25	Datasheet Mechanical Drawing 3D Model
28AVN8K	Through Hole	Single	Proportional	28	-8000	1.25	Datasheet Mechanical Drawing 3D Model
28AVN7K	Through Hole	Single	Proportional	28	-7000	1.25	Datasheet Mechanical Drawing 3D Model
28AVN6K	Through Hole	Single	Proportional	28	-6000	1.25	Datasheet Mechanical Drawing 3D Model
28AVN10K	Through Hole	Single	Proportional	28	-10000	1.25	Datasheet Mechanical Drawing 3D Model
28AV5000-P	Through Hole	Single	Proportional	28	+5000	1.25	Datasheet Mechanical Drawing 3D Model
28AV5000-N	Through Hole	Single	Proportional	28	-5000	1.25	Datasheet Mechanical Drawing 3D Model
28AV5000	Through Hole	Single	Proportional	28	5000	1.25	Datasheet Mechanical Drawing 3D Model
28AV4500-P	Through Hole	Single	Proportional	28	+4500	1.25	Datasheet Mechanical Drawing 3D Model
28AV4500-N	Through Hole	Single	Proportional	28	-4500	1.25	Datasheet Mechanical Drawing 3D Model
28AV4500	Through Hole	Single	Proportional	28	4500	1.25	Datasheet Mechanical Drawing 3D Model
28AV4000-P	Through Hole	Single	Proportional	28	+4000	1.25	Datasheet Mechanical Drawing 3D Model
28AV4000-N	Through Hole	Single	Proportional	28	-4000	1.25	Datasheet Mechanical Drawing 3D Model
28AV4000	Through Hole	Single	Proportional	28	4000	1.25	Datasheet Mechanical Drawing 3D Model
28AV3500-P	Through Hole	Single	Proportional	28	+3500	1.25	Datasheet Mechanical Drawing 3D Model
28AV3500-N	Through Hole	Single	Proportional	28	-3500	1.25	Datasheet Mechanical Drawing 3D Model
28AV3500	Through Hole	Single	Proportional	28	3500	1.25	Datasheet Mechanical Drawing 3D Model
28AV3000-P	Through Hole	Single	Proportional	28	+3000	1.25	Datasheet Mechanical Drawing 3D Model
28AV3000-N	Through Hole	Single	Proportional	28	-3000	1.25	Datasheet Mechanical Drawing 3D Model
28AV3000	Through Hole	Single	Proportional	28	3000	1.25	Datasheet Mechanical Drawing 3D Model
28AV2500-P	Through Hole	Single	Proportional	28	+2500	1.25	Datasheet Mechanical Drawing 3D Model
28AV2500-N	Through Hole	Single	Proportional	28	-2500	1.25	Datasheet Mechanical Drawing 3D Model
28AV2500	Through Hole	Single	Proportional	28	2500	1.25	Datasheet Mechanical Drawing 3D Model
28AV2000-P	Through Hole	Single	Proportional	28	+2000	1.25	Datasheet Mechanical Drawing 3D Model
28AV2000-N	Through Hole	Single	Proportional	28	-2000	1.25	Datasheet Mechanical Drawing 3D Model
28AV2000	Through Hole	Single	Proportional	28	2000	1.25	Datasheet Mechanical Drawing 3D Model
28AV1500-P	Through Hole	Single	Proportional	28	+1500	1.25	Datasheet Mechanical Drawing 3D Model
28AV1500-N	Through Hole	Single	Proportional	28	-1500	1.25	Datasheet Mechanical Drawing 3D Model
28AV1500	Through Hole	Single	Proportional	28	1500	1.25	Datasheet Mechanical Drawing 3D Model
24AVP9K	Through Hole	Single	Proportional	24	+9000	1.25	Datasheet Mechanical Drawing 3D Model
24AVP8K	Through Hole	Single	Proportional	24	+8000	1.25	Datasheet Mechanical Drawing 3D Model
24AVP7K	Through Hole	Single	Proportional	24	+7000	1.25	Datasheet Mechanical Drawing 3D Model
24AVP6K	Through Hole	Single	Proportional	24	+6000	1.25	Datasheet Mechanical Drawing 3D Model
24AVP10K	Through Hole	Single	Proportional	24	+10000	1.25	Datasheet Mechanical Drawing 3D Model
24AVN9K	Through Hole	Single	Proportional	24	-9000	1.25	Datasheet Mechanical Drawing 3D Model
24AVN8K	Through Hole	Single	Proportional	24	-8000	1.25	Datasheet Mechanical Drawing 3D Model
24AVN7K	Through Hole	Single	Proportional	24	-7000	1.25	Datasheet Mechanical Drawing 3D Model
24AVN6K	Through Hole	Single	Proportional	24	-6000	1.25	Datasheet Mechanical Drawing 3D Model
24AVN10K	Through Hole	Single	Proportional	24	-10000	1.25	Datasheet Mechanical Drawing 3D Model
24AV5000-P	Through Hole	Single	Proportional	24	+5000	1.25	Datasheet Mechanical Drawing 3D Model
24AV5000-N	Through Hole	Single	Proportional	24	-5000	1.25	Datasheet Mechanical Drawing 3D Model
24AV5000	Through Hole	Single	Proportional	24	5000	1.25	Datasheet Mechanical Drawing 3D Model
24AV4500-P	Through Hole	Single	Proportional	24	+4500	1.25	Datasheet Mechanical Drawing 3D Model
24AV4500-N	Through Hole	Single	Proportional	24	-4500	1.25	Datasheet Mechanical Drawing 3D Model
24AV4500	Through Hole	Single	Proportional	24	4500	1.25	Datasheet Mechanical Drawing 3D Model
24AV4000-P	Through Hole	Single	Proportional	24	+4000	1.25	Datasheet Mechanical Drawing 3D Model
24AV4000-N	Through Hole	Single	Proportional	24	-4000	1.25	Datasheet Mechanical Drawing 3D Model
24AV4000	Through Hole	Single	Proportional	24	4000	1.25	Datasheet Mechanical Drawing 3D Model
24AV3500-P	Through Hole	Single	Proportional	24	+3500	1.25	Datasheet Mechanical Drawing 3D Model
24AV3500-N	Through Hole	Single	Proportional	24	-3500	1.25	Datasheet Mechanical Drawing 3D Model
24AV3500	Through Hole	Single	Proportional	24	3500	1.25	Datasheet Mechanical Drawing 3D Model
24AV3000-P	Through Hole	Single	Proportional	24	+3000	1.25	Datasheet Mechanical Drawing 3D Model
24AV3000-N	Through Hole	Single	Proportional	24	-3000	1.25	Datasheet Mechanical Drawing 3D Model
24AV3000	Through Hole	Single	Proportional	24	3000	1.25	Datasheet Mechanical Drawing 3D Model
24AV2500-P	Through Hole	Single	Proportional	24	+2500	1.25	Datasheet Mechanical Drawing 3D Model
24AV2500-N	Through Hole	Single	Proportional	24	-2500	1.25	Datasheet Mechanical Drawing 3D Model
24AV2500	Through Hole	Single	Proportional	24	2500	1.25	Datasheet Mechanical Drawing 3D Model
24AV2000-P	Through Hole	Single	Proportional	24	+2000	1.25	Datasheet Mechanical Drawing 3D Model
24AV2000-N	Through Hole	Single	Proportional	24	-2000	1.25	Datasheet Mechanical Drawing 3D Model
24AV2000	Through Hole	Single	Proportional	24	2000	1.25	Datasheet Mechanical Drawing 3D Model
24AV1500-P	Through Hole	Single	Proportional	24	+1500	1.25	Datasheet Mechanical Drawing 3D Model
24AV1500-N	Through Hole	Single	Proportional	24	-1500	1.25	Datasheet Mechanical Drawing 3D Model
24AV1500	Through Hole	Single	Proportional	24	1500	1.25	Datasheet Mechanical Drawing 3D Model
15AVP9K	Through Hole	Single	Proportional	15	+9000	1.25	Datasheet Mechanical Drawing 3D Model
15AVP8K	Through Hole	Single	Proportional	15	+8000	1.25	Datasheet Mechanical Drawing 3D Model
15AVP7K	Through Hole	Single	Proportional	15	+7000	1.25	Datasheet Mechanical Drawing 3D Model
15AVP6K	Through Hole	Single	Proportional	15	+6000	1.25	Datasheet Mechanical Drawing 3D Model
15AVP10K	Through Hole	Single	Proportional	15	+10000	1.25	Datasheet Mechanical Drawing 3D Model
15AVN9K	Through Hole	Single	Proportional	15	-9000	1.25	Datasheet Mechanical Drawing 3D Model
15AVN8K	Through Hole	Single	Proportional	15	-8000	1.25	Datasheet Mechanical Drawing 3D Model
15AVN7K	Through Hole	Single	Proportional	15	-7000	1.25	Datasheet Mechanical Drawing 3D Model
15AVN6K	Through Hole	Single	Proportional	15	-6000	1.25	Datasheet Mechanical Drawing 3D Model
15AVN10K	Through Hole	Single	Proportional	15	-10000	1.25	Datasheet Mechanical Drawing 3D Model
15AV5000-P	Through Hole	Single	Proportional	15	+5000	1.25	Datasheet Mechanical Drawing 3D Model
15AV5000-N	Through Hole	Single	Proportional	15	-5000	1.25	Datasheet Mechanical Drawing 3D Model
15AV5000	Through Hole	Single	Proportional	15	5000	1.25	Datasheet Mechanical Drawing 3D Model
15AV4500-P	Through Hole	Single	Proportional	15	+4500	1.25	Datasheet Mechanical Drawing 3D Model
15AV4500-N	Through Hole	Single	Proportional	15	-4500	1.25	Datasheet Mechanical Drawing 3D Model
15AV4500	Through Hole	Single	Proportional	15	4500	1.25	Datasheet Mechanical Drawing 3D Model
15AV4000-P	Through Hole	Single	Proportional	15	+4000	1.25	Datasheet Mechanical Drawing 3D Model
15AV4000-N	Through Hole	Single	Proportional	15	-4000	1.25	Datasheet Mechanical Drawing 3D Model
15AV4000	Through Hole	Single	Proportional	15	4000	1.25	Datasheet Mechanical Drawing 3D Model
15AV3500-P	Through Hole	Single	Proportional	15	+3500	1.25	Datasheet Mechanical Drawing 3D Model
15AV3500-N	Through Hole	Single	Proportional	15	-3500	1.25	Datasheet Mechanical Drawing 3D Model
15AV3500	Through Hole	Single	Proportional	15	3500	1.25	Datasheet Mechanical Drawing 3D Model
15AV3000-P	Through Hole	Single	Proportional	15	+3000	1.25	Datasheet Mechanical Drawing 3D Model
15AV3000-N	Through Hole	Single	Proportional	15	-3000	1.25	Datasheet Mechanical Drawing 3D Model
15AV3000	Through Hole	Single	Proportional	15	3000	1.25	Datasheet Mechanical Drawing 3D Model
15AV2500-P	Through Hole	Single	Proportional	15	+2500	1.25	Datasheet Mechanical Drawing 3D Model
15AV2500-N	Through Hole	Single	Proportional	15	-2500	1.25	Datasheet Mechanical Drawing 3D Model
15AV2500	Through Hole	Single	Proportional	15	2500	1.25	Datasheet Mechanical Drawing 3D Model
15AV2000-P	Through Hole	Single	Proportional	15	+2000	1.25	Datasheet Mechanical Drawing 3D Model
15AV2000-N	Through Hole	Single	Proportional	15	-2000	1.25	Datasheet Mechanical Drawing 3D Model
15AV2000	Through Hole	Single	Proportional	15	2000	1.25	Datasheet Mechanical Drawing 3D Model
15AV1500-P	Through Hole	Single	Proportional	15	+1500	1.25	Datasheet Mechanical Drawing 3D Model
15AV1500-N	Through Hole	Single	Proportional	15	-1500	1.25	Datasheet Mechanical Drawing 3D Model
15AV1500	Through Hole	Single	Proportional	15	1500	1.25	Datasheet Mechanical Drawing 3D Model
12AVP9K	Through Hole	Single	Proportional	12	+9000	1.25	Datasheet Mechanical Drawing 3D Model
12AVP8K	Through Hole	Single	Proportional	12	+8000	1.25	Datasheet Mechanical Drawing 3D Model
12AVP7K	Through Hole	Single	Proportional	12	+7000	1.25	Datasheet Mechanical Drawing 3D Model
12AVP6K	Through Hole	Single	Proportional	12	+6000	1.25	Datasheet Mechanical Drawing 3D Model
12AVP10K	Through Hole	Single	Proportional	12	+10000	1.25	Datasheet Mechanical Drawing 3D Model
12AVN9K	Through Hole	Single	Proportional	12	-9000	1.25	Datasheet Mechanical Drawing 3D Model
12AVN8K	Through Hole	Single	Proportional	12	-8000	1.25	Datasheet Mechanical Drawing 3D Model
12AVN7K	Through Hole	Single	Proportional	12	-7000	1.25	Datasheet Mechanical Drawing 3D Model
12AVN6K	Through Hole	Single	Proportional	12	-6000	1.25	Datasheet Mechanical Drawing 3D Model
12AVN10K	Through Hole	Single	Proportional	12	-10000	1.25	Datasheet Mechanical Drawing 3D Model
12AV5000-P	Through Hole	Single	Proportional	12	+5000	1.25	Datasheet Mechanical Drawing 3D Model
12AV5000-N	Through Hole	Single	Proportional	12	-5000	1.25	Datasheet Mechanical Drawing 3D Model
12AV5000	Through Hole	Single	Proportional	12	5000	1.25	Datasheet Mechanical Drawing 3D Model
12AV4500-P	Through Hole	Single	Proportional	12	+4500	1.25	Datasheet Mechanical Drawing 3D Model
12AV4500-N	Through Hole	Single	Proportional	12	-4500	1.25	Datasheet Mechanical Drawing 3D Model
12AV4500	Through Hole	Single	Proportional	12	4500	1.25	Datasheet Mechanical Drawing 3D Model
12AV4000-P	Through Hole	Single	Proportional	12	+4000	1.25	Datasheet Mechanical Drawing 3D Model
12AV4000-N	Through Hole	Single	Proportional	12	-4000	1.25	Datasheet Mechanical Drawing 3D Model
12AV4000	Through Hole	Single	Proportional	12	4000	1.25	Datasheet Mechanical Drawing 3D Model
12AV3500-P	Through Hole	Single	Proportional	12	+3500	1.25	Datasheet Mechanical Drawing 3D Model
12AV3500-N	Through Hole	Single	Proportional	12	-3500	1.25	Datasheet Mechanical Drawing 3D Model
12AV3500	Through Hole	Single	Proportional	12	3500	1.25	Datasheet Mechanical Drawing 3D Model
12AV3000-P	Through Hole	Single	Proportional	12	+3000	1.25	Datasheet Mechanical Drawing 3D Model
12AV3000-N	Through Hole	Single	Proportional	12	-3000	1.25	Datasheet Mechanical Drawing 3D Model
12AV3000	Through Hole	Single	Proportional	12	3000	1.25	Datasheet Mechanical Drawing 3D Model
12AV2500-P	Through Hole	Single	Proportional	12	+2500	1.25	Datasheet Mechanical Drawing 3D Model
12AV2500-N	Through Hole	Single	Proportional	12	-2500	1.25	Datasheet Mechanical Drawing 3D Model
12AV2500	Through Hole	Single	Proportional	12	2500	1.25	Datasheet Mechanical Drawing 3D Model
12AV2000-P	Through Hole	Single	Proportional	12	+2000	1.25	Datasheet Mechanical Drawing 3D Model
12AV2000-N	Through Hole	Single	Proportional	12	-2000	1.25	Datasheet Mechanical Drawing 3D Model
12AV2000	Through Hole	Single	Proportional	12	2000	1.25	Datasheet Mechanical Drawing 3D Model
12AV1500-P	Through Hole	Single	Proportional	12	+1500	1.25	Datasheet Mechanical Drawing 3D Model
12AV1500-N	Through Hole	Single	Proportional	12	-1500	1.25	Datasheet Mechanical Drawing 3D Model
12AV1500	Through Hole	Single	Proportional	12	1500	1.25	Datasheet Mechanical Drawing 3D Model

Series AV (1500-10kV)

1.25W Isolated/Non-isolated Proportional High Voltage DC-DC Converter

Custom Solutions

Features

Options
