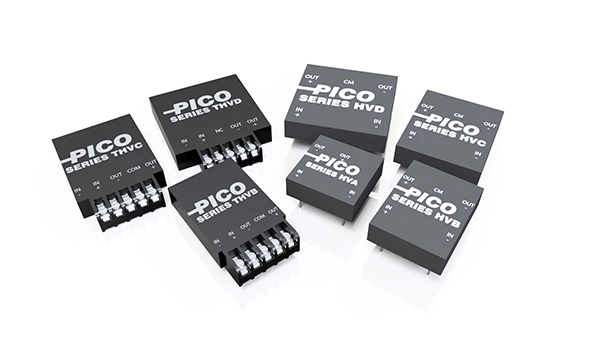

Series HV & THV

3-15W Isolated Regulated Low Profile DC-DC Converter

The HV series are regulated DC-DC converters with a wide 70 to 170V input range and low profile – 0.500″. Over 75 models are available in both single and dual outputs, through hole and terminal strip. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Features

  • Up to 15W output models
  • Encapsulated semiconductors, conservatively rated for maximum reliability
  • Low profile – down to 0.500” height
  • Wide input voltage range – 70 to 170V
  • 3.3 to 48V output models
  • Up to 1000VDC isolation at 100MΩ
  • Input/output isolation
  • Single and dual output
  • No heat sink or derating required
  • No external components required

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Metho 1015
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Mounting

# of Outputs

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Part Number SeriesMounting# of OutputsOutput TypeNominal Input Voltage (VDC)Input Voltage Range (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
THVD5STHVTerminal StripSingleRegulated12570 – 170510
THVD5DTHVTerminal StripDualRegulated12570 – 170±5±5
THVD5.2STHVTerminal StripSingleRegulated12570 – 1705.210
THVD48STHVTerminal StripSingleRegulated12570 – 1704815
THVD3.3STHVTerminal StripSingleRegulated12570 – 1703.36
THVD28STHVTerminal StripSingleRegulated12570 – 1702815
THVD24STHVTerminal StripSingleRegulated12570 – 1702415
THVD15STHVTerminal StripSingleRegulated12570 – 1701515
THVD15DTHVTerminal StripDualRegulated12570 – 170±15±7.5
THVD12STHVTerminal StripSingleRegulated12570 – 1701215
THVD12DTHVTerminal StripDualRegulated12570 – 170±12±7.5
THVC5STHVTerminal StripSingleRegulated12570 – 17058
THVC5DTHVTerminal StripDualRegulated12570 – 170±5±4
THVC5.2STHVTerminal StripSingleRegulated12570 – 1705.28
THVC48STHVTerminal StripSingleRegulated12570 – 1704810
THVC3.3STHVTerminal StripSingleRegulated12570 – 1703.35
THVC28STHVTerminal StripSingleRegulated12570 – 1702810
THVC24STHVTerminal StripSingleRegulated12570 – 1702410
THVC15STHVTerminal StripSingleRegulated12570 – 1701510
THVC15DTHVTerminal StripDualRegulated12570 – 170±15±5
THVC12STHVTerminal StripSingleRegulated12570 – 1701210
THVC12DTHVTerminal StripDualRegulated12570 – 170±12±5
THVB5STHVTerminal StripSingleRegulated12570 – 17055
THVB5DTHVTerminal StripDualRegulated12570 – 170±5±2.5
THVB5.2STHVTerminal StripSingleRegulated12570 – 1705.25
THVB48STHVTerminal StripSingleRegulated12570 – 170485
THVB3.3STHVTerminal StripSingleRegulated12570 – 1703.33.3
THVB28STHVTerminal StripSingleRegulated12570 – 170285
THVB24STHVTerminal StripSingleRegulated12570 – 170245
THVB15STHVTerminal StripSingleRegulated12570 – 170155
THVB15DTHVTerminal StripDualRegulated12570 – 170±15±2.5
THVB12STHVTerminal StripSingleRegulated12570 – 170125
THVB12DTHVTerminal StripDualRegulated12570 – 170±12±2.5
HVD5SHVThrough HoleSingleRegulated12570 – 170510
HVD5DHVThrough HoleDualRegulated12570 – 170±5±5
HVD5.2SHVThrough HoleSingleRegulated12570 – 1705.210
HVD48SHVThrough HoleSingleRegulated12570 – 1704815
HVD3.3SHVThrough HoleSingleRegulated12570 – 1703.36
HVD28SHVThrough HoleSingleRegulated12570 – 1702815
HVD24SHVThrough HoleSingleRegulated12570 – 1702415
HVD15SHVThrough HoleSingleRegulated12570 – 1701515
HVD15DHVThrough HoleDualRegulated12570 – 170±15±7.5
HVD12SHVThrough HoleSingleRegulated12570 – 1701215
HVD12DHVThrough HoleDualRegulated12570 – 170±12±7.5
HVC5SHVThrough HoleSingleRegulated12570 – 17058
HVC5DHVThrough HoleDualRegulated12570 – 170±5±4
HVC5.2SHVThrough HoleSingleRegulated12570 – 1705.28
HVC48SHVThrough HoleSingleRegulated12570 – 1704810
HVC3.3SHVThrough HoleSingleRegulated12570 – 1703.35
HVC28SHVThrough HoleSingleRegulated12570 – 1702810
HVC24SHVThrough HoleSingleRegulated12570 – 1702410
HVC15SHVThrough HoleSingleRegulated12570 – 1701510
HVC15DHVThrough HoleDualRegulated12570 – 170±15±5
HVC12SHVThrough HoleSingleRegulated12570 – 1701210
HVC12DHVThrough HoleDualRegulated12570 – 170±12±5
HVB5SHVThrough HoleSingleRegulated12570 – 17055
HVB5DHVThrough HoleDualRegulated12570 – 170±5±2.5
HVB5.2SHVThrough HoleSingleRegulated12570 – 1705.25
HVB48SHVThrough HoleSingleRegulated12570 – 170485
HVB3.3SHVThrough HoleSingleRegulated12570 – 1703.33.3
HVB28SHVThrough HoleSingleRegulated12570 – 170285
HVB24SHVThrough HoleSingleRegulated12570 – 170245
HVB15SHVThrough HoleSingleRegulated12570 – 170155
HVB15DHVThrough HoleDualRegulated12570 – 170±15±2.5
HVB12SHVThrough HoleSingleRegulated12570 – 170125
HVB12DHVThrough HoleDualRegulated12570 – 170±12±2.5
HVA5SHVThrough HoleSingleRegulated12570 – 17053
HVA5DHVThrough HoleDualRegulated12570 – 170±5±1.5
HVA5.2SHVThrough HoleSingleRegulated12570 – 1705.23
HVA3.3SHVThrough HoleSingleRegulated12570 – 1703.32
HVA28SHVThrough HoleSingleRegulated12570 – 170283
HVA24SHVThrough HoleSingleRegulated12570 – 170243
HVA15SHVThrough HoleSingleRegulated12570 – 170153
HVA15DHVThrough HoleDualRegulated12570 – 170±15±1.5
HVA12SHVThrough HoleSingleRegulated12570 – 170123
HVA12DHVThrough HoleDualRegulated12570 – 170±12±1.5
