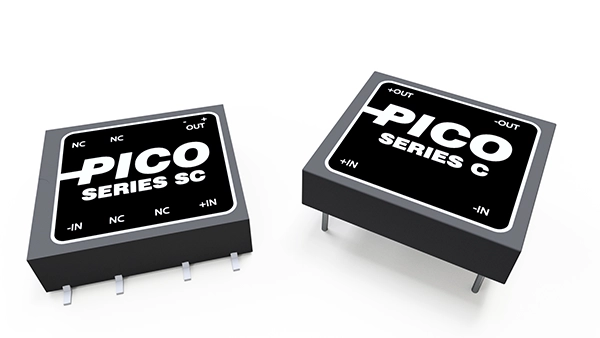

Series C & SC render 1

Series C & SC

4W Isolated Proportional Low Profile DC-DC Converter

The C & SC series are unregulated DC-DC converters in an ultra-miniature encapsulated package – 1.24″ x 1.12″ footprint and low profile – 0.3″. Over 180 models are available in both single and dual outputs. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • Up to 4W output at +70°C ambient
  • Encapsulated semiconductors, conservatively rated for maximum reliability
  • Ultra-miniature size – down to 0.300” height
  • 5 to 48V input models
  • Up to 48V output models
  • Output voltage is directly proportional to input voltage
  • 500VDC isolation at 100MΩ
  • Input/output isolation
  • Single and isolated dual output
  • No heat sink or derating required

Options

  • Expanded operating temp: -55°C to +85°C
  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Available RoHS Compliant module
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power

Mounting

# of Outputs

Nominal Input Voltage (VDC)

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Part Number SeriesMounting# of OutputsOutput TypeNominal Input Voltage (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
5SC9SSCSurface MountSingleProportional593 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC9DSCSurface MountDualProportional5 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SC5SSCSurface MountSingleProportional552.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC5DSCSurface MountDualProportional5 – – 5/51.25/1.25
DatasheetMechanical DrawingLand Pattern3D Model
5SC5.2SSCSurface MountSingleProportional55.22.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC48SSCSurface MountSingleProportional5483 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC48DSCSurface MountDualProportional5 – – 48/481.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SC3.3SSCSurface MountSingleProportional53.32.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC28SSCSurface MountSingleProportional5283 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC28DSCSurface MountDualProportional5 – – 28/281.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SC24SSCSurface MountSingleProportional5243 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC24DSCSurface MountDualProportional5 – – 24/241.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SC15SSCSurface MountSingleProportional5153 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC15DSCSurface MountDualProportional5 – – 15/151.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
5SC12SSCSurface MountSingleProportional5123 – –
DatasheetMechanical DrawingLand Pattern3D Model
5SC12DSCSurface MountDualProportional5 – – 12/121.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
5C9SCThrough HoleSingleProportional593 – –
DatasheetMechanical Drawing3D Model
5C9DCThrough HoleDualProportional5 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
5C5SCThrough HoleSingleProportional552.5 – –
DatasheetMechanical Drawing3D Model
5C5DCThrough HoleDualProportional5 – – 5/51.25/1.25
DatasheetMechanical Drawing3D Model
5C5.2SCThrough HoleSingleProportional55.22.5 – –
DatasheetMechanical Drawing3D Model
5C48SCThrough HoleSingleProportional5483 – –
DatasheetMechanical Drawing3D Model
5C48DCThrough HoleDualProportional5 – – 48/481.5/1.5
DatasheetMechanical Drawing3D Model
5C3.3SCThrough HoleSingleProportional53.32.5 – –
DatasheetMechanical Drawing3D Model
5C28SCThrough HoleSingleProportional5283 – –
DatasheetMechanical Drawing3D Model
5C28DCThrough HoleDualProportional5 – – 28/281.5/1.5
DatasheetMechanical Drawing3D Model
5C24SCThrough HoleSingleProportional5243 – –
DatasheetMechanical Drawing3D Model
5C24DCThrough HoleDualProportional5 – – 24/241.5/1.5
DatasheetMechanical Drawing3D Model
5C15SCThrough HoleSingleProportional5153 – –
DatasheetMechanical Drawing3D Model
5C15DCThrough HoleDualProportional5 – – 15/151.5/1.5
DatasheetMechanical Drawing3D Model
5C12SCThrough HoleSingleProportional5123 – –
DatasheetMechanical Drawing3D Model
5C12DCThrough HoleDualProportional5 – – 12/121.5/1.5
DatasheetMechanical Drawing3D Model
48SC9SSCSurface MountSingleProportional4893 – –
DatasheetMechanical DrawingLand Pattern3D Model
48SC9DSCSurface MountDualProportional48 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
48SC5SSCSurface MountSingleProportional4852.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
48SC5DSCSurface MountDualProportional48 – – 5/51.25/1.25
DatasheetMechanical DrawingLand Pattern3D Model
48SC5.2SSCSurface MountSingleProportional485.22.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
48SC3.3SSCSurface MountSingleProportional483.32.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
48SC28SSCSurface MountSingleProportional48284 – –
DatasheetMechanical DrawingLand Pattern3D Model
48SC28DSCSurface MountDualProportional48 – – 28/282/2
DatasheetMechanical DrawingLand Pattern3D Model
48SC24SSCSurface MountSingleProportional48244 – –
DatasheetMechanical DrawingLand Pattern3D Model
48SC24DSCSurface MountDualProportional48 – – 24/242/2
DatasheetMechanical DrawingLand Pattern3D Model
48SC15SSCSurface MountSingleProportional48153.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
48SC15DSCSurface MountDualProportional48 – – 15/151.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
48SC12SSCSurface MountSingleProportional48123.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
48SC12DSCSurface MountDualProportional48 – – 12/121.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
48C9SCThrough HoleSingleProportional4893 – –
DatasheetMechanical Drawing3D Model
48C9DCThrough HoleDualProportional48 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
48C5SCThrough HoleSingleProportional4852.5 – –
DatasheetMechanical Drawing3D Model
48C5DCThrough HoleDualProportional48 – – 5/51.25/1.25
DatasheetMechanical Drawing3D Model
48C5.2SCThrough HoleSingleProportional485.22.5 – –
DatasheetMechanical Drawing3D Model
48C3.3SCThrough HoleSingleProportional483.32.5 – –
DatasheetMechanical Drawing3D Model
48C28SCThrough HoleSingleProportional48284 – –
DatasheetMechanical Drawing3D Model
48C28DCThrough HoleDualProportional48 – – 28/282/2
DatasheetMechanical Drawing3D Model
48C24SCThrough HoleSingleProportional48244 – –
DatasheetMechanical Drawing3D Model
48C24DCThrough HoleDualProportional48 – – 24/242/2
DatasheetMechanical Drawing3D Model
48C15SCThrough HoleSingleProportional48153.5 – –
DatasheetMechanical Drawing3D Model
48C15DCThrough HoleDualProportional48 – – 15/151.75/1.75
DatasheetMechanical Drawing3D Model
48C12SCThrough HoleSingleProportional48123.5 – –
DatasheetMechanical Drawing3D Model
48C12DCThrough HoleDualProportional48 – – 12/121.75/1.75
DatasheetMechanical Drawing3D Model
28SC9SSCSurface MountSingleProportional2893 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC9DSCSurface MountDualProportional28 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
28SC5SSCSurface MountSingleProportional2852.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC5DSCSurface MountDualProportional28 – – 5/51.25/1.25
DatasheetMechanical DrawingLand Pattern3D Model
28SC5.2SSCSurface MountSingleProportional285.22.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC48SSCSurface MountSingleProportional28484 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC48DSCSurface MountDualProportional28 – – 48/482/2
DatasheetMechanical DrawingLand Pattern3D Model
28SC3.3SSCSurface MountSingleProportional283.32.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC28SSCSurface MountSingleProportional28284 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC28DSCSurface MountDualProportional28 – – 28/282/2
DatasheetMechanical DrawingLand Pattern3D Model
28SC24SSCSurface MountSingleProportional28244 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC24DSCSurface MountDualProportional28 – – 24/242/2
DatasheetMechanical DrawingLand Pattern3D Model
28SC15SSCSurface MountSingleProportional28153.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC15DSCSurface MountDualProportional28 – – 15/151.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
28SC12SSCSurface MountSingleProportional28123.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
28SC12DSCSurface MountDualProportional28 – – 12/121.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
28C9SCThrough HoleSingleProportional2893 – –
DatasheetMechanical Drawing3D Model
28C9DCThrough HoleDualProportional28 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
28C5SCThrough HoleSingleProportional2852.5 – –
DatasheetMechanical Drawing3D Model
28C5DCThrough HoleDualProportional28 – – 5/51.25/1.25
DatasheetMechanical Drawing3D Model
28C5.2SCThrough HoleSingleProportional285.22.5 – –
DatasheetMechanical Drawing3D Model
28C48SCThrough HoleSingleProportional28484 – –
DatasheetMechanical Drawing3D Model
28C48DCThrough HoleDualProportional28 – – 48/482/2
DatasheetMechanical Drawing3D Model
28C3.3SCThrough HoleSingleProportional283.32.5 – –
DatasheetMechanical Drawing3D Model
28C28SCThrough HoleSingleProportional28284 – –
DatasheetMechanical Drawing3D Model
28C28DCThrough HoleDualProportional28 – – 28/282/2
DatasheetMechanical Drawing3D Model
28C24SCThrough HoleSingleProportional28244 – –
DatasheetMechanical Drawing3D Model
28C24DCThrough HoleDualProportional28 – – 24/242/2
DatasheetMechanical Drawing3D Model
28C15SCThrough HoleSingleProportional28153.5 – –
DatasheetMechanical Drawing3D Model
28C15DCThrough HoleDualProportional28 – – 15/151.75/1.75
DatasheetMechanical Drawing3D Model
28C12SCThrough HoleSingleProportional28123.5 – –
DatasheetMechanical Drawing3D Model
28C12DCThrough HoleDualProportional28 – – 12/121.75/1.75
DatasheetMechanical Drawing3D Model
24SC9SSCSurface MountSingleProportional2493 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC9DSCSurface MountDualProportional24 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
24SC5SSCSurface MountSingleProportional2452.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC5DSCSurface MountDualProportional24 – – 5/51.25/1.25
DatasheetMechanical DrawingLand Pattern3D Model
24SC5.2SSCSurface MountSingleProportional245.22.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC48SSCSurface MountSingleProportional24484 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC48DSCSurface MountDualProportional24 – – 48/482/2
DatasheetMechanical DrawingLand Pattern3D Model
24SC3.3SSCSurface MountSingleProportional243.32.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC28SSCSurface MountSingleProportional24284 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC28DSCSurface MountDualProportional24 – – 28/282/2
DatasheetMechanical DrawingLand Pattern3D Model
24SC24SSCSurface MountSingleProportional24244 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC24DSCSurface MountDualProportional24 – – 24/242/2
DatasheetMechanical DrawingLand Pattern3D Model
24SC15SSCSurface MountSingleProportional24153.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC15DSCSurface MountDualProportional24 – – 15/151.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
24SC12SSCSurface MountSingleProportional24123.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
24SC12DSCSurface MountDualProportional24 – – 12/121.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
24C9SCThrough HoleSingleProportional2493 – –
DatasheetMechanical Drawing3D Model
24C9DCThrough HoleDualProportional24 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
24C5SCThrough HoleSingleProportional2452.5 – –
DatasheetMechanical Drawing3D Model
24C5DCThrough HoleDualProportional24 – – 5/51.25/1.25
DatasheetMechanical Drawing3D Model
24C5.2SCThrough HoleSingleProportional245.22.5 – –
DatasheetMechanical Drawing3D Model
24C48SCThrough HoleSingleProportional24484 – –
DatasheetMechanical Drawing3D Model
24C48DCThrough HoleDualProportional24 – – 48/482/2
DatasheetMechanical Drawing3D Model
24C3.3SCThrough HoleSingleProportional243.32.5 – –
DatasheetMechanical Drawing3D Model
24C28SCThrough HoleSingleProportional24284 – –
DatasheetMechanical Drawing3D Model
24C28DCThrough HoleDualProportional24 – – 28/282/2
DatasheetMechanical Drawing3D Model
24C24SCThrough HoleSingleProportional24244 – –
DatasheetMechanical Drawing3D Model
24C24DCThrough HoleDualProportional24 – – 24/242/2
DatasheetMechanical Drawing3D Model
24C15SCThrough HoleSingleProportional24153.5 – –
DatasheetMechanical Drawing3D Model
24C15DCThrough HoleDualProportional24 – – 15/151.75/1.75
DatasheetMechanical Drawing3D Model
24C12SCThrough HoleSingleProportional24123.5 – –
DatasheetMechanical Drawing3D Model
24C12DCThrough HoleDualProportional24 – – 12/121.75/1.75
DatasheetMechanical Drawing3D Model
15SC9SSCSurface MountSingleProportional1593 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC9DSCSurface MountDualProportional15 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
15SC5SSCSurface MountSingleProportional1552.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC5DSCSurface MountDualProportional15 – – 5/51.25/1.25
DatasheetMechanical DrawingLand Pattern3D Model
15SC5.2SSCSurface MountSingleProportional155.22.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC48SSCSurface MountSingleProportional15484 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC48DSCSurface MountDualProportional15 – – 48/482/2
DatasheetMechanical DrawingLand Pattern3D Model
15SC3.3SSCSurface MountSingleProportional153.32.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC28SSCSurface MountSingleProportional15284 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC28DSCSurface MountDualProportional15 – – 28/282/2
DatasheetMechanical DrawingLand Pattern3D Model
15SC24SSCSurface MountSingleProportional15244 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC24DSCSurface MountDualProportional15 – – 24/242/2
DatasheetMechanical DrawingLand Pattern3D Model
15SC15SSCSurface MountSingleProportional15154 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC15DSCSurface MountDualProportional15 – – 15/152/2
DatasheetMechanical DrawingLand Pattern3D Model
15SC12SSCSurface MountSingleProportional15123.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
15SC12DSCSurface MountDualProportional15 – – 12/121.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
15C9SCThrough HoleSingleProportional1593 – –
DatasheetMechanical Drawing3D Model
15C9DCThrough HoleDualProportional15 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
15C5SCThrough HoleSingleProportional1552.5 – –
DatasheetMechanical Drawing3D Model
15C5DCThrough HoleDualProportional15 – – 5/51.25/1.25
DatasheetMechanical Drawing3D Model
15C5.2SCThrough HoleSingleProportional155.22.5 – –
DatasheetMechanical Drawing3D Model
15C48SCThrough HoleSingleProportional15484 – –
DatasheetMechanical Drawing3D Model
15C48DCThrough HoleDualProportional15 – – 48/482/2
DatasheetMechanical Drawing3D Model
15C3.3SCThrough HoleSingleProportional153.32.5 – –
DatasheetMechanical Drawing3D Model
15C28SCThrough HoleSingleProportional15284 – –
DatasheetMechanical Drawing3D Model
15C28DCThrough HoleDualProportional15 – – 28/282/2
DatasheetMechanical Drawing3D Model
15C24SCThrough HoleSingleProportional15244 – –
DatasheetMechanical Drawing3D Model
15C24DCThrough HoleDualProportional15 – – 24/242/2
DatasheetMechanical Drawing3D Model
15C15SCThrough HoleSingleProportional15154 – –
DatasheetMechanical Drawing3D Model
15C15DCThrough HoleDualProportional15 – – 15/152/2
DatasheetMechanical Drawing3D Model
15C12SCThrough HoleSingleProportional15123.5 – –
DatasheetMechanical Drawing3D Model
15C12DCThrough HoleDualProportional15 – – 12/121.75/1.75
DatasheetMechanical Drawing3D Model
12SC9SSCSurface MountSingleProportional1293 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC9DSCSurface MountDualProportional12 – – 9/91.5/1.5
DatasheetMechanical DrawingLand Pattern3D Model
12SC5SSCSurface MountSingleProportional1252.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC5DSCSurface MountDualProportional12 – – 5/51.25/1.25
DatasheetMechanical DrawingLand Pattern3D Model
12SC5.2SSCSurface MountSingleProportional125.22.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC48SSCSurface MountSingleProportional12484 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC48DSCSurface MountDualProportional12 – – 48/482/2
DatasheetMechanical DrawingLand Pattern3D Model
12SC3.3SSCSurface MountSingleProportional123.32.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC28SSCSurface MountSingleProportional12284 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC28DSCSurface MountDualProportional12 – – 28/282/2
DatasheetMechanical DrawingLand Pattern3D Model
12SC24SSCSurface MountSingleProportional12244 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC24DSCSurface MountDualProportional12 – – 24/242/2
DatasheetMechanical DrawingLand Pattern3D Model
12SC15SSCSurface MountSingleProportional12154 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC15DSCSurface MountDualProportional12 – – 15/152/2
DatasheetMechanical DrawingLand Pattern3D Model
12SC12SSCSurface MountSingleProportional12123.5 – –
DatasheetMechanical DrawingLand Pattern3D Model
12SC12DSCSurface MountDualProportional12 – – 12/121.75/1.75
DatasheetMechanical DrawingLand Pattern3D Model
12C9SCThrough HoleSingleProportional1293 – –
DatasheetMechanical Drawing3D Model
12C9DCThrough HoleDualProportional12 – – 9/91.5/1.5
DatasheetMechanical Drawing3D Model
12C5SCThrough HoleSingleProportional1252.5 – –
DatasheetMechanical Drawing3D Model
12C5DCThrough HoleDualProportional12 – – 5/51.25/1.25
DatasheetMechanical Drawing3D Model
12C5.2SCThrough HoleSingleProportional125.22.5 – –
DatasheetMechanical Drawing3D Model
12C48SCThrough HoleSingleProportional12484 – –
DatasheetMechanical Drawing3D Model
12C48DCThrough HoleDualProportional12 – – 48/482/2
DatasheetMechanical Drawing3D Model
12C3.3SCThrough HoleSingleProportional123.32.5 – –
DatasheetMechanical Drawing3D Model
12C28SCThrough HoleSingleProportional12284 – –
DatasheetMechanical Drawing3D Model
12C28DCThrough HoleDualProportional12 – – 28/282/2
DatasheetMechanical Drawing3D Model
12C24SCThrough HoleSingleProportional12244 – –
DatasheetMechanical Drawing3D Model
12C24DCThrough HoleDualProportional12 – – 24/242/2
DatasheetMechanical Drawing3D Model
12C15SCThrough HoleSingleProportional12154 – –
DatasheetMechanical Drawing3D Model
12C15DCThrough HoleDualProportional12 – – 15/152/2
DatasheetMechanical Drawing3D Model
12C12SCThrough HoleSingleProportional12123.5 – –
DatasheetMechanical Drawing3D Model
12C12DCThrough HoleDualProportional12 – – 12/121.75/1.75
DatasheetMechanical Drawing3D Model
