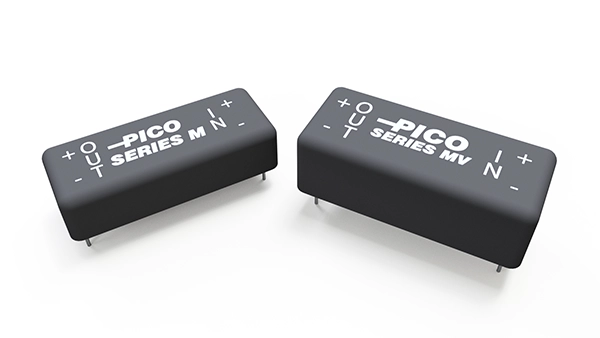

Series M & MV render 1

Series M & MV

1.25W Isolated Proportional Low Profile DC-DC Converter

The M & MV series are unregulated DC-DC converters with upgraded MIL screened / qualified components and expanded operating temperature range. The epoxy insulated shielded case is in an ultra-miniature encapsulated package – as small as 1.250″ x 0.500″ x 0.300″. Over 100 models are available in both single and dual isolated outputs as well as high output voltages – up to 500V. They can operate over the wide temperature range of -55°C to +85°C without derating, a heat sink or active cooling.

Download Datasheet

Custom Solutions

Didn’t find exactly what you need or need a slight change?

Submit your custom specifications

Features

  • JANTX Diodes
  • MIL screened transformers, capacitors and resistors
  • Hermetically sealed transistors
  • Up to 1.25W output at +85°C ambient
  • Encapsulated semiconductors, conservatively rated for maximum reliability
  • Ultra-miniature size – down to 0.300” height
  • 5 to 48V input models
  • Up to 500V output models
  • Output voltage is directly proportional to input voltage
  • Up to 1000VDC isolation at 100MΩ
  • Five-sided or six-sided shielded case
  • Single and dual isolated output
  • No heat sink or derating required

Options

  • Select screening per MIL-STD-883:
    • Stabilization Bake: Ref. Method 1008
    • Temperature Cycle: Ref. Method 1010
    • Burn-In: Ref. Method 1015
  • Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
  • Tighter output voltage tolerances

# of Outputs

Nominal Input Voltage (VDC)

Single Output Voltage (VDC)

Single Max Output Power (W)

Dual Output Voltage (VDC)

Dual Max Output Power (W)

Temperature Range

Part Number SeriesMounting# of OutputsOutput TypeNominal Input Voltage (VDC)Single Output Voltage (VDC)Single Max Output Power (W)Dual Output Voltage (VDC)Dual Max Output Power (W)Downloads
5MV500MVThrough HoleSingleProportional55001.25 – –
DatasheetMechanical Drawing3D Model
5MV450MVThrough HoleSingleProportional54501.25 – –
DatasheetMechanical Drawing3D Model
5MV400MVThrough HoleSingleProportional54001.25 – –
DatasheetMechanical Drawing3D Model
5MV350MVThrough HoleSingleProportional53501.25 – –
DatasheetMechanical Drawing3D Model
5MV300MVThrough HoleSingleProportional53001.25 – –
DatasheetMechanical Drawing3D Model
5MV250MVThrough HoleSingleProportional52501.25 – –
DatasheetMechanical Drawing3D Model
5MV200MVThrough HoleSingleProportional52001.25 – –
DatasheetMechanical Drawing3D Model
5MV150MVThrough HoleSingleProportional51501.25 – –
DatasheetMechanical Drawing3D Model
5MV100MVThrough HoleSingleProportional51001.25 – –
DatasheetMechanical Drawing3D Model
5M9SMThrough HoleSingleProportional591.25 – –
DatasheetMechanical Drawing3D Model
5M9DMThrough HoleDualProportional5 – – 9/90.625/0.625
DatasheetMechanical Drawing3D Model
5M5SMThrough HoleSingleProportional551 – –
DatasheetMechanical Drawing3D Model
5M5DMThrough HoleDualProportional5 – – 5/50.5/0.5
DatasheetMechanical Drawing3D Model
5M5.2SMThrough HoleSingleProportional55.21 – –
DatasheetMechanical Drawing3D Model
5M48SMThrough HoleSingleProportional5481.25 – –
DatasheetMechanical Drawing3D Model
5M48DMThrough HoleDualProportional5 – – 48/480.625/0.625
DatasheetMechanical Drawing3D Model
5M3.3SMThrough HoleSingleProportional53.31 – –
DatasheetMechanical Drawing3D Model
5M28SMThrough HoleSingleProportional5281.25 – –
DatasheetMechanical Drawing3D Model
5M28DMThrough HoleDualProportional5 – – 28/280.625/0.625
DatasheetMechanical Drawing3D Model
5M24SMThrough HoleSingleProportional5241.25 – –
DatasheetMechanical Drawing3D Model
5M24DMThrough HoleDualProportional5 – – 24/240.625/0.625
DatasheetMechanical Drawing3D Model
5M15SMThrough HoleSingleProportional5151.25 – –
DatasheetMechanical Drawing3D Model
5M15DMThrough HoleDualProportional5 – – 15/150.625/0.625
DatasheetMechanical Drawing3D Model
5M12SMThrough HoleSingleProportional5121.25 – –
DatasheetMechanical Drawing3D Model
5M12DMThrough HoleDualProportional5 – – 12/120.625/0.625
DatasheetMechanical Drawing3D Model
28MV500MVThrough HoleSingleProportional285001.25 – –
DatasheetMechanical Drawing3D Model
28MV450MVThrough HoleSingleProportional284501.25 – –
DatasheetMechanical Drawing3D Model
28MV400MVThrough HoleSingleProportional284001.25 – –
DatasheetMechanical Drawing3D Model
28MV350MVThrough HoleSingleProportional283501.25 – –
DatasheetMechanical Drawing3D Model
28MV300MVThrough HoleSingleProportional283001.25 – –
DatasheetMechanical Drawing3D Model
28MV250MVThrough HoleSingleProportional282501.25 – –
DatasheetMechanical Drawing3D Model
28MV200MVThrough HoleSingleProportional282001.25 – –
DatasheetMechanical Drawing3D Model
28MV150MVThrough HoleSingleProportional281501.25 – –
DatasheetMechanical Drawing3D Model
28MV100MVThrough HoleSingleProportional281001.25 – –
DatasheetMechanical Drawing3D Model
28M9SMThrough HoleSingleProportional2891.25 – –
DatasheetMechanical Drawing3D Model
28M9DMThrough HoleDualProportional28 – – 9/90.625/0.625
DatasheetMechanical Drawing3D Model
28M5SMThrough HoleSingleProportional2851 – –
DatasheetMechanical Drawing3D Model
28M5DMThrough HoleDualProportional28 – – 5/50.5/0.5
DatasheetMechanical Drawing3D Model
28M5.2SMThrough HoleSingleProportional285.21 – –
DatasheetMechanical Drawing3D Model
28M48SMThrough HoleSingleProportional28481.25 – –
DatasheetMechanical Drawing3D Model
28M48DMThrough HoleDualProportional28 – – 48/480.625/0.625
DatasheetMechanical Drawing3D Model
28M3.3SMThrough HoleSingleProportional283.31 – –
DatasheetMechanical Drawing3D Model
28M28SMThrough HoleSingleProportional28281.25 – –
DatasheetMechanical Drawing3D Model
28M28DMThrough HoleDualProportional28 – – 28/280.625/0.625
DatasheetMechanical Drawing3D Model
28M24SMThrough HoleSingleProportional28241.25 – –
DatasheetMechanical Drawing3D Model
28M24DMThrough HoleDualProportional28 – – 24/240.625/0.625
DatasheetMechanical Drawing3D Model
28M15SMThrough HoleSingleProportional28151.25 – –
DatasheetMechanical Drawing3D Model
28M15DMThrough HoleDualProportional28 – – 15/150.625/0.625
DatasheetMechanical Drawing3D Model
28M12SMThrough HoleSingleProportional28121.25 – –
DatasheetMechanical Drawing3D Model
28M12DMThrough HoleDualProportional28 – – 12/120.625/0.625
DatasheetMechanical Drawing3D Model
24MV500MVThrough HoleSingleProportional245001.25 – –
DatasheetMechanical Drawing3D Model
24MV450MVThrough HoleSingleProportional244501.25 – –
DatasheetMechanical Drawing3D Model
24MV400MVThrough HoleSingleProportional244001.25 – –
DatasheetMechanical Drawing3D Model
24MV350MVThrough HoleSingleProportional243501.25 – –
DatasheetMechanical Drawing3D Model
24MV300MVThrough HoleSingleProportional243001.25 – –
DatasheetMechanical Drawing3D Model
24MV250MVThrough HoleSingleProportional242501.25 – –
DatasheetMechanical Drawing3D Model
24MV200MVThrough HoleSingleProportional242001.25 – –
DatasheetMechanical Drawing3D Model
24MV150MVThrough HoleSingleProportional241501.25 – –
DatasheetMechanical Drawing3D Model
24MV100MVThrough HoleSingleProportional241001.25 – –
DatasheetMechanical Drawing3D Model
24M9SMThrough HoleSingleProportional2491.25 – –
DatasheetMechanical Drawing3D Model
24M9DMThrough HoleDualProportional24 – – 9/90.625/0.625
DatasheetMechanical Drawing3D Model
24M5SMThrough HoleSingleProportional2451 – –
DatasheetMechanical Drawing3D Model
24M5DMThrough HoleDualProportional24 – – 5/50.5/0.5
DatasheetMechanical Drawing3D Model
24M5.2SMThrough HoleSingleProportional245.21 – –
DatasheetMechanical Drawing3D Model
24M48SMThrough HoleSingleProportional24481.25 – –
DatasheetMechanical Drawing3D Model
24M48DMThrough HoleDualProportional24 – – 48/480.625/0.625
DatasheetMechanical Drawing3D Model
24M3.3SMThrough HoleSingleProportional243.31 – –
DatasheetMechanical Drawing3D Model
24M28SMThrough HoleSingleProportional24281.25 – –
DatasheetMechanical Drawing3D Model
24M28DMThrough HoleDualProportional24 – – 28/280.625/0.625
DatasheetMechanical Drawing3D Model
24M24SMThrough HoleSingleProportional24241.25 – –
DatasheetMechanical Drawing3D Model
24M24DMThrough HoleDualProportional24 – – 24/240.625/0.625
DatasheetMechanical Drawing3D Model
24M15SMThrough HoleSingleProportional24151.25 – –
DatasheetMechanical Drawing3D Model
24M15DMThrough HoleDualProportional24 – – 15/150.625/0.625
DatasheetMechanical Drawing3D Model
24M12SMThrough HoleSingleProportional24121.25 – –
DatasheetMechanical Drawing3D Model
24M12DMThrough HoleDualProportional24 – – 12/120.625/0.625
DatasheetMechanical Drawing3D Model
15MV500MVThrough HoleSingleProportional155001.25 – –
DatasheetMechanical Drawing3D Model
15MV450MVThrough HoleSingleProportional154501.25 – –
DatasheetMechanical Drawing3D Model
15MV400MVThrough HoleSingleProportional154001.25 – –
DatasheetMechanical Drawing3D Model
15MV350MVThrough HoleSingleProportional153501.25 – –
DatasheetMechanical Drawing3D Model
15MV300MVThrough HoleSingleProportional153001.25 – –
DatasheetMechanical Drawing3D Model
15MV250MVThrough HoleSingleProportional152501.25 – –
DatasheetMechanical Drawing3D Model
15MV200MVThrough HoleSingleProportional152001.25 – –
DatasheetMechanical Drawing3D Model
15MV150MVThrough HoleSingleProportional151501.25 – –
DatasheetMechanical Drawing3D Model
15MV100MVThrough HoleSingleProportional151001.25 – –
DatasheetMechanical Drawing3D Model
15M9SMThrough HoleSingleProportional1591.25 – –
DatasheetMechanical Drawing3D Model
15M9DMThrough HoleDualProportional15 – – 9/90.625/0.625
DatasheetMechanical Drawing3D Model
15M5SMThrough HoleSingleProportional1551 – –
DatasheetMechanical Drawing3D Model
15M5DMThrough HoleDualProportional15 – – 5/50.5/0.5
DatasheetMechanical Drawing3D Model
15M5.2SMThrough HoleSingleProportional155.21 – –
DatasheetMechanical Drawing3D Model
15M48SMThrough HoleSingleProportional15481.25 – –
DatasheetMechanical Drawing3D Model
15M48DMThrough HoleDualProportional15 – – 48/480.625/0.625
DatasheetMechanical Drawing3D Model
15M3.3SMThrough HoleSingleProportional153.31 – –
DatasheetMechanical Drawing3D Model
15M28SMThrough HoleSingleProportional15281.25 – –
DatasheetMechanical Drawing3D Model
15M28DMThrough HoleDualProportional15 – – 28/280.625/0.625
DatasheetMechanical Drawing3D Model
15M24SMThrough HoleSingleProportional15241.25 – –
DatasheetMechanical Drawing3D Model
15M24DMThrough HoleDualProportional15 – – 24/240.625/0.625
DatasheetMechanical Drawing3D Model
15M15SMThrough HoleSingleProportional15151.25 – –
DatasheetMechanical Drawing3D Model
15M15DMThrough HoleDualProportional15 – – 15/150.625/0.625
DatasheetMechanical Drawing3D Model
15M12SMThrough HoleSingleProportional15121.25 – –
DatasheetMechanical Drawing3D Model
15M12DMThrough HoleDualProportional15 – – 12/120.625/0.625
DatasheetMechanical Drawing3D Model
12MV500MVThrough HoleSingleProportional125001.25 – –
DatasheetMechanical Drawing3D Model
12MV450MVThrough HoleSingleProportional124501.25 – –
DatasheetMechanical Drawing3D Model
12MV400MVThrough HoleSingleProportional124001.25 – –
DatasheetMechanical Drawing3D Model
12MV350MVThrough HoleSingleProportional123501.25 – –
DatasheetMechanical Drawing3D Model
12MV300MVThrough HoleSingleProportional123001.25 – –
DatasheetMechanical Drawing3D Model
12MV250MVThrough HoleSingleProportional122501.25 – –
DatasheetMechanical Drawing3D Model
12MV200MVThrough HoleSingleProportional122001.25 – –
DatasheetMechanical Drawing3D Model
12MV150MVThrough HoleSingleProportional121501.25 – –
DatasheetMechanical Drawing3D Model
12MV100MVThrough HoleSingleProportional121001.25 – –
DatasheetMechanical Drawing3D Model
12M9SMThrough HoleSingleProportional1291.25 – –
DatasheetMechanical Drawing3D Model
12M9DMThrough HoleDualProportional12 – – 9/90.625/0.625
DatasheetMechanical Drawing3D Model
12M5SMThrough HoleSingleProportional1251 – –
DatasheetMechanical Drawing3D Model
12M5DMThrough HoleDualProportional12 – – 5/50.5/0.5
DatasheetMechanical Drawing3D Model
12M5.2SMThrough HoleSingleProportional125.21 – –
DatasheetMechanical Drawing3D Model
12M48SMThrough HoleSingleProportional12481.25 – –
DatasheetMechanical Drawing3D Model
12M48DMThrough HoleDualProportional12 – – 48/480.625/0.625
DatasheetMechanical Drawing3D Model
12M3.3SMThrough HoleSingleProportional123.31 – –
DatasheetMechanical Drawing3D Model
12M28SMThrough HoleSingleProportional12281.25 – –
DatasheetMechanical Drawing3D Model
12M28DMThrough HoleDualProportional12 – – 28/280.625/0.625
DatasheetMechanical Drawing3D Model
12M24SMThrough HoleSingleProportional12241.25 – –
DatasheetMechanical Drawing3D Model
12M24DMThrough HoleDualProportional12 – – 24/240.625/0.625
DatasheetMechanical Drawing3D Model
12M15SMThrough HoleSingleProportional12151.25 – –
DatasheetMechanical Drawing3D Model
12M15DMThrough HoleDualProportional12 – – 15/150.625/0.625
DatasheetMechanical Drawing3D Model
12M12SMThrough HoleSingleProportional12121.25 – –
DatasheetMechanical Drawing3D Model
12M12DMThrough HoleDualProportional12 – – 12/120.625/0.625
DatasheetMechanical Drawing3D Model
